1. Introduction
Nonlinear phenomena are observed in many areas such as plasma physics, hydrodynamics, fluid mechanics, optics, and quantum electronics. For a better understanding of the tendency of these areas, one usually uses nonlinear partial differential equations (NLPDEs), particulary some interesting models arising from Boussinesq equation (see [28], [29]). Many mathematical approaches have been proposed to investigate the exact solitary wave solutions like, unified strategy [1], Painlevé approach [2], Wronskian formulation [3], linear superposition principle [4], Hirota bilinear method [5], inverse scattering method [8], invariant subspaces [9], Nucci’s reduction strategy [10], and symmetry reduction strategy [11].
The GKM is considered as a very convenient strategy to generate the analytical solutions of NLPDEs [16]. The fundamental concept was generalized to a so-called transformed rational function strategy [12], [13]. There are assorted sorts of Kudryashov strategies in the existing literature such as the Kudryashov procedure, extended Kudryashov procedure, and modifed Kudryashov procedure.
The ERFM is straight, simple, and effective to apply where it can be applied to a lot of NLPDEs for seeking exact traveling wave solutions. This procedure is advantageous since it applies to equations with a high balancing number. In other analytical solution procedures, as the balancing number becomes higher, the computational cost increases.
The METFM is an applicable strategy for lots of NLPDEs. With this method, we obtain a much wider solution family than the tanh and the extended tanh methods.
In our work, we are inspired to study essential equations in many physical applications, known as Mikhailov-Novikov-Wang equation (MNWEq), which can be expressed as follows:
$\begin{aligned} \Phi_{t t}= & \Phi_{x x x t}+8 \Phi_{x} \Phi_{x t}+4 \Phi_{x x} \Phi_{t} \\ & -2 \Phi_{x} \Phi_{x x x x}-4 \Phi_{x x} \Phi_{x x x}-24 \Phi_{x}^{2} \Phi_{x x} \end{aligned}$
This is an integrable equation with a dynamical behavior where by the differential polynomial ring’s extension, a well-known equation in nonlinear science, named Boussinesq equation, belongs to this classification [17], [38], [39]. Therefore, studying this equation can provide a good understanding to many interesting nonlinear scientific phenomena in physics and oceanography. This topic is of current research interests and the results provide an essential tool to understand nonlinear wave phenomena. In general, with the help of the Hirota bilinear method, N-soliton solutions can be systematically studied for both (1+1)-dimensional integrable equations [44] and (2+1)-dimensional integrable equations [45], [46]. In addition, other novel interesting equations in (2+1)-dimensions have been studied [47], [48].
Recently, several research works have been done on investigating various classes of differential equations in the sense of fractional calculus [20], [21], [30], [31], [32], [33], [34], [35], [36], [37] because fractional derivatives can provide a powerful tool for interpreting many physical systems that cannot be interpreted using the integer derivatives. Many systems possess a memory effect, therefore, there is a need for modeling such systems with the help of fractional derivatives. All fractional definitions have both advantages and disadvantages. To overcome the challenges of finding analytical solutions for certain systems modeled in the sense of nonlocal fractional derivatives, conformable derivative [49], type of local fractional derivative, can offer a simple tool to deal with several differential equations, particularly NLPDEs, by solving them analytically [6], [7], [25] in a very simple way in comparison to the classical fractional derivatives which may require some new and generalized numerical techniques and approximations (see [40], [41], [42], [43] for more related applications via conformable definition). Various recent studies have been dedicated to the mathematical analysis of fractional operators and conformable definition including their essential properties [14], [15], [19], [23], [26].
While some essential research studies related to ocean engineering and science have been recently conducted such as the investigation of the extended (2+1)-dimensional Boussinesq equation’s exact solutions via by the method of Lie symmetry analysis [50], 5th-order nonlinear water wave equation via the The Kudryashov methods [51], complex nonlinear Davey-Stewartson equations via the techniques of extended exponential function and Khater II [52], and (2+1)-dimensional Korteweg-De Vries equation with time-variable coefficients via the techniques of simplified Hirota and long wave [53], our study is unique and novel because the MNWEq is rarely discussed in other previous research students, and according to the best of our knowledge, it is the first time ever this particular equation has been studied using three different techniques which can offer new direction to understanding nonlinear wave phenomena that play an essential role in oceanography and costal engineering due the common relation between integrability and water waves’ phenomena.
Analytical solutions of this equation have been founded via the (G′/G)−expansion’s strategy [18]. The motivation of this current work is to generate new analytical solutions to the MNWEq and plot 3D graphs of the solutions. For this purpose, we implement GKM, ERFM, and METFM. Therefore, the physical meaning of the dealt model can be interpreted.
Next, this manuscript is divided into the following remaining sections: In Section 2, the adopted strategies will be presented. Section 3 provides new exact solutions and plots 3D graphs of the dealt model. Finally, we conclude our work in section 4.
2. Methodology
The methodology of three different approaches, namely GKM, ERFM, and METFM will be described respectively in this section.
The following NLPDE is considered:
where Φ and P represent an unknown function and a Φ’s polynomial with its partial derivatives, respectively. Firstly, to solve Eq. (2), a traveling wave transformation (TVS) is used as:
where the speed of the wave is represented by c. From TVS, Eq. (2) is reduced to ODE as:
Here prime denotes derivative w.r.t ξ. Eq. (4) should be integrated term by term once or more times.
2.1. The generalized Kudryashov method (GKM)
Conforming to this procedure, the reduced equation’s desired solution is formed by ’s polynomial as [16]:
where are constants to be determined ( , ) and is the solution of
The solution of Eq. (6) written as:
According to the principle of homogeneous balance (PHB), one can easily verify the positive integer N in Eq. (5) from Eq. (4). Finally, we can obtain a polynomial of K by subrogating Eq. (5)into Eq. (4) along with Eq. (7). Here, we equate all the coefficients of polynomial K to 0 to obtain an algebraic equation system. This system’s solutions with the assistance of computer software gives the values of . Finally, one may obtain the soliton-type solutions of the reduced Eq. (4) by substituting these obtained values and Eq. (6) into Eq. (5).
2.2. The exponential rational function method (ERFM)
Step 1. Let us suppose that the Eq. (4) solution can be constructed similarly to some previous studies concerning the analytical solutions to NLPDEs in the context of conformable derivative via the methods of simple equation and ERFM [22], and motivated by a generalized method of ERFM in [24] for solving exactly:
where are constants to be found later. Let us determine the integer N by balancing the highest order linear term (HOLT) with the highest order nonlinear term (HONLT) in Eq. (4).
Step 2. Substitution of Eq. (8) into Eq. (4) and collection every single term with the same order of (n=0,1,2,…) together make into the LHS of Eq. (4) another polynomial in . Then, all coefficients of this polynomial are equated to 0 yielding algebraic equations for undetermined parameters. Finally, when this equation system is solved, a variety of exact solutions for Eq. (2) is constructed.
2.3. The modified extended tanh-function method (METFM)
We will now deal with METFM to provide all necessary information. The explicit solution of Eq. (4) can be written as:
Here: $a_{0}, a_{i}, b_{i}(i=1, \ldots, N)$ are constants which need to be obtained. In addition, can not be zero together namely or N is the balance term calculated via PHB. In Eq. (9), satisfies the Riccati equation in the following form:
Here: b is a constant. The known solutions of the Riccati equation are given as follows:
Hyperbolic solutions: If b<0,the following solutions are given:
Trigonometric solutions: If b>0,the following solutions are given:
Rational solution: If b=0,the following solution is given:
If we put Eq. (9) and Eq. (10) in Eq. (4), we get a polynomials in Then, by equating each resulted polynomial’s coefficient to 0, an over-determined set of algebraic equations for $b, c, a_{0}, a_{i}, b_{i}(i=1, \ldots, N)$ is obtained. If we solve obtained system via MAPLE software, we get various values of Finally we get exact solutions of the given partial differential equation[27].
3. Mathematical analysis
In the current section, some MNWEq’s exact traveling wave solutions are constructed via GKM, ERFM, METFM.
The TVS is used in Eq. (3) for solving Eq. (1). If we apply Eq. (3) to Eq. (1), we obtain following ODE:
Then, by integrating the obtained ODE w.r.t ξ, we get: following ODE:
where J is the constant of integration. Putting ϕ instead of Φ′ in Eq. (15), we obtain following ODE:
3.1. Exact solutions via the GKM
Based on the principle of homogeneous balance, one may find that N=M+2. If we set M=1, we can obtain N=3. Therefore, we can express the solution as:
where is the solution of the Eq. (6). Then, we substitute Eq. (17) into Eq. (16) and utilize Eq. (6). Then, we equate all coefficients of the functions to 0. So, we can obtain the following equation system. Here and J are the parameters.
$\begin{array}{l} \begin{array}{l} R^{10}: 16 a_{3}^{2} b_{1}^{2}+8 a_{3}^{3} b_{1}=0 \\ R^{9}: 20 a_{2} a_{3} b_{1}^{2}-28 a_{3}^{2} b_{1}^{2}+8 a_{3}^{3} b_{0}+24 a_{2} a_{3}^{2} b_{1}+44 a_{3}^{2} b_{0} b_{1}=0 \\ R^{8}:-34 a_{2} a_{3} b_{1}^{2}+6 c a_{3}^{2} b_{1}^{2}+24 a_{2} a_{3}^{2} b_{0}+12 a_{3}^{2} b_{1}^{2}+58 a_{2} a_{3} b_{0} b_{1} \\ +6 c b_{1}^{3} a_{3}+5 a_{2}^{2} b_{1}^{2}+12 a_{1} a_{3} b_{1}^{2}-78 a_{3}^{2} b_{0} b_{1} \\ +24 a_{1} a_{3}^{2} b_{1}+24 a_{2}^{2} a_{3} b_{1}+33 a_{3}^{2} b_{0}^{2}=0, \\ R^{7}: 34 a_{3}^{2} b_{0} b_{1}-60 a_{3}^{2} b_{0}^{2}+24 a_{2}^{2} a_{3} b_{0}+8 a_{0} a_{3} b_{1}^{2}-20 a_{1} a_{3} b_{1}^{2} \\ +8 a_{2}^{3} b_{1}+4 a_{1} a_{2} b_{1}^{2}+36 a_{1} a_{3} b_{0} b_{1}-8 a_{2}^{2} b_{1}^{2}+48 a_{2} a_{3} b_{0}^{2} \\ -100 a_{2} a_{3} b_{0} b_{1}+12 c a_{3}^{2} b_{0} b_{1}+2 c b_{1}^{3} a_{2}-10 c b_{1}^{3} a_{3} \\ +24 a_{1} a_{3}^{2} b_{0}+24 a_{0} a_{3}^{2} b_{1}+48 a_{1} a_{2} a_{3} b_{1}+12 c a_{2} a_{3} b_{1}^{2} \\ +14 a_{2} a_{3} b_{1}^{2}+16 a_{2}^{2} b_{0} b_{1}+22 c b_{0} a_{3} b_{1}^{2}=0 \end{array}\\ R^{10}: 16 a_{3}^{2} b_{1}^{2}+8 a_{3}^{3} b_{1}=0\\ R^{9}: 20 a_{2} a_{3} b_{1}^{2}-28 a_{3}^{2} b_{1}^{2}+8 a_{3}^{3} b_{0}+24 a_{2} a_{3}^{2} b_{1}+44 a_{3}^{2} b_{0} b_{1}=0\\ R^{8}:-34 a_{2} a_{3} b_{1}^{2}+6 c a_{3}^{2} b_{1}^{2}+24 a_{2} a_{3}^{2} b_{0}+12 a_{3}^{2} b_{1}^{2}+58 a_{2} a_{3} b_{0} b_{1}\\ +6 c b_{1}^{3} a_{3}+5 a_{2}^{2} b_{1}^{2}+12 a_{1} a_{3} b_{1}^{2}-78 a_{3}^{2} b_{0} b_{1}\\ +24 a_{1} a_{3}^{2} b_{1}+24 a_{2}^{2} a_{3} b_{1}+33 a_{3}^{2} b_{0}^{2}=0,\\ R^{7}: 34 a_{3}^{2} b_{0} b_{1}-60 a_{3}^{2} b_{0}^{2}+24 a_{2}^{2} a_{3} b_{0}+8 a_{0} a_{3} b_{1}^{2}-20 a_{1} a_{3} b_{1}^{2}\\ +8 a_{2}^{3} b_{1}+4 a_{1} a_{2} b_{1}^{2}+36 a_{1} a_{3} b_{0} b_{1}-8 a_{2}^{2} b_{1}^{2}+48 a_{2} a_{3} b_{0}^{2}\\ -100 a_{2} a_{3} b_{0} b_{1}+12 c a_{3}^{2} b_{0} b_{1}+2 c b_{1}^{3} a_{2}-10 c b_{1}^{3} a_{3}\\ +24 a_{1} a_{3}^{2} b_{0}+24 a_{0} a_{3}^{2} b_{1}+48 a_{1} a_{2} a_{3} b_{1}+12 c a_{2} a_{3} b_{1}^{2}\\ +14 a_{2} a_{3} b_{1}^{2}+16 a_{2}^{2} b_{0} b_{1}+22 c b_{0} a_{3} b_{1}^{2}=0 \end{array}$
$\begin{array}{l} \begin{array}{l} R^{6}: 2 a_{0} a_{2} b_{1}^{2}+c^{2} a_{3} b_{1}^{3}-26 a_{2}^{2} b_{0} b_{1}+34 a_{1} a_{3} b_{0}^{2}+4 c b_{1}^{3} a_{3} \\ +16 a_{2}^{2} b_{0}^{2}+6 c a_{2}^{2} b_{1}^{2}+6 c a_{3}^{2} b_{0}^{2}+8 a_{1} a_{3} b_{1}^{2}-14 a_{0} a_{3} b_{1}^{2}-6 a_{1} a_{2} b_{1}^{2} \\ -3 c b_{1}^{3} a_{2}+24 a_{0} a_{3}^{2} b_{0}+24 a_{1}^{2} a_{3} b_{1}+24 a_{1} a_{2}^{2} b_{1}-86 a_{2} a_{3} b_{0}^{2} \\ +48 a_{0} a_{2} a_{3} b_{1}+22 a_{0} a_{3} b_{0} b_{1}+14 a_{1} a_{2} b_{0} b_{1}-60 a_{1} a_{3} b_{0} b_{1} \\ +42 a_{2} a_{3} b_{0} b_{1}+48 a_{1} a_{2} a_{3} b_{0}+8 c b_{0} a_{2} b_{1}^{2}-37 c b_{0} a_{3} b_{1}^{2} \\ +28 c b_{0}^{2} a_{3} b_{1}+12 c a_{1} a_{3} b_{1}^{2}+24 c a_{2} a_{3} b_{0} b_{1}+3 a_{2}^{2} b_{1}^{2} \\ +8 a_{2}^{3} b_{0}+27 a_{3}^{2} b_{0}^{2}=0 \\ R^{5}: 24 a_{0} a_{3} b_{0}^{2}+20 a_{1} a_{2} b_{0}^{2}-4 a_{0} a_{2} b_{1}^{2}+10 a_{2}^{2} b_{0} b_{1}-60 a_{1} a_{3} b_{0}^{2} \\ +c^{2} a_{2} b_{1}^{3}+12 c b_{0}^{3} a_{3}+4 a_{0} a_{2} b_{0} b_{1}-36 a_{0} a_{3} b_{0} b_{1}-20 a_{1} a_{2} b_{0} b_{1} \\ +24 a_{1} a_{3} b_{0} b_{1}-12 c b_{0} a_{2} b_{1}^{2}+15 c b_{0} a_{3} b_{1}^{2}+12 c b_{0}^{2} a_{2} b_{1} \\ -48 c b_{0}^{2} a_{3} b_{1}+24 c a_{1} a_{3} b_{0} b_{1}+12 c a_{0} a_{3} b_{1}^{2}+12 c a_{1} a_{2} b_{1}^{2} \\ -28 a_{2}^{2} b_{0}^{2}+24 a_{0} a_{2}^{2} b_{1}+24 a_{1}^{2} a_{2} b_{1}+24 a_{1}^{2} a_{3} b_{0}+24 a_{1} a_{2}^{2} b_{0} \\ +6 a_{0} a_{3} b_{1}^{2}+2 a_{1} a_{2} b_{1}^{2}+c b_{1}^{3} a_{2}+38 a_{2} a_{3} b_{0}^{2}+48 a_{0} a_{1} a_{3} b_{1} \\ +48 a_{0} a_{2} a_{3} b_{0}+3 c^{2} a_{3} b_{0} b_{1}^{2}+12 c a_{2} a_{3} b_{0}^{2}+12 c a_{2}^{2} b_{0} b_{1}=0, \\ R^{4}:-42 a_{0} a_{3} b_{0}^{2}-34 a_{1} a_{2} b_{0}^{2}+2 a_{0} a_{2} b_{1}^{2}+6 c b_{0}^{3} a_{2}-c b_{1}^{3} a_{0} \\ +26 a_{1} a_{3} b_{0}^{2}-6 a_{0} a_{1} b_{0} b_{1}-4 a_{0} a_{2} b_{0} b_{1}+14 a_{0} a_{3} b_{0} b_{1} \\ +6 a_{1} a_{2} b_{0} b_{1}+4 c b_{0} a_{2} b_{1}^{2}-19 c b_{0}^{2} a_{2} b_{1}+20 c b_{0}^{2} a_{3} b_{1} \\ +24 c a_{0} a_{3} b_{0} b_{1}+24 c a_{1} a_{2} b_{0} b_{1}+12 c a_{1} a_{3} b_{0}^{2}-21 c b_{0}^{3} a_{3} \\ +8 a_{1}^{3} b_{1}+J b_{1}^{4}+b_{1}^{2} a_{0}^{2}+12 a_{2}^{2} b_{0}^{2}+24 a_{0}^{2} a_{3} b_{1}+24 a_{0} a_{2}^{2} b_{0} \\ +24 a_{1}^{2} a_{2} b_{0}+6 c a_{2}^{2} b_{0}^{2}+6 c a_{1}^{2} b_{1}^{2}+12 a_{0} a_{2} b_{0}^{2}+2 a_{1}^{2} b_{0} b_{1} \\ -2 a_{1} b_{1}^{2} a_{0}+c^{2} a_{1} b_{1}^{3}+48 a_{0} a_{1} a_{3} b_{0}+12 c a_{0} a_{2} b_{1}^{2}+3 c^{2} a_{2} b_{0} b_{1}^{2} \\ +5 a_{1}^{2} b_{0}^{2}+3 c^{2} a_{3} b_{0}^{2} b_{1}+2 c b_{1} a_{1} b_{0}^{2}+c b_{1}^{2} a_{1} b_{0} \\ -2 c b_{1}^{2} a_{0} b_{0}+48 a_{0} a_{1} a_{2} b_{1}=0 \end{array}\\ R^{6}: 2 a_{0} a_{2} b_{1}^{2}+c^{2} a_{3} b_{1}^{3}-26 a_{2}^{2} b_{0} b_{1}+34 a_{1} a_{3} b_{0}^{2}+4 c b_{1}^{3} a_{3}\\ +16 a_{2}^{2} b_{0}^{2}+6 c a_{2}^{2} b_{1}^{2}+6 c a_{3}^{2} b_{0}^{2}+8 a_{1} a_{3} b_{1}^{2}-14 a_{0} a_{3} b_{1}^{2}-6 a_{1} a_{2} b_{1}^{2}\\ -3 c b_{1}^{3} a_{2}+24 a_{0} a_{3}^{2} b_{0}+24 a_{1}^{2} a_{3} b_{1}+24 a_{1} a_{2}^{2} b_{1}-86 a_{2} a_{3} b_{0}^{2}\\ +48 a_{0} a_{2} a_{3} b_{1}+22 a_{0} a_{3} b_{0} b_{1}+14 a_{1} a_{2} b_{0} b_{1}-60 a_{1} a_{3} b_{0} b_{1}\\ +42 a_{2} a_{3} b_{0} b_{1}+48 a_{1} a_{2} a_{3} b_{0}+8 c b_{0} a_{2} b_{1}^{2}-37 c b_{0} a_{3} b_{1}^{2}\\ +28 c b_{0}^{2} a_{3} b_{1}+12 c a_{1} a_{3} b_{1}^{2}+24 c a_{2} a_{3} b_{0} b_{1}+3 a_{2}^{2} b_{1}^{2}\\ +8 a_{2}^{3} b_{0}+27 a_{3}^{2} b_{0}^{2}=0\\ R^{5}: 24 a_{0} a_{3} b_{0}^{2}+20 a_{1} a_{2} b_{0}^{2}-4 a_{0} a_{2} b_{1}^{2}+10 a_{2}^{2} b_{0} b_{1}-60 a_{1} a_{3} b_{0}^{2}\\ +c^{2} a_{2} b_{1}^{3}+12 c b_{0}^{3} a_{3}+4 a_{0} a_{2} b_{0} b_{1}-36 a_{0} a_{3} b_{0} b_{1}-20 a_{1} a_{2} b_{0} b_{1}\\ +24 a_{1} a_{3} b_{0} b_{1}-12 c b_{0} a_{2} b_{1}^{2}+15 c b_{0} a_{3} b_{1}^{2}+12 c b_{0}^{2} a_{2} b_{1}\\ -48 c b_{0}^{2} a_{3} b_{1}+24 c a_{1} a_{3} b_{0} b_{1}+12 c a_{0} a_{3} b_{1}^{2}+12 c a_{1} a_{2} b_{1}^{2}\\ -28 a_{2}^{2} b_{0}^{2}+24 a_{0} a_{2}^{2} b_{1}+24 a_{1}^{2} a_{2} b_{1}+24 a_{1}^{2} a_{3} b_{0}+24 a_{1} a_{2}^{2} b_{0}\\ +6 a_{0} a_{3} b_{1}^{2}+2 a_{1} a_{2} b_{1}^{2}+c b_{1}^{3} a_{2}+38 a_{2} a_{3} b_{0}^{2}+48 a_{0} a_{1} a_{3} b_{1}\\ +48 a_{0} a_{2} a_{3} b_{0}+3 c^{2} a_{3} b_{0} b_{1}^{2}+12 c a_{2} a_{3} b_{0}^{2}+12 c a_{2}^{2} b_{0} b_{1}=0,\\ R^{4}:-42 a_{0} a_{3} b_{0}^{2}-34 a_{1} a_{2} b_{0}^{2}+2 a_{0} a_{2} b_{1}^{2}+6 c b_{0}^{3} a_{2}-c b_{1}^{3} a_{0}\\ +26 a_{1} a_{3} b_{0}^{2}-6 a_{0} a_{1} b_{0} b_{1}-4 a_{0} a_{2} b_{0} b_{1}+14 a_{0} a_{3} b_{0} b_{1}\\ +6 a_{1} a_{2} b_{0} b_{1}+4 c b_{0} a_{2} b_{1}^{2}-19 c b_{0}^{2} a_{2} b_{1}+20 c b_{0}^{2} a_{3} b_{1}\\ +24 c a_{0} a_{3} b_{0} b_{1}+24 c a_{1} a_{2} b_{0} b_{1}+12 c a_{1} a_{3} b_{0}^{2}-21 c b_{0}^{3} a_{3}\\ +8 a_{1}^{3} b_{1}+J b_{1}^{4}+b_{1}^{2} a_{0}^{2}+12 a_{2}^{2} b_{0}^{2}+24 a_{0}^{2} a_{3} b_{1}+24 a_{0} a_{2}^{2} b_{0}\\ +24 a_{1}^{2} a_{2} b_{0}+6 c a_{2}^{2} b_{0}^{2}+6 c a_{1}^{2} b_{1}^{2}+12 a_{0} a_{2} b_{0}^{2}+2 a_{1}^{2} b_{0} b_{1}\\ -2 a_{1} b_{1}^{2} a_{0}+c^{2} a_{1} b_{1}^{3}+48 a_{0} a_{1} a_{3} b_{0}+12 c a_{0} a_{2} b_{1}^{2}+3 c^{2} a_{2} b_{0} b_{1}^{2}\\ +5 a_{1}^{2} b_{0}^{2}+3 c^{2} a_{3} b_{0}^{2} b_{1}+2 c b_{1} a_{1} b_{0}^{2}+c b_{1}^{2} a_{1} b_{0}\\ -2 c b_{1}^{2} a_{0} b_{0}+48 a_{0} a_{1} a_{2} b_{1}=0 \end{array}$
$\begin{array}{l} R^{3}: 18 a_{0} a_{3} b_{0}^{2}+14 a_{1} a_{2} b_{0}^{2}+2 c b_{0}^{3} a_{1}+c^{2} a_{0} b_{1}^{3}-10 c b_{0}^{3} a_{2} \\ \quad+c b_{1}^{3} a_{0}+8 a_{1}^{3} b_{0}+4 a_{0} a_{1} b_{0}^{2}-4 b_{1} a_{0}^{2} b_{0}-8 a_{1}^{2} b_{0}^{2}+12 a_{0} a_{1} b_{0} b_{1} \\ \quad+7 c b_{0}^{2} a_{2} b_{1}-2 a_{1}^{2} b_{0} b_{1}+c^{2} a_{3} b_{0}^{3}+9 c b_{0}^{3} a_{3}+12 c a_{0} a_{3} b_{0}^{2} \\ \quad+12 c a_{1} a_{2} b_{0}^{2}+24 c a_{0} a_{2} b_{0} b_{1}-4 b_{1}^{2} a_{0}^{2}+24 a_{0}^{2} a_{2} b_{1}+24 a_{0}^{2} a_{3} b_{0} \\ \quad+24 a_{0} a_{1}^{2} b_{1}+4 J b_{0} b_{1}^{3}-20 a_{0} a_{2} b_{0}^{2}+3 c^{2} a_{2} b_{0}^{2} b_{1}+48 a_{0} a_{1} a_{2} b_{0} \\ \quad-2 c b_{0}^{2} b_{1} a_{0}-2 c b_{1} a_{1} b_{0}^{2}-c b_{1}^{2} a_{1} b_{0}+12 c a_{1} b_{1}^{2} a_{0}+12 c a_{1}^{2} b_{0} b_{1} \\ \quad+3 c^{2} a_{1} b_{0} b_{1}^{2}+2 a_{1} b_{1}^{2} a_{0}+2 c b_{1}^{2} a_{0} b_{0}=0 \\ R^{2}: 12 c a_{0} a_{2} b_{0}^{2}+8 a_{0} a_{2} b_{0}^{2}-6 a_{0} a_{1} b_{0}^{2}+24 a_{0}^{2} a_{1} b_{1}+24 a_{0} a_{1}^{2} b_{0} \\ \quad+3 c b_{0}^{2} b_{1} a_{0}+4 c b_{0}^{3} a_{2}+3 a_{1}^{2} b_{0}^{2}-6 a_{0} a_{1} b_{0} b_{1}+3 b_{1}^{2} a_{0}^{2}+3 c^{2} a_{0} b_{0} b_{1}^{2} \\ \quad+c^{2} a_{2} b_{0}^{3}+3 c^{2} a_{1} b_{0}^{2} b_{1}+6 J b_{0}^{2} b_{1}^{2}+24 a_{0}^{2} a_{2} b_{0}+6 c b_{1}^{2} a_{0}^{2} \\ \quad+6 c a_{1}^{2} b_{0}^{2}+6 b_{1} a_{0}^{2} b_{0}+24 c a_{0} a_{1} b_{0} b_{1}-3 c b_{0}^{3} a_{1}=0 \\ R^{1}: 8 a_{0}^{3} b_{1}+3 c^{2} a_{0} b_{0}^{2} b_{1}-c b_{0}^{2} b_{1} a_{0}-2 b_{1} a_{0}^{2} b_{0}+c^{2} a_{1} b_{0}^{3} \\ \quad+ 12 c a_{0} a_{1} b_{0}^{2}+4 J b_{0}^{3} b_{1}+c b_{0}^{3} a_{1}+12 c b_{1} a_{0}^{2} b_{0} \\ \quad+24 a_{0}^{2} a_{1} b_{0}+2 a_{0} a_{1} b_{0}^{2}=0 \\ R^{0}: J b_{0}^{4}+c^{2} a_{0} b_{0}^{3}+6 c a_{0}^{2} b_{0}^{2}+8 a_{0}^{3} b_{0}=0 \end{array}$
The solutions of these algebraic equations have been obtained the help of symbolic computation software: MAPLE. Hence, two cases are given as follows:
Case 1:
Next, by subrogating the acquired values into Eq. (17) with Eq. (7) and , we get the MNWEq’s soliton-type solutions as follows:
where and C are arbitrary constants and
Case 2:
Next, by subrogating the acquired values into Eq. (17) with Eq. (7) and , we get the MNWEq’s soliton-type solutions as follows:
$\begin{aligned} \Phi_{2}(x, t)= & \frac{-2}{1+C_{1}(\cosh (x-t)+\sinh (x-t))} \\ & -\frac{\ln (\cosh (x-t)+\sinh (x-t))}{3}+C \end{aligned}$
where and C are arbitrary constants and
3.2. Exact solutions via the ERFM
From PHB, the balancing number can be founded as N=2. In this way, we can set the solution as:
By substituting Eq. (20)into the reduced equation Eq. (16) and collecting every single term with the same order of together, we get a polynomial of . Then, we equate each of this polynomial’s coefficient to 0 yielding a set of algebraic equations for and J. Finally, this system is solved to get a variety of exact solutions for Eq. (1).
$\begin{aligned} e^{6}: J & +8 a_{0}^{3}+c^{2} a_{0}+6 c a_{0}^{2}=0 \\ e^{5} & : 48 a_{0}^{3}+6 J+12 c a_{0} a_{1}+c^{2} a_{1}+c a_{1} \\ & +36 c a_{0}^{2}+24 a_{0}^{2} a_{1}+6 c^{2} a_{0}+2 a_{0} a_{1}=0 \\ e^{4} & : 120 a_{0}^{3}+15 J+3 a_{1}^{2}+60 c a_{0} a_{1}+12 c a_{0} a_{2}+c^{2} a_{2} \\ & +4 a_{0} a_{1}+15 c^{2} a_{0}+6 c a_{1}^{2}+5 c^{2} a_{1}+8 a_{0} a_{2}+2 c a_{1} \\ & +4 c a_{2}+90 c a_{0}^{2}+24 a_{0}^{2} a_{2}+24 a_{0} a_{1}^{2}+120 a_{0}^{2} a_{1}=0 \\ & e^{3}: 160 a_{0}^{3}+8 a_{1}^{3}+20 J+48 a_{0} a_{1} a_{2}+120 c a_{0} a_{1}+48 c a_{0} a_{2}+4 a_{1}^{2} \\ & +12 c a_{1} a_{2}+4 c^{2} a_{2}+120 c a_{0}^{2}+20 c^{2} a_{0}+10 c^{2} a_{1}+12 a_{0} a_{2} \\ & +14 a_{1} a_{2}+96 a_{0}^{2} a_{2}+96 a_{0} a_{1}^{2}+240 a_{0}^{2} a_{1}+24 c a_{1}^{2}+6 c a_{2}=0 \\ e^{2} & :-a_{1}^{2}+12 a_{2}^{2}+120 a_{0}^{3}+24 a_{1}^{3}+144 a_{0} a_{1} a_{2}+120 c a_{0} a_{1} \\ & +72 c a_{0} a_{2}+36 c a_{1} a_{2}+144 a_{0}^{2} a_{2}+8 a_{1} a_{2}-4 a_{0} a_{1} \\ & +15 c^{2} a_{0}+10 c^{2} a_{1}+90 c a_{0}^{2}+144 a_{0} a_{1}^{2}+240 a_{0}^{2} a_{1}+15 J \\ & +24 a_{0} a_{2}^{2}+24 a_{1}^{2} a_{2}+36 c a_{1}^{2}+6 c a_{2}^{2}+6 c^{2} a_{2}-2 c a_{1}=0 \\ e^{1} & : 6 J+48 a_{0}^{3}+144 a_{0} a_{1} a_{2}+60 c a_{0} a_{1}+48 c a_{0} a_{2}+36 c a_{1} a_{2} \\ & +4 c^{2} a_{2}-4 a_{2}^{2}-2 a_{1}^{2}+24 a_{1}^{3}+36 c a_{0}^{2}+6 c^{2} a_{0}+96 a_{0}^{2} a_{2} \\ & +96 a_{0} a_{1}^{2}+120 a_{0}^{2} a_{1}+48 a_{0} a_{2}^{2}+48 a_{1}^{2} a_{2}+24 a_{1} a_{2}^{2}+5 c^{2} a_{1} \\ & +24 c a_{1}^{2}+12 c a_{2}^{2}-2 a_{0} a_{1}-4 a_{0} a_{2}-c a_{1}-2 c a_{2}-6 a_{1} a_{2}=0 \\ e^{0} & : 6 c a_{0}^{2}+c^{2} a_{0}+24 a_{0}^{2} a_{2}+24 a_{0} a_{1}^{2}+24 a_{0}^{2} a_{1}+24 a_{0} a_{2}^{2}+24 a_{1}^{2} a_{2} \\ & +24 a_{1} a_{2}^{2}+6 c a_{1}^{2}+6 c a_{2}^{2}+J+48 a_{0} a_{1} a_{2}+12 c a_{0} a_{1} \\ & +12 c a_{0} a_{2}+12 c a_{1} a_{2}+c^{2} a_{1}+c^{2} a_{2}+8 a_{1}^{3}+8 a_{2}^{3}+8 a_{0}^{3}=0 \end{aligned}$
Case 1:
Then, subrogation of these values into Eq. (20) gives soliton-type solutions of the MNWEq’s as:
where C is the integration constant where it is not strictly positive.
By comparing this solution with the one obtained in Eq. (18), we can say that this solution is the same when we set
Case 2:
Then, subrogation of these values into Eq. (20) gives soliton-type solutions of the MNWEq’s as:
3.3. Exact solutions via the METFM
By substituting Eq. (9) into the Eq. (16), we get a system. Then, by equating the coefficients of to 0, we get a system of algebraic equations as:
$\begin{aligned} \psi^{6}: & 8 a_{2}^{3}+16 a_{2}^{2}=0 \\ \psi^{5}: & 24 a_{1} a_{2}^{2}+20 a_{1} a_{2}=0 \\ \psi^{4}: & a_{2}^{2}\left(24 b+24 a_{0}+6 c\right)+a_{1}^{2}\left(5+24 a_{2}\right)+12 a_{0} a_{2}+6 c a_{2}=0 \\ \psi^{3} & : 24 a_{1} a_{2} b+4 a_{0} a_{1}+12 b_{1} a_{2}+4 a_{2}\left(a_{1} b-b_{1}\right) \\ & +8 b_{1} a_{2}^{2}+16 a_{0} a_{1} a_{2}+8 a_{1}\left(2 a_{0} a_{2}+a_{1}^{2}\right) \\ & +16 a_{2}\left(a_{0} a_{1}+b_{1} a_{2}\right)+12 c a_{1} a_{2}+2 c a_{1}=0 \\ \psi^{2} & : 4 a_{2} b_{2}+4 a_{1} b_{1}+16 b a_{0} a_{2}+4 b a_{1}^{2}+4 a_{2}\left(b^{2} a_{2}+b_{2}\right) \\ & +2 a_{1}\left(b a_{1}-b_{1}\right)+4 a_{2}^{2} b^{2}+8 b_{2} a_{2}^{2}+16 b_{1} a_{1} a_{2} \\ & +8 a_{0}\left(2 a_{0} a_{2}+a_{1}^{2}\right)+16 a_{1}\left(a_{0} a_{1}+b_{1} a_{2}\right) \\ & +8 a_{2}\left(a_{0}^{2}+2 a_{1} b_{1}+2 a_{2} b_{2}\right)+6 c\left(2 a_{0} a_{2}+a_{1}^{2}\right) \\ & +c^{2} a_{2}+8 b c a_{2}=0, \\ \psi^{1} & : 16 b b_{1} a_{2}+4 b a_{0} a_{1}+4 a_{1}\left(b^{2} a_{2}+b_{2}\right)+4 b a_{2}\left(a_{1} b-b_{1}\right) \\ & +16 b_{2} a_{1} a_{2}+8 b_{1}\left(2 a_{0} a_{2}+a_{1}^{2}\right)+16 a_{0}\left(a_{0} a_{1}+b_{1} a_{2}\right) \\ & +8 a_{1}\left(a_{0}^{2}+2 a_{1} b_{1}+2 a_{2} b_{2}\right)+16 a_{2}\left(b_{1} a_{0}+b_{2} a_{1}\right) \\ & +12 c\left(a_{o} a_{1}+b_{1} a_{2}\right)+c^{2} a_{1}+2 b c a_{1}=0 \end{aligned}$
$\begin{aligned} \psi^{-6}: & 16 b_{2}^{2} b^{2}+8 b_{2}^{3}=0 \\ \psi^{-5}: & 20 b^{2} b_{2} b_{1}+24 b_{2}^{2} b_{1}=0 \\ & \psi^{-4}: b_{2}^{2}\left(24 b+24 a_{0}+6 c\right)+b_{1}^{2}\left(5 b^{2}+24 b_{2}\right) \\ & +12 b^{2} a_{0} b_{2}+6 b^{2} c b_{2}=0 \\ \psi^{-3} & : 4 b^{2} a_{0} b_{1}+12 b^{2} a_{1} b_{2}+24 b b_{1} b_{2}-4 b b_{2}\left(a_{1} b-b_{1}\right) \\ & +16 b_{2}\left(b_{1} a_{0}+b_{2} a_{1}\right)+8 b_{1}\left(2 a_{0} b_{2}+b_{1}^{2}\right)+16 a_{0} b_{1} b_{2} \\ & +8 a_{1} b_{2}^{2}+12 c b_{2} b_{1}+2 b^{2} c b_{1}=0 \\ \psi^{-2} & : 4 b_{2}\left(b^{2} a_{2}+b_{2}\right)+4 b b_{1}^{2}+16 b a_{0} b_{2}+4 b^{2}\left(a_{1} b_{1}+a_{2} b_{2}\right) \\ & -2 b b_{1}\left(a_{1} b-b_{1}\right)+4 b_{2}^{2}+8 b_{2}\left(a_{0}^{2}+2 a_{1} b_{1}+2 a_{2} b_{2}\right) \\ & +16 b_{1}\left(b_{1} a_{0}+b_{2} a_{1}\right)+8 a_{0}\left(2 a_{0} b_{2}+b_{1}^{2}\right) \\ & +16 a_{1} b_{2} b_{1}+8 a_{2} b_{2}^{2}+6 c\left(2 a_{0} b_{2}+b_{1}^{2}\right)+c^{2} b_{2}+8 b c b_{2}=0 \\ \psi^{-1} & : 4 b_{1}\left(b^{2} a_{2}+b_{2}\right)+4 b a_{0} b_{1}-4 b_{2}\left(b a_{1}-b_{1}\right) \\ & +16 b_{2}\left(a_{0} a_{1}+b_{1} a_{2}\right)+8 b_{1}\left(a_{0}^{2}+2 a_{1} b_{1}+2 a_{2} b_{2}\right) \\ & +16 a_{0}\left(a_{0} b_{1}+a_{1} b_{2}\right)+8 a_{1}\left(2 a_{0} b_{2}+b_{1}^{2}\right) \\ & +12 c\left(a_{0} b_{1}+a_{1} b_{2}\right)+c^{2} b_{1}+16 a_{2} b_{2} b_{1}+16 b b_{2} a_{1}+2 c b b_{1}=0 \\ \psi^{0} & : 6 b a_{1} b_{1}+16 b a_{2} b_{2}+8 a_{0}\left(a_{0}^{2}+2 a_{1} b_{1}+2 a_{2} b_{2}\right) \\ & +16 a_{1}\left(a_{0} b_{1}+a_{1} b_{2}\right)+8 a_{2}\left(2 a_{0} b_{2}+b_{1}^{2}\right) \\ & +6 c\left(a_{0}^{2}+2 a_{1} b_{1}+2 a_{2} b_{2}\right)+\left(a_{1} b-b_{1}\right)^{2} \\ & +4 a_{0}\left(b^{2} a_{2}+b_{2}\right)+2 c\left(b^{2} a_{2}+b_{2}\right)+c^{2} a_{0} \\ & +16 b_{1}\left(a_{0} a_{1}+b_{1} a_{2}\right)+J=0 \end{aligned}$
If we solve above system, we get six cases.
Case 1:
Then, exact solutions are given by in the following form.
When b<0,
$\Phi_{5}(x, t)=-\frac{c}{\sqrt{-c} \tanh \left(\frac{\sqrt{-c}(x-c t)}{2}\right)}+C.$
When b>0,
$\Phi_{6}(x, t)=\frac{\sqrt{c}}{\tan \left(\frac{\sqrt{c}(x-c t)}{2}\right)}+C.$
When b=0, we obtain zero solution and C is the integration constant.
Case 2:
When b<0,
$\begin{aligned} \Phi_{7}(x, t)= & -\frac{\sqrt{c} \ln \left(\tanh \left(\frac{\sqrt{c}(x-c t)}{2}\right)+1\right)}{3}+\frac{\sqrt{c}}{\tanh \left(\frac{\sqrt{c}(x-c t)}{2}\right)} \\ & +\frac{\sqrt{c} \ln \left(\tanh \left(\frac{\sqrt{c}(x-c t)}{2}\right)-1\right)}{3}+C. \end{aligned}$
When b>0,
$\begin{aligned} \Phi_{8}(x, t)= & -\frac{2 c \arctan \left(\tan \left(\frac{\sqrt{-c}(x-c t)}{2}\right)\right)}{3 \sqrt{-c}} \\ & -\frac{c}{\sqrt{-c} \tan \left(\frac{\sqrt{-c}(x-c t)}{2}\right)}+C \end{aligned}$
When b=0, we obtain zero solution and C is the integration constant.
Case 3:
When b<0,
$ \Phi_{9}(x, t)=-\frac{c \tanh \left(\frac{\sqrt{-c}(x-c t)}{2}\right)}{\sqrt{-c}}+C $
When b >0,
$ \Phi_{10}(x, t)=-\sqrt{c} \tan \left(\frac{\sqrt{c}(x-c t)}{2}\right)+C $
When b =0,
$ \Phi_{11}(x, t)=\frac{2}{x}+C $
where C is the integration constant.
Case 4:
When b <0,
$ \Phi_{12}(x, t)=-\frac{\sqrt{c}\left(\sqrt{c}(x-c t)-3 \tanh \left(\frac{\sqrt{c}(x-c t)}{2}\right)\right)}{3}+C. $
When b >0,
$ \Phi_{13}(x, t)=-\frac{c\left(\sqrt{-c}(x-c t)-3 \tan \left(\frac{\sqrt{-c}(x-c t)}{2}\right)\right)}{3 \sqrt{-c}}+C $
When b =0, the same as solution Eq. (29) is obtained and C is the integration constant.
Case 5:
When b <0,
$ \Phi_{14}(x, t)=\frac{c\left(-\frac{1}{\sinh \left(\frac{\sqrt{-c}(x-c t)}{4}\right) \cosh \left(\frac{\sqrt{-c}(x-c t)}{4}\right)}-2 \tanh \left(\frac{\sqrt{-c}(x-c t)}{4}\right)\right)}{2 \sqrt{-c}}+C $
When b>0,
$ \Phi_{15}(x, t)=-\frac{\sqrt{c}\left(\frac{1}{\sin \left(\frac{\sqrt{c}(x-c t)}{4}\right) \cos \left(\frac{\sqrt{c}(x-c t)}{4}\right)}-2 \cot \left(\frac{\sqrt{c}(x-c t)}{4}\right)\right)}{2}+C $
When b =0, the same as solution Eq. (29) is obtained and C is the integration constant.
Case 6:
When b <0,
$ \begin{aligned} \Phi_{16}(x, t)= & \frac{\sqrt{c} \tanh \left(\frac{\sqrt{c}(x-c t)}{4}\right)}{2}+\frac{\sqrt{c}}{2 \tanh \left(\frac{\sqrt{c}(x-c t)}{4}\right)} \\ & -\frac{2 \sqrt{c} \ln \left(\tanh \left(\frac{\sqrt{c}(x-c t)}{4}\right)+1\right)}{3} \\ & +\frac{2 \sqrt{c} \ln \left(\tanh \left(\frac{\sqrt{c}(x-c t)}{4}\right)-1\right)}{3}+C. \end{aligned} $
When b >0,
$ \begin{aligned} \Phi_{17}(x, t)= & \frac{c \tan \left(\frac{\sqrt{-c}(x-c t)}{4}\right)}{2 \sqrt{-c}}-\frac{c}{2 \sqrt{-c} \tan \left(\frac{\sqrt{-c}(x-c t)}{4}\right)} \\ & -\frac{4 c \arctan \left(\tan \left(\frac{\sqrt{-c}(x-c t)}{4}\right)\right)}{3 \sqrt{-c}}+C \end{aligned} $

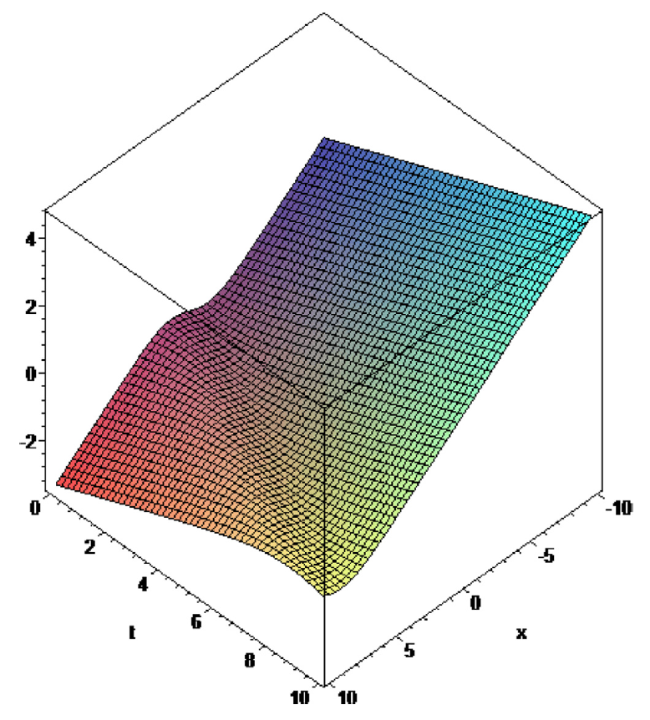

Fig. 1. The figure of the solution of founded in Eq. 18 when |

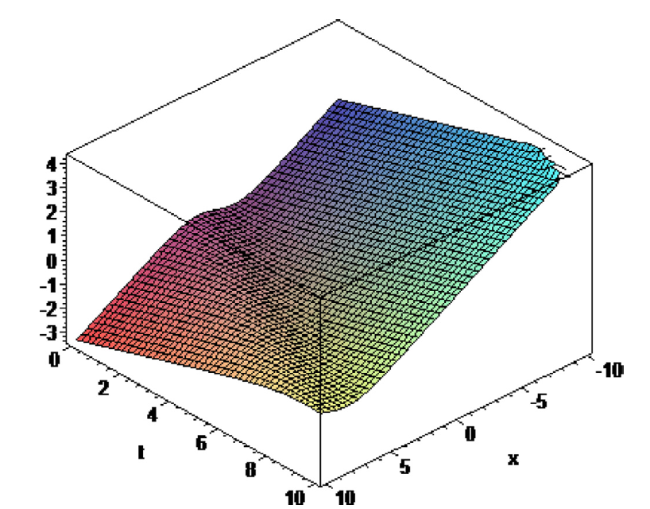

Fig. 2. The figure of the solution of founded in Eq. 19 when |

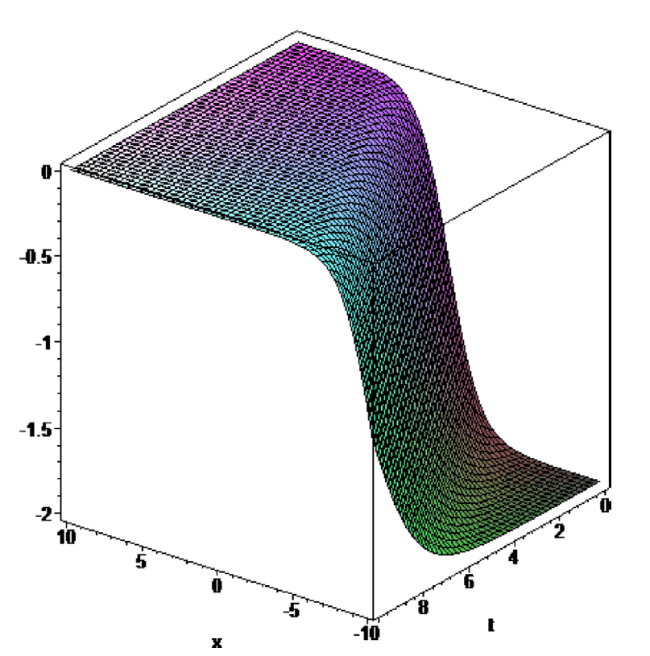

Fig. 3. The figure of the solution of founded in Eq. 21 when C=0. |
Fig. 4. The figure of the solution of founded in Eq. 22 when C=0. |
Fig. 5. The figure of the solution of founded in Eq. 23 when C=0,c=−1. |
Fig. 6. The figure of the solution of founded in Eq. 24 when C=0,c=1. |
Fig. 7. The figure of the solution of founded in Eq. 27 when C=0,c=−1. |
Fig. 8. The figure of the solution of founded in Eq. 28 when C=0,c=1. |

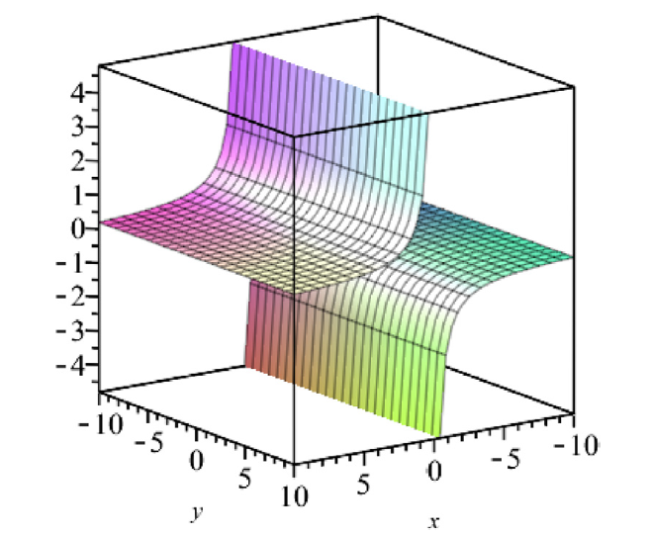

Fig. 9. The figure of the solution for founded in Eq. 29 when C=0. |
4. Conclusion
Three different approaches, the GKM, ERFM, and METFM have been utilized to procure new soliton-type solutions of MNWEq. Some results are plotted 3D to understand the dynamics of solutions. From our obtained results, our results can be converted to each other by setting the parameters as special values. All our results open a new door to all other researchers to solve many NLPDEs in various oceanographic applications via the three studied techniques. Our results can be further extended to solve various other equations of Boussinesq type due to their importance in understanding several nonlinear phenomena, and the obtained solutions’ stability analysis can be also investigated in future works.
