假单胞菌HT66的PhzI-PhzR调控系统的功能研究

doi:10.3969/J.ISSN.1671-9964.2016.01.002

摘要
图/表
参考文献
相关文章
Metrics

全文: PDF(4581 KB) HTML
输出: BibTeX | EndNote (RIS)

摘要

绿针假单胞菌(Pseudomonas chlororaphis)HT66是一株分泌高水平吩嗪-1-甲酰胺(phenazine-1-carboxamide, 简称PCN)的植物根际促生细菌。通过全基因组测序与分析, 发现phz基因簇上游存在着PhzI-PhzR双元调控系统。显色实验表明, 野生株信号分子抽提物不能使指示菌紫色杆菌(Chromobacterium violaceum)CV026显紫色, 但能使指示菌根癌农杆菌(Agrobacterium tumefaciens)NTL4显蓝色。研究采用基因无痕敲除方法构建了突变株ΔphzⅠ、ΔphzR;与野生株相比, ΔphzⅠ突变株丧失了PCN合成能力, 对终极腐霉的抑制作用明显下降;而且突变株ΔphzⅠ的信号分子抽提物也不能使指示菌NTL4菌显色。由此可见, 菌株HT66以高丝氨酸内酯作为群体感应的信号分子, 且吩嗪的生物合成受到了PhzI-PhzR的严格调控。进一步形态观察表明, 突变株ΔphzⅠ的菌落颜色变为乳白色, 鞭毛泳动性与野生株相比大大降低, 但其群体从动性变化不显著。

	服务

	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	RSS
	作者相关文章
	欧阳夷
	彭华松
	王威
	胡洪波
	张雪洪

关键词 ：绿针假单胞菌, PhzI-PhzR双元调控系统, 群体感应

Abstract：

Pseudomonas chlororaphis HT66 is a significant growth-promoting rhizobacteriaum in plants.It is reportedly the highest phenazine-1-carboxamide(PCN)producing wild type microbe studied thus far. Based on the whole-genome sequence analysis, we find that two genes phzⅠ and phzR are located just upstream of the phenazine biosynthesis gene cluster.Plate assays with Chromobacterium violaceum CV026 and Agrobacterium tumefaciens NTL4 were used to analyze the signals of strain HT66.With the addition of the fermentation broth extracts, strain NTL4 produced blue pigment, but the CV026 did not produce purple pigment.Then, using a gene knock-out method, we constructed ΔphzⅠ and ΔphzR HT66 mutants.The results show that both the ΔphzⅠ and ΔphzR mutants are unable to produce PCN.And the plate assay of ΔphzⅠ culture extracts shows no blue pigment is produced by strain NTL4.It suggests that phenazine biosynthesis is regulated by the quorum sensing system and AHL signals in strain HT66.Additionally, the ΔphzⅠ and ΔphzR mutants have some changes in the morphology of colonies and antifungal activity in vitro.Moreover, compared with wild type, the swimming motility of ΔphzⅠ mutant decreases greatly, while the swarming motility has no significant change.

Key words： Pseudomonas chlororaphis PhzI-PhzR system quorum sensing

收稿日期: 2015-03-25 出版日期: 2016-03-08

基金资助:国家自然科学基(31270084);国家“973”计划项目(2012CB721005)

作者简介:

作者简介: 欧阳夷(1990-), 女, 研究方向:微生物资源与代谢, E-mail:oyy1028@163.com;

通讯作者: 彭华松(1974-), 男, 副教授, 研究方向:微生物资源与代谢, E-mail:hspeng@sjtu.edu.cn

引用本文:

欧阳夷, 彭华松, 王威, 胡洪波, 张雪洪. 假单胞菌HT66的PhzI-PhzR调控系统的功能研究[J]. 上海交通大学学报(农业科学版), 2016, 34(1): 5-10.
Yi OUYANG, Hua-song PENG, Wei WANG, Hong-bo HU, Xue-hong ZHANG. Function of thePhzI-PhzR System in Pseudomonas chlororaphis HT66. Journal of Shanghai Jiaotong University (Agricultural Sciences), 2016, 34(1): 5-10.

链接本文:

http://www.qk.sjtu.edu.cn/jsjtua/CN/10.3969/J.ISSN.1671-9964.2016.01.002 或 http://www.qk.sjtu.edu.cn/jsjtua/CN/Y2016/V34/I1/5

Tab.1 引物名称及序列

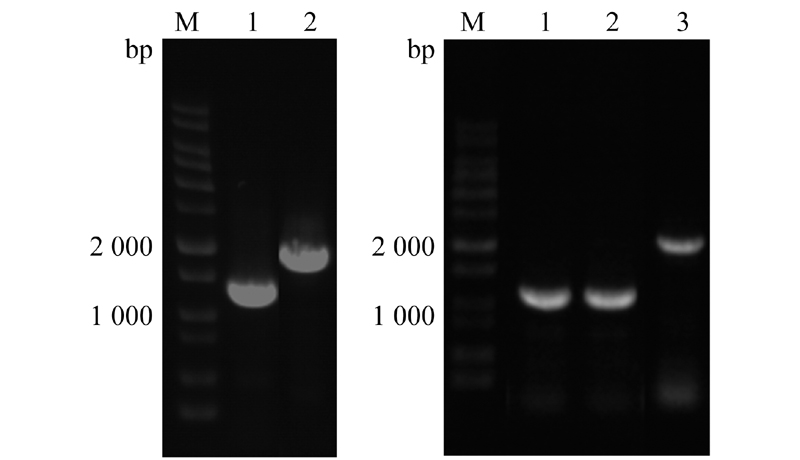

Fig.1 敲除株ΔphzⅠ、ΔphzR的PCR验证电泳图谱

注: a图, M为DNA marker, 1为突变株ΔphzⅠ, 2为野生型HT66;b图, M为DNA marker, 1与2均为突变株ΔphzR, 3为野生型HT66

Fig.2 假单胞菌HT66中野生株和敲除株ΔphzⅠ、ΔphzR的PCN产量

Fig.3 假单胞菌HT66中信号分子的NTL4平板检测

注: 1: HT66;2:ΔphzⅠ 突变抹;3:乙腈

Fig.4 鞭毛泳动性与群体从动性实验

Fig.5 假单胞菌HT66野生株与ΔphzⅠ、ΔphzR菌落形态的比较

Fig.6 假单胞菌HT66的野生株与ΔphzⅠ、ΔphzR突变株的抑菌活性

[1]	Fuqua C, Greenberg E P.Listening in on bacteria:acyl-homoserine lactone signaling[J].Nature Reviews Molecular Cell Biology, 2002, 3(9):685-695. doi: 10.1038/nrm907
[2]	Walters M, Sircili M P, Sperandio V.AI-3 synthesis is not dependent on luxS in Escherichia coli[J].Journal of bacteriology, 2006, 188(16):5668-5681. doi: 10.1128/JB.00648-06 pmid: 16885435
[3]	Riedel K, Hentzer M, Geisenberger O, et al.N-acylhomoserine-lactone mediated communication between Pseudomonas aeruginosa and Burkholderia cepacia in mixed biofilms[J].Microbiology, 2001, 147(12):3249-3262. doi: 10.1046/j.1432-1327.1999.00963.x pmid: 11739757
[4]	Jones S, Yu B, Bainton N J, et al.The lux autoinducer regulates the production of exoenzyme virulence determinants in Erwinia carotovora and Pseudomonas aeruginosa[J].The EMBO Journal, 1993, 12(6):2477-2482. doi: 10.1089/dna.1993.12.455 pmid: 8508773
[5]	Mavrodi D V, Parejko J A, Mavrodi O V, et al.Recent insights into the diversity, frequency and ecological roles of phenazines in fluorescent Pseudomonas spp[J].Environmental Microbiology, 2013, 15(3):675-686. doi: 10.1111/j.1462-2920.2012.02846.x
[6]	Laursen J B, Nielsen J.Phenazine natural products:biosynthesis, synthetic analogues, and biological activity[J].Chemical Reviews, 2004, 104(3):1663-1686.
[7]	张平原, 彭华松, 沈雪梅, 等.高产吩嗪-1-甲酰胺的绿针假单胞菌的诱变与基因工程育种[J].上海交通大学学报(农业科学版), 2015(2):90-94. doi: 10.3969/J.ISSN.1671-9964.2015.02.014
[8]	Winson M K, Camara M, Latifi A, et al.Multiple N-acyl-L-homoserine lactone signal molecules regulate production of virulence determinants and secondary metabolites in Pseudomonas aeruginosa[J].Proceedings of the National Academy of Sciences, 1995, 92(20):9427-9431.
[9]	Gonzalez-Flecha B, Demple B.Homeostatic regulation of intracellular hydrogen peroxide concentration in aerobically growing Escherichia coli[J].Journal of Bacteriology, 1997, 179(2):382-388. doi: 10.2514/6.2010-8070 pmid: 178707
[10]	汪鹰. 链霉菌P510中吩嗪类抗生物质的分离纯化[D].上海:上海交通大学, 2010.
[11]	Shaw P D, Ping G, Daly S L, et al.Detecting and characterizing N-acyl-homoserine lactone signal molecules by thin-layer chromatography[J].Proceedings of the National Academy of Sciences, 1997, 94(12):6036-6041. doi: 10.1073/pnas.94.12.6036 pmid: 9177164
[12]	Chin-A-Woeng T F C, van den Broek D, de Voer G, et al.Phenazine-1-carboxamide production in the biocontrol strain Pseudomonas chlororaphis PCL1391 is regulated by multiple factors secreted into the growth medium[J].Molecular Plant-Microbe Interactions, 2001, 14(8):969-979. doi: 10.1148/radiol.2531082137
[13]	Maddula V S R K, Zhang Z, Pierson E A, et al.Quorum sensing and phenazines are involved in biofilm formation by Pseudomonas chlororaphis(aureofaciens)strain 30-84[J].Microbial Ecology, 2006, 52(2):289-301. doi: 10.1007/s00248-006-9064-6
[14]	Davey M E, O'toole G A.Microbial biofilms:from ecology to molecular genetics[J].Microbiology and Molecular Biology Reviews, 2000, 64(4):847-867. doi: 10.1128/MMBR.64.4.847-867.2000 pmid: 11104821
[15]	Selin C, Fernando W G D, de Kievit T.The PhzI/PhzR quorum-sensing system is required for pyrrolnitrin and phenazine production, and exhibits cross-regulation with RpoS in Pseudomonas chlororaphis PA23[J].Microbiology, 2012, 158(4):8961907. doi: 10.1099/mic.0.054254-0 pmid: 22262095
