| Design of the Greenhouse Automatic Monitoring System Based on PLC |
Hongtao WANG( ), Hongli LI, Zhenying CHENG, Xiaohuai CHEN |
| School of Instrument Science and Opto-Electronic Engineering, Hefei University of Technology, Hefei 230009, China |
|
|
|
|

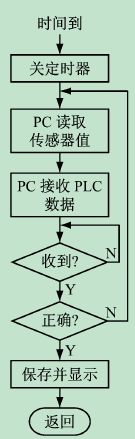

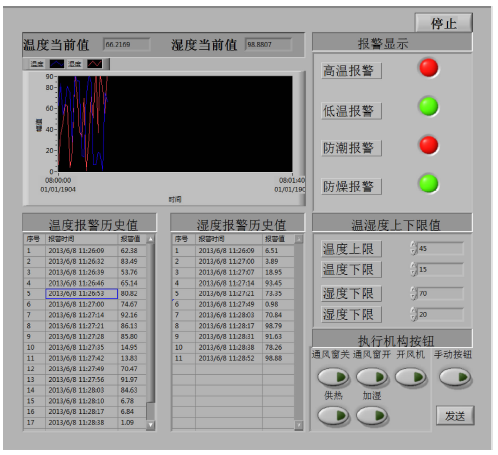

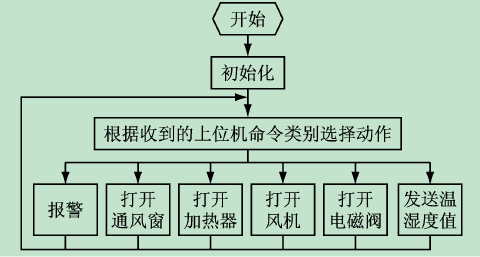

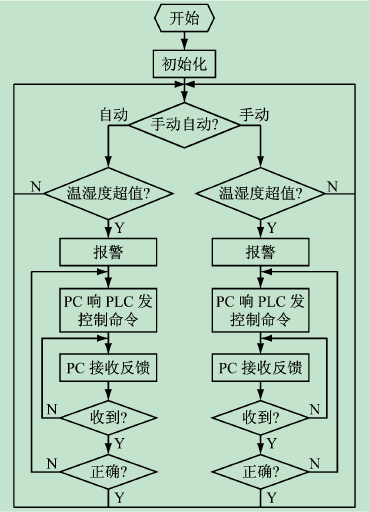

Abstract It is one of the important issues in the greenhouse industry to effectively control the temperature and humidity of greenhouse. This article describes a PLC-based greenhouse automatic monitoring system. The S7-200 PLC of SIEMENS is used as controller to collect and control the temperature and humidity information of greenhouse. The PLC communicates with the host PC by serial port. The host PC monitors the PLC to collect and control the temperature and humidity of greenhouse by PC monitoring software. Users can select manual or automatic control mode. In the test, the system has realized the acquisition, display and alarm functions about the greenhouse temperature and humidity information, and can reliably control the temperature and humidity. The PC monitor software is convenient for user operation. The design has a certain practical significance and application value for greenhouse environment monitoring and PLC practice teaching.
|
|
Received: 31 August 2016
Published: 10 July 2017
|
|
|
|
|
|

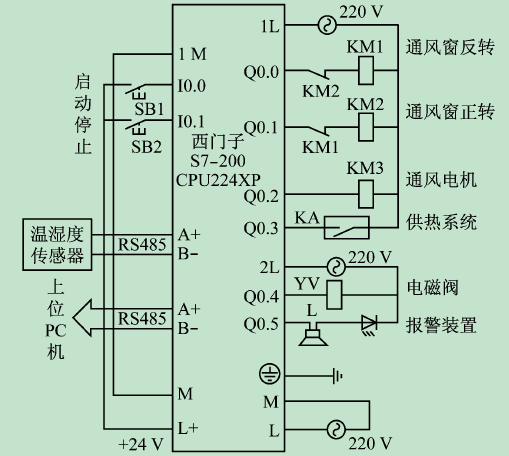

| 输入信号 | | 序号 | 名称 | 符号 | 端子分配 | 备注 | | 1 | 按钮 | SB1 | I0.0 | 启动按钮 | | 2 | 按钮 | SB2 | I0.1 | 停止按钮 | | 输出信号 | | 序号 | 名称 | 符号 | 端子分配 | 备注 | | 3 | 交流接触器 | KM1 | Q0.0 | 通风窗反转 | | 4 | 交流接触器 | KM2 | Q0.1 | 通风窗正转 | | 5 | 交流接触器 | KM3 | Q0.2 | 风机系统 | | 6 | 继电器 | KA | Q0.3 | 供热系统 | | 7 | 电磁阀 | YV | Q0.4 | 灌溉开关电磁阀 | | 8 | 报警系统 | L | Q0.5 | 声光报警 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| [1] |
冯达,张震坤. 实验室环境温湿度无线监测系统设计[J]. 实验室研究与探索,2012,31(2):22-25,49.
|
| [2] |
袁洪波,王海华. 日光温室封闭式栽培系统的设计与试验[J]. 农业工程学报,2013(21):159-165.
|
| [3] |
徐立鸿,苏远平. 面向控制的温室系统小气候环境模型要求与现状[J]. 农业工程学报,2013(19):1-15.
|
| [4] |
王金环. 基于单片机的温室环境监控系统的设计[J]. 硅谷,2014(24):12-13.
|
| [5] |
殷刚,赵琳. 全智能大棚监控系统的设计[J].国外电子元器件,2014(1):64-67,70.
|
| [6] |
刘德全. 智能温室温湿度检测实验系统电路设计与仿真[J]. 实验室研究与探索,2015,34(2):92-95.
|
| [7] |
陈洁. PLC入门与应用案例[M]. 北京:中国电力出版社,2011.
|
| [8] |
陈建明,王亭岭. 电气控制与PLC应用[M]. 北京:电子工业出版社,2010.
|
| [9] |
张涛. 西门子S7-200PLC应用技术[M]. 北京:北京航空航天大学出版社,2010.
|
| [10] |
西门子S7-200可编程控制器系统手册.西门子S7-200可编程控制器系统手册.2009.
|
| [11] |
禹柳飞. 虚拟仪器在馆藏室温湿度监控中的应用[J]. 微计算机信息,2008,24(13):158-160.
|
| [12] |
郭陈,张志勇. 基于虚拟仪器与PLC的食品仓储监控系统[J]. 包装与食品机械,2010(3):18-22.
|
| [13] |
赵铁军,李晓丽. 基于虚拟仪器的PLC监控系统设计[J]. 电子技术,2010(8):63-64.
|
| [14] |
王冠华. LabVIEW图形化程序设计[M]. 北京:国防工业出版社,2011.
|
| [15] |
谷宇希,孟先新. 基于LabVIEW的温室大棚监测与控制系统设计[J]. 华北水利水电学院学报,2013,34(3):110-112.
|
