Abstract

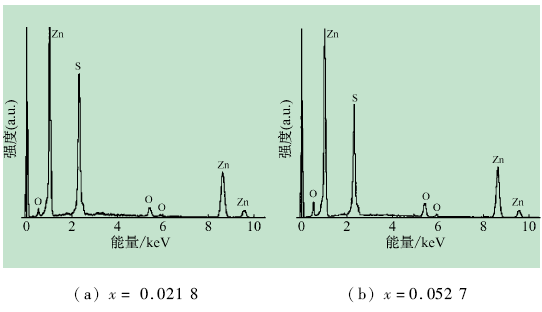

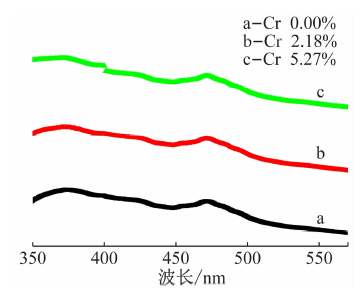

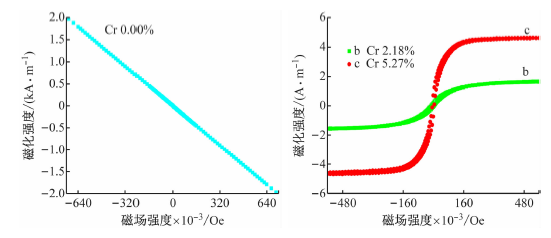

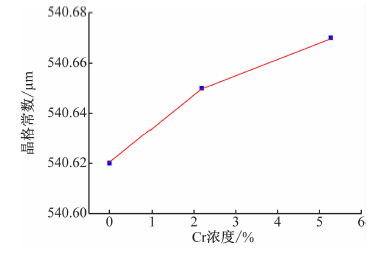

Cr-doped ZnS semiconductor nanoparticles of magnetic property was successfully prepared via a solvothermal reaction of ZnO and S with CrCl₃·6H₂O in mixed solvents of ethylenediamine and ethanolamine at 190 ℃. X-ray diffraction (XRD) measurement demonstrated that the undoped and Cr-doped nanoparticles had a hexagonal structure. Transmission electron microscopy (TEM) images revealed that the morphologies of ZnS with different amounts of chromium consisted of nanoparticles. The average particle size of Zn_1-_xCr_xS (x = 0.052 7) nanoparticles was in the range of 30-40 nm. This product, composed of Cr, Zn, and S, was observed by an energy dispersive spectrometer (EDS). The photoluminescence (PL) spectra of Cr doped ZnS nanoparticles showed that the absorption edge was slightly shifted towards the short wavelength compared with undoped ZnS. A vibrating sample magnetometer (VSM) showed that the Cr-doped ZnS nanoparticles exhibited increased ferromagnetism at room temperature, while the pure ZnS nanoparticles exhibited diamagnetism. The saturation magnetization of the Zn_1-_xCr_xS (x = 0.052 7) nanoparticles was 4.275 A/m. The experimental results confirmed that Cr-doped ZnS nanosheets exhibited ferromagnetism at room temperature, in good agreement with the ferromagnetic properties of Cr-doped ZnS that were predicted by first-principle computations. The origin of the ferromagnetism in the Zn_1-_xCr_xS nanoparticles is intrinsic to the DMS.

Key words： Zinc Sulfide (ZnS) Chromium (Cr) nanoparticles ferromagnetism solvothermal

Received: 01 September 2016 Published: 10 July 2017

ZTFLH:

O649.1

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Zhufeng ZHANG
	Yinshuan REN
	Lu HAN
	Guoya XIE
	Bo ZHONG

Cite this article:

Zhufeng ZHANG,Yinshuan REN,Lu HAN, et al. Ferromagnetic Properties of Cr-doped with ZnS Nanoparticles[J]. Research and Exploration in Laboratory, 2017, 36(5): 36-39.

URL:

http://www.qk.sjtu.edu.cn/rel/EN/ OR http://www.qk.sjtu.edu.cn/rel/EN/Y2017/V36/I5/36

[1]	Zhang H, Yang D R, Ma X Y, et al.Some critical factors in the synthesis of CdS nanorods by hydrothermal process[J]. Material Letters, 2005, 59: 3037-3041.
[2]	Jiang D X, Cao L X, Su G, et al.Synthesis and photo luminescence of water-soluble Mn ZnS[J]. Applied Surface Science, 2007, 253: 9330-9335.
[3]	Yin L W, Bando Y, Zhan J H, et al.Self-assembled highly faceted wurtzite-type ZnS single-crystalline nanotubes with hexagonal cross-sections[J]. Advanced Materials, 2005, 17: 1972-1975.
[4]	Soni H, Chawda M, Bodas D, et al.Electrical and optical characteristics of Ni doped ZnS clusters[J]. Materials Letters, 2009, 63: 767-769.
[5]	Yuan H J, Yan X Q, Zhang Z X, et al.Synthesis optical and magnetic properties of Zn1-xMnxS nanowires grown by thermal evaporation[J]. Journal of Crystal Growth, 2004, 271: 403-408.
[6]	Lin J Z, Yan P X, Yue G H, et al.Synthesis of doped ZnS one-dimensional nanostructures via chemical vapor deposition[J]. Materials Letters, 2006, 60: 3471-3476.
[7]	Yang W Q, Dai L, You L P, et al.Color tuning of photolumines-cence from ZnS nanobelts synthesized with Cu and Mn doping and without intentionally doping[J]. Physics Letters A, 2008, 372: 4831-4834.
[8]	Datta A, Panda S K, Chaudhuri S, et al.Phase transformation and optical properties of Cu-doped ZnS nanorods[J]. Journal of Solid State Chemistry, 2008, 181: 2332-2337.
[9]	Cao J, Yang J H, Zhang Y J, et al.XAFS analysis and luminescent properties of ZnS:Mn2+ nanoparticles and nanorods with cubic and hexagonal structure[J]. Optical Materials, 2010, 32: 643-647.
[10]	Yan D, Gargas D,Yang P, et al. Nanowire Photonics[J]. Nature Photonics (Invited Review), 2009(3): 569-572.
[11]	Zhang Z F, Li J, Jiang J K, et al.Preparation of Cr-doped ZnS nanosheets with room temperature ferromagnetism via a solvthermal route[J]. Journal of Crystal Growth, 2013, 372: 39-42.
[12]	Zhang Z F, Han L, Xie G Y, et al.Room-temperature ferromagnetic and optical properties of Cr-doped CdS nanoparticles via a solvothermal preparation[J]. Journal of Materials Science: Materials in Electronics, 2016, 16: 5432-5437.
[13]	Li Y F, Zhou Z, Jin P, et al.Achieving ferromagnetism in single-crystalline ZnS wurtzite nanowires via chromium doping[J]. Journal of Physical Chemistry C, 2010, 114: 12099-12103.
[14]	Chen H X, Xie J M, Liu C G, et al.Structures and magnetic properties of ZnS nanotubes doped with Cr atom[J]. Chinese Journal of Computational Physics, 2016, 33(1) : 92-98.
[15]	李丽华, 谢瑞士, 刘凌云, 等. 沉淀法制备 ZnS∶Cr 纳米晶及其光学性能研究[J]. 功能材料, 2010, 41(2) : 335-337.
