Sodium-ion batteries (SIBs) are considered as one of the most promising candidates for large-scale energy storage due to the abundant and low-cost sodium resources [1,2,3,4,5]. The cathode is a key component which largely determines the cell performance [6]. The cathode materials for SIBs can be mainly divided into polyanionic compounds [7,8,9,10], Prussian blue and its analogues [11,12,13], and layered transition metal oxides [14,15,16]. Among them, the layered transition metal oxides are wildly investigated for their high theoretical capacity, high tap density, and easy synthesis [17,18].

Layered transition metal oxides (Na_xTMO₂, TM = transition metal) can be categorized into two main groups (P2- and O3-types) according to the sodium ion accommodating sites and the oxygen stacking sequences [19]. Compared with the O3-type Na_xTMO₂, the low-Na P2-type materials have many vacancies in Na layers and possess wide prismatic paths for sodium ion diffusion with a low diffusion barrier, which makes P2-type Na_xTMO₂ a promising cathode material [20,21,22]. However, most P2-type Na_xTMO₂ are generally stable in the potential range of 2-4.1 V (vs. Na⁺/Na) with low discharge capacities. With the widening of voltage range, the P2-type Na_xTMO₂ is susceptible to phase transition (P2-O2/PO4) or irreversible oxygen redox, leading to drastic volume change and poor structural stability [23,24,25]. In addition, the existence of Mn³⁺ would present Jahn-Teller distortion, which lowers the Na⁺ mobility [26,27,28]. Although inactive element doping (Mg²⁺ [29,30], Al³⁺ [31,32], Li⁺ [33], Zn²⁺ [34], and Ti⁴⁺ [35,36] etc.) have been proved to have a significant improvement in the structural stability of Na_xTMO₂. However, the inactive elements can't provide extra charge compensation, which decreases the theoretical capacities. Therefore, when considering the synthetic effect of introducing extra redoxes and stabilizing structure, the active elemental doping is an effect approach. For example, Wang et al. reported that the strong-electronegativity Cu²⁺/Cu³⁺ redox can stabilize the Na-deficient P2-Na_2/3Mn_0.72Cu_0.22Mg_0.06O₂ phase to achieve reversible cationic and anionic redoxes [37]. Myung et al. developed the active Ni²⁺ doped P2-Na_0.75[Li_0.15Ni_0.15Mn_0.7]O₂ cathode material, and the active Ni doping not only decreases the voltage hysteresis but also improves the cycling stability [38]. From this point, searching for earth-abundant and moderate active element doping is urgently required.

Herein, we designed the P2-Na_0.67Mg_0.1Fe_xMn_0.9-xO₂ (x = 0, 0.1, 0.2) cathode material with different contents of active Fe³⁺ doping. Uneven distribution of Mn³⁺/Mn⁴⁺ element is observed in Na_0.67Mg_0.1Mn_0.8Fe_0.1O₂ (NMMF-1). It is demonstrated that introducing moderate Fe³⁺ can reduce the Mn³⁺ contents both at the surface and in the bulk to alleviate the Jahn-Teller effect. In-situ X-ray diffraction (XRD) characterization reveals that NMMF-1 exhibits a complete solid solution process in the wide voltage range of 1.5 - 4.5 V (vs. Na⁺/Na). It is also found that the moderate Fe³⁺ doping can introduce additional active Fe³⁺/Fe⁴⁺ redox to realize a tradeoff between capacity and cyclability. Therefore, the NMMF-1 cathode material demonstrates a high capacity and improved cycling stability. This study will provide a new insight into constructing high capacity and stable layered metal oxide cathode materials for SIBs.

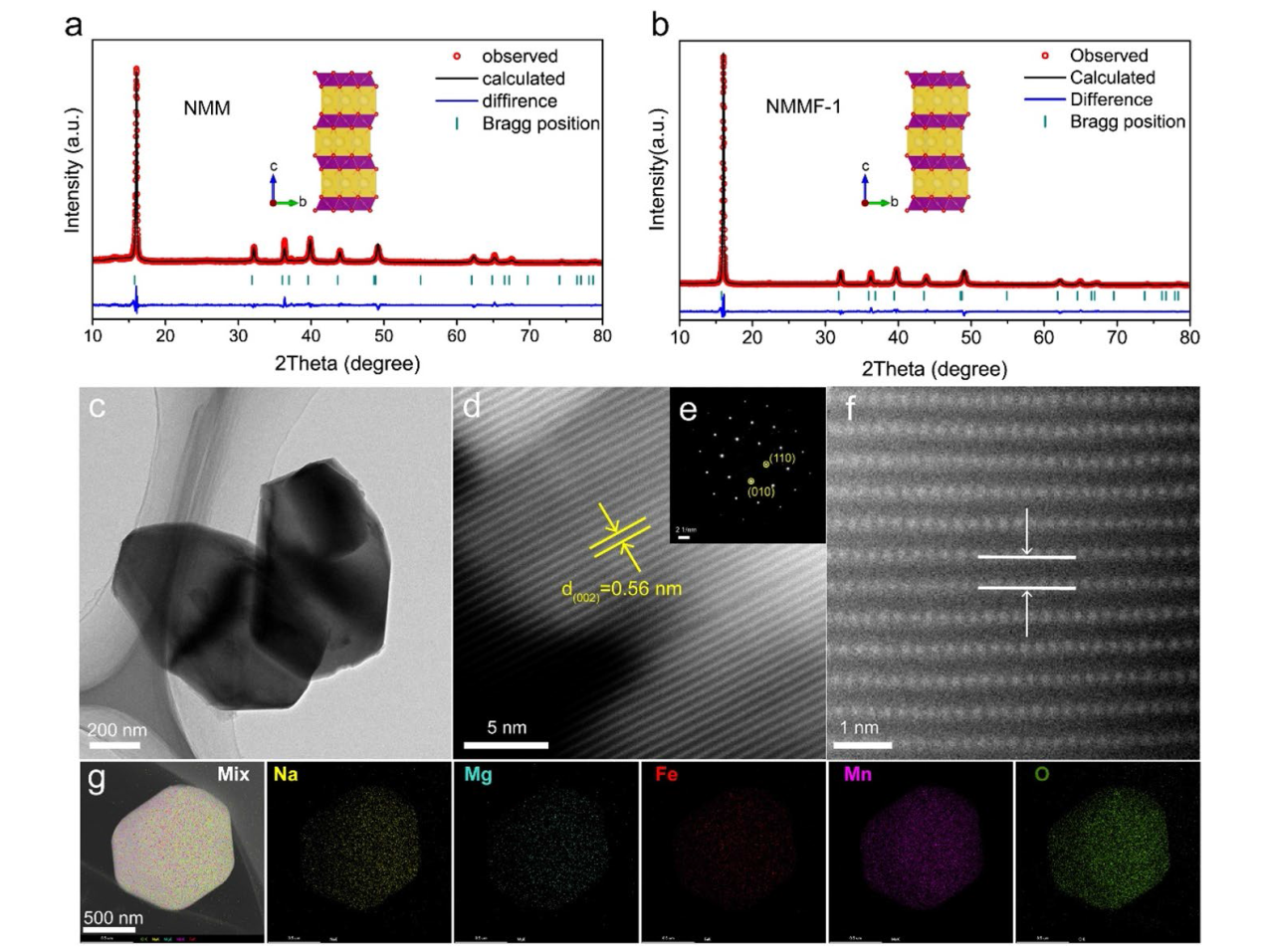

A series of Fe-doped Na_0.67Mg_0.1Mn_0.9-xFe_xO₂ (x = 0, 0.1, 0.2, NMMFs) are prepared by an organic acid-assisted solid-state reaction. The crystal structures of the as-prepared NMMFs are characterized by X-ray diffraction (XRD, Fig. S1). The Rietveld refinement patterns of Na_0.67Mg_0.1Mn_0.9O₂ (NMM) and NMMF-1 are displayed in Fig. 1a-b. All NMMF samples can be well indexed to the P2-type layered structure with a space group of P63/mmc._. According to the refinement results of NMM and NMMF-1 (Table S1-S2), both the Fe and Mg elements are contained in the TM layers. After introducing Fe³⁺ into NMM, the Fe³⁺ preferentially replaces the Mn³⁺ sites because of their same valence state (+ 3) and ionic radius (0.645 Å for Fe³⁺ and Mn³⁺), which is beneficial for alleviating the Jahn-Teller effect of Mn³⁺.

The morphologies of the NMMFs are characterized by scanning electron microscopy (SEM) and transmission electron microscopy (TEM). SEM images (Fig. S2) indicate that all samples are composed of micro-particles with a size of 1-4 µm. The TEM image of NMMF-1 is displayed in Fig. 1c, where thick flakes can be observed. Figure 1d shows the high-resolution TEM (HRTEM) image of NMMF-1. Clear lattice fringes can be observed, corresponding to the (002) interplanar distance of P2 structure. Figure 1e shows the selected area electron diffraction (SAED) pattern along the [001]_hex zone axis. High-angle annular dark-field scanning transmission electron microscopy (HAADF-STEM) characterization is further employed to depict the atomic arrangement. The bright dots in Fig. 1f can be assigned to heavy TM atoms (Mn, Fe) and the light atoms can't be observed, which reveals the typical layered structure of NMMF-1. The Energy dispersive spectroscopy (EDS) element mapping in Fig. 1g suggests that all elements are evenly distributed in NMMF-1.

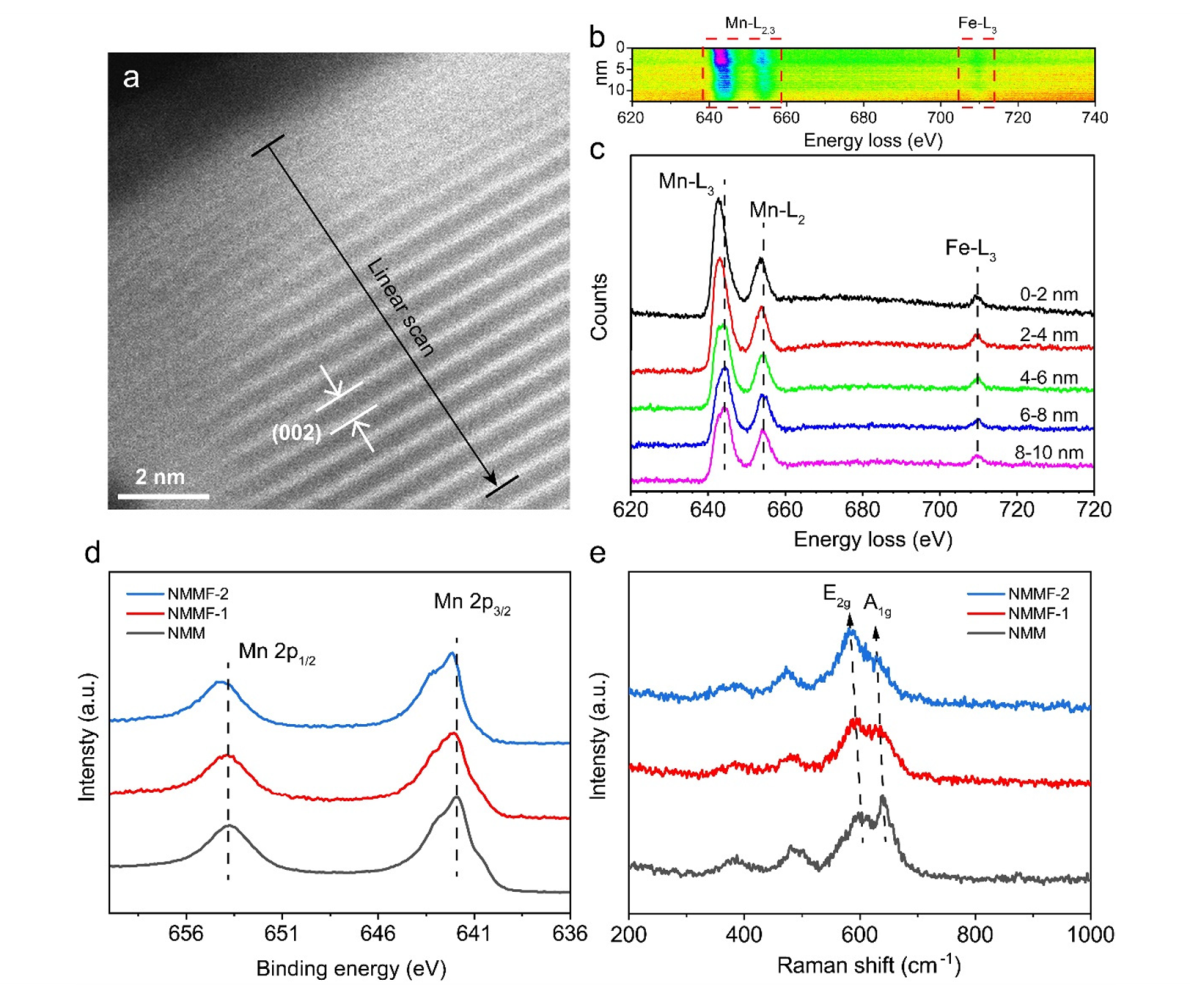

As reported in many layered oxide cathode materials, the coexistence of Mn³⁺ and Mn⁴⁺ is a common phenomenon [27]. According to the chemical formula of NMMF-1, the average valence state of Mn is + 3.54, suggesting the coexistence of Mn³⁺ and Mn⁴⁺. To further investigate the distribution of Mn³⁺ and Mn⁴⁺ in the NMMF-1, HAADF-STEM coupled with electron energy loss spectroscopy (EELS) is employed (Fig. 2a). The bright fringes represent the heavy TM ions and the electron energy loss can be collected in EELS. The NMMF-1 is scanned from the surface to bulk with a length of 10 nm in linear scan mode, and the EELS spectra at different distances from the surface is shown in Fig. 2b, c. The EELS spectra of NMMF-1 display Mn-L3 and Mn-L2 peaks at ~ 644 and 654 eV, respectively, as well as the Fe-L3 peak at ~ 710 eV. It can be found that the Mn-L2,3 peaks shift to higher energy loss from surface to bulk with decreased intensity ratio of L3/L2, indicating the Mn³⁺ content is higher at the edge [39]. The Fe-L3 peak shows no position and intensity change, which indicate the even distribution of Fe³⁺ at particle surface and bulk. Due to the similar ionic properties of Fe³⁺ and Mn³⁺, the introduced Fe³⁺ should preferentially replaces Mn³⁺ sites. Thus, the introduced Fe³⁺ decreases the Mn³⁺ contents both at the surface and in the bulk. It is expected that the replacement of Mn³⁺ with Fe³⁺ would alleviate the Jahn-Teller distortion, thus leading to better material stability.

The integral valence states are investigated by XPS. The binding energies at 720 and 706 eV (Fig. S5) are corresponding to the Fe 2p_1/2 and 2p_3/2 peaks of Fe³⁺, respectively. The peak intensity of Fe³⁺ increases from NMM to NMMF-2. The peaks show no shift in position, confirming the introduced iron keeps trivalent. Besides, the XPS spectra (Fig. 2d) display the Mn 2p_1/2 and 2p _3/2 peaks at ~ 653.8 and ~ 642.0 eV, respectively. The peaks gradually shift to higher binding energy from NMM to NMMF-2, indicating the increasing of Mn average valence state due to the substitution of Mn³⁺ by Fe³⁺.

To further detect the change of local structures, Raman tests also are performed (Fig. 2e). All the samples exhibit four primary peaks, where the peak at 640 cm⁻¹ is assigned to the A_1g mode of TM-O bond and the peaks at ~ 598, ~ 490, and ~ 380 cm⁻¹ are ascribed to E_2g modes involving both Na and O vibrations [40,41]. Typically, the E_2g peak at ~ 598 cm⁻¹ is related to the atomic displacement along c axis, which is able to reflect the change in interlayer distance. Notably, with the increase of introduced Fe³⁺ contents, the peak of A_1g mode shifts to lower position, which suggests the elongated TM-O bonds. The increased TM-O bonds are beneficial to increasing the structural stability. While the E_2g mode at ~ 598 cm⁻¹ also shifts to lower wavenumbers, which suggests the increased interlayer distance.

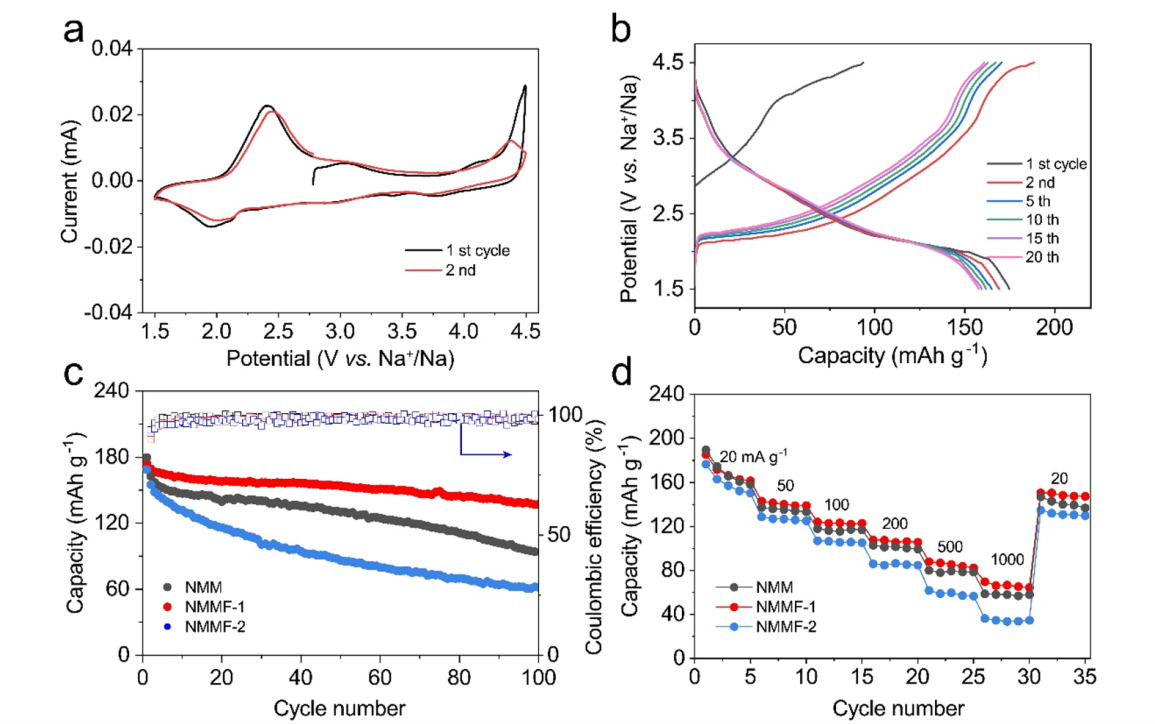

The electrochemical performances of NMMFs are investigated in half cell with Na metal as the anode. The first two CV curves at 0.1 mV s⁻¹ of NMMF-1 are displayed in Fig. 3a. The NMMF-1 exhibits a pair of redox peaks below 2.5 V, which can be assigned to the oxidation/reduction of Mn³⁺/Mn⁴⁺. In addition, a sharp oxidation peak appears above 4.2 V, which generally corresponds to the anionic redox reaction and electrolyte decomposition. The peak exhibits a slight decrease at the second cycle, implying the existing of some irreversible processes. A small pair of peaks can also be observed within 3.5-4 V for NMMF-1, which may be ascribed to the redox of Fe³⁺/Fe⁴⁺. To further investigate the cycling stability, the NMMFs are tested at 20 mA g⁻¹ in a wide voltage range of 1.5-4.5 V, which involves both the cationic and anionic redoxes. The charge/discharge profiles of NMMF-1 at different cycles are shown in Fig. 3b. An obvious potential plateau at ~ 2 V is assigned to the Mn³⁺/Mn⁴⁺redox, agreeing with the CV results. The discharge profiles exhibit a good overlap during subsequent cycles, indicating the good reversibility. However, the NMM and NMMF-2 (Fig. S6) exhibit severe voltage decay during cycling. The cycling performances of NMMFs are investigated in 1.5-4.5 V (Fig. 3c). When tested at 20 mA g⁻¹, the NMMF-1 delivered a high capacity of 174.7 mAh g⁻¹, higher than that of NMMF-2 (168.6 mAh g⁻¹) but slightly lower than NMM (179.5 mAh g⁻¹). The slightly higher capacity of NMM may be related to the more Mn-O bonds, which are easier to trigger anionic redox reactions. After 100 cycles, the NMMF-1 exhibits significantly improved capacity retention of 78.5%, obviously higher than that of NMM (51.7%) and NMMF-2 (36.5%). The results indicates that the moderate active Fe³⁺ doping improves the cycling stability. The rate performances of NMMFs are further tested (Fig. 3d, Fig. S8). The NMMF-1 also delivers higher capacity than NMM and NMMF-2 at different current densities. Even tested at the current density of 1000 mA g⁻¹, the NMMF-1 can still deliver a high capacity of 69.8 mAh g⁻¹.

The Galvanostatic intermittent titration technique (GITT) test at the second cycle is employed to compare the Na⁺ diffusion coefficient (${D}_{{Na}^{+}}$) in NMM and NMMF-1 (Fig. S9). At the initial charge state, NMMF-1 exhibit a slightly higher Na⁺ diffusion coefficient (${D}_{{Na}^{+}}$) than NMM, which explains the slight improvement of rate performance.

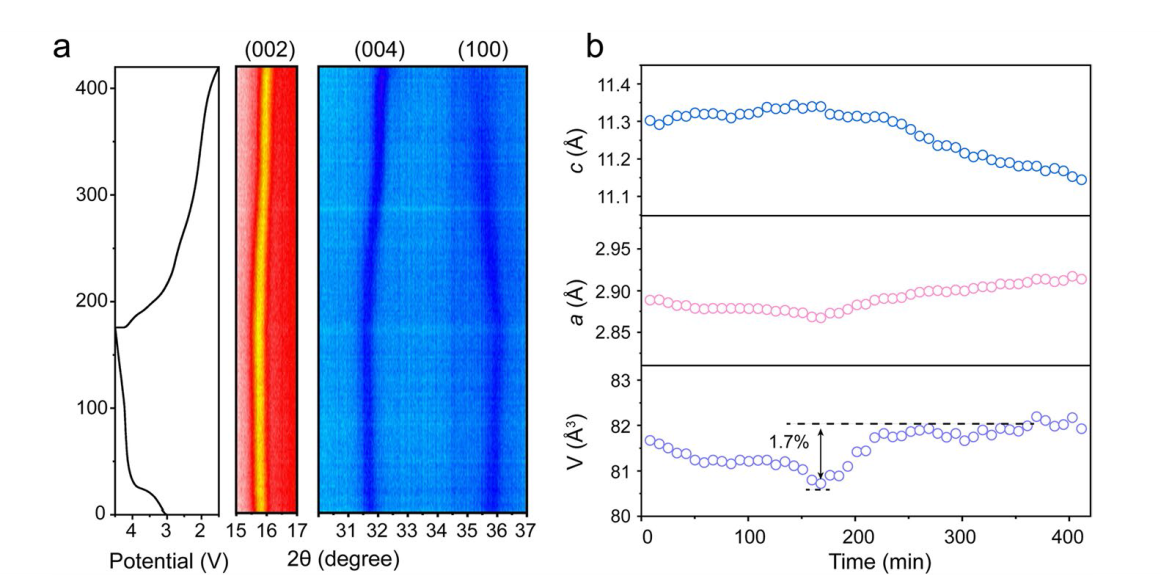

To explore the structural evolution of NMMF-1 during sodiation/de-sodiation processes, in-situ XRD measurements are employed. As displayed in Fig. 4a, during the charge process, the (002) and (004) peaks of NMMF-1 shift to lower position, which is related to the increase of lattice parameter c with the extraction of Na⁺ ions. In contrast, the (100) peak shifts to higher position, indicating the decrease of lattice parameter a. As for the subsequent discharge process, the peak shifting shows an opposite behavior, indicating the reversible structure evolution. There are no new peaks appearing during the whole charge/discharge processes, indicating a complete solid solution process, which demonstrates the stable structure of NMMF-1 within a wide voltage range of 1.5-4.5 V. The specific numerical changes in lattice parameters of NMMF-1 are displayed in Fig. 4b. The increase of parameter c is caused by the increased repulsive force between adjacent oxygen layers with the extraction of Na⁺ ions. The decrease of parameter a can be ascribed to the TM oxidation, which makes TM-O distance shorter. Typically, NMMF-1 exhibits a low cell volume variation of 1.7%, suggesting a near-zero-strain feature.

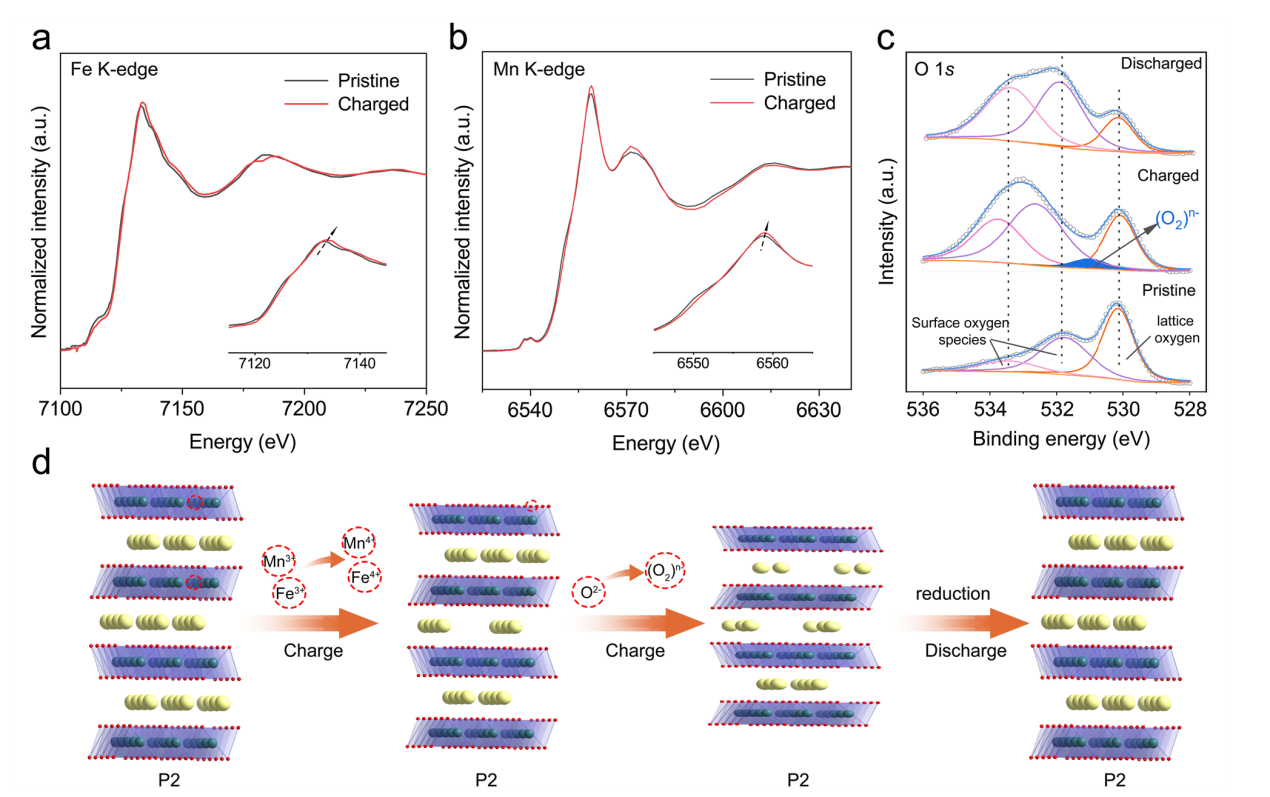

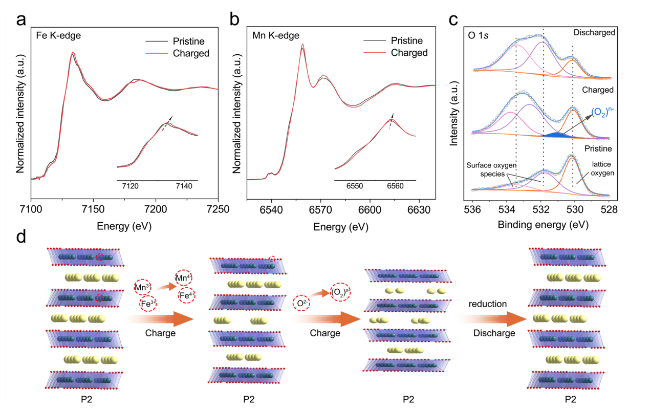

To further clarify the charge compensation mechanism in NMMF-1, ex-situ X-ray adsorption near edge structure (XANES) at different charge/discharge states are collected. The normalized Fe K-edge and Mn K-edge spectra of the pristine and the charged states are displayed in Fig. 5a-b. The Fe K-edge exhibits a shift to high energy after fully charging, which manifests the oxidization of Fe³⁺ to Fe⁴⁺ in charge compensation process. The Mn K-edge spectra also slightly shifts to high energy from the pristine state to charged state, indicating the oxidation of Mn³⁺ to Mn⁴⁺. The ex-situ O 1 s XPS are further employed to detect the existence of oxygen redox reactions (Fig. 5c). The pristine O1s spectra can be divided into two peaks from the surface oxygen-related species and one peak from lattice oxygen. When charged to 4.5 V, an extra peak at 531 eV appears and disappears after fully discharged to 1.5 V, which is ascribed to the formation of peroxo-like (O₂)ⁿ⁻ species [42]. Such an appearance of the new component indicates the participation of the oxygen redox in charge compensation process. Because of the similar oxidizing potential of Fe³⁺/Fe⁴⁺ and oxygen redox, the NMMF-2 with high-content Fe³⁺ may experience simultaneously proceeding of cationic and anionic redoxes and severely deteriorate the structure. Therefore, the entire charge compensation process of NMMF-1 can be schematically illustrated in Fig. 5d. The NMMF-1 cathode material exhibits a complete solid-solution reaction during the entire charge/discharge processes due to the Mg²⁺ and moderate Fe³⁺ dual doping, Mg²⁺ doping suppresses the unamiable phase transformation and triggers the anionic redox reactions, while Fe³⁺ doping is beneficial to reducing Mn³⁺ contents. In addition, the Fe³⁺ can be oxidized to Fe⁴⁺ to form strong Fe-O bonds, which would improve the anionic redox reversibility at high voltage. During the charge process, the capacity is provided by the cationic (Fe³⁺/Fe⁴⁺, Mn³⁺/Mn⁴⁺) and anionic (O²⁻/(O₂)ⁿ⁻) redoxes. Due to the abundant redox reactions, NMMF-1 delivers a high capacity. The stable P2 structures of NMMF-1 at different charge states ensures the reversibility of these cationic/anionic redoxes.

In summary, we designed the P2-Na_0.67Mg_0.1Mn_0.9-xFe_xO₂ (x = 0, 0.1, 0.2) cathode material with different contents of active Fe³⁺ doping. The uneven Mn³⁺/Mn⁴⁺ distribution is observed in Na_0.67Mg_0.1Fe_0.1Mn_0.8O₂ (NMMF-1). It is demonstrated that introducing moderate Fe³⁺ can reduce the Mn³⁺ contents both at the surface and in the bulk to alleviate the Jahn-Teller effect. The structural evolution and charge compensation mechanism are revealed by in-situ XRD and ex-situ XANES/XPS measurements. The NMMF-1 exhibits a complete solid-solution reaction during the entire charge/discharge processes. What’s more, it is found that the introduction of Fe³⁺ can bring in additional active Fe³⁺/Fe⁴⁺ redox, the moderate Fe³⁺ doping can realize a tradeoff between capacity and cyclability. Therefore, the NMMF-1 cathode material exhibits a high capacity and improved cycling stability in a wide-voltage range of 1.5-4.5 V (V vs. Na⁺/Na). This study will provide a new insight into constructing high capacity and stable cathode for SIBs.

SIBs $\ \ \ \ \ \ \ \ $Sodium-ion batteries

LIBs $\ \ \ \ \ \ \ \ $Lithium-ion batteries

Na_xTMO₂ $\ \ \ \ \ \ \ \ $Layered transition metal oxides

NMM $\ \ \ \ \ \ \ \ $Na_0.67Mg_0.1Mn_0.9O₂

NMMF-1 $\ \ \ \ \ \ \ \ $Na_0.67Mg_0.1Mn_0.8 Fe_0.1O₂

NMMF-2 $\ \ \ \ \ \ \ \ $Na_0.67Mg_0.1Mn_0.7 Fe_0.2O₂
