Theory and practice of hull dynamic deformation law and heading angle transfer error correction

doi:10.1016/j.joes.2023.05.005

Abstract

Abstract:

In order to meet the demand of high-precision heading angle transmission in the transfer alignment of inertial navigation system on moving base, the analytical function relationship between the hull deformation and the turning angular velocity and angular acceleration was derived by using the classical beam theory based on the analysis of the equivalent load exerted by the hydrodynamic force and inertia force on the hull structure during the turning process under the combined action of the steering rudder moment and wave force. The objective law between the angular motion and the azimuth deformation angle of the hull under the combined action of maneuvering and sea waves was revealed. Finally, the correction coefficients were determined according to the left turn and right turn motions of the hull by using the measured data of the ship in the sea trial during the S-shape maneuvering navigation, and the azimuth deformation angle correction was completed. The results indicated that the application of the Qu's bending deformation correction formula could greatly reduce the influence of the hull flexural deformation on the heading angle accuracy, meet the needs of high-precision heading angle transmission, and fully verify the correctness of the hull azimuth deformation law and the heading angle transmission error correction theory. This theory and method provided technical support for establishing high-precision distributed digital reference in the field of transfer alignment of inertial navigation on moving base and the application of heading angle transfer of other shipborne equipment.

Key words: Hull deformation, Hull girder, Heading angle, Alignment on moving Base, Transfer alignment, Error correction

Yepin Qu, Jianqiang Liu, Yuhai Lyu, Chaoran Zhang, Tao Li. Theory and practice of hull dynamic deformation law and heading angle transfer error correction[J]. Journal of Ocean Engineering and Science, 2024, 9(2): 191-198.

Yepin Qu, Jianqiang Liu, Yuhai Lyu, Chaoran Zhang, Tao Li. [J]. Journal of Ocean Engineering and Science, 2024, 9(2): 191-198.

/ / Recommend / Download Citations

URL: https://www.qk.sjtu.edu.cn/joes/EN/10.1016/j.joes.2023.05.005

https://www.qk.sjtu.edu.cn/joes/EN/Y2024/V9/I2/191

Figures/Tables 4

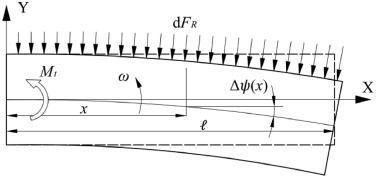

Fig. 1. Schematic diagram of load bearing and bending deformation during hull girder turning.

Fig. 2. Heading angle error caused by hull deformation at P1 position and corrected curve.

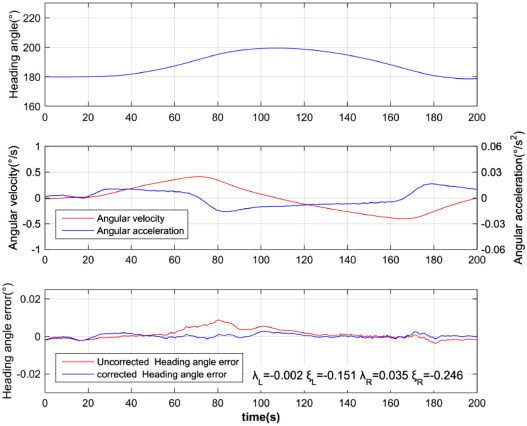

Fig. 3. Heading angle error caused by hull deformation at P2 position and corrected curve.

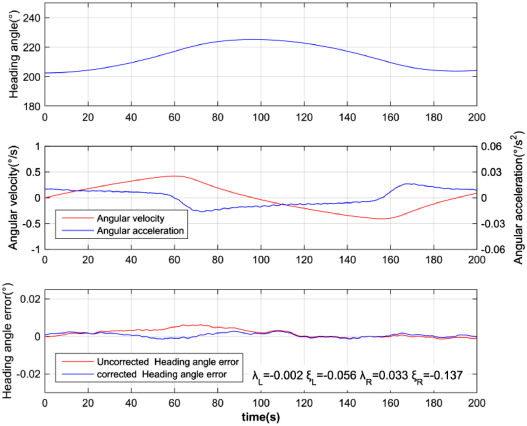

Fig. 4. Heading angle error caused by hull deformation at P3 position and corrected curve.

References 21

[1]	Q. Yu, G. Jiang, X. Ding, Y. Shang. Research on the method and system of measuring the deformation of large ship hull using the refraction optical path camera. Proceedings of the 2007 Academic Conference of the Chinese Society of Mechanics (2007), p. 197
[2]	Y. Yu, Y. Lin. Development of Professional Design Software For Ships and Offshore Platforms. Science Press, Beijing (2016), pp. 252-253 DOI: 10.5539/elt.v9n6p252
[3]	X. Ni, M. Wang, C. Tian. The development and application COMPASS-THAFTS based on three-dimensional hydroelasticity theory. Proceedings of the 15th National Hydrodynamics Academic Conference (2019), pp. 696-703
[4]	Q. Huang, H. Li, H. Ren, Z. Wu, Y. Wang. Ship Eng., 39 (8) (2017), pp. 13-17, DOI: 10.13788/j.cnki.cbgc.2017.08.013.
[5]	M. Chen, Q. Qiu. J. Ship Mech., 10 (2) (2006), pp. 87-95, DOI: 10.3969/j.issn.1007-7294.2006.02.012.
[6]	P. Tong. Research of Dynamic Distortion On a Ship Based On the Theory of Hydroelasticity. National University of Defense Science and Technology, Changsha, Hunan, P. R. China (2011)
[7]	A.V. Mochalov, A.V. Kazantsev. Use of ring laser units for measurement of the moving object deformations. Proceedings of the Second International Conference on Lasers for Measurement and Information Transfer (2002),
[8]	A.V. Mochalov. System For Measuring Deformation of Large-Sized Objects. Neuilly-sur-Seine, France (1999), pp. 1-9
[9]	D. Wan, Y. Liu. J. Chin. Inert. Technol., 13 (4) (2005), pp. 77-82, DOI: 10.3969/j.issn.1005-6734.2005.04.019.
[10]	R. Zheng, C. Chen, G. Yang. J. Tianjin Univ., 9 (2006), pp. 1077-1081, DOI: 10.3969/j.issn.0493-2137.2006.09.012.
[11]	F. Sun, C. Guo, W. Gao, B. Li.A new inertial measurement method of ship dynamic deformation. Proceedings of the 2007 International Conference on Mechatronics and Automation (2007), pp. 3407-3412,
[12]	D. Yang, X. Xu, Y. Yao. IEEE Access, 8 (2020), pp. 191413-191420, DOI: 10.1109/ACCESS.2020.3031955.
[13]	X. Lv, J. Liu, Y. Yao. J. Huazhong Univ. Sci. Technol. (Nat. Sci. Ed.), 41 (2013), pp. 215-218, DOI: 10.13245/j.hust.2013.s1.117.
[14]	J. Sun. The Prediction and Statistical Analysis of the Ship Structure Deformation. Harbin Engineering University (2014)
[15]	X. Chen. Research On Mathematical Modeling of Deformation Angle and Its Measurement Methods. Harbin Engineering University (2013)
[16]	X. Jin, L. Xia. Ship Vibration. Shanghai Jiaotong University Press, Shanghai (2011), pp. 130-131
[17]	M.G. Petovello, K. O'Keefe, G. Lachapelle, M.E. Cannon. IEEE Trans. Aerosp. Electron. Syst., 45 (2) (2009), pp. 523-535, DOI: 10.1109/TAES.2009.5089539.
[18]	B. Huang, J. Jin, Q. Hu, B. Xie. Ocean Eng. Equip. Technol., 4 (4) (2017), pp. 187-192, DOI: 10.3969/j.issn.2095-7297.2017.04.002.
[19]	J. Du, Z. Chen, H. Zhou, G. Tao. Marine Technol., 353 (1) (2020), pp. 1-6, DOI: 10.3969/j.issn.1000-3878.2020.01.001.
[20]	Я.И. В.ойткунский, in: Ship Resistance, Science Press, Beijing, 1977, pp. 13–21.
[21]	W. Gou. Mechanics of Materials, Third Edition. Science Press, Beijing (2005), pp. 181-190
