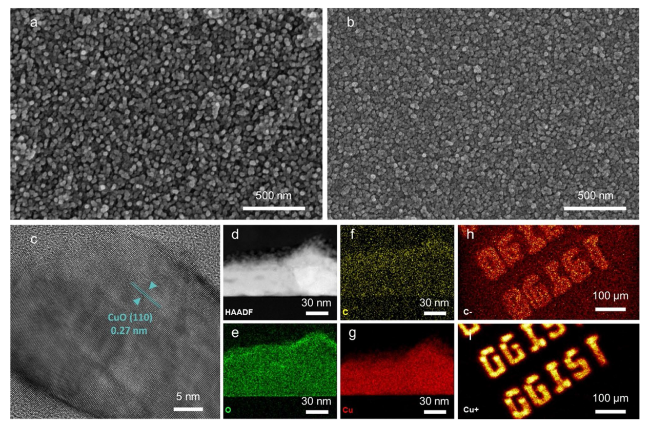

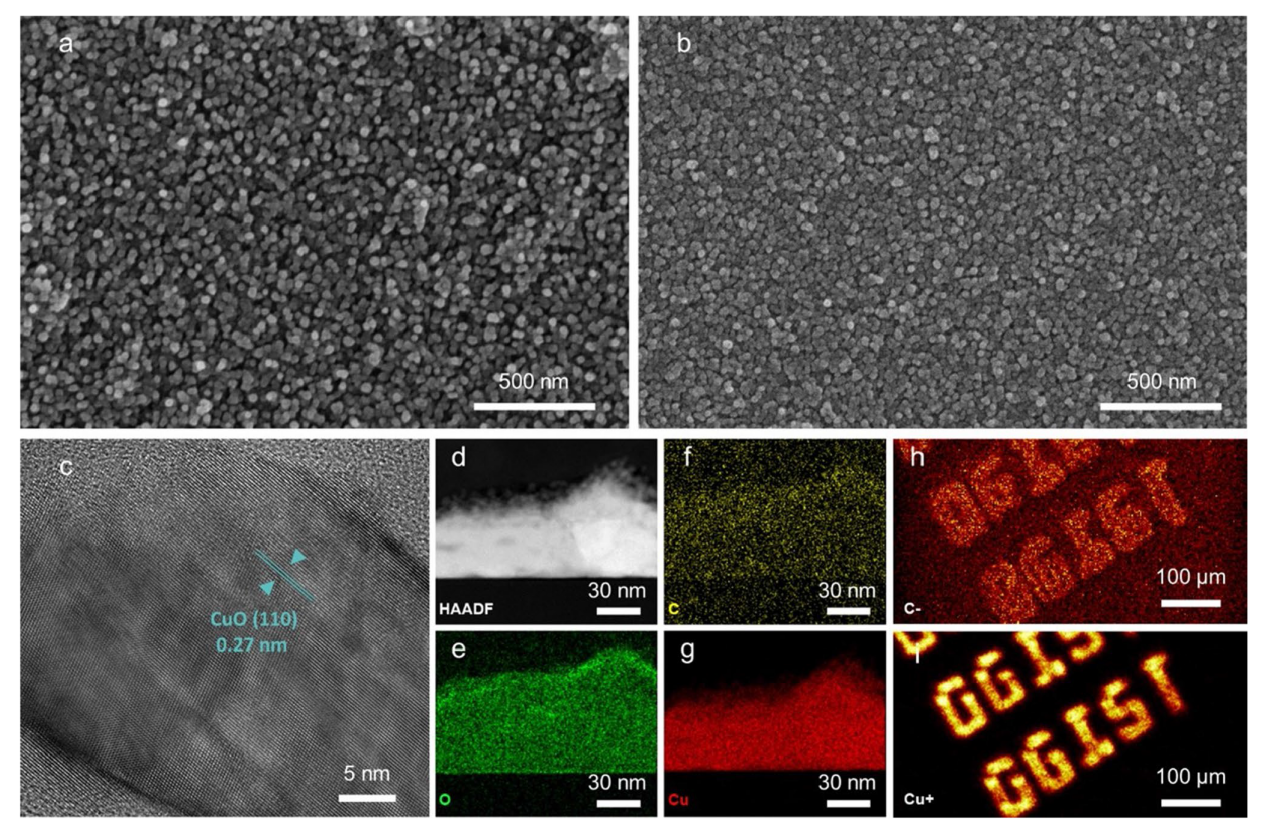

To further investigate the nature and chemical environment of MOF-derived CuO/C, spectroscopic analyses were performed.

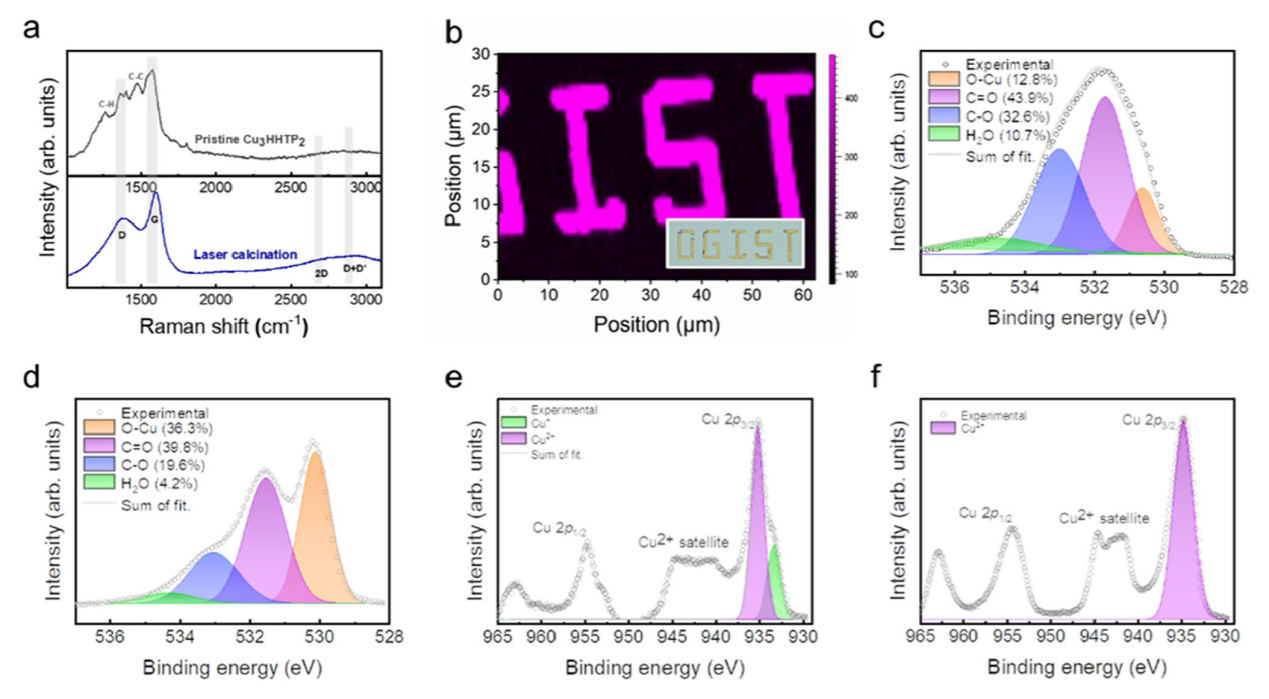

Figure 3a shows the high-resolution Raman spectra of pristine Cu
3HHTP
2 (upper) and CuO/C (bottom). In pristine Cu
3HHTP
2, the C-H in-plane bending modes (1,270 and 1,179 cm
−1) and the stretching of aromatic C-C bonds (1,400, 1,468, and 1,547 cm
−1) were observed, in addition to the G and D bands resulting from the graphitic platform of the aromatic triphenylene ligand [
27]. After laser irradiation, the vibration peaks attributed to organic ligands disappeared, and only the D and G bands arising from graphitic carbon were observed. Additionally, the 2D band was preserved, which is the fingerprint signal of graphene and the second-order overtone of the D band [
29]. However, the 2D band exhibited a lower intensity than the broad D + D’ peak, indicating that the resulting carbonaceous component is a multilayered and amorphous
sp2 carbon structure. Similarly, several recent studies involving the annealing of MOFs have reported the coating of graphitic carbon on the surface of the resulting products [
11,
12,

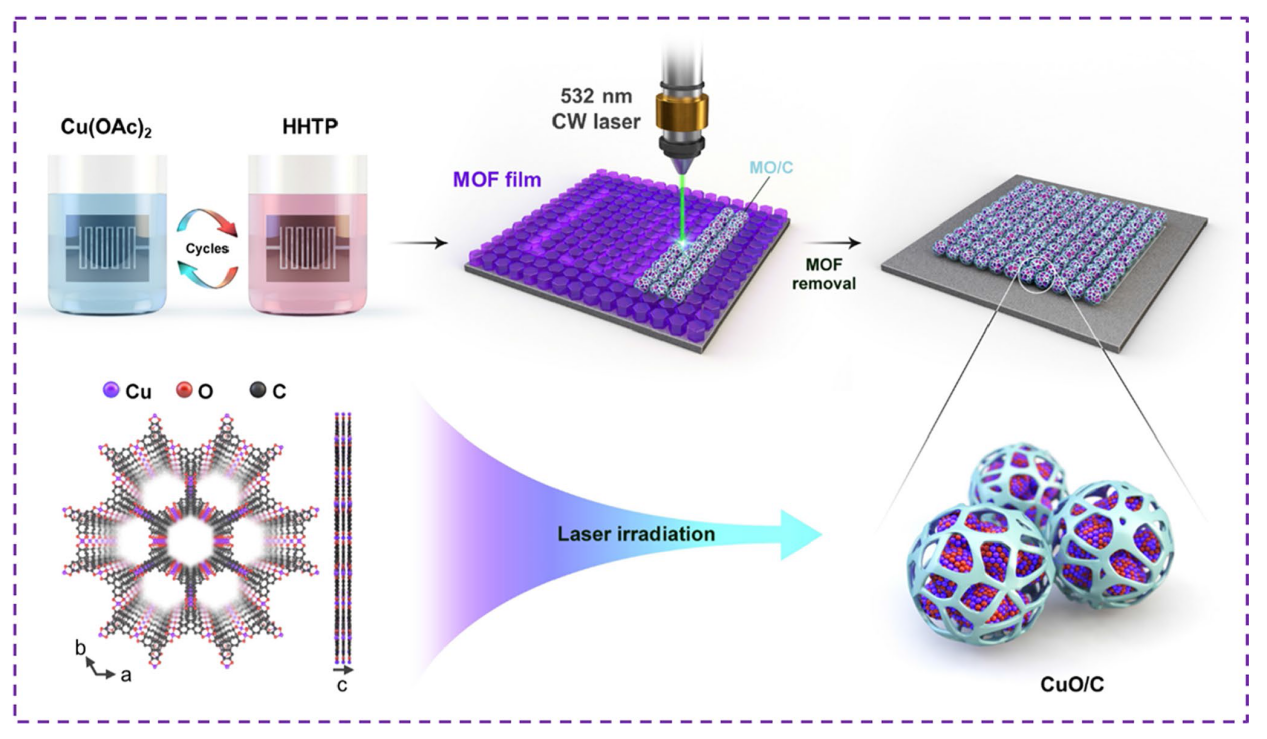

30]. During laser irradiation, localized heating caused the pyrolysis of organic ligands, resulting in the formation of Cu
2+ ions. These ions then reacted with oxygen species in the atmosphere to form copper oxide [
31]. Then, upon instant cooling, the thermally decomposed carbonaceous materials from the organic ligands (such as C
2H
2, CH
4, and CO) formed a graphitic carbon layer on the surface of the oxide [
30]. Additionally, high-resolution Raman mapping was performed to show the miniaturization of the laser patterning process.

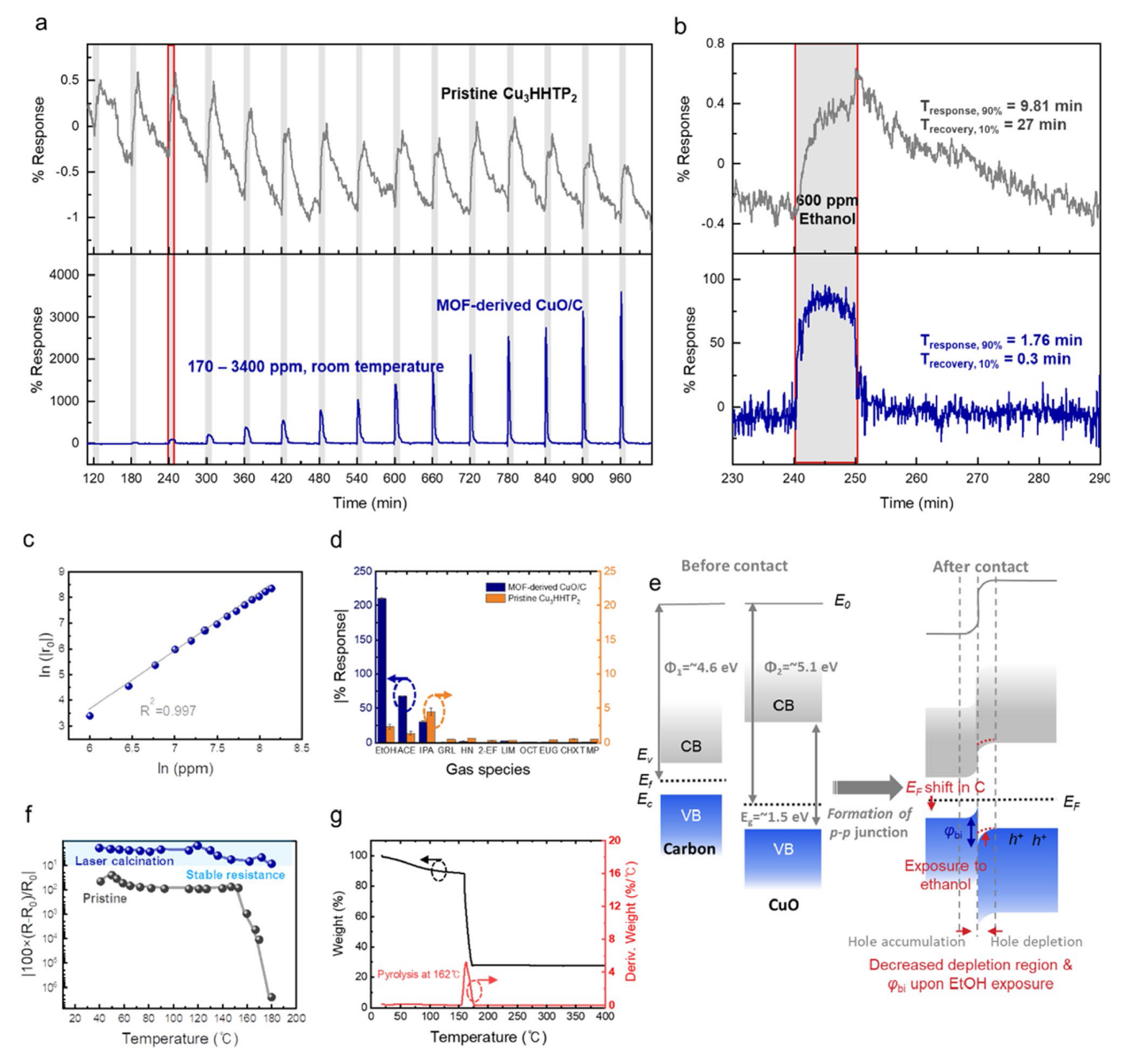

Figure 3b displays the spatial mapping of the peaks to baselines of graphitic G bands of CuO/C patterned with a 2 µm minimum line width. It should be noted that the patternable size of CuO/C in the laser writing process has the potential to be further reduced. Such miniaturization can be realized by optimizing parameters affecting the laser beam size, such as laser fluence, beam shaping, and the choice of objective lens.
