Ti₃C₂T_x nanosheets were prepared using conventional etching methods, as reported by our group previously [28]. A mixed solution of LiF and HCl was utilized to etch the Al layer from the Ti₃AlC₂ (MAX) phase. The obtained dark-green Ti₃C₂T_x suspension was then sonicated and centrifuged at 8000 rpm, and then frozen to obtain Ti₃C₂T_x nanosheets in the form of powder.

A total of 160 mg of Ti₃C₂T_x powders were dispersed in 20 mL of deionized water and sonicated for 10 min to obtain a Ti₃C₂T_x dispersion. To enhance the surface hydrophilicity of the substrate, they were treated in plasma for 7 min. Then, the Ti₃C₂T_x dispersion was spin-coated on the quartz sheet (or silicon wafer) at 1000 rpm to obtain a flat film. Under the same preparation parameters, wrinkle-I film was prepared using PDMS as the substrate. By repeatedly spin coating on a substrate with the same process parameters, flat film or wrinkled-I film with different thicknesses can be obtained.

The wrinkle-P films were obtained through an interfacial self-assembly method. First, 40 mg of Ti₃C₂T_x powder was dispersed in 5 mL of deionized water and sonicated for 1 min. Then, 15 mL of ethanol was added to the Ti₃C₂T_x nanosheet solution and mixed evenly. 20 mL of the obtained solution was then dropped onto the surface of deionized water. The nanosheets were self-assembled into a continuous MXene film in the solution-air interface, as reported in our early work [39]. Second, a hydrophilized PDMS (with a thickness of 200 μm) substrate was pre-stretched on a customized manual displacement stage with set strains. The continuous MXene film was transferred film onto the pre-stretched PDMS substrate by wet transfer. Finally, by releasing the pre-strain in the PDMS, a wrinkle-P film was obtained. The thickness of the wrinkle-P films can be controlled by the volume of the solution dropped on the surface of deionized water.

The thickness of the film and the height of the winkles were measured via atomic force microscopy (AFM, Bruker, Dimension Icon). The morphology of the wrinkled film was observed using field-emission scanning electron microscopy (FE-SEM, Hitachi, S-4800) with a customized manual displacement stage. The transmittance spectra of films were measured via a UV-vis spectrophotometer (UV-2700, Shimadzu, Japan). X-ray diffraction (XRD, Bruker, D8 ADVANCE) and X-ray photoelectron spectroscopy (XPS, Thermo Scientific, ESCALAB 250Xi) were carried out to analyze the structure characters of the films. The EMI SE was conducted in the X-band using a network analyzer (N5232, VNA, Keysight), and in the terahertz band by a fiber-coupled terahertz time-domain spectroscopy (THz-TDS) system (TDS, BATOP, TDS 1008). Broadband Terahertz spectroscopy up to 10 THz was performed using two-color laser induced air plasma terahertz generation system combined with air biased coherent detection method. The flat films on quartz sheet (or high resistance silicon), and wrinkled films on the PDMS were used for THz testing.

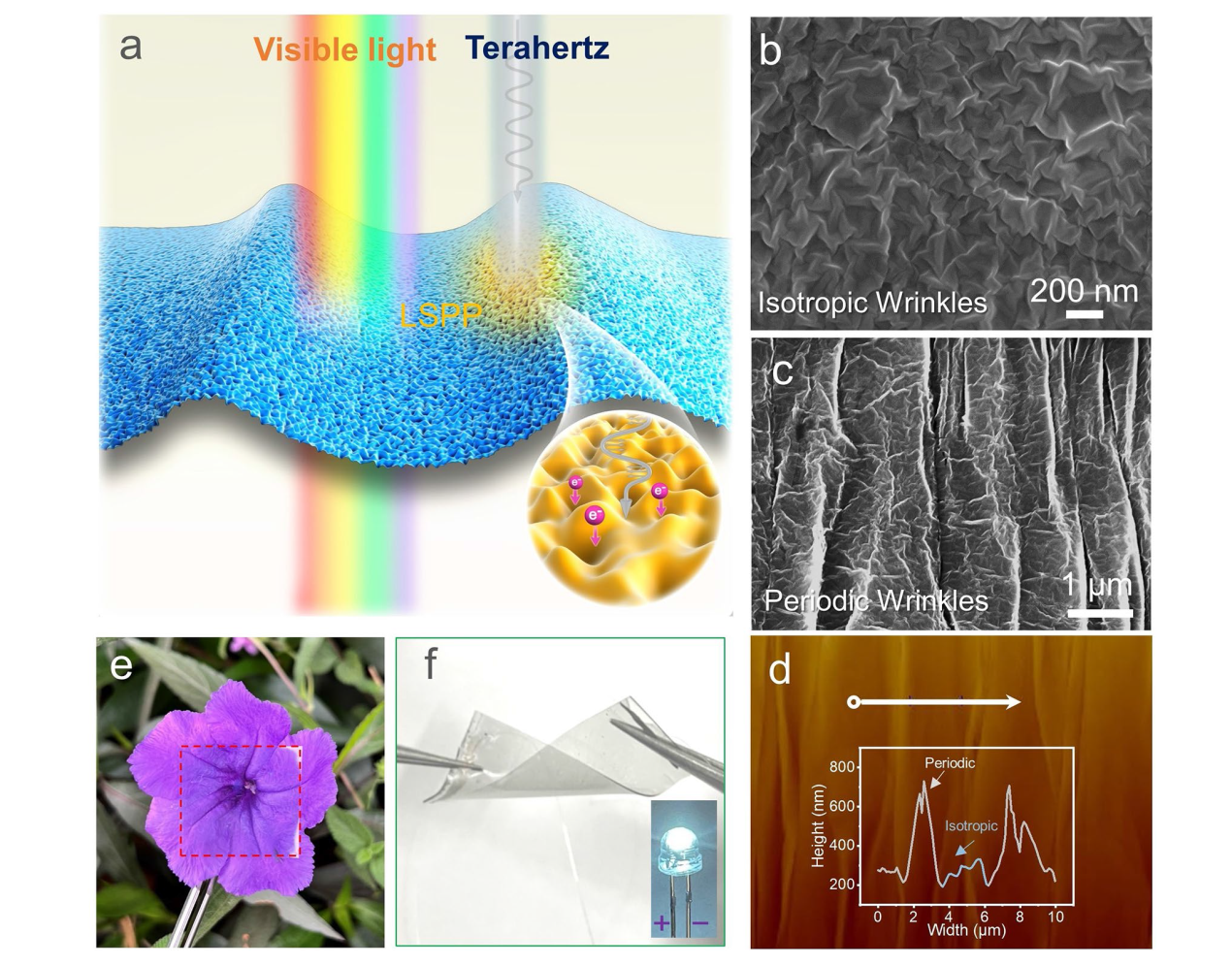

The Ti₃C₂T_x MXene nanosheet was fabricated using traditional etching methods [40]. It consists of single and few-layer nanosheets with a thickness of 2 nm and a lateral size of 1-5 μm (Fig. S1). The large size of the nanosheets is beneficial for improving the mechanical and electrical properties of the self-assembled MXene film. The X-Ray diffraction (XRD) and Raman spectra confirmed the successful fabrication of Ti₃C₂T_x nanosheets (Fig. S2a, b). The XPS survey spectra showed that the MXene nanosheets contain a large number of oxygenic functional groups, which facilitated the self-assembly process of the film (Fig. S2c). The nanosheets are used to fabricate films on different substrates, such as quartz sheet and PDMS, by spin coating or interface self-assembly methods. The film assembled on a quartz sheet is continuous and uniform, without any voids, cracks, and ripples, even though its thickness is only 8 nm (Fig. S2d-f). In this work, the sample prepared on a quartz sheet (or silicon wafer) is defined as flat film. The thickness of the film can be controlled by spin coating times (Fig. S3). The transmittance of the flat film (8 nm) is about 75.4% (@550 nm) (Fig. S4a). Interestingly, using the same spin coating process but using PDMS as the substrate, the surface of the prepared MXene film (named as wrinkle-I film) shows an isotropous and homogeneous wrinkled structure with a wrinkle height of about 50 nm (Fig. 1b). The formation of these wrinkled structures may be attributed to the internal stress of the MXene film on the PDMS [41]. According to early reports, the wrinkled structures in the 2D materials based-film can improve its deformability [39]. To further increase the size of wrinkles, we prepared a wrinkled MXene film with a longitudinal periodic wrinkled structure (named as wrinkle-P film) by using a pre-stretched PDMS substrate. This film has both isotropic small-size winkles and periodic large wrinkles with a height of about 500 nm (Fig. 1c). The AFM image has clearly exhibited periodic wrinkles with longitudinal distribution (Fig. 1d). At the same time, the AFM height profiles further demonstrate that the height of the longitudinal wrinkles is about 500 nm, and that of the isotropous wrinkles is about 50 nm. Although wrinkles are formed in the film, it has almost no effect on its transmittance. The transmittance of the wrinkle-I film is still as high as 71.8% (Fig. S5), allowing for clear visibility of a flower (Fig. 1e). Furthermore, the transparent wrinkled MXene film also shows high conductivity and excellent flexibility, which can be used as a flexible conductor for lighting a LED bulb (Fig. 1f).

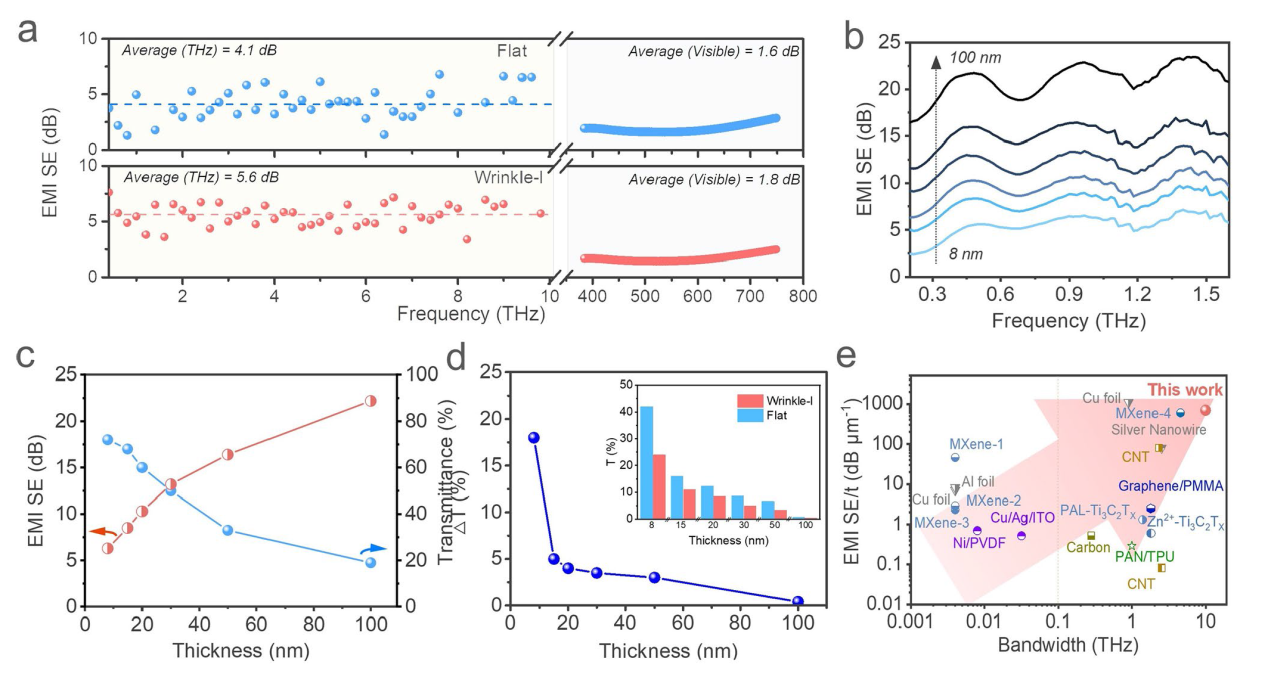

A Terahertz time-domain spectroscopy (THz-TDs) was employed to measure the EMI SE and transmission properties of MXene films in the THz band (Fig. S6). Figure 2a shows the total EMI SE (SE_T) of wrinkle-I film and flat film with a thickness of 8 nm in the THz band (0.1 -10 THz) and visible spectrum (400-780 nm). The SE_T of the wrinkled-I film reached approximately 5.6 dB (corresponding to a transmittance of 27.5%), about 36.5% higher than the value of the flat film (4.1 dB). Interestingly, the visible light transmittance of the wrinkled film was only 3.6% lower than that of flat film at 550 nm. This difference in SE between the THz band and visual spectrum indicated that the wrinkled structures endow the MXene film with selective-shielding features. More details of transmission for the wrinkled-I films with different thicknesses in the THz band are shown in Figs. S7 and S8. We believe that the reason for this enhancement may be because the winkled structure not only enhances its conductivity but also causes changes in the electromagnetic response characteristics of the MXene film surface. A detailed analysis will be discussed in the following text. The EMI SE of the wrinkled film also increased with its thickness (Figs. 2b and S9) due to the increase in conductivity of MXene films (Fig. S4b). When the thickness of the wrinkle-I film is 100 nm, its EMI SE can reach up to 21.1 dB (99% of THz EM waves are shielded), which meets the commercial requirement of EMI shielding materials. In the EMI SE curves, there are three peaks at specific frequencies (0.5, 1.0, and 1.5 THz), which may be attributed to the Fabry-Pérot resonance effect between the wrinkle-I film and PDMS substrate.

In order to clearly compare the transmittance of the wrinkle-I film and flat films, the 1.0 THz was chosen as the contrasting frequency. Figure 2c shows the thickness-dependent THz EMI SE (@1.0 THz) and optical transmittance (@550 nm) characteristics, which vary almost linearly with thickness. In order to analyze the EMI performance of samples, the transmittances of wrinkle-I and flat films at 1.0 THz were compared (inset of Fig. 2d). The results indicate that as the thickness of the film decreases, the transmittance difference (△T_THz) between wrinkle-I and flat films becomes larger (Fig. 2d), indicating that at lower thicknesses, the wrinkled structure in the MXene film will result in lower transmittance and higher EMI SE of the sample. The transmittance difference between the two films is greater than 17.5% when the film thickness is less than 10 nm. Therefore, for an ultra-thin film, forming microstructures such as wrinkles on its surface is a feasible method to improve its EMI SE for THz band without reducing its transparency. In order to more objectively evaluate the films’ performance, the specific shielding efficiency (SE/t) values of the wrinkled MXene film in this work were compared with those of other THz EMI shielding materials (Fig. 2e and Table S1) [15,25,42,43,44,45,46,47,48,49,50]. Obviously, the wrinkled film in this work has better EMI SE/t and wider bandwidth. Many thin film materials, such as metal foils, CNTs films, and graphene films, have been used for THz wave electromagnetic shielding. However, their shielding bandwidths are relatively limited, typically less than 2.0 THz. In contrast, the wrinkled MXene film with a thickness of 8 nm had an average EMI SE/t of 700 dB μm⁻¹ over the 0.1-10 THz.

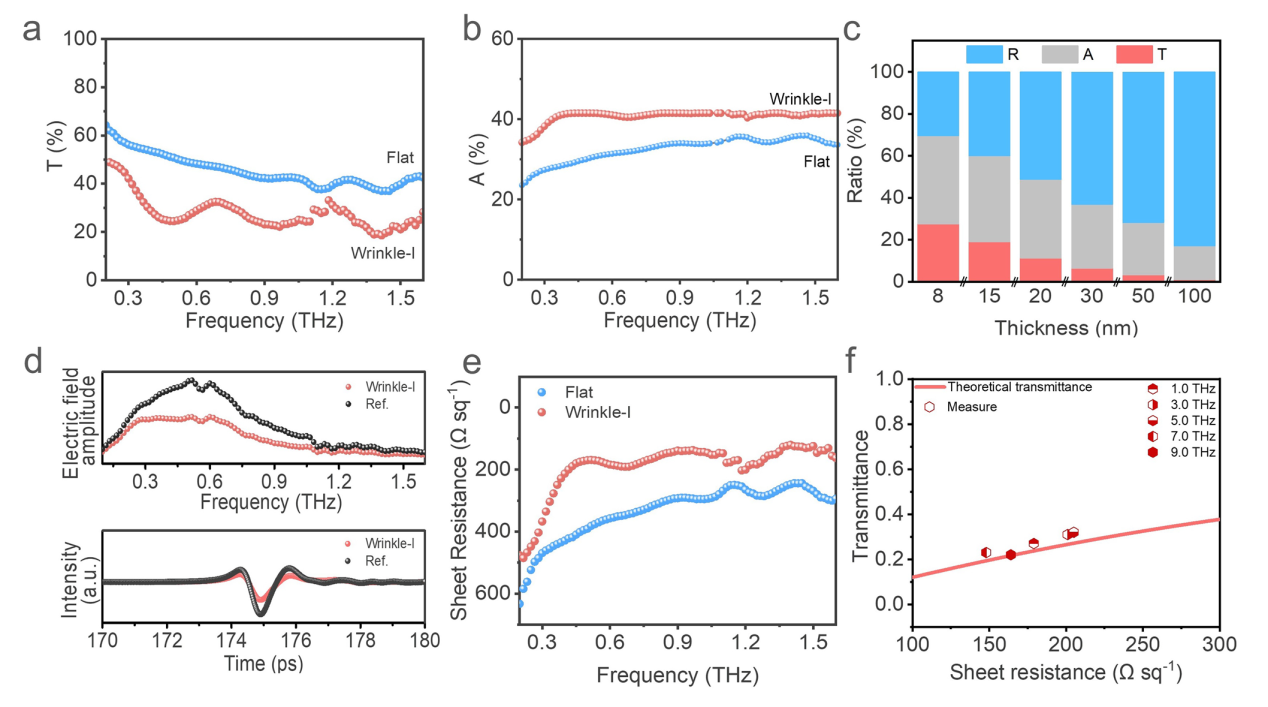

To further understand the effect of wrinkled structure on the shielding feature of the film, the transmittance, reflection, and absorption of the wrinkled film in the frequency range of 0.2-1.6 THz were systematically calculated and analyzed. As shown in Fig. 3a, wrinkle-I films (8 nm) have a lower THz transmittance compared to the flat films. Its transmittance is about 27.5%, which means that about 72.5% of the incident THz electromagnetic waves are shielded. In comparison, only about 61.2% of the incident electromagnetic waves were shielded for the flat film with the same thickness. We found that the decrease in THz wave transmittance of wrinkled films is mainly due to the increased absorption (Fig. 3b). The average absorption of the wrinkle-I film is about 42.0%, while the absorption of the flat film is only 32.4% (Fig. S9). Moreover, as the thickness of the film increases from 8 to 100 nm, the absorption ratio gradually decreases from 42.0% to 16.0%, and the reflection ratio increases from 30.5% to 83.0% for the wrinkle-I film (Fig. 3c). The increase in reflectance ratio means that most of the incident THz waves are reflected on the surface.

Wrinkled structures can improve the conductivity of MXene films, thereby enhancing their impedance matching. The shielding behavior of MXene films against THz electromagnetic waves depends on the conductance of the film. Usually, films with high conductivity exhibit reflective dominant characteristics [51]. Time-domain and Frequency-domain spectra of the wrinkle-I film are shown in Fig. 3d. The THz transients are Fourier transformed to generate the transmission amplitude spectra. Compared with the PDMS substrate (named as Ref.), the transmitted THz signal of wrinkle-I film decreases significantly, indicating that the wrinkle-I film effectively blocks the transmission of terahertz electromagnetic waves. The THz field amplitude is significantly reduced as the thickness of the wrinkle-I film increases, as is expected by the increase in free carrier absorption (Fig. S8). In addition, based on the frequency-domain spectra (Figs. 3d and S10), we can use the Tinkham thin film equation to calculate the complex conductivity spectra of the MXene films [26], as shown in Fig. 3e. It can be seen that compared to flat film (about 330 Ω □⁻¹), the wrinkle-I film shows a lower sheet resistance (about 200 Ω □⁻¹).

Due to the unique inter-flakes charge transport characteristics of MXene, we found that the classical direct-current (DC) impedance theory is unsuitable for the mechanism analysis of MXene. However, the terahertz complex conductivity of the film can be well described by the Drude-Smith (DS) model, in which the free electrons transport is mainly in the form of oscillation and scattering under terahertz wave action [26]. The DS model equation is given as fellow:

where, $\sigma \left(\omega \right) $ is the conductivity of the film at different frequencies ($\omega$), as shown in Fig. 3e; ${\sigma }_{0}=\frac{N{e}^{2}\tau }{{m}^{*}}$ is the direct current (DC) conductivity; $N$,$\tau$,${m}^{*}$, and c are the charge carrier density, carrier scattering time, charge effective mass, and scattering parameter, respectively. The parameter c (-1 ≤  c ≤ 0) represents the scatting behaviors of the charges [26]. According to Eq. (1), the carrier scattering time $ (\tau ) $ of flat film and wrinkle-I film can be calculated to be 6.6 and 8.0 fs, respectively. The short carrier scattering time can meet the condition of ωτ ≪ 1 in the whole terahertz band, which proves that the dispersion of electrical conductivity becomes weak, and ensures both films can have strong absorption in the terahertz band. More importantly, the charge carrier density and surface density of electrons of the wrinkle-I film is 9.4 × 10²⁷ and 7.5 × 10¹⁹ m⁻², much higher than 6.0 × 10²⁷ and 4.8 × 10¹⁹ m⁻² of the flat film. The high electron concentration affects impedance matching, leading to higher terahertz absorption (R_□ < Z₀/2). According to the Woltersdoff equations, for a conducting thin film, the reflectance and transmittance ratio are negatively and positively related to the sheet resistance of the film, respectively (Fig. S11). However, both poor conductivity and good conductivity will lead to a low absorption. Only when the sheet resistance matches half of the free space resistance (Z₀/2 = 188.5 Ω □⁻¹), the thin film will show a maximum theoretical absorption limit of 50%. As shown in Fig. 3e, the sheet resistance of wrinkle-I MXene (200 Ω □⁻¹) is closer to Z₀/2, indicating that the introduction of the wrinkled structure improves the impedance matching of the thin film and enhances absorption for terahertz electromagnetic waves. In Fig. 3f, the equivalent alternating-current (AC) resistance collected at different frequencies agrees well with the theoretical calculations for the relevant frequency bands. Therefore, by improving the absorption performance of the wrinkle-I film in the broadband, it can approach the maximum EMI shielding in terahertz regions.

In addition, the surface of Ti₃C₂T_x nanosheets etched by the solution method usually contains a large number of functional groups (-O, -OH, -F) [52], making it difficult for free electrons to undergo boundary scattering and hopping transportation between nanosheets. Therefore, under electromagnetic wave irradiation, the free electron oscillations are completely bound to the film’ surface, which is known as surface plasmon polarization (SPP) [27]. The formation of wrinkled structures results in uneven distribution of free electrons on the surface of the MXene film, thereby enhancing local SPP. The SPP can enhance the interaction and absorption of terahertz electromagnetic waves in the films. Similar phenomena have been extensively observed in far-infrared light [53]. Therefore, the wrinkled structure in the MXene film improved the EMI SE for THz waves.

To achieve stretchable terahertz EMI shielding film, longitudinal periodic wrinkles were introduced to the MXene by releasing the pre-stretched PDMS substrate during the same self-assembly process. The microstructures of wrinkle-P films prepared under different pre-stretched stains are shown in Fig. S12. The periodic wrinkles can effectively accommodate the high degree of deformation with little impact on the conductivity, significantly enhancing the stretchability and resistance stability of the wrinkled MXene film. Consequently, the wrinkle-P film with longitudinal wrinkles exhibited a remarkable resistance stability with only 31.1% resistance increase even under a high tensile strain of about 40%. In comparison, the value was 600.0% for the wrinkle-I film (Fig. 4a). The outstanding strain-independent conductivity will allow the wrinkle-P film to withstand the dynamic deformation (compression and tension) without impacting the shielding performance. Moreover, the resistance variations (△R/R₀) of the wrinkle-P film can return to the starting point without detectable conductivity decline, indicating that longitudinal wrinkles benefit the stretchability and prevent irreversibly damaging the conductivity. We conducted stretching (up to 30% strain) and bending (with a bending radius of 8 mm) fatigue tests for 100 cycles to evaluate the robustness of the films. As shown in Fig. 4b, the resistances of the wrinkle-P film just increased by 16.8% after 100 stretching-releasing cycles, which is much lower than those of the wrinkle-I film (△R/R₀ > 500%). The wrinkle-P film exhibits excellent stability and robustness in dynamic environments, which makes it a promising candidate for conformal shielding materials in wearable electronics.

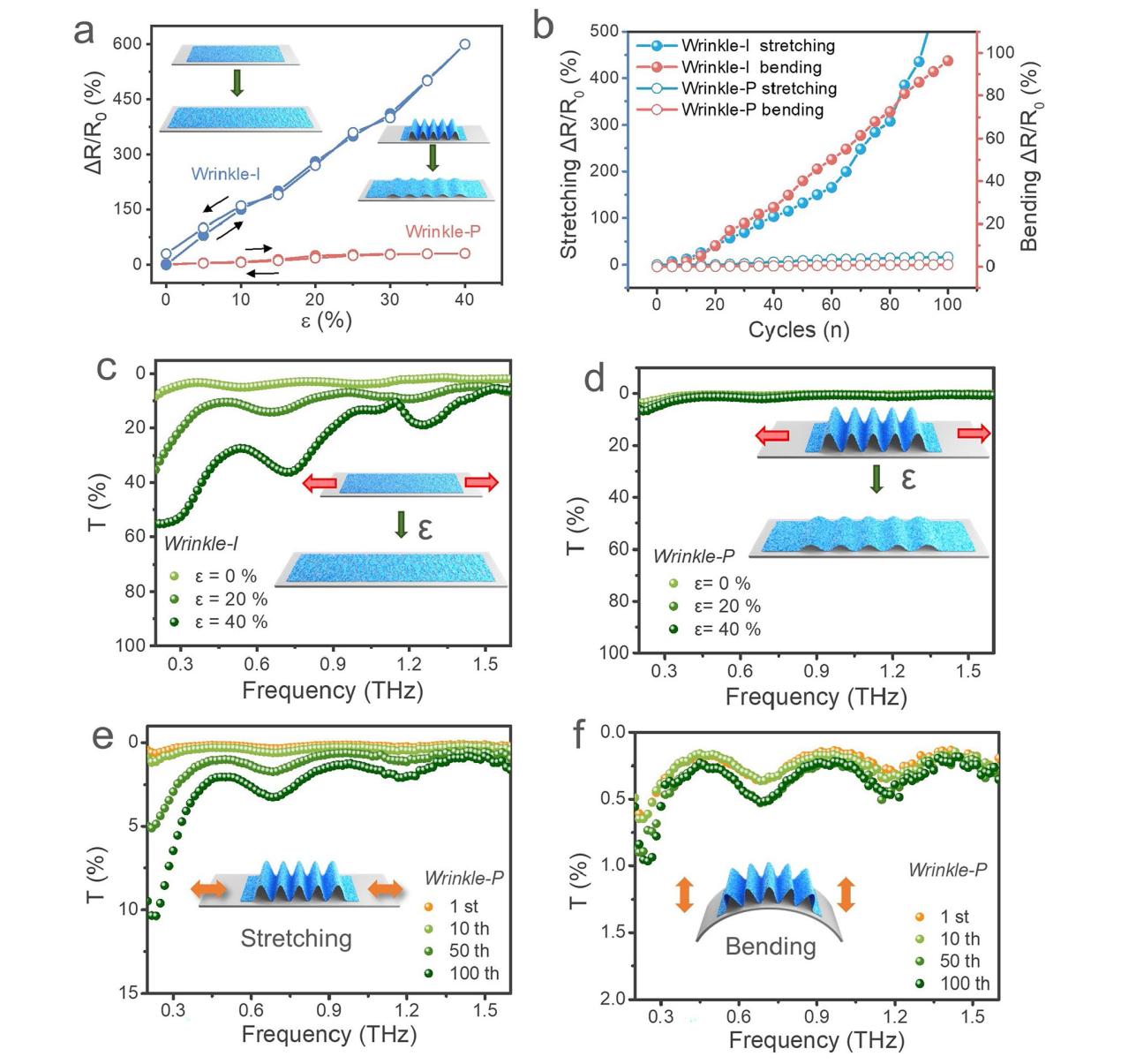

As shown above, the wrinkle-P film has outstanding resistance stability, which ensures its stable shielding performance. Figure 4c, d show that the wrinkle-P film has a lower THz transmittance value when compared with the wrinkle-I film. This indicates that the longitudinal wrinkles can improve the EMI SE of the MXene film. The transmittance of the wrinkle-P film only increased by 0.8% (SE decreased by 3.3 dB) within the THz band as the strain increases from 0 to 40% (Fig. 4d). However, the THz transmittance of the wrinkle-I film dramatically increased from 3.0% (SE of 15.2 dB) to 24.5% (SE of 6.1 dB) with the same strain range (Fig. 4c). Similar results were also observed for the wrinkle-P film prepared under different pre-stretching strains (Fig. S13). The wrinkle-I has a significant decline in EMI SE due to the fractures generated during the stretching process (Fig. S14a-c). In contrast, the longitudinal wrinkles effectively prevent the fractures and cracks forming on the MXene film, thereby ensuring the stability of the EMI SE (Fig. S14d-f). Combining the THz transmittance results and SEM images, it can be concluded that the longitudinal wrinkles are beneficial in suppressing the attenuation of EMI SE during stretching process. Constructing wrinkled structures is one of the effective ways to achieve strain-invariant EMI shielding film.

The stability of multiple stretching/bending behaviors is the most basic requirement of flexible electronic devices, so it is necessary to analyze the mechanical stability of the wrinkled film. The wrinkle-P and wrinkle-I films were stretched or bent for 100 cycles at different strains, recording the THz transmittance after specific cycles (1st, 10th, 50th, and 100th cycle). As shown in Fig. 4e, the average THz transmittance of the wrinkle-P film, fabricated using PDMS substrate pre-stretched in 40%, is only 1.2% and 2.4% after 50 and 100 cycles at 30% strain, respectively. However, for the wrinkle-I film, the average THz transmittance has exceeded 55.6% after 100 cycles at 30% strain (Figs. S15 and S16). The THz transmittance of the wrinkle-P film has hardly increased, remaining around 0.5% during the bending test (Fig. 4f). Correspondingly, it increased to 3.0% after 100 cycles for the wrinkle-I film (Fig. S17). These results indicate that the wrinkled-P structure is beneficial for improving the film’s mechanical properties, thereby enhancing its stability in electromagnetic shielding performance during deformation, such as stretching/bending.

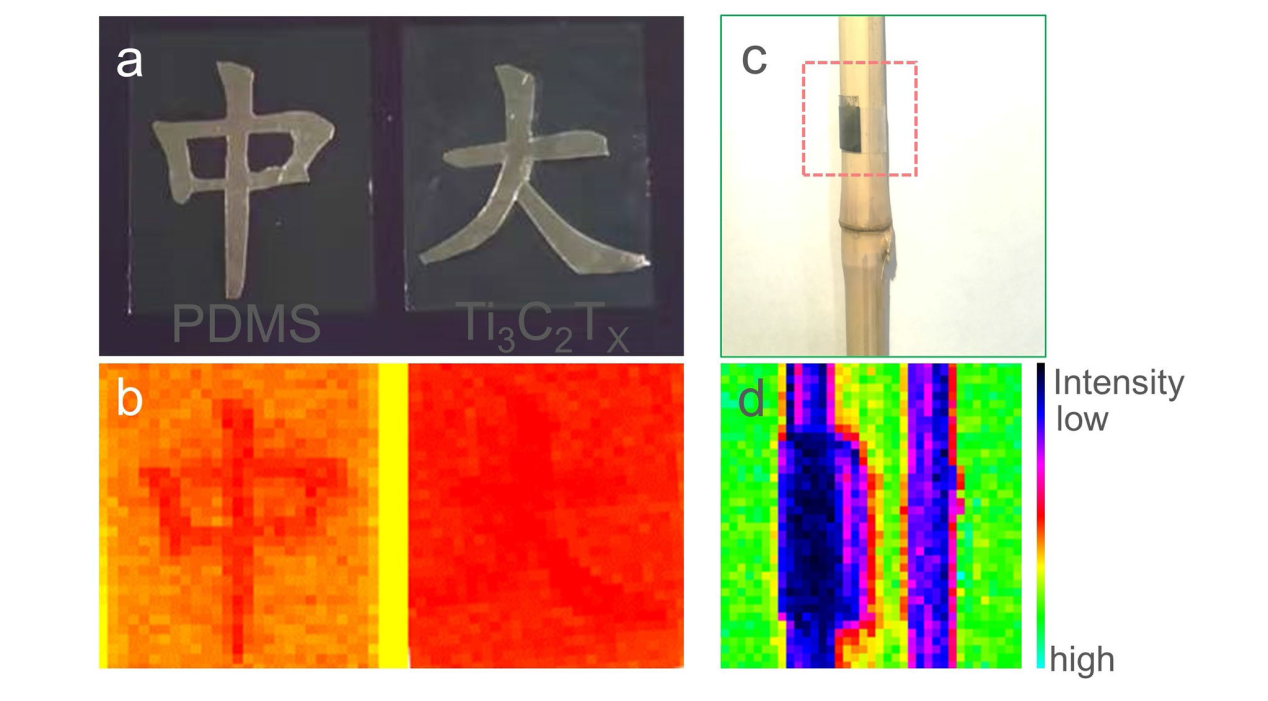

Compared with conventional rigid materials, wrinkled films can better cover irregular surfaces. The wrinkled films were used to shield THz electromagnetic waves during THz imaging and effectively demonstrate its excellent EMI SE and conformal properties. A PDMS film and an 8-nm-thick wrinkle-I film were placed on the surface aluminum foil in the shape of Chinese characters of "中" and "大", respectively. Both the PDMS and wrinkled film deliver high light transmittance, allowing Chinese characters "中" and "大" to be clearly observed (Fig. 5a). Figure 5b is the THz imaging result of Fig. 5a. The winkled film can effectively shield terahertz waves, resulting in the disappeared "大" in the THz imaging. Similarly, the wrinkled-P film was attached to a dried- bamboo surface to verify its transparency, conformability, and THz shielding effect (Fig. 5c). The THz imaging results demonstrate that the winkled film coverage area has the lowest terahertz wave transmission intensity (deep purple area), indicating that the film can still maintain excellent terahertz shielding performance in the bent state.

We have proposed a structure-engineering strategy to prepare stretchable and transparent Ti₃C₂T_x film with controllably wrinkled structures for terahertz EMI shielding. The wrinkled structure on the surface of the MXene film enhances the absorption of terahertz waves by improving impedance matching characteristics and enhancing local SPP, which further enhances the EMI SE of the wrinkled film. Compared with the flat film, the average EMI SE value of the 8 nm thick wrinkle-I film is increased by 36.5% over a wide frequency range of 0.1–10 THz. Furthermore, the wrinkle-P film exhibits a low THz transmittance of only increased by 0.8% under 40% strain and also excellent structural stability under multiple stretching/bending processes. The electromagnetic shielding effect of the wrinkled films also has been verified in real-object THz imaging. This new strategy may pave the way for exploring practical high-performance THz electromagnetic wave shielding films based on two-dimensional materials.

Conflicts of interest The authors declare no interest conflict. They have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.
