All chemicals, including absolute ethanol (EtOH), cetyltrimethyl ammonium bromide (CTAB, 99%), ammonium hydroxide solution (NH₃·H₂O, 25-28%), resorcinol (C₆H₆O₂, 99%), formaldehyde (CH₂O, 37 wt%), tetraethyl orthosilicate (TEOS, > 99%), magnesium powder (Mg, > 99%), were purchased from Aladdin Technology Co. Ltd., Shanghai, China. The above chemicals were of analytical grade and were used directly, and deionized (DI) water was produced by an OKP-S040 standard ultrapure water system and used in all experiments.

In a typical synthesis, 1 g of CTAB was dissolved in a solution consisting of 50 mL of DI water, 20 mL of EtOH and 0.3 mL of NH₃·H₂O, and stirred vigorously for 10 min at room temperature. Then, 1.28 g of resorcinol and 0.74 mL of formaldehyde were added separately to the above solution to form a milky solution, after which a certain amount of TEOS was injected and the mixed solution was stirred continuously for a further 1 h. Finally, the mixture was sealed in the 100 mL Teflon-lined autoclave and maintained at 100 °C for 24 h. After the reaction was naturally cooled to room temperature, the solution was centrifuged to get brown product, which was further washed three times with ethanol and DI water and dried at 60 °C for 12 h. For convenience, the TEOS/resorcinol molar ratios of 0.388, 0.582, 0.776, and 0.970 were labeled as PR@SiO₂/PR-1, PR@SiO₂/PR-2, PR@SiO₂/PR-3, and PR@SiO₂/PR-4, respectively.

The as-prepared core-shell PR@SiO₂/PR microspheres were first put into porcelain boat and directly pyrolyzed under N₂ atmosphere at 800 °C (heating rate is 5 °C min⁻¹) for 3 h in a tubular furnace and cooled to room temperature to obtain the hollow SiO₂/C-X (X = 1, 2, 3, and 4, corresponding to their PR@SiO₂/PR-X precursors, respectively.) microspheres. Subsequently, the required amount of SiO₂/C and magnesium powder (the mass ratio of SiO₂/C to magnesium powder was fixed at 1:4) was added into an agate mortar, and the mixture was sufficiently ground for 10 min. Finally, the obtained samples were pyrolyzed again under N₂ atmosphere with the different heat treatment condition for 6 h to produce the hollow SiC/C microspheres. For convenience, the final composites were referred to as SiC/C-X (X = 1, 2, 3, and 4, corresponding to their SiO₂/C-X precursors, respectively). In addition, for the product with different temperature conditions, using the SiC/C-3 as an example, the SiC/C-3 of 700, 800, and 900 °C were labeled as SiC/C-3-700, SiC/C-3-800, and SiC/C-3-900, respectively. To ensure that pure SiC/C composites were obtained, the above pyrolysis products were placed in hydrochloric acid (HCl, 3 mol L⁻¹) for over 6 h to remove the remaining impurity phases MgO. The other details of this work including materials characterization, electromagnetic parameter measurement, and computer simulation technology was available from the supporting information in the Springer Online Library.

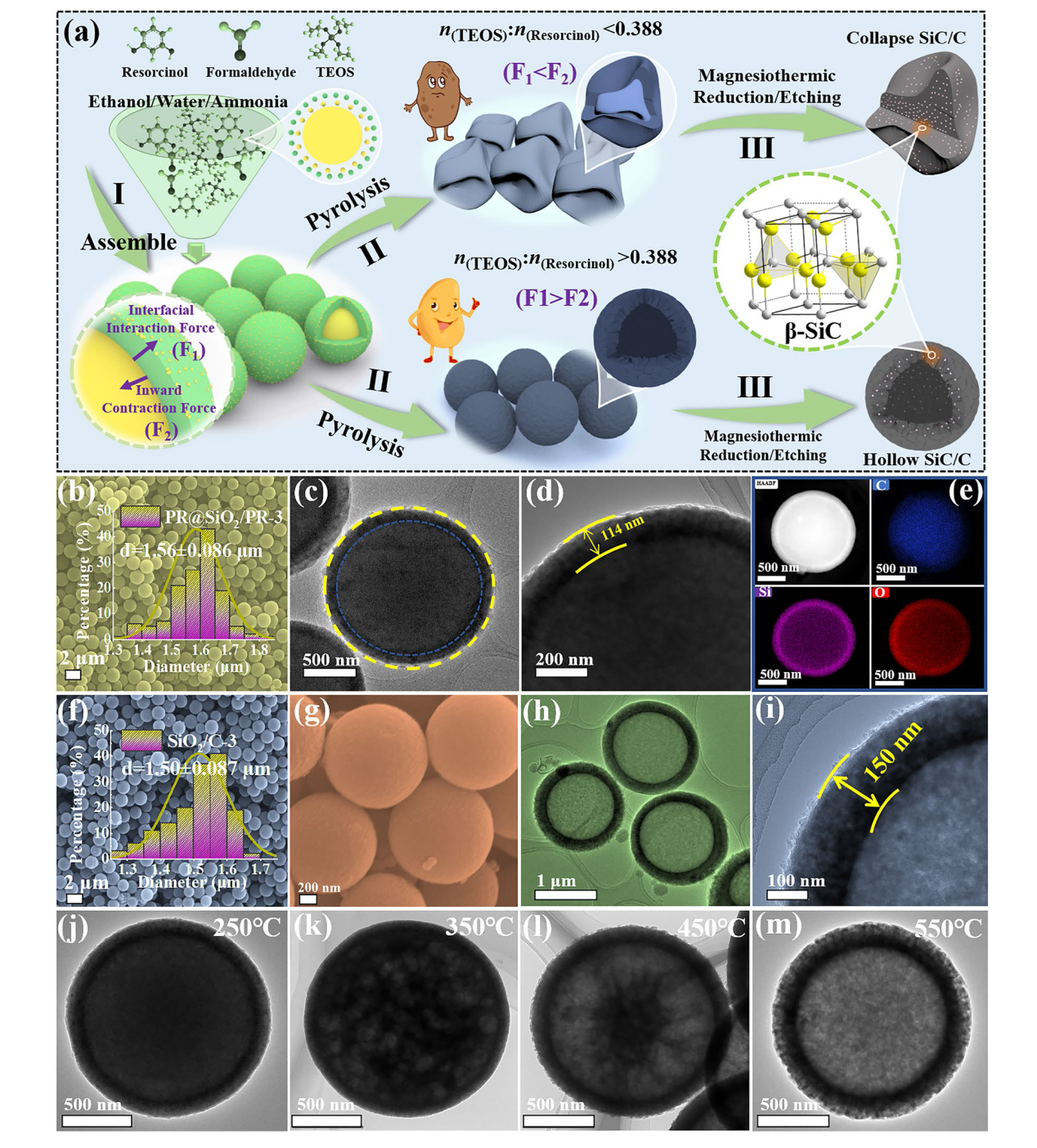

Figure 1a illustrates the step-by-step preparation procedures of SiC/C composites with a heterogeneous interface anti-contraction strategy. First, resorcinol and formaldehyde are sequentially dispersed in alkaline aqueous ethanol solution to generate phenolic resin (PR) microspheres. After the introduction of TEOS, silica oligomers from the hydrolysis will be co-assembled with the residual PR oligomers to produce core-shell PR@SiO₂/PR microspheres. Scanning electron microscopy (SEM) images show that all the resultant PR@SiO₂/PR microspheres have regular spherical morphology, good dispersion, and smooth surface, and their average diameters range from 1.27 ± 0.079 to 1.61 ± 0.086 μm with increasing the dosage of TEOS (Figs. 1b and S1). Transmission electron microscopy (TEM) images identify the core-shell configuration in PR@SiO₂/PR-3, as well as the thickness of the external shells at about 114 nm (Fig. 1c, d). EDS mapping results further firmly support that a desirable core-shell configuration has been successfully created in these microspheres, because O and Si elements are mostly distributed in an outer ring, whose size is obviously larger than the distribution region of C element (Fig. 1e), and meanwhile, a fraction of C atoms can be also observed in the region of O and Si elements, implying the presence of PR in theshells. It is found that the dosage of TEOS plays an important role in maintaining the spherical morphology of these composites during high-temperature pyrolysis. For example, SiO₂/C-1 derived from PR@SiO₂/PR-1 (the TEOS/resorcinol molar ratio of 0.388) is composed of numerous wizened particles and almost completely loses its original morphology (Fig. S2a, b), and in contrast, the other intermediate composites with higher TEOS dosages (the molar ratio of TEOS/resorcinol is more than 0.582), i.e., SiO₂/C-2, SiO₂/C-3, and SiO₂/C-4, all inherit the spherical morphology very well except a slight shrinkage in the average diameter (Figs. 1f, g and S2c, d). Of note is that some impurities are detected in SiO₂/C-4, suggesting that the dosage of TEOS in this case may be a little excessive. TEM characterization is further carried out by taking SiO₂/C-3 as a representative sample. Compared with its precursor (PR@SiO₂/PR-3), SiO₂/C-3 not only displays an unexpected hollow structure, but also gives a thicker shell at about 150 nm (Fig. 1h, i). According to previous studies, when some pure organic precursors, e.g., polymers and MOFs, are pyrolyzed under high-temperature inert atmosphere, there will be a dramatic inward shrinkage behavior, resulting in the formation of carbon-based products with much smaller size [25,26]. However, if a stable external shell is pre-constructed on the surface of organic precursors, the interaction between the shell and the precursor will induce preferential carbonization at the interface and produce an interfacial interaction force (F1) to resist the inward contraction force (F2), and more importantly, such an interfacial interaction will also promote the inside-out diffusion of organic precursors and finally create an interior cavity [27]. The microstructure evolution from PR@SiO₂/PR-3 to SiO₂/C-3 at different pyrolysis temperature indeed records the process of gradual internal cavitation (Figs. 1j-m and S3). When the pyrolysis temperature is 250 °C, the intrinsic microstructure remains consistent with the precursors, indicating that the contraction process of the heterogeneous interface between the core and the shell has not been triggered yet. As the temperature continues to increase to 350 °C, it is observed that the heterogeneous interfaces boundaries between the core and the shell are not as dense as they are at first, and their interior regions have many apparent holes with different size. With a further increase of the temperature to 450 °C, the PR core undergoes continuous decomposition, resulting in the gradual aggregation of small pores into some larger ones. Upon reaching a temperature of 550 °C, the internal hollow structure is completely formed, and the spherical morphology can still be maintained without obvious collapse and fragmentation phenomenon. These results indicate that the formation of hollow SiO₂/C composites follows the mechanism of heterogeneous interface anti-contraction and also explains why the thickness of the external shells increases. The collapse of SiO₂/C-1 can be attributed to the fact that the relatively thin SiO₂ shells fail to provide enough interfacial interaction force (Fig. 1a).

The intermediate SiO₂/C composites are further converted into corresponding SiC/C microspheres by magnesiothermal reduction, and the reaction mechanism can be explained by the following reaction equation [28]:

Thanks to the good chemical homogeneity of SiO₂/C composites, SiO₂ and carbon species have full contact (Fig. 1c), which effectively ensures the generation of crystalline SiC nanoparticles. The by-product, MgO, can be easily removed by HCl treatment. It is very interesting that all composites exhibit very similar morphologies to those of SiO₂/C precursors, and their statistical distribution of diameters also shows no significant change, suggesting that the carbon shells in these microspheres are enough stable to survive from the intensive magnesiothermal reaction (Fig. 2b-d). Both SEM image on a broken microsphere and TEM images elucidate that hollow structure has been well inherited from SiO₂/C composites, even after the magnesiothermal reaction (Fig. 2e-h). HR-TEM image identifies some ultrafine SiC nanoparticles in carbon shells, and their size is less than 10 nm (Fig. S4a). The formation of SiC nanoparticles is inevitably involves the nucleation and growth processes, as well as the diffusion of carbon and silicon species. Carbon shells are hard carbon derived from phenolic resin, and thus they will slow down the diffusion of silicon species significantly and further affect the nucleation and growth processes. In other words, carbon shells provide effective space confinement effect, responsible for the very small size of SiC nanoparticles. The lattice spacing of 0.25 nm corresponds to the (111) plane of β-SiC with a typical cubic structure (Fig. 2l). Again, the elemental mapping results confirm the homogeneous distribution in final SiC/C composites (Fig. 2i-k). We also attempt to determine the density of SiC/C-3 by measuring the changes in mass and volume of the mixture of SiC/C-3 and wax. The result shows the density of SiC/C-3 is only 1.7 g cm⁻³, which is obviously smaller than those of commercial carbon power (2.0 g cm⁻³) and silicon carbide powder (2.5 g cm⁻³), implying that hollow structure endows SiC/C-3 with lightweight feature.

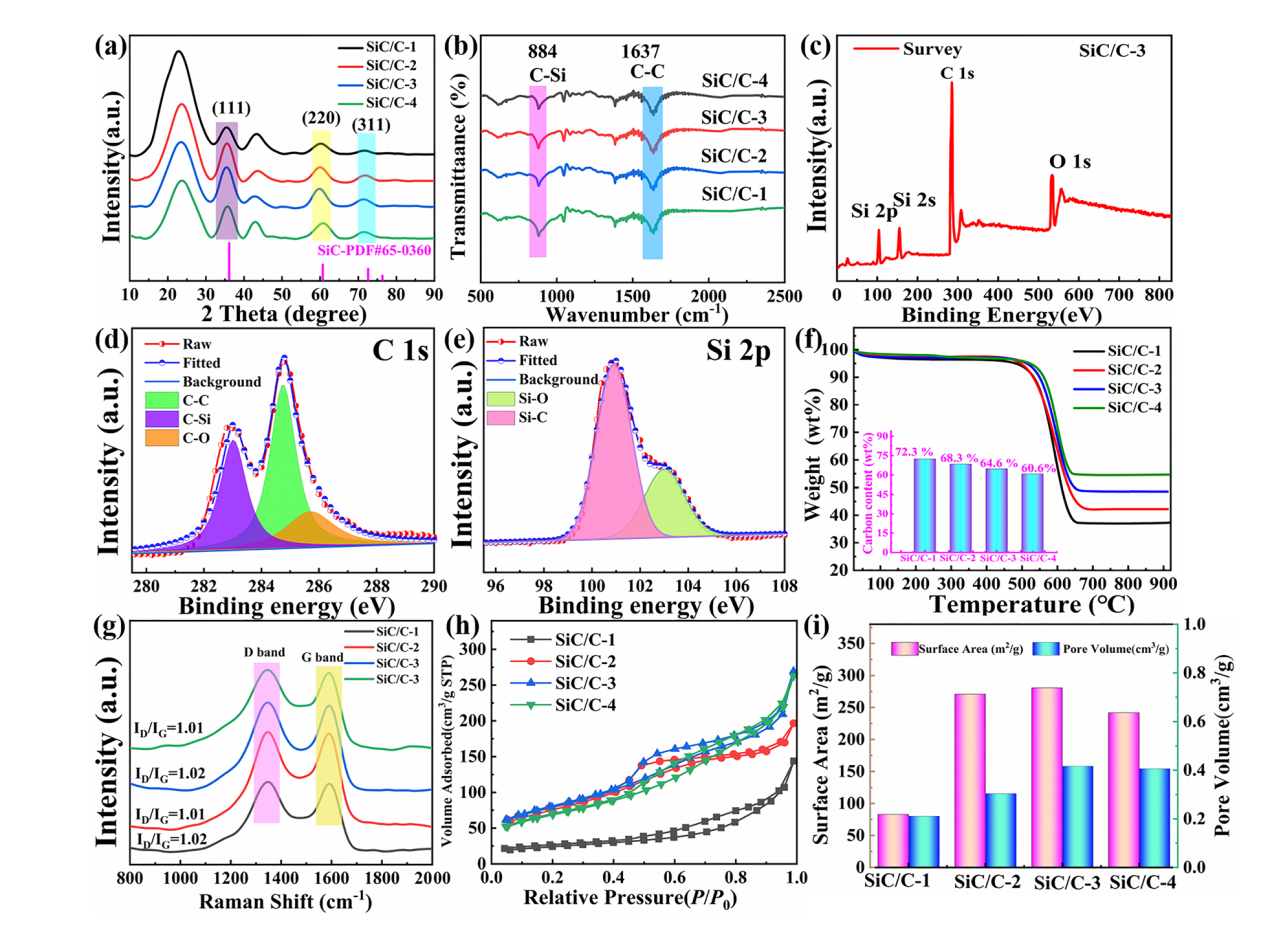

The crystallographic structure and phase evolution during the preparative process are also studied by X-ray diffraction (XRD, Figs. 3a and S4b). Both PR@SiO₂/PR and SiO₂/C exhibit a broad peak at about 23.2° that is typically associated with amorphous species [8], suggesting that carbon shells from the first step of pyrolysis are still amorphous overall. However, SiO₂/C also gives an additional small peak at approximately 44.0°, which is usually considered to be related to the formation of some tiny crystalline domains inside carbon shells [29]. For SiC/C composites, three new diffraction peaks at 35.4°, 60.3°, and 71.9° indexed to the (111), (220), and (311) planes of β-SiC (PDF#65-0360) can be clearly detected, which manifests that the magnesiothermal reaction indeed induces the generation of SiC nanoparticles. With Scherrer’s equation, the average sizes of SiC nanoparticles in these composites are all close to 5 nm, in good agreement with TEM results (Fig. S4a). Of note is that the peaks at 23.2° and 44.0° still in exist in final SiC/C composites. Such a situation means that carbon shells are less impacted by the magnesiothermal reaction and also explains why SiC/C-2, SiC/C-3, and SiC/C-4 can well preserve their morphologies and structures. As two sensitive tools to collect the information of chemical bonds, Fourier transform infrared (FT-IR) spectroscopy and X-ray photoelectron spectroscopy (XPS) are also employed to characterize final SiC/C composites. It can be observed that there are two typical absorption bands at 884 and 1637 cm⁻¹, and they are from the stretching modes of Si-C bond and C-C bond [30], respectively, again verifying the generation of SiC nanoparticles (Fig. 3b). Compared with SiO₂/C composite, the characteristic band for the asymmetry stretching vibration of Si-O-Si at 1100 cm⁻¹ almost disappears in SiC/C composites (Fig. S4c), which implies complete conversion from SiO₂ to SiC during magnesiothermal reaction. The characteristic peaks at 532.9, 284. 6, and 105.6 eV in the survey spectrum of XPS can be ascribed to O 1 s, C 1 s and Si 2p, respectively (Fig. 3c). Amorphous carbon shells have rich surface functional groups and defect sites, thus facilitating the involvement of O element. The deconvolution results of C 1 s show the distinct peaks of C-Si (282.9 eV), C-C (284.6 eV), and C-O (285.7 eV) bonds (Fig. 3d) [30], and the corresponding Si 2p not only confirms the dominance of Si-C bond (Fig. 3e) [31], but also reveals the partial oxidation of SiC nanoparticles on the surface of SiC/C composites.

The content and relative graphitization degree of carbon species in carbon-based composites are always considered as two crucial factors that can greatly affect their dielectric properties [32]. Figure 3f shows thermogravimetric (TG) curves of different SiC/C composites under air atmosphere, and all samples exhibit very similar profiles that contain a slight weight decrease (less than 5%) between 25 and 490 °C, as well as an intensive weight loss in the temperature range of 490-650 °C. The slight weight decrease is reasonably attributed to the removal of physically absorbed water and surface functional groups, and the intensive weight loss is caused by the combustion of the carbonaceous components. Although SiC is generally stable under high-temperature air atmosphere, SiC nanoparticles in these composites has very small size (less than 10 nm), and thus they will also be oxidized when the temperature reaches 900 °C. Actually, we treat the composite of SiC/C-3 at 900 °C for 0.5 h in a muffle furnace, and finally harvest white powder without any characteristic peaks of SiC (Fig. S4d). By considering the negligible weight change in the temperature spans before 490 and after 650 °C, the oxidation of SiC nanoparticles is highly likely to occur synchronously with the combustion of the carbonaceous components. Based on the specific percentages of the residues after TG test, and the specific carbon contents in SiC/C composites can be calculated by Eq. (2):

where wt% water and wt% R represent the weight percentage of trace absorbed water and the weight percentage of the residue after combustion, and M(SiC) and M(SiO₂) refer to the molecular weights of SiC and SiO₂, respectively. Thus, the theoretical carbon content can be deduced as 72.3%, 68.3%, 64.6%, and 60.6% for SiC/C-1, SiC/C-2, SiC/C-3, and SiC/C-4, respectively. All the above results definitely support that compositional and hollow engineering have been successfully applied to final SiC/C composites. Raman spectra are employed to disclose the difference in the bonding state of carbon atoms, i.e., relative graphitization degree, of carbon components in composites [33]. As observed, all SiC/C composites display two bands at ~ 1350 and ~ 1580 cm⁻¹, corresponding to D band active in disordered arrangement of carbon atoms and G band only generated at sp² sites, respectively. It is very interesting that these four composites give pretty close curve profiles and I_D/I_G (the intensity ratio of D band to G band) values (Fig. 3g). This phenomenon validates that carbon components in these composites have quite similar relative graphitization degree, and thus the changeable composition and structure will be taken as the primary reasons responsible for their different dielectric properties. Figure 3h presents adsorption/desorption isotherms of different SiC/C composites. Although all of them exhibit IV-type isotherms according to the classification of the International Union of Pure and Applied Chemistry, the N₂ uptake of SiC/C-1 is obviously smaller than those of other composites. Apparently, the structure collapse leads to the decrease of porosity in SiC/C-1. As a result, its specific surface area (S_BET) and total pore volume (V_t) are also less than those SiC/C-2, SiC/C-3, and SiC/C-4 (Fig. 3i). In addition, the pore size distributions of SiC/C composites are provided in Fig. S5. One can see that the change in the pore size distribution does not present a regular trend, while the most probable distributions of these composites are all centered between 3 and 10 nm. This is because these mesopores are generated by the etching of unreacted SiO₂ as well as the release of carbon-containing small molecules during the pyrolysis process. It is worth noting that the size of these mesopores is several orders of magnitude lower than the wavelength of incident EM wave, and thus they will not induce multiple reflection behaviors EM wave, but according to Maxwell-Garnet theory, the presence of mesoporous structure can regulate the dielectric constant of MAMs and then improve impedance matching, resulting in an indirect contribution to microwave absorption [34]. Moreover, the presence of mesoporous structure will reduce the overall density of MAMs and endow them with lightweight feature.

RL intensity and effective absorption bandwidth (EAB) are two important indicators to evaluate the overall microwave absorption characteristics of MAMs [35,36], where the former represents the attenuation ability of MAMs toward incident EM wave at a given frequency and the latter describes the frequency range in which MAMs can produce RL intensity less than an appointed value (the threshold is usually set at -10.0 dB because 90% of EM energy will be dissipated in that case [37].

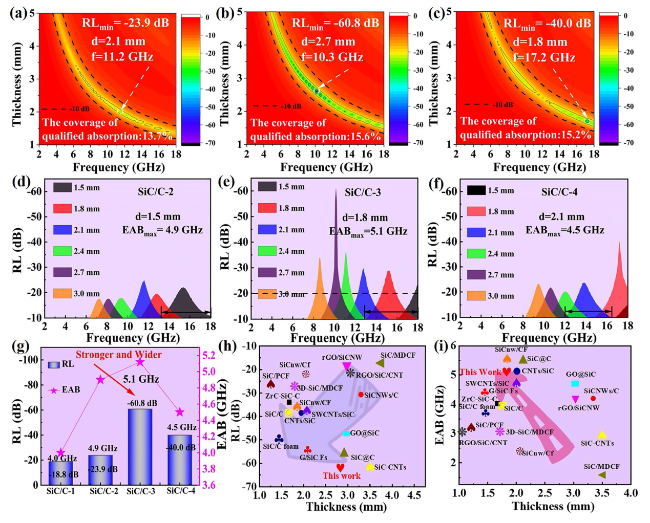

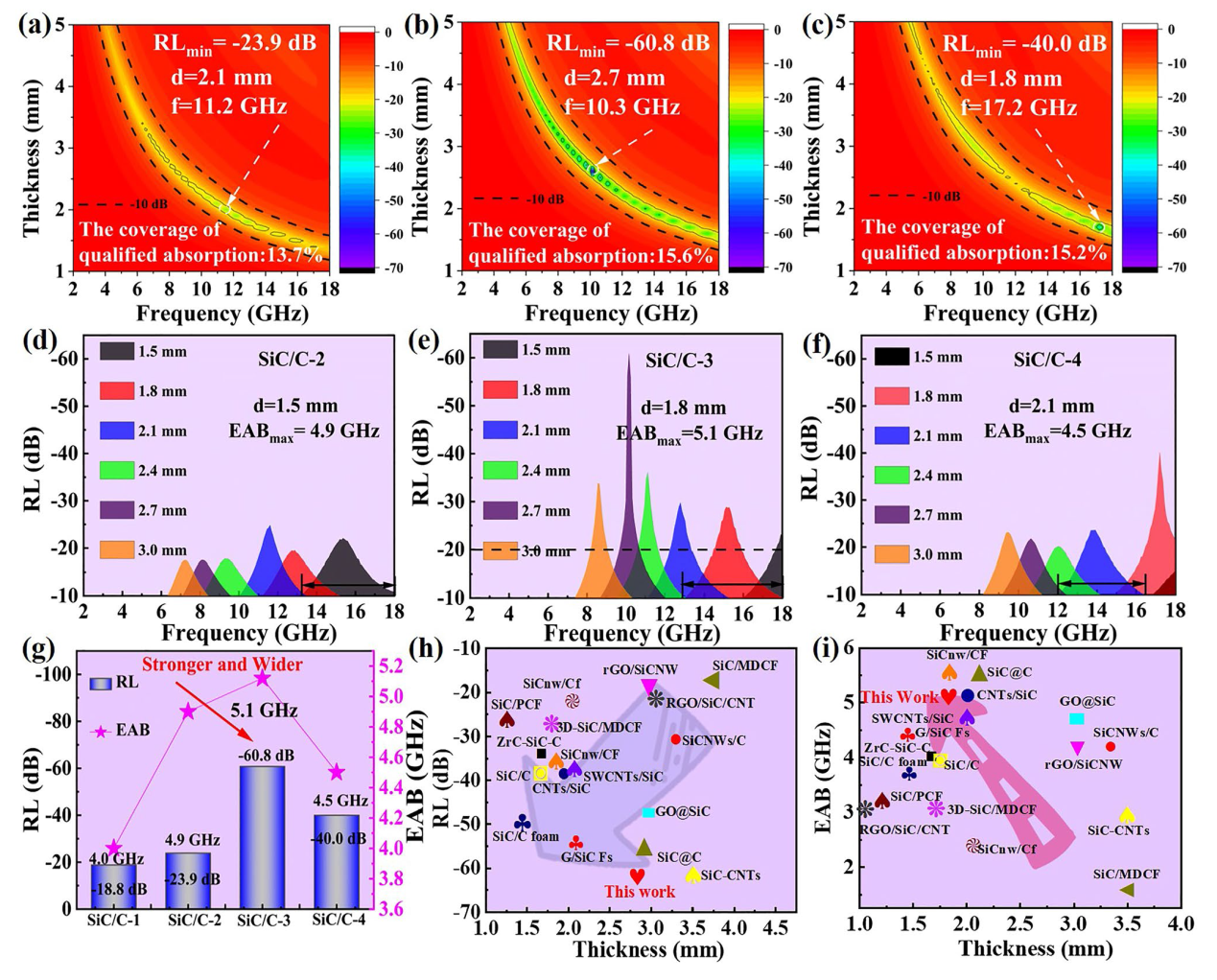

Figures S6a and 4a-c display 2D projection diagrams of different SiC/C composites with frequency (2.0-18.0 GHz) and absorber thickness (1.0-5.5 mm) as two independent variables. From these diagrams, one can find that all these composites can dissipate EM energy to some extent, while their specific performance is obviously distinguishable. On one hand, they have quite different RL_min. As observed, RL_min value of SiC/C-1 is only − 18.8 dB at 5.9 GHz with an absorber thickness of 5.0 mm. As the content of SiC nanoparticles is gradually increased and the hollow structure is well maintained, RL_min value of other composites will be significantly improved. For example, SiC/C-2 and SiC/C-3 harvest their RL_min values of − 23.9 dB (11.2 GHz, 2.1 mm) and − 60.8 dB (10.3 GHz, 2.7 mm), while with more SiC nanoparticles, RL_min value of SiC/C-4 falls back to − 40.0 dB (17.2 GHz, 1.8 mm). On the other hand, the coverage of qualified absorption (i.e., RL_min < -10.0 dB) is also different, and they are 13.0%, 13.7%, 15.6%, and 15.2% for SiC/C-1, SiC/C-2, SiC/C-3, and SiC/C-4, respectively. For a more intuitive comparison in EABs, we further plot RL curves with some given absorber thickness (e.g., 1.5, 1.8, 2.1, 2.4, 2.7, and 3.0 mm) in Figs. S6b and 4d-f. It seems that the broadest EAB has a similar trend to that of RL_min intensity. SiC/C-1 achieves its best EAB in the frequency range of 13.1-17.1 GHz with an absorber thickness of 2.1 mm. Both SiC/C-2 (4.9 GHz) and SiC/C-3 (5.1 GHz) generates wider EABs than SiC/C-1, and unfortunately, SiC/C-4 again presents an undesirable degradation in EAB (4.5 GHz). When we compare the integrated performance of these composites (Fig. 4g), it will be easy to determine that SiC/C-3 is the best candidate among these composites because it have both strong absorption and broad response.

Actually, even if we put the threshold forward to -20.0 dB corresponding to 99% of absorption intensity (Fig. 4e), it can still satisfy this high demand in the frequency ranges of 7.3-18 GHz (thickness < 3 mm). The superior microwave absorption performance of SiC/C-3 can be further validated by comparing its performance with those reported SiC/C composites in recent years (Fig. 4h, i and Table S1) [7,20,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52]. It is apparent that both RL_min and EAB of SiC/C-3 are in the top level as compared with these counterparts, which firmly demonstrates the significance of compositional and hollow engineering.

Given that microwave absorption characteristics are mainly determined by relative complex permittivity (ε_r =  ε_r' − jε_r") and complex permeability (μ_r =  μ_r' − jμ_r") according to the transmission line theory [53,54], and therefore, the associated EM parameters in the frequency range of 2–18 GHz are analyzed to explore the intrinsic reasons for the differences in the microwave absorption performance of SiC/C composites. As there are no any magnetic components in these SiC/C composites, their real parts and imaginary parts of relative complex permeability are almost constant and very close to 1 and 0 (Fig. S7), respectively, indicating these composites cannot dissipate EM energy through magnetic loss. Figure 5a, b shows frequency-dependent ε_r' and ε_r" of different SiC/C composites. Among four samples, SiC/C-1 exhibits the smallest ε_r' and ε_r" values, whose ε_r' decreases from 8.1 at 2.0 GHz to 6.2 at 18.0 GHz and ε_r" decreases from 2.5 at 2.0 GHz to 2.2 at 18.0 GHz. It is very interesting that as compared to SiC/C-1, SiC/C-2 gives much higher ε_r' and ε_r" values, where ε_r' decreases from 16.1 at 2.0 GHz to 9.6 at 18.0 GHz and ε_r" decreases from 8.4 at 2.0 GHz to 5.3 at 18.0 GHz. In general, carbon atoms in common carbon materials have two kind of different hybridization modes, i.e., sp² and sp³, and the region with dominant sp² carbon atoms will facilitate electron transfer due to the presence of delocalized π bond. For amorphous carbon materials, high pyrolysis temperature can increase the content of sp² carbon sites remarkably, which means carbon materials from high temperature have good conductivity. Moreover, some heteroatoms with strong electronegativity, such as N and O, in carbon materials can also promote electron transfer, and as a result, carbon materials even exhibit better electronic conductivity than metal nanoparticles in some cases [55]. SiC, by contrast, is a typical covalent compound, whose Si and C atoms are both hybridized with sp³ mode, and thus SiC usually have very weak conductivity. Even if the presence of some heteroatoms, SiC can at most be regarded as a semiconductor. It is well documented that good conductivity is favorable for large complex permittivity [3], and thus carbon materials have larger relative complex permittivity (including ε_r' and ε_r") than SiC particles in our case. It is very interesting that the complex permittivity SiC/C-2 with higher SiC content overtakes that of SiC/C-1. Raman spectra have demonstrated that SiC/C-1 and SiC/C-2 possess very similar relative graphitization degree of carbon components, and thus the unexpected increases in ε_r' and ε_r" values should be linked with their different structures. According to Maxwell–Garnett's theory, a porous medium can be taken as an “effective medium” composed of solid phase and void phase [34,56], and the dielectric constant of this “effective medium” ($\varepsilon_{{{\text{eff}}}}^{{{\text{MG}}}}$) may be calculated by Eq. (3):

where ε₁ and ε₂ are the dielectric constant of solid phase and void phase, respectively, and v is the volume fraction of void phase. Therefore, under the condition of the same volume, a medium with high porosity is expected to produce small $\varepsilon_{{{\text{eff}}}}^{{{\text{MG}}}}$, that is, SiC/C-2 with intact hollow structure should have smaller $\varepsilon_{{{\text{eff}}}}^{{{\text{MG}}}}$ than SiC/C-1. However, in this study, the filler loading of SiC/C composites in wax matrix is calibrated by mass percentage rather than volume percentage, which means that SiC/C-2 with hollow structure will gain much higher volume fraction in wax matrix than SiC/C-1, and thus there is also a greater possibility for SiC/C-2 to create a conductive network in wax matrix and generate larger dielectric constant. Similar phenomena have been observed in some previous studies about carbon-based MAMs [57]. On the premise that the hollow structure is well maintained, the incremental content of SiC nanoparticles will moderately reduce ε_r' and ε_r" values. However, in high-frequency range, SiC/C-4 displays quite close ε_r" values to SiC-3, which may be related to more loss contribution from interfacial polarization [58].

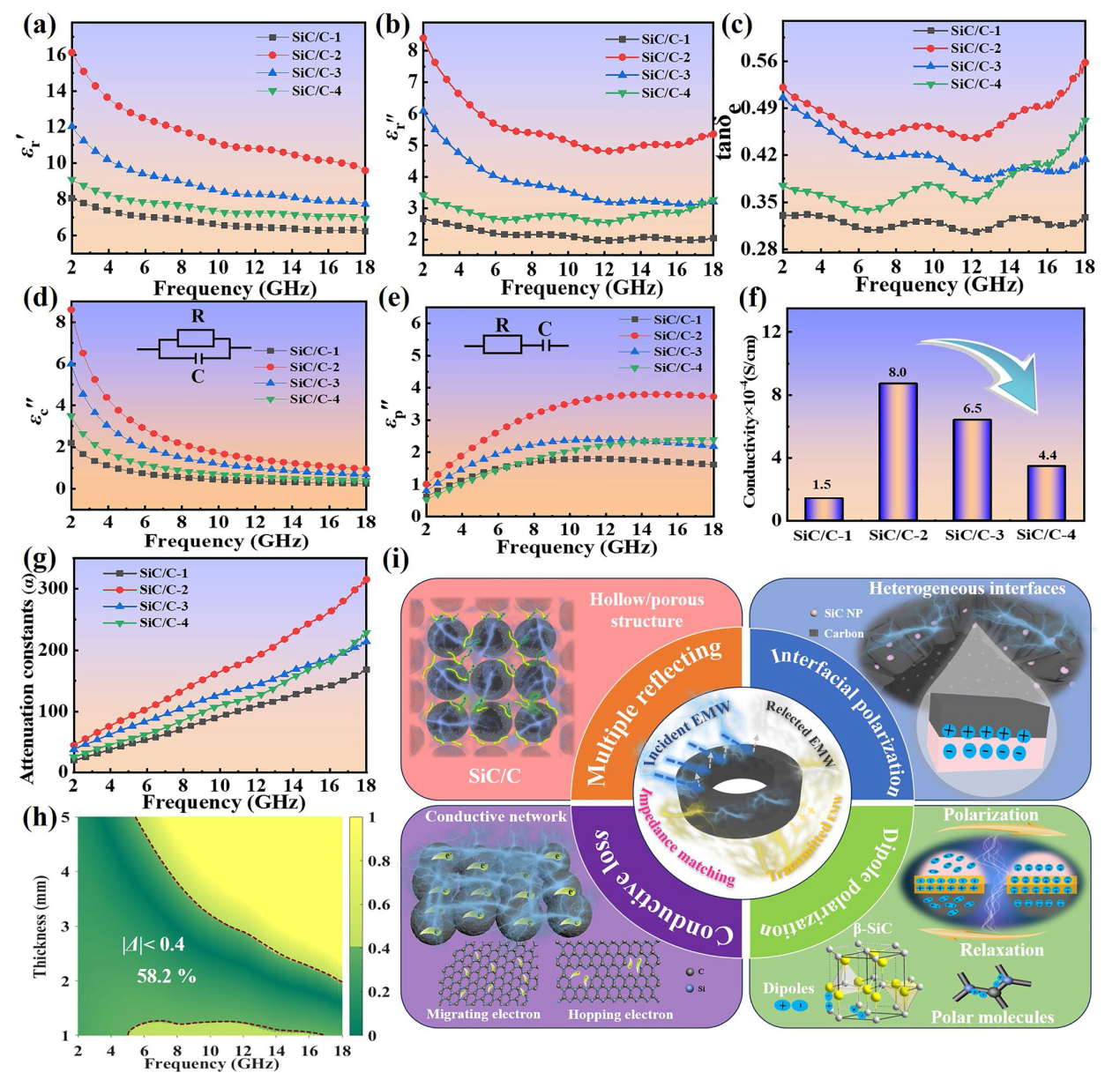

Figure 5c presents dielectric tangents of different SiC/C composites to evaluate their dielectric loss abilities directly, and one can find that the dielectric loss ability almost exhibits the same trend to those of ε_r' and ε_r" values, and only in the frequency range of 15.0-18.0 GHz, an unexpected turnover is achieved between SiC/C-3 and SiC/C-4. Dielectric loss has long been considered to come from the total contribution of conductivity loss and polarization loss [3,59], where conductivity loss highly correlates with the transport of residual carriers in EM medium and polarization loss benefits from the thermal motion of charged particles [27]. Four-probe conductivity measurements reveal that under the same filler loading in wax (35 wt%), the conductivities of the films with SiC/C-1, SiC/C-2, SiC/C-3, and SiC/C-4 are 1.5 × 10^-4, 8.0 × 10^-4, 6.5 × 10^-4, and 4.4 × 10^-4 S cm⁻¹, respectively (Fig. 5f). The change in conductivity is same as those in ε_r' and ε_r" values, suggesting that conductivity loss plays an important role in dielectric loss. In general, dipole orientation polarization and interfacial polarization are taken as two crucial modes that can produce significant energy consumption in the studied frequency range [25]. The former refers to the fact that the electric field causes a hysteretic reorientation process of intrinsic dipoles. This means that the change of these dipoles always lags behind the field, and they tend to acquire energy from this field to complete the rearrangement, resulting in the consumption of EM energy. The latter requires that the heterogeneous interfaces between different EM components or phases, where the difference in the space charge distribution on these interfaces will be generated. This polarization process can respond to the action of EM wave through the movement of interface charges to achieve the attenuation [60]. As observed, four SiC/C composites all display obvious frequency dispersion behaviors, which are typical signals of dipole orientation polarization due to the hysteretic reorientation of dipoles along with an applied electric field. Both the residual functional groups and defect sites in these composites can act as the polarization centers (i.e., dipoles). It is believed that interfacial polarization also contributes to dielectric loss in these composites, because there are abundant heterogeneous interfaces between carbon shells and SiC nanoparticles, and especially for SiC/C-2, SiC/C-3, and SiC/C-4, their ε_r" values do not continuously decrease in high-frequency range, solidifying the formation of interfacial polarization [7]. The Debye relaxation model is an important method to study polarization loss mechanisms and can be represented by Eq. (4):

where ε_s is the static dielectric constant, and ε_∞ is dielectric constant at infinite frequency. According to this equation, there will be a semicircle in the Cole-Cole curve derived from ε_r′ versus ε_r′′ when a Debye polarization relaxation occurs, and each semicircle responds to one relaxation process under alternating electromagnetic fields. As can be seen that several semicircles will be identified in all SiC/C composites (Fig. S8), and thus there are indeed multiple polarization relaxation processes responsible for the consumption of EM energy, confirming the contribution from polarization loss. In addition, a quasi-linear tail can also be detected in SiC/C-2, SiC/C-3, and SiC/C-4, which further validates the contribution from conductivity loss [37,61]. To illustrate the mechanism more clearly, we further quantify the specific contribution from conductivity loss (ε_c′′) and polarization loss (ε_p′′) in different composites based on Debye relaxation model fitted by least square method (Fig. 5d, e) [62]. It is clear that the contribution of conductivity loss will gradually decrease with increasing the frequency, and meanwhile, the strength of conductivity loss is highly consistent with the order of the conductivities of various SiC/C composites (Fig. 5f). Contrary to the change in conductivity loss, polarization loss of these composites gradually increases from 2.0 to 18.0 GHz. Noticeably, SiC/C-2 has much larger polarization loss than SiC/C-1, which can be attributed to the following two aspects: (1) the increase of SiC content brings more interfaces between carbon shells and SiC nanoparticles, thus boosting interfacial polarization; (2) the integrity of hollow structure gains more interfaces between carbon shells and wax, also intensifying interfacial polarization. However, from SiC/C-2 to SiC/C-4, polarization loss presents an overall downward trend. Possibly, the increase of SiC content inevitably compresses relative carbon content, and thus the contribution from dipole orientation polarization will be suppressed due to less residual functional groups and defect sites. This phenomenon indicates that dipole orientation polarization may play a relatively dominant role in the polarization loss of SiC/C composites with intact hollow structure, while SiC/C-4 with the highest SiC content still achieves a slight turnover in high-frequency range, implying that the contribution of interfacial polarization cannot be ignored, either.

Attenuation constant (α) essentially describes the amplitude attenuation of EM wave in transmission medium, while it is usually employed to feature the overall loss ability of MAMs in recent studies [63]. In terms of Eq. (5):

frequency-dependent α values of different SiC/C composites are also calculated in Fig. 5g. All composites show incremental increases in α values from 2.0 to 18.0 GHz. It is very interesting that at a specific frequency point, α values display same order as that of dielectric tangent, including the intersection point between SiC/C-3 and SiC/C-4, confirming that dielectric loss is the dominant pathway for EM attenuation. Although SiC/C-2 has the largest complex permittivity, dielectric tangent, and α values among these composites (Fig. 5a-c, g), it still fails to produce the best microwave absorption performance (Fig. 4a, d). This is because microwave absorption performance is not just determined by intrinsic loss ability, but also correlates with impedance matching [32]. If the characteristic impedance of microwave absorption medium is mismatched with that of free space, most of EM wave will be reflected at the interface rather than being allowed to enter this medium, and thus no matter how powerful loss ability of this medium, it will not produce good microwave absorption performance. Herein, a delta value (|Δ|), which can be calculated using the following Eqs. (6-8), is used to estimate the matching degree of the characteristic impedance of different SiC/C/wax mixture [3,64].

From Figs. 5h and S9, one can find that the coverage ratio with desirable |∆| values of the mixture with SiC/C-1, SiC/C-2, SiC/C-3, and SiC/C-4 are 25.9%, 42.0%, 58.2%, and 34.8%, respectively. It is undoubted that the mixture with SiC/C-3 as the filler harvests the best impedance matching, and these results also explain why SiC/C-3 does not generate the strongest loss ability but produce the best microwave absorption performance.

In addition to the effect of compositional changes on the microwave absorption properties, the mass fraction of SiC/C in wax is also another crucial parameter. Therefore, SiC/C-3 with the best microwave absorption performance is taken as a representative sample to explore the relationship between mass fraction and microwave absorption performance. 2D RL mapping and RL curves below − 10 dB of SiC/C-3 with different mass fraction (30% and 40%) are plotted in Fig. S10. As can be seen, the RL_min values are − 17.3 and − 26.3 dB, respectively, for mass fractions of 30% and 40%, which are obviously weaker than that generated with the mass fraction of 35% (Fig. 4b, e). More importantly, the maximum EABs generated with the mass fraction of 30% and 40% (4.2 and 3.8 GHz) are also much narrower than 5.1 GHz (35%). EM parameters of SiC/C-3 with different mass fraction are further analyzed to investigate the reason for different microwave absorption performance with the change of mass fraction. As depicted in Fig. S11, both ε_r′ and ε_r" values of SiC/C-3 in whole frequency range are monotonously increased with the mass fraction, representing the gradual improvement in storage and dissipation abilities of electric energy, while μ_r′ and μ_r" values seem insensitive to the mass fraction, again verifying the attenuation of EM wave is overwhelmingly dependent on dielectric loss. From these results, one can speculate that the inferior microwave absorption with the mass fraction of 30% is mainly attributed to insufficient dielectric loss ability generated by small ε_r′ and ε_r" values. However, a relatively high mass fraction (i.e. 40%) does not bring better microwave absorption performance, which is caused by the deterioration in impedance matching. This situation is very similar to that of SiC/C-4. Therefore, the mass fraction of 35% is a relatively suitable filler loading for hollow SiC/C composites in current study.

Based on the analysis above, we attempt to illustrate the reasons for good microwave absorption performance of SiC/C-3 in Fig. 5i. First, the establishment of hollow structure remarkably increase the specific volume of SiC/C-3, which makes it easy to construct conductive networks in wax matrix, generating considerable contribution from conductivity loss. Second, although the mesoporous structure cannot directly induce multiple reflection of incident EM wave due to their small size, the cavity of these microspheres reaches the micron scale, and they may gain an opportunity to achieve multiple reflection. In addition, the interspaces among SiC/C microspheres can also intensify the multiple reflection of EM wave, thus promoting the consumption of EM energy. Third, the embedment of SiC nanoparticles in carbon shells creates abundant heterogeneous interfaces and results in the uneven accumulation of free charges at those interfaces, and they will generate a reverse internal electric field in response to an external EM field, forming a capacitor-like configuration and thus increasing their interfacial polarization loss. Fourth, both carbon shells and SiC nanoparticles in SiC/C-3 can provide numerous sites (residual functional groups, defect sites, intrinsic dipoles) to act as the active sites of dipole orientation polarization along with an alternating EM field, but in view of the decrease in polarization loss from SiC/C-2 to SiC/C-4, residual functional groups and defect sites in carbon shells may be the main force to afford dipole orientation polarization. It has to be pointed out that these four advantages are actually also applicable to SiC/C-2 and SiC/C-4, but compared with them, SiC/C-3 has more proper composition, and thus it can bring better impedance matching and further produce the best microwave absorption performance. In other words, such good microwave absorption performance of SiC/C-3 benefits from the synergy of compositional and hollow engineering.

Apart from adjusting the molar ratio of TEOS/resorcinol, the pyrolysis temperature may also produce significant impacts on EM properties of SiC/C composites, and thus two additional samples are further prepared at 700 and 900 °C in terms of the same molar ratio of TEOS/resorcinol in SiC/C-3, which are denoted as SiC/C-3-700 and SiC/C-3-900, respectively. As shown in Fig. S12a, SiC/C-3-700 and SiC/C-3-900 give almost identical characteristic diffraction peaks to those of SiC/C-3 from 800 °C, while the intensity of the peak at 35.4° in SiC/C-3-900 becomes relatively stronger. These results suggest that SiC nanoparticles are also generated in these two samples, and although high pyrolysis temperature seems helpful to improve the crystallinity of SiC nanoparticles, it still cannot achieve the complete graphitization of carbon matrix. The specific carbon contents in SiC/C-3-700 and SiC/C-3-900 are deduced as 66.5% and 63.0%, respectively, based on air-atmosphere TG curves (Fig. S12b). Of note is that the onset of the temperature for drastic weight decrease (i.e., carbon combustion) slightly shifts to high temperature, which implies that the relative graphitization degree of carbon components in these composites may be gradually enhanced with increasing the pyrolysis temperature. Raman spectra reveal that I_D/I_G values for SiC/C-3-700 and SiC/C-3-900 are 0.91 and 1.10, respectively (Fig. S12c). This phenomenon further validates the improvement of relative graphitization degree of carbon components from SiC/C-3700 to SiC/C-3900, because Ferrari and Robertson ever represented that such a change trend could be attributed to the formation of tiny nanocrystalline domains in amorphous carbon matrix [32]. In addition, N₂ adsorption-desorption isotherms and SEM images indicate that the change of pyrolysis temperature does not affect the microstructure and morphology of SiC/C composites obviously (Figs. S12d and S13), and the slight decrease in the pore volume of SiC/C-3900 may be attributed to the fact that high pyrolysis temperature breaks a very small number of SiC/C microspheres, as indicated by some sporadic fragments in SEM image (Fig. S13b). These results disclose that pyrolysis temperature has a greater impact on the content and relative graphitization degree of carbon components in the composites than that on microstructure, and thus the EM properties of SiC/C composites will also be changed. As shown in Fig. S14, SiC/C-3700 present the lowest ε_r′ and ε_r″ values among these samples, whose ε_r′ and ε_r″ values gradually change from 9.2 and 2.7 at 2.0 GHz to 7.1 and 2.7 at 18.0 GHz, respectively. By comparison, ε_r′ values of SiC/C-3-900 are significantly increased to 14.4 at 2.0 GHz and 10.3 at 18.0 GHz, respectively, and the corresponding ε_r″ values are also raised to 7.6 at 2.0 GHz and 4.9 at 18.0 GHz, respectively. It is obvious that high pyrolysis temperature indeed favors large ε_r' and ε_r" values at a given frequency point, indicating that their dielectric loss ability is also gradually enhanced from SiC/C-3700 to SiC/C-3900. The measured conductivities of the mixture with SiC/C-3-700 and SiC/C-3-900 are 4.1 × 10^-4 and 7.7 × 10^-4 S cm⁻¹, respectively (Fig. S15), indicating that the improved graphitization degree enhances electronic transmission capability. That is to say, there will be stronger leakage current under applied EM field, which also consolidate conductivity loss and total dielectric loss of SiC/C composites. As expected, SiC/C-3-700 and SiC/C-3-900 indeed give different microwave absorption performance from that of SiC/C-3 (Fig. S16), whose RL_min intensities are − 17.6 dB (10.4 GHz, 2.7 mm) and − 23.7 dB (12.9 GHz, 1.8 mm), respectively, and the corresponding EABs are 4.2 GHz (13.8-18 GHz, 1.8 mm) and 4.3 GHz (13.7-18 GHz, 1.5 mm), respectively. Both RL_min intensities and EABs, as well as the coverages of qualified absorption of SiC/C-3-700 and SiC/C-3-900 are inferior to those of SiC/C-3. After analyzing their α and |Δ| values (Fig. S17), one can safely conclude that the weak attenuation ability of SiC/C-3-700 and the degraded impedance matching of SiC/C-3-900 are the key points for their insufficient microwave absorption. That is to say, 800 °C may be an optimum pyrolysis temperature for the preparation of SiC/C composites.

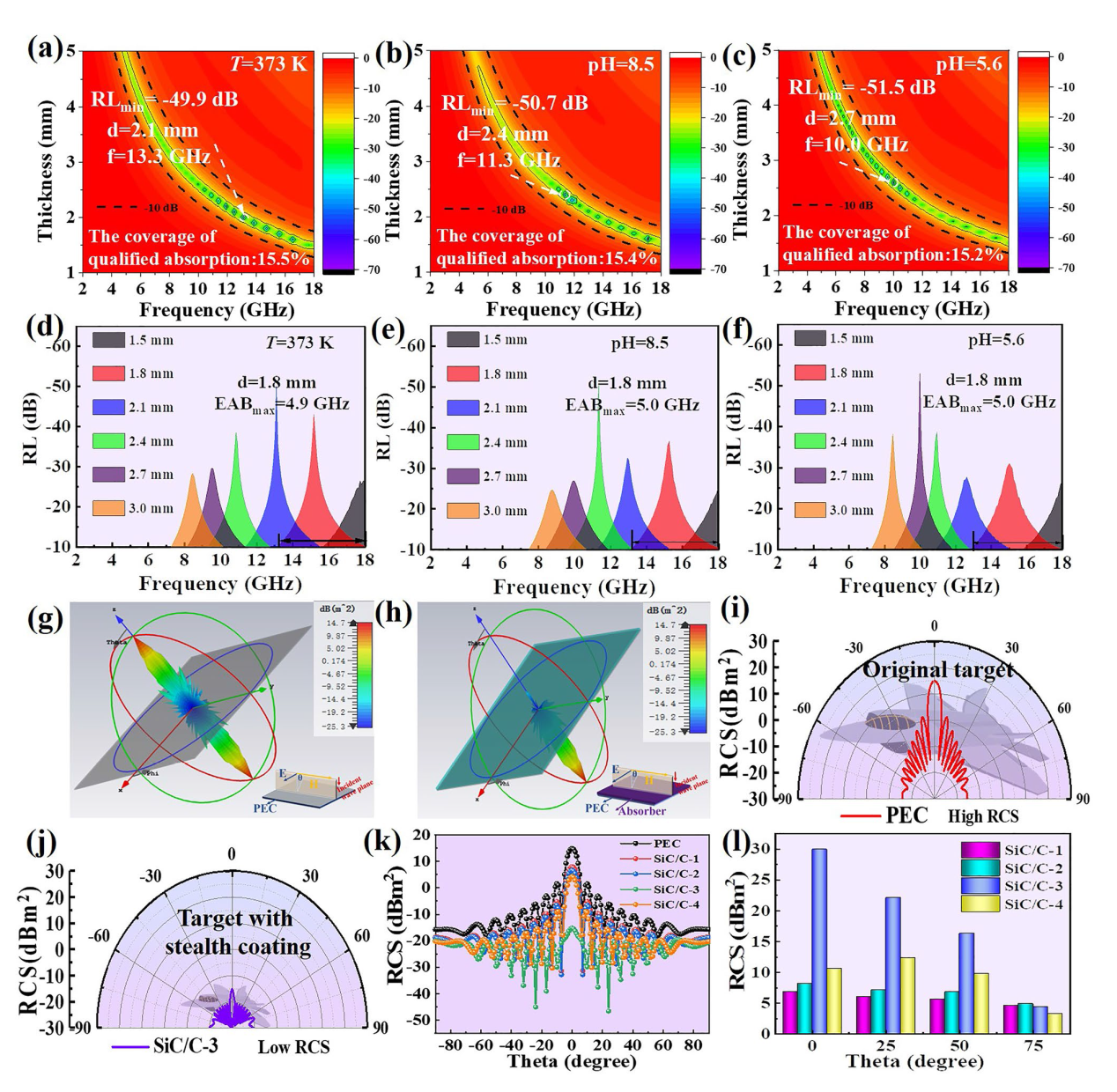

As mentioned above, environmental tolerance is an important indicator to evaluate the practical prospect of MAMs [14]. Therefore, we treat SiC/C-3 under three different conditions (T = 373 K, pH = 8.5, and pH = 5.6 solution) for 120 h to simulate its application in natural environments, which corresponds to sun exposure, acid rain, and seawater, respectively. As observed, as compared to the untreated SiC/C-3 (Fig. S18), these treatments indeed induce slight changes in relative complex permittivity, which suggest that natural environments may produce more or less impacts on its microwave absorption characteristics. After plotting the frequency-dependent RL maps of SiC/C-3 treated under different conditions, one can find that there is a moderate decrease in RL_min intensity from − 60.8 to − 49.9 dB (T = 373 K), to − 50.7 dB (pH = 8.5), and to -51.5 dB (pH = 5.6), respectively (Fig. 6a-c). However, the EAB of SiC/C-3 just narrows 0.1-0.2 GHz (Fig. 6d-f), and the coverages of EAB in the frequency range of 2.0-18.0 GHz remains above 15.0% (Fig. 6a-c). Even if we treat SiC/C-3 in a strong acidic solution (0.2 mol L⁻¹ of HCl solution) for 120 h, it can also maintain good microwave absorption performance (Fig. S19), and in contrast, some conventional magnetic MAMs, such as Fe, Fe₃O₄ and Ni, will be intensively corroded (Fig. S20). All these results clearly validate the bright prospect of practical application for SiC/C-3. In addition, the radar stealth performance of SiC/C-3 is also deduced by 3D far-field radiation photos and 2D RCS distributions with different detection angle of perfect electric conductor (PEC) plate and MAMs-coated PEC plates (Fig. 6g-l). It is worth noting that the radar scattering signal intensity of the original PEC plate is quite pronounced, while it becomes extremely weak after being coated by SiC/C-3, displaying a strong EM attenuation effect (Fig. 6g-j). As shown in Fig. 6k, l, the largest RCS reduction values of the PEC coated by SiC/C-1, SiC/C-2, SiC/C-3, and SiC/C-4 are 6.9, 8.2, 29.9 and 12.3 dB m² at the pitching angels changing from -90° to 90°, respectively. This result shows that all the SiC/C samples contribute to the reduction of RCS values, but SiC/C-3 has the highest RCS reduction values among them, that is, it can achieve the better radar wave attenuation performance. The above analysis demonstrates that SiC/C-3 composites exhibit good environmental stability and radar stealth performance, displaying excellent potential for practical application.
