海上油气田SDH光纤通信网的设计应用

谢金洪, 李小鹏, 高建梅

  1. 海洋石油工程股份有限公司,天津 300452
  • 收稿日期:2015-04-21 出版日期:2015-06-10 发布日期:2016-01-21
  • 作者简介:

    作者简介:谢金洪(1979-),男,工程师,主要从事海洋平台设计。

Design and Application of SDH Fiber Optic Network for Offshore Oil and Gas Field

Jin-hong XIE, Xiao-peng LI, Jian-mei GAO

  1. Offshore Oil Engineering Co., Ltd., Tianjin 300452, China
  • Received:2015-04-21 Online:2015-06-10 Published:2016-01-21

RichHTML

4

PDF (PC)

568

摘要：

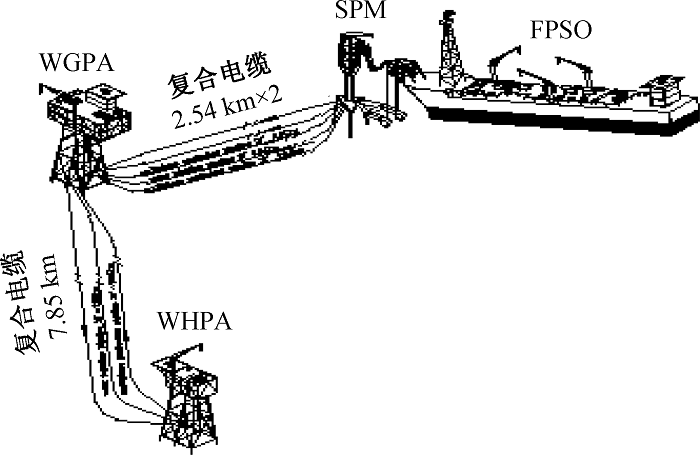

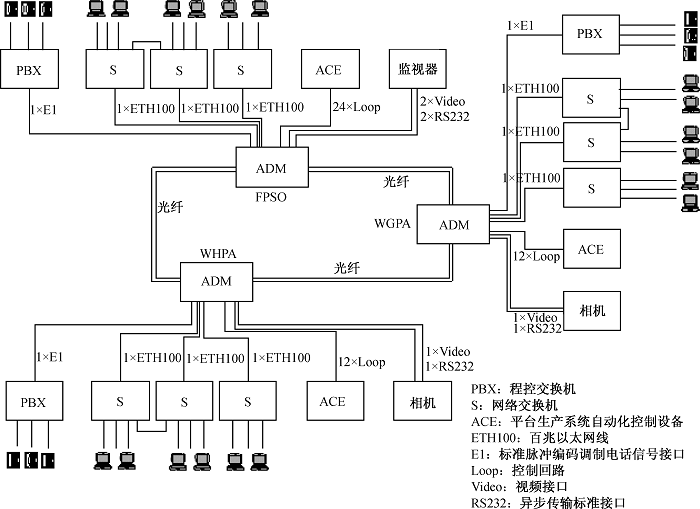

随着油田生产对于数据传输的速率和可靠性要求的提高,同步数字体系(SDH)光纤通信网在海上油气田得到了广泛应用。从构网形式与自愈环、帧结构与速率两方面介绍了SDH这种新型光纤通信网技术,并以CFD11项目为实例从系统设计、光纤设计和光端设备设计三方面阐述了设计过程。实践证明SDH是一种符合海上油气田应用要求的光纤通信网技术。

关键词: 海上油气田, 通信, 同步数字体系, 准同步数字体系, CFD11油气田

Abstract:

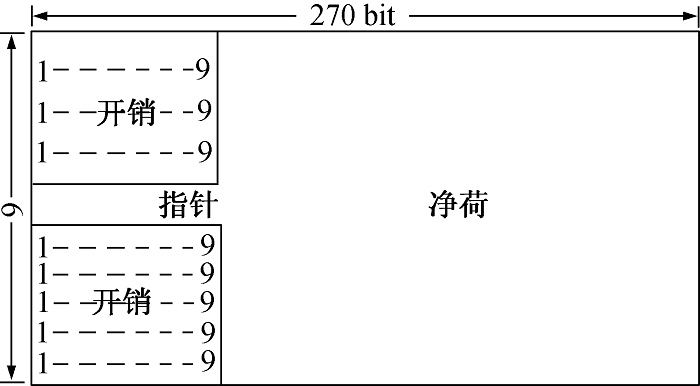

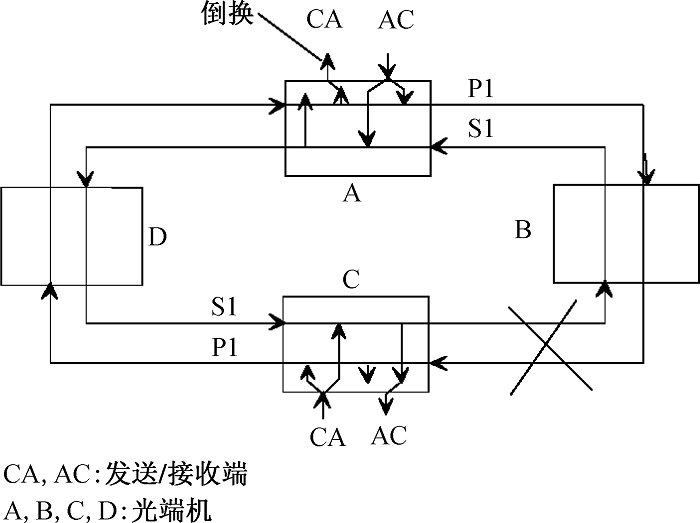

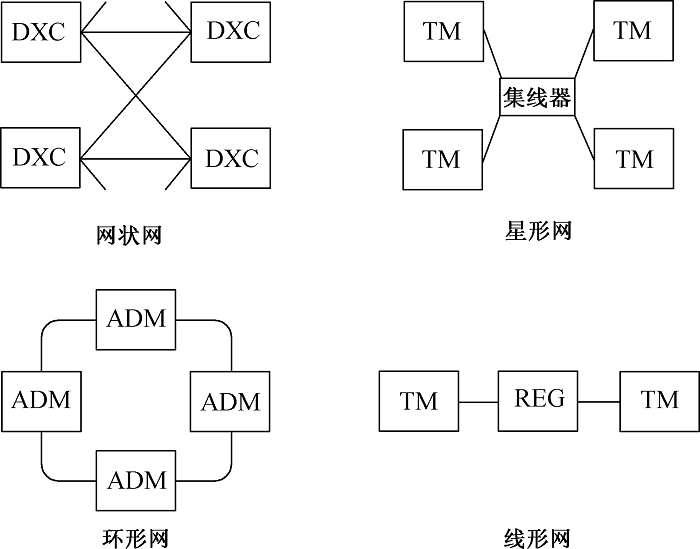

As the growing needs of data transmission rate and reliability in oil field production, synchronous digital hierarchy (SDH) fiber optic network is applied to offshore oil fields. We introduce such a new fiber optic network technology from two aspects, i.e., network structure and self-healing ring network, and frame structure and transmission rate. The design method, optical fiber design and design of optical terminal equipment are analyzed using the CFD11 project as an example. Through the successful application in the project, we draw a conclusion that the SDH technology is completely applicable to offshore oil and gas fields.

Key words: offshore oil and gas field, communication, synchronous digital hierarchy, plesiochronous digital hierarchy, CFD11 oil and gas field
