Critical Solvation Structures Arrested Active Molecules for Reversible Zn Electrochemistry

doi:10.1007/s40820-024-01361-0

Abstract

Abstract:

Aqueous Zn-ion batteries (AZIBs) have attracted increasing attention in next-generation energy storage systems due to their high safety and economic. Unfortunately, the side reactions, dendrites and hydrogen evolution effects at the zinc anode interface in aqueous electrolytes seriously hinder the application of aqueous zinc-ion batteries. Here, we report a critical solvation strategy to achieve reversible zinc electrochemistry by introducing a small polar molecule acetonitrile to form a “catcher” to arrest active molecules (bound water molecules). The stable solvation structure of [Zn(H₂O)₆]²⁺ is capable of maintaining and completely inhibiting free water molecules. When [Zn(H₂O)₆]²⁺ is partially desolvated in the Helmholtz outer layer, the separated active molecules will be arrested by the “catcher” formed by the strong hydrogen bond N-H bond, ensuring the stable desolvation of Zn²⁺. The Zn||Zn symmetric battery can stably cycle for 2250 h at 1 mAh cm⁻², Zn||V₆O₁₃ full battery achieved a capacity retention rate of 99.2% after 10,000 cycles at 10 A g⁻¹. This paper proposes a novel critical solvation strategy that paves the route for the construction of high-performance AZIBs.

Key words: Zinc-ion battery, Critical solvation, Helmholtz layer, Arrest active molecule, Reversible zinc anode

Junjie Zheng, Bao Zhang, Xin Chen, Wenyu Hao, Jia Yao, Jingying Li, Yi Gan, Xiaofang Wang, Xingtai Liu, Ziang Wu, Youwei Liu, Lin Lv, Li Tao, Pei Liang, Xiao Ji, Hao Wang, Houzhao Wan. Critical Solvation Structures Arrested Active Molecules for Reversible Zn Electrochemistry[J]. Nano-Micro Letters, 2024, 16(1): 145-.

/ / Recommend / Download Citations

URL: https://www.qk.sjtu.edu.cn/nml/EN/10.1007/s40820-024-01361-0

https://www.qk.sjtu.edu.cn/nml/EN/Y2024/V16/I1/145

Figures/Tables 5

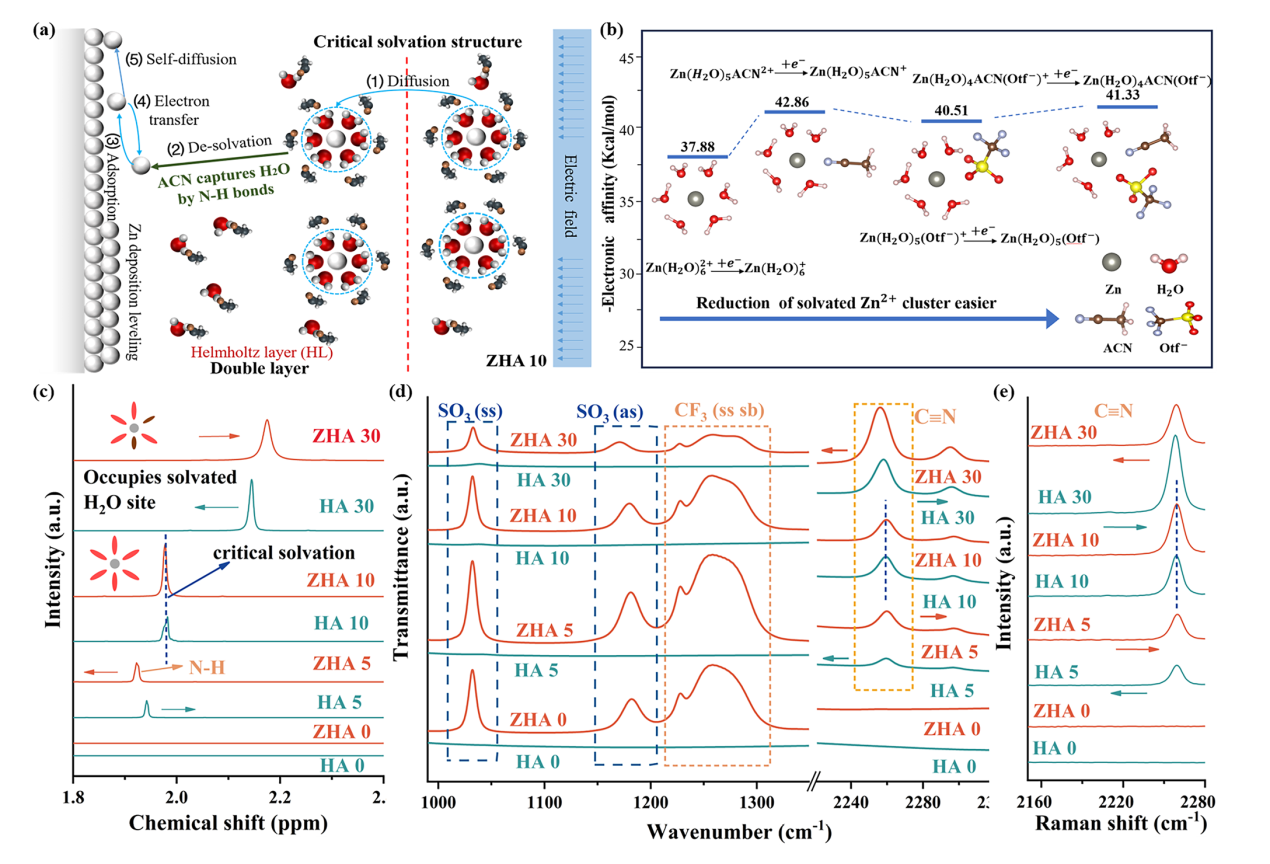

Fig. 1 a Electroplating mechanism of Zn²⁺ in ZHA 10 electrolytes. b Electron affinity comparison of different solvated sheaths. c Comparison of N-H bond NMR spectra in different electrolytes. d Comparison of infrared spectra in different electrolytes. e Comparison of Raman spectra of C≡N bonds in different electrolytes

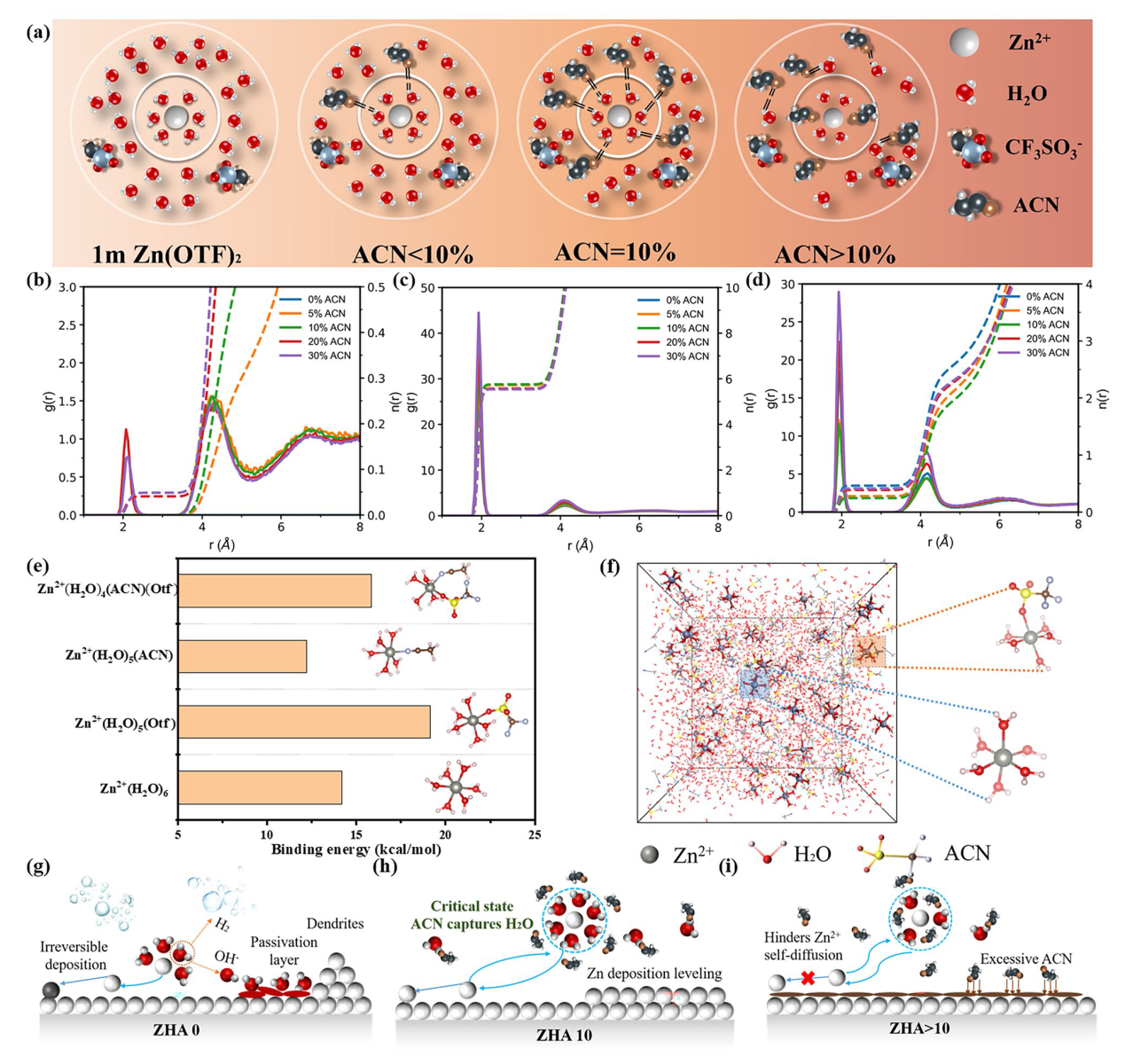

Fig. 2 a Solvation structure change process in 1 m Zn(CF₃SO₃)₂-H₂O-ACN_x electrolyte. The solvation effect of different mass fractions of ACN in b ACN, c H₂O, and d Zn(CF₃SO₃)₂ solvent. e Comparison binding energy of 1 m Zn(CF₃SO₃)₂-H₂O-ACN in different states. f Solvation mechanism. Zn²⁺ deposition changes in g ZHA 0, h ZHA 10, and i ZHA > 10 electrolytes

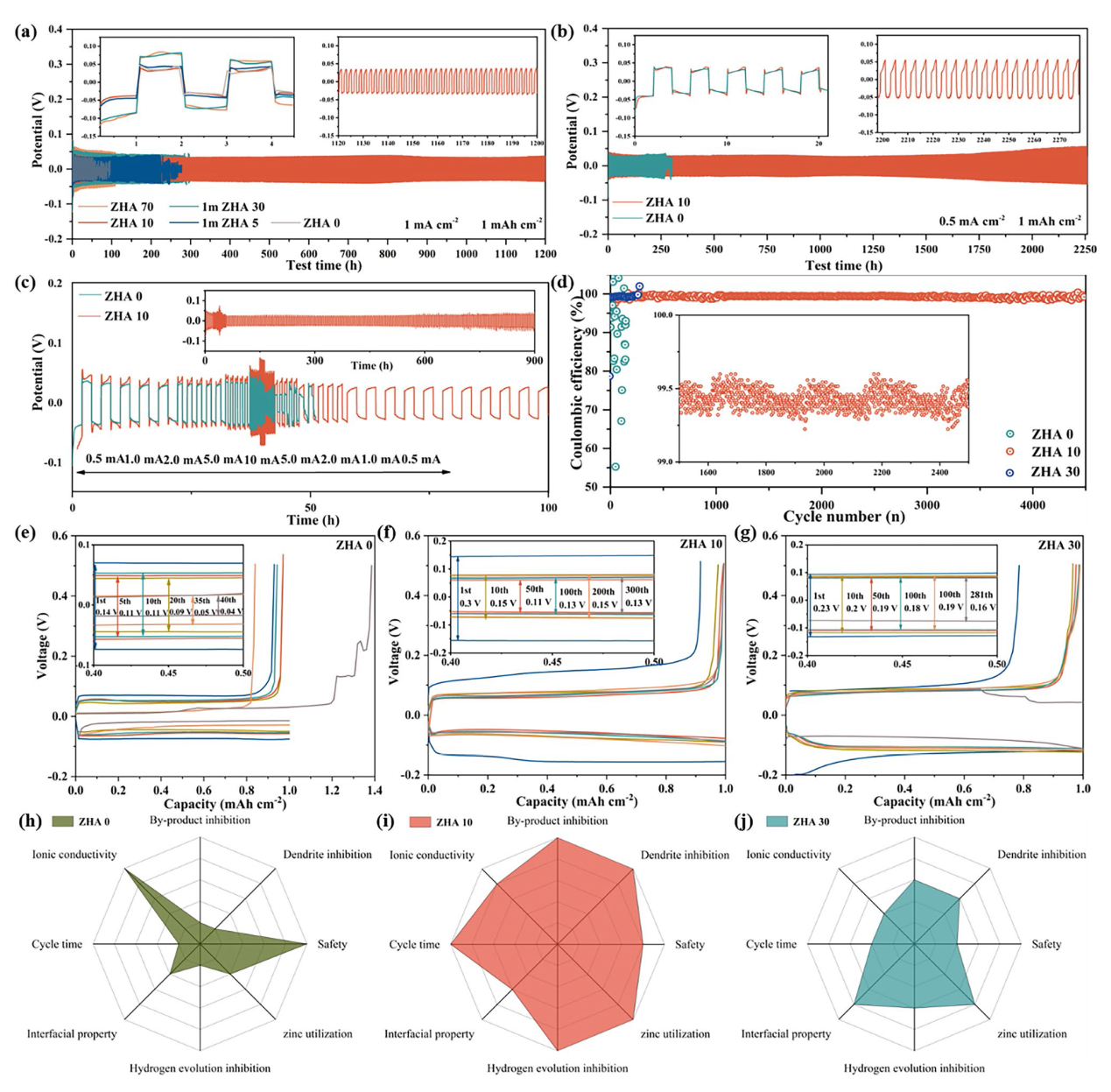

Fig. 3 Cycling comparison of symmetric cells in different electrolytes at 1 mAh cm⁻² and a 1 mA cm⁻², b 0.5 mA cm⁻². c Comparison of the rate performance of symmetric cells in ZHA 0 and ZHA 10 electrolytes. d Comparison of Coulombic efficiencies of different electrolytes for the Cu||Zn half-cell at a current density of 5 mA cm⁻². In e ZHA 0, f ZHA 10, g ZHA 30, the voltage polarization curves corresponding to the coulombic efficiency in the electrolyte. Comparison of different properties under h ZHA 0, i ZHA 10, j ZHA 30 solvation structures

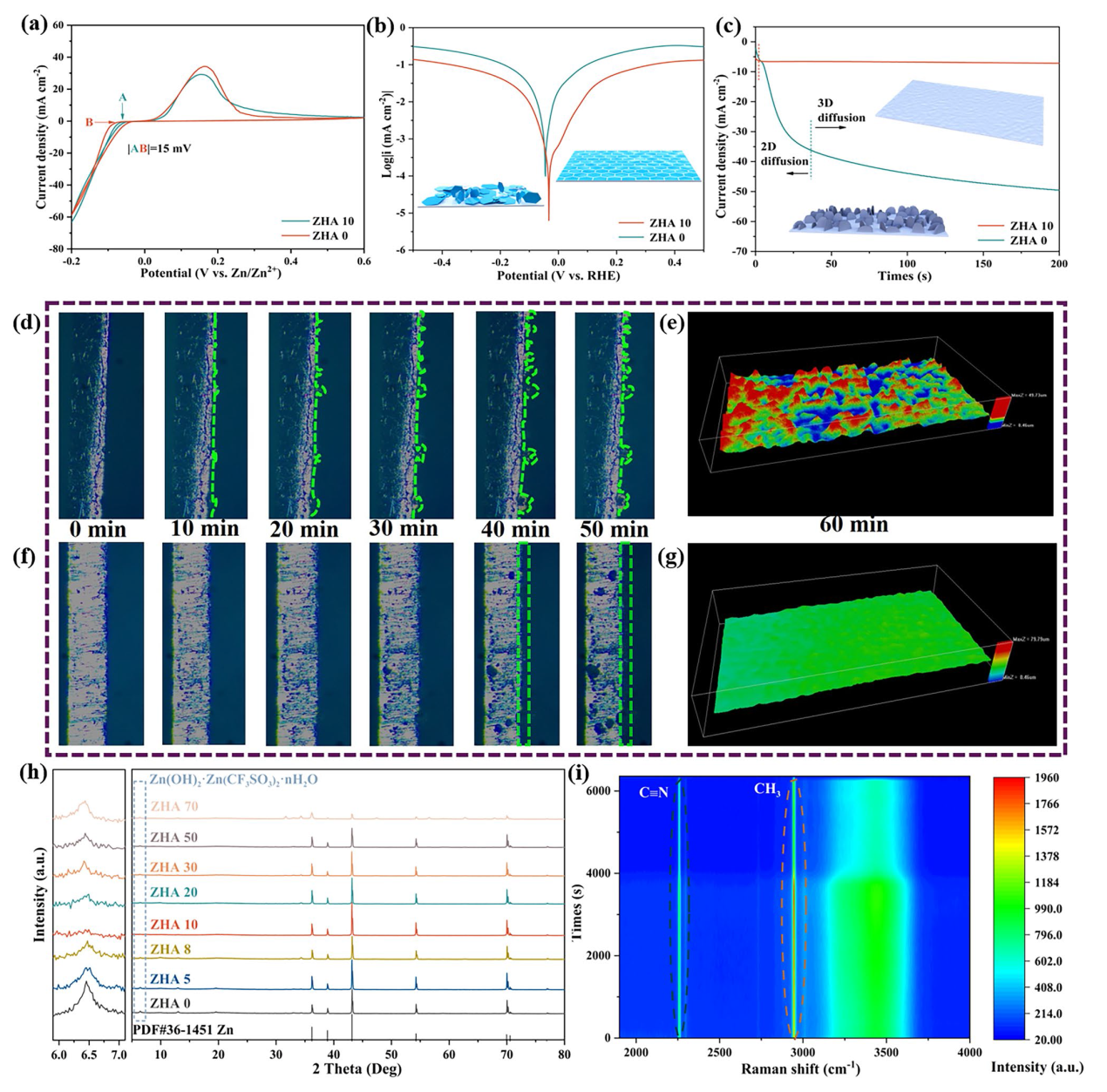

Fig. 4 Comparison of a CV curve, b Tafel curve, c CA curve in ZHA 0 and ZHA 10 electrolytes. In d ZHA 0 and f ZHA 10 electrolytes Zn cross section changes under optical microscope. In e ZHA 0 and g ZHA 10 electrolytes Zn surface changes under 3D confocal laser scanning microscope. h XRD comparison after 100 cycles in different electrolytes. i In-situ Raman map of the Zn||Cu battery at 1 mA cm⁻²

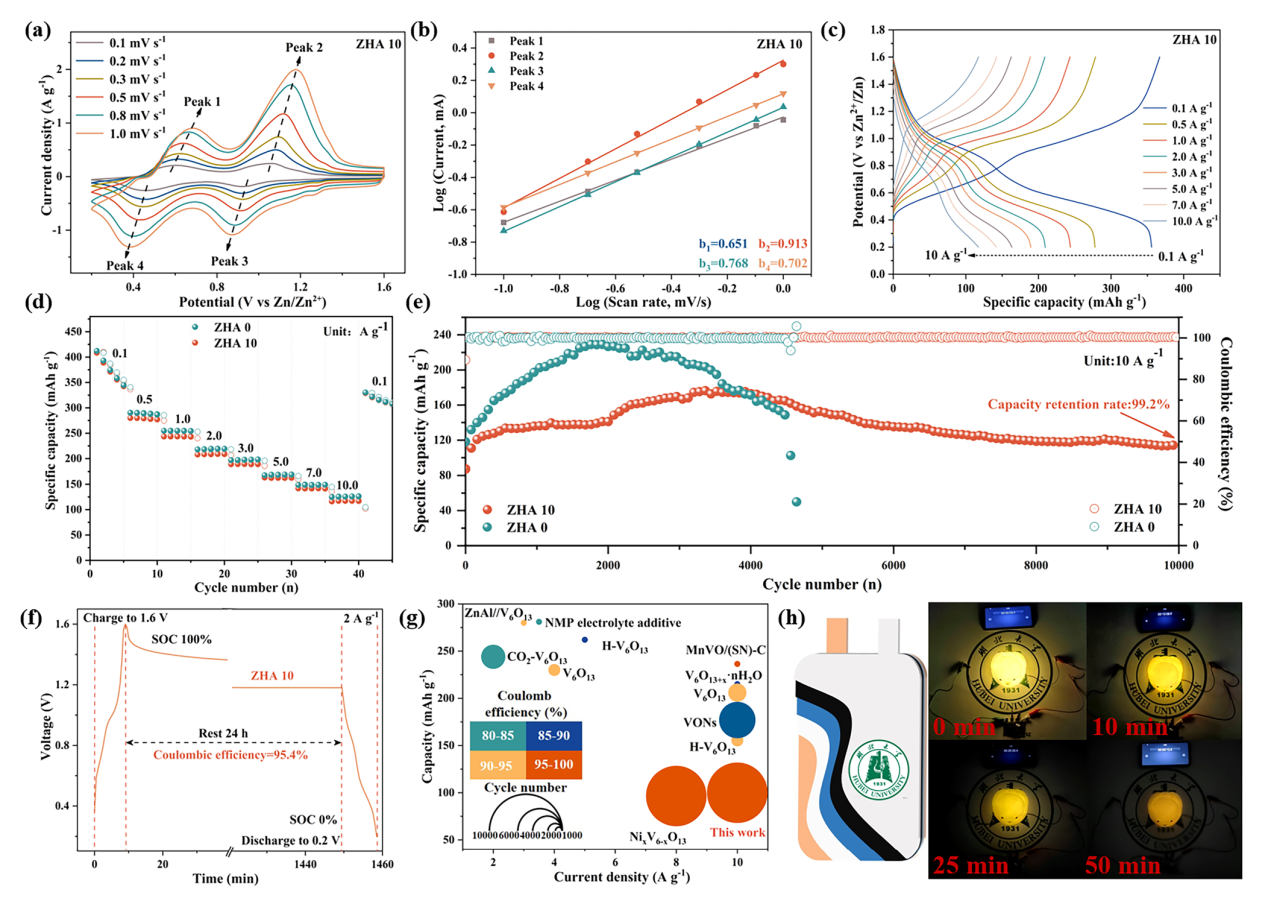

Fig. 5 a CV curve, b fitted b value, c GCD curve, d ratio performance, e long cycle comparison of Zn||V₆O₁₃ battery. f Self-discharge in ZHA 10 electrolytes. g Comparison of cycling ability of Zn||V₆O₁₃ batteries using ZHA 10 electrolyte with other reported. h Soft pack battery lights up the small light
