深水海底管道维修方法研究

摘要
图/表
参考文献
相关文章
Metrics

全文: PDF(15760 KB) HTML
输出: BibTeX | EndNote (RIS) 背景资料

文章导读

摘要

基于荔湾3-1气田周边的油气田深水管道情况,分析深水环境因素对管道失效的影响。具体给出三种深水海管失效形式,并提出相应失效模式下的维修方法,着重介绍不同维修方法的维修流程和核心维修工具资源。在此基础上,分析不同方法的优缺点,并探讨它们在荔湾周边的应用可行性。螺栓型管卡维修和连接器在底维修可作为我国深水海管维修的重点发展方向。

	服务

	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	RSS
	作者相关文章
	马超
	孙锟
	黄叶舟
	陈晓东
	孙首阳

关键词 ：深水管道, 管道失效, 管道维修, 维修程序

Abstract：

The special environment conditions of oil and gas fields near Liwan 3-1 are introduced with their adverse effects on pipelines, and three damage scenarios of deepwater pipeline for repairing damaged pipeline are listed. According to the damage scenarios, methods for repairing damaged pipeline in deep water are summarized with repair procedure and equipment, and those methods are compared. Finally, the application possibility of all methods for pipeline repair in deepwater field is analyzed. It is concluded that repair with bolted clamp or connector can be main repair methods for deepwater pipelines in China.

Key words： deepwater pipeline damage scenarios of pipeline pipeline repair repair procedure

收稿日期: 2015-05-22 出版日期: 2016-01-21

TE973

基金资助:国家科技重大专项(2011ZX05056-002-04)

作者简介:

作者简介:孙锟(1990-),男,硕士,主要从事船舶与海洋工程方面的研究。

引用本文:

马超, 孙锟, 黄叶舟, 陈晓东, 孙首阳. 深水海底管道维修方法研究[J]. 海洋工程装备与技术, 2015, 2(3): 168-174.
Chao MA, Kun SUN, Ye-zhou HUANG, Xiao-dong CHEN, Shou-yang SUN. Study on Repair Methods for Deepwater Pipeline. Ocean Engineering Equipment and Technology, 2015, 2(3): 168-174.

链接本文:

https://www.qk.sjtu.edu.cn/oeet/CN/ 或 https://www.qk.sjtu.edu.cn/oeet/CN/Y2015/V2/I3/168

Table 1 深水海管维修方法

Fig.1 螺栓形式和焊接形式管卡维修

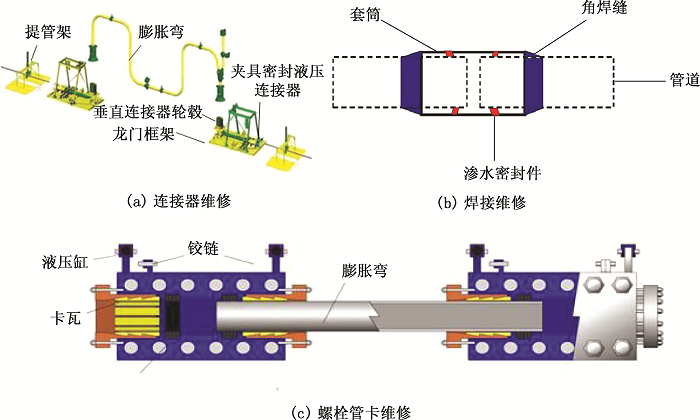

Fig.2 连接器维修、焊接维修和螺栓管卡维修等受损管段更换维修方法

Fig.3 管卡维修程序示意图

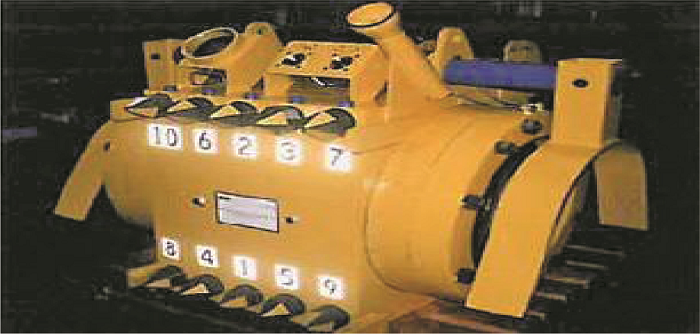

Fig.4 HydroTech维修管卡

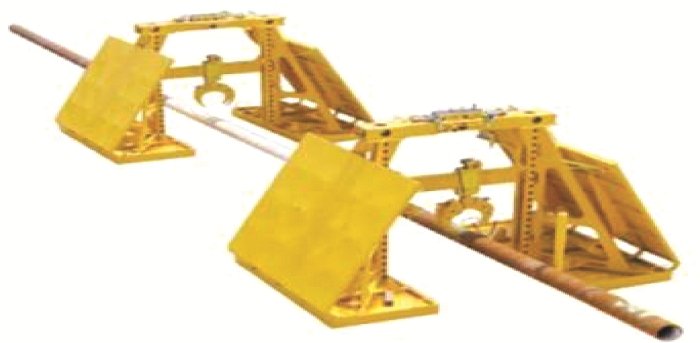

Fig.5 Oceaneering公司提管架

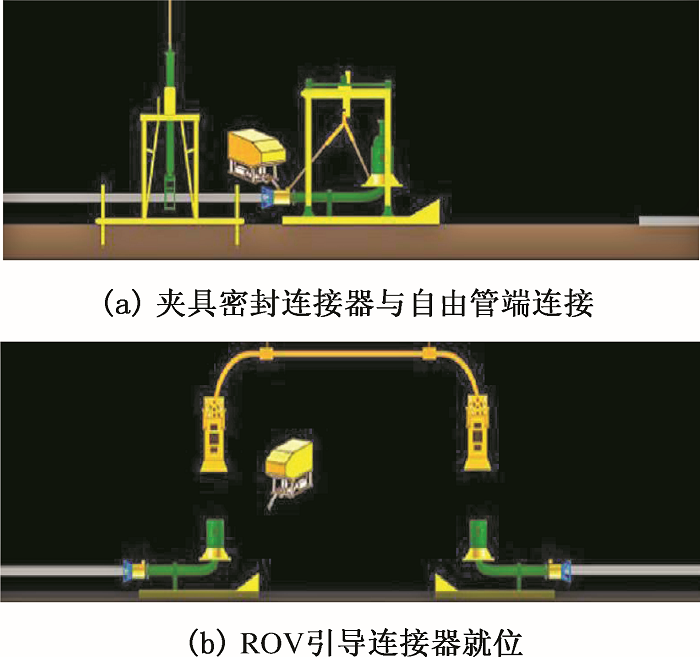

Fig.6 连接器维修程序示意图

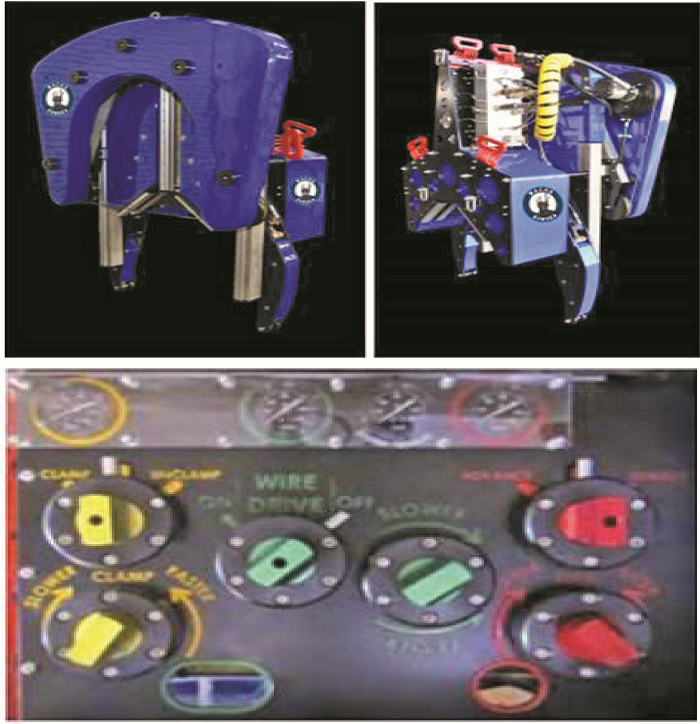

Fig.7 Wachs公司深水金刚石绳锯机及其ROV控制面板

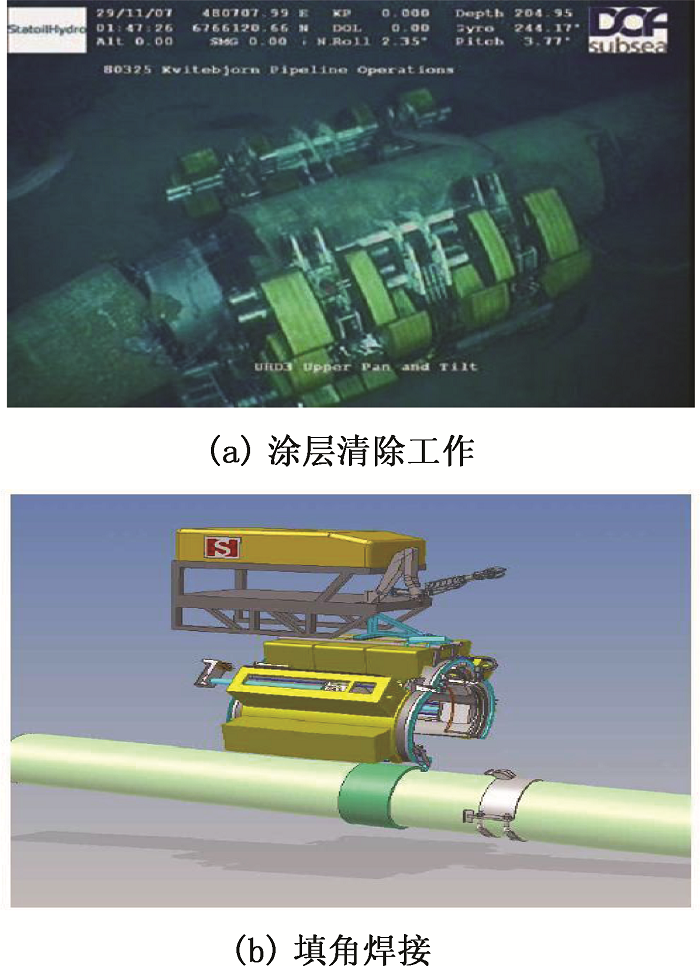

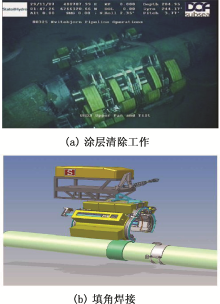

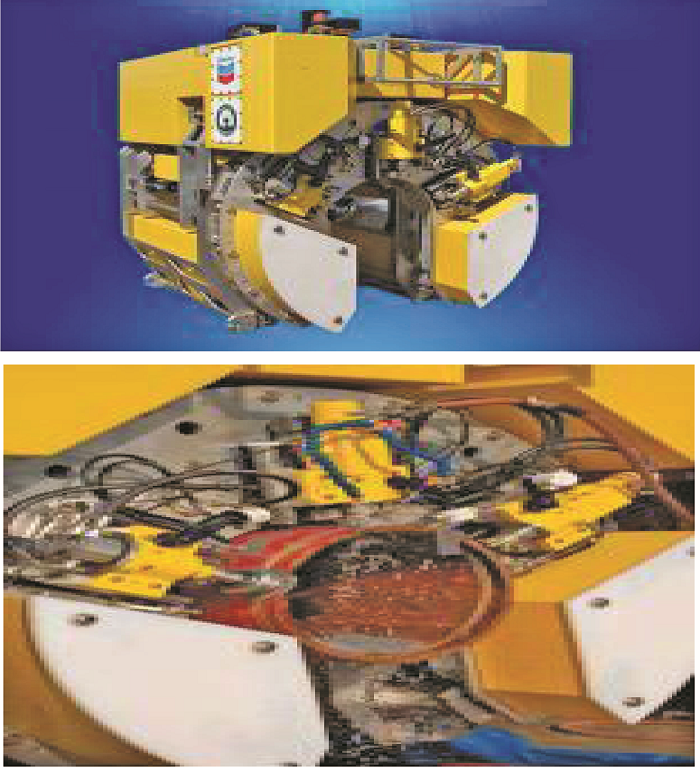

Fig.8 CPT-3 涂层清除工具

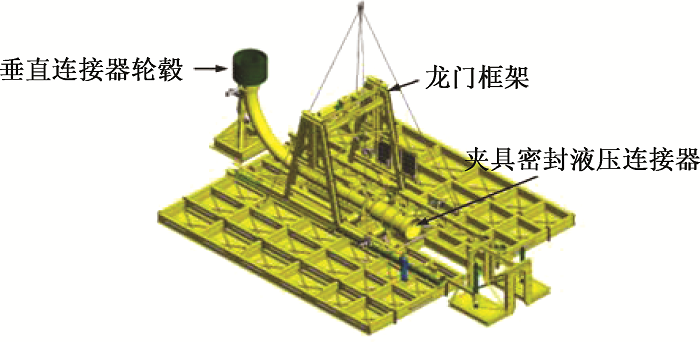

Fig.9 龙门维修基盘

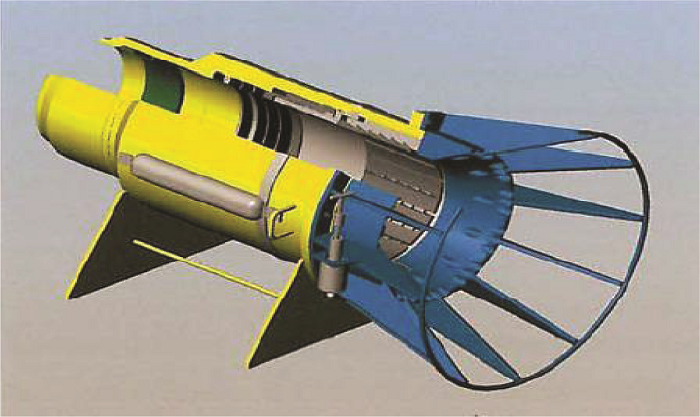

Fig.10 夹具密封液压连接器

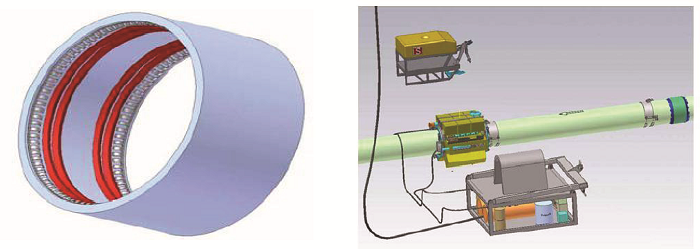

Fig.11 焊接维修程序示意图

Fig.12 套筒外观及焊接机器人水下作业

Table 2 深水海管维修方法对比
