海洋工程装备与技术 ›› 2014, Vol. 1 ›› Issue (3): 258-262.

• 其他 • 上一篇    下一篇

SmartPlant Spoolgen软件结合建造管理系统在海洋石油工程管道加工设计中的应用

黄太安, 谢永春, 杜光, 蒋小华, 张小钢, 徐庚, 王佳

  1. 海洋石油工程(青岛)有限公司,山东 青岛 266520
  • 收稿日期:2014-07-28 出版日期:2014-09-20 发布日期:2016-03-30
  • 作者简介:

    作者简介:黄太安(1982--),男,工程师,主要从事海洋石油工程三维技术及管道设计方面的研究.

  • 基金资助:
    国家科技重大专项(2011ZX05027-002-002)

Application of SmartPlant Spoolgen Combined with CMS in Pipeline Fabrication Design of Offshore Oil Engineering

Jiang-hui YANG, Yong-chun XIE, Guang DU, Xiao-hua JIANG, Xiao-gang ZHANG, Geng XU, Jia WANG

  1. Offshore Petroleum Engineering (Qingdao) Co., Ltd., Qingdao, Shandong 266520, China
  • Received:2014-07-28 Online:2014-09-20 Published:2016-03-30

摘要:

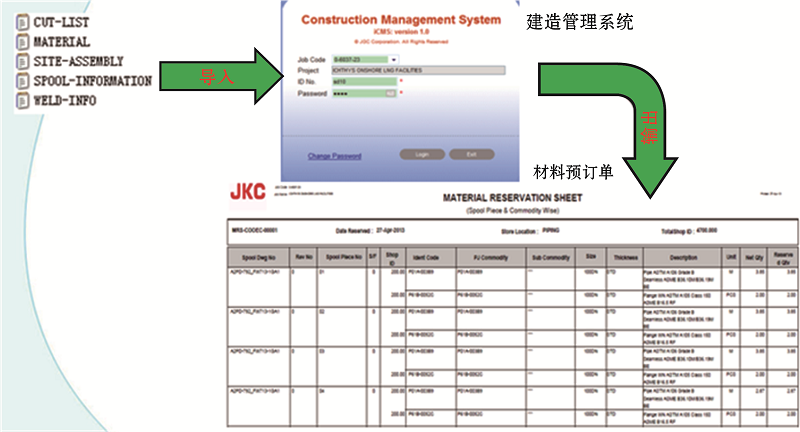

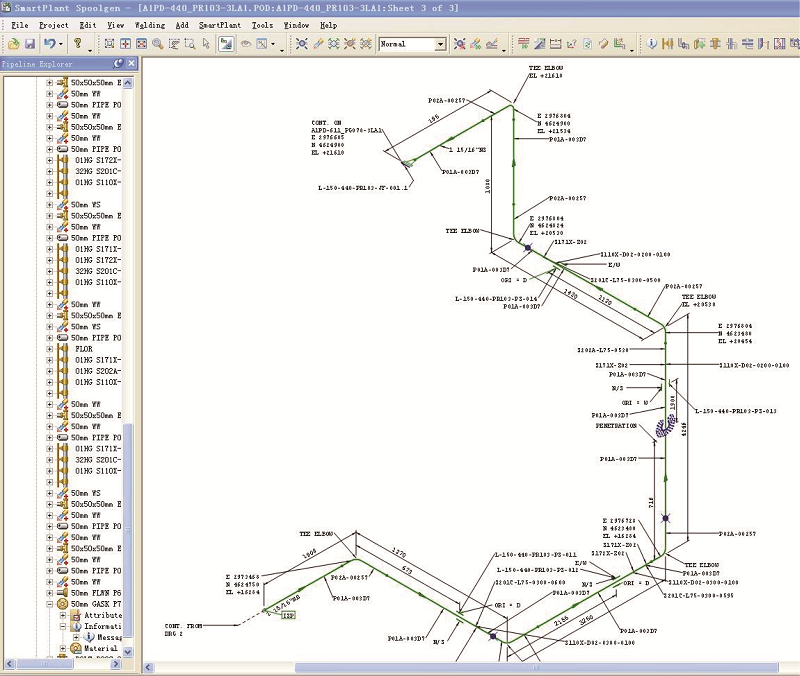

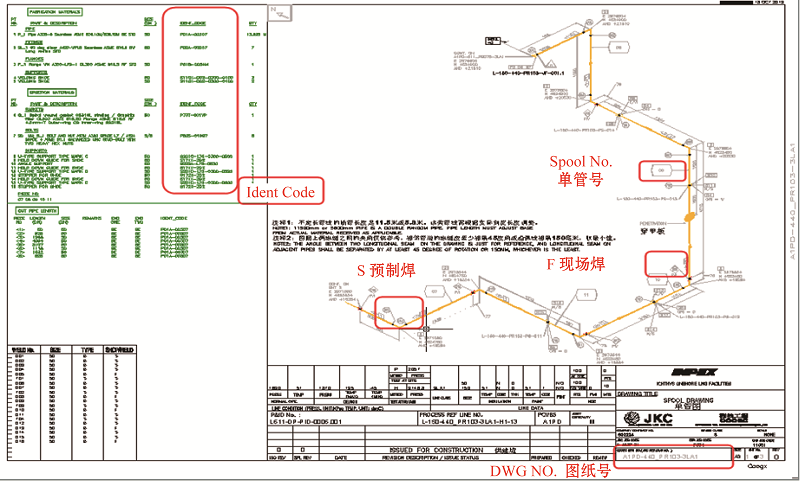

随着海洋石油平台和模块化工厂工艺技术的发展,工艺管道越来越复杂,占比也越来越高。如何有效地将详细设计三维模型数据迁移到加工设计环节并进行高效的加工设计已经成为行业面临的一个共同难题。传统手工计算机辅助设计(CAD)进行管道断管的方式由于工效低,且无法避免手工错误,已经无法满足日益紧缩的工期和愈加严格的材料控制要求。介绍了采用SmartPlant Spoolgen软件进行管道断管出图的新方法,并简单介绍了结合建造管理系统(CMS)进行单管预制管理的工作流程,旨在为海洋石油平台和模块化工厂管道的加工设计以及单管预制管理提供有益的借鉴。

关键词: 海洋石油工程, Spoolgen, 加工设计, 建造管理系统, 材料控制

Abstract:

With the technological developments of offshore platform and modularization factory, process pipelines become more and more complex, and account for an increasingly high proportion. How effectively the three-dimensional (3D) model data are transferred to the fabrication design has become a common problem. Traditionally, computer-aided design (CAD) software is used for pipe cutting, but because this method has low work efficiency and cannot avoid manual errors, it is not able to meet the requirements of short construction period and strict material control. We introduce a new method for pipeline breaking using the Spoolgen software, and briefly give the spool precast management workflow performed with construction management system (CMS). This research will provide reference for the fabrication design of offshore oil platform and modularization factories.

Key words: offshore oil engineering, Spoolgen, fabrication design, construction management system, material control
