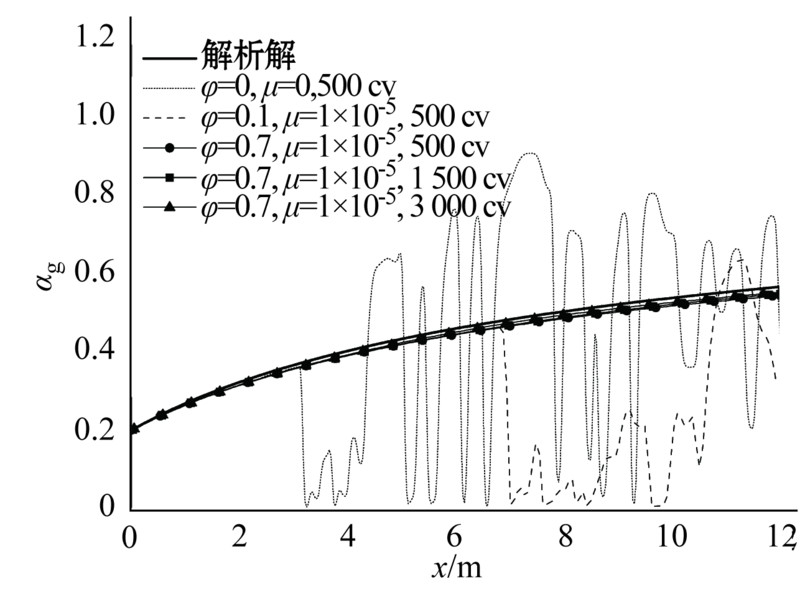

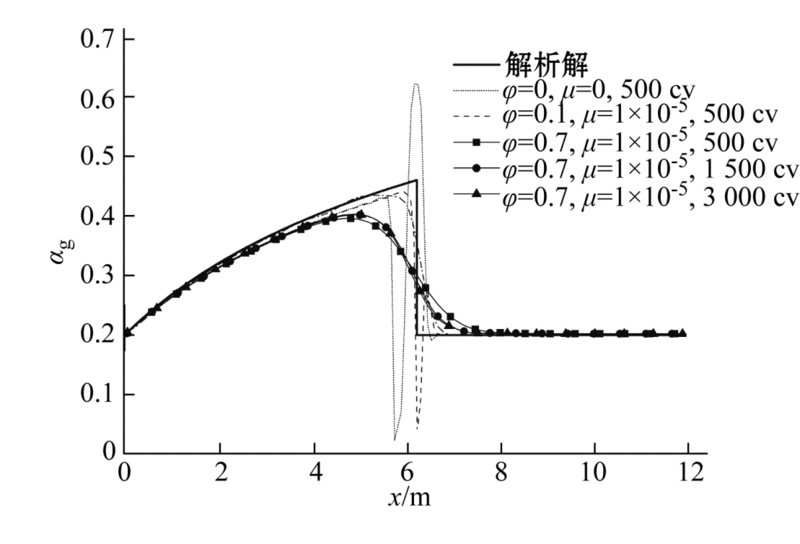

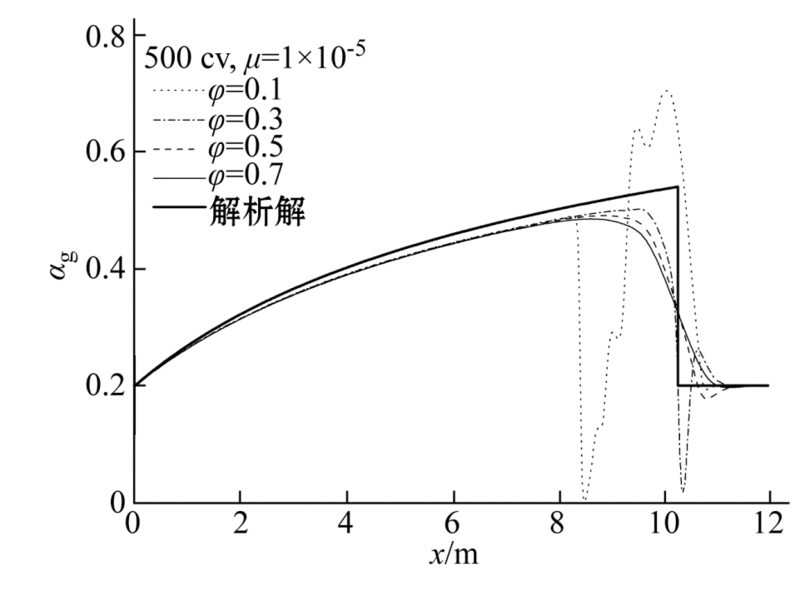

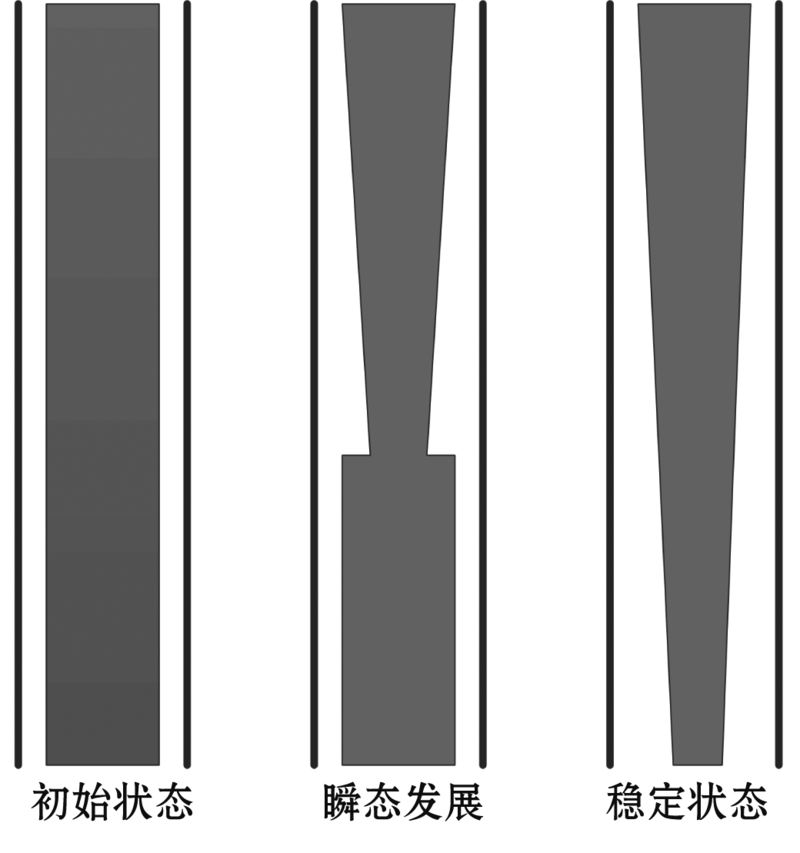

When artificial diffusion terms are introduced in two-fluid model, the effects of different artificial diffusion coefficients are studied. For vertical pipe Water Faucet problem, when the artificial diffusion coefficients are gradually increased, nonphysical oscillations can be eliminated. For horizontal pipe flow in ill-posed region, the calculated results without diffusion terms agree with experimental data but the mesh independent solution cannot be obtained. When the coefficients calibrated in Water Faucet problem are adopted, hydrodynamic instability is suppressed to some extent and slug frequency is underestimated. Therefore, the amount of artificial diffusion varies with different flow conditions and should be determined specially.
Lin P Y, Hanratty T J.Prediction of the initiation of slugs with linear stability theory[J]. International Journal of Multiphase Flow, 1986, 12(1): 79.
Issa R I, Kempf M H W. Simulation of slug flow in horizontal and nearly horizontal pipes with the two-fluid model[J]. International Journal of Multiphase Flow, 2003, 29(1): 69.
Zanotti A L, Méndez C G, Nigro N M, et al.A preconditioning mass matrix to avoid the ill-posed two-fluid model[J]. Journal of Applied Mechanics, 2007, 74(4): 732.
Chung M-S, Lee S-J.A modified semi-implicit method for a hyperbolic two-fluid model[J]. Appl Numer Math, 2009, 59(10): 2475.
Holmas H, Sira T, Nordsveen M, et al.Analysis of a 1D incompressible two-fluid model including artificial diffusion[J]. IMA Journal of Applied Mathematics, 2008, 73(4): 651.
Song J H, Ishii M.The well-posedness of incompressible one-dimensional two-fluid model[J]. International Journal of Heat and Mass Transfer, 2000, 43(12): 2221.
Issa R I, Montini M.Applicability of the momentum-flux-parameter closure for the two-fluid model to slug flow[C]. 6th International Symposium on Multiphase Flow, Heat Mass Transfer and Energy Conversion, 2009: 712.
Issa R I, Montini M.The effect of surface tension and diffusion on one-dimensional modelling of slug flow instabilities[C]. 7th International Conference on Multiphase Flow, 2010.
Taitel Y, Dukler A E.A model for predicting flow regime transitions in horizontal and near horizontal gas-liquid flow[J]. AIChE Journal, 1976, 22(1): 47.
Wallis G B.One-Dimensional Two-Phase Flow[M]. New York: McGraw-Hill,1969.
Spedding P L, Hand N P.Prediction in stratified gas-liquid co-current flow in horizontal pipelines[J]. International Journal of Heat and Mass Transfer, 1997, 40(8): 1923.
Woods B, Fan Z, Hanratty T.Frequency and development of slugs in a horizontal pipe at large liquid flows[J]. International Journal of Multiphase Flow, 2006, 32(8): 902.
