Application of Acoustic Doppler Velocimetry in Flume Flow Experiment |
Song YAN( ), Hao WU( ), Dapeng SUN, Wei TANG |
State Key Laboratory of Coastal and Offshore Engineering, Dalian University of Technology,Dalian 116023, Liaoning, China |
|
|

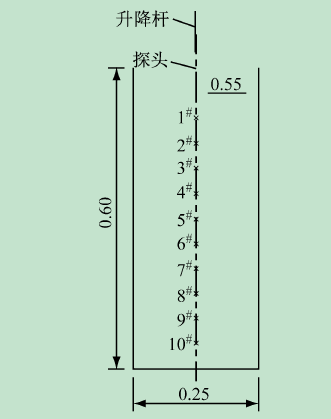

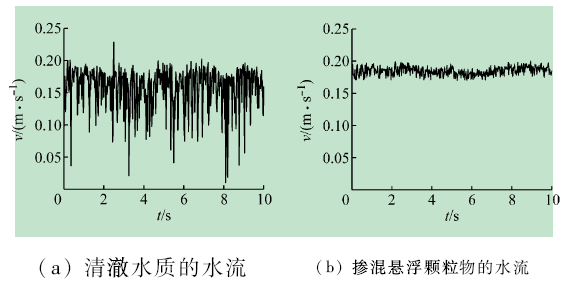

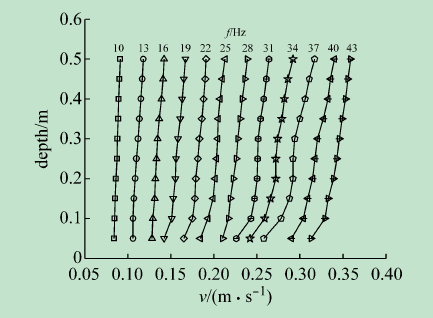

Abstract Aiming at the problem of the low accuracy of Acoustic Doppler Velocimetry (ADV) used in clear water flow, a method of mixing suspended particles into the clear water is presented to improve the accuracy of ADV. By comparing the measurement results of ADV in the water flow with mixed suspended particles and the clear water, it is observed that the flow velocity of the former situation is obviously more stable, the result meets with the actual stable uniform flow of the water flume. The suggested content of the suspended particles in this test is 106 g/m3. Ten velocity measuring points are arranged vertically in the water flume. The flow velocity is changed by adjusting the frequency of the converter of a pump. This method is used to measure the vertical distribution of the flow velocity of the water flume. It is observed that the flow velocity is not uniformed along the vertical direction, and is followed the linear shear flow distribution. The reasons for this uneven distribution are the arrangement of outflow port and the friction of the lateral and bottom walls of the water flume. Finally, the linearly relationship between the frequency of converter and mean vertical velocity is presented by the means of least square method.
|
Received: 29 August 2016
Published: 10 July 2017
|
|
|
|
|
|
|
|
|
|
|
|
|

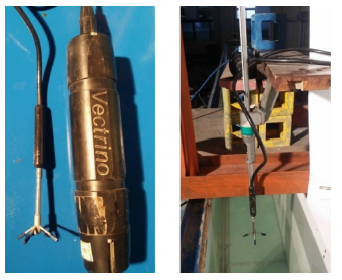

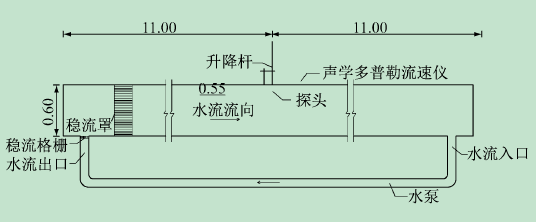

流速测量 | 范围/(m·s-1) | ±0.01, 0.1, 0.3, 1,4 | 精度/(mm·s-1) | 测量值的±0.5% ±1 | 采样输出/Hz | 1~200 | 采样点 | 距探头距离/m | 0.05 | 直径/mm | 6 | 高/mm | 3~15 | 回声强度 | 声学频率/MHz | 10 | 强度范围/dB | 25 |
|
|
|
|
|
|
水质特点 | 极差/(m·s-1) | 方差/(cm2·s-2) | 清澈水质 | 0.219 | 10.2 | 掺混颗粒物 | 0.030 | 0.4 |
|
|
|
|
|
|
变频器频率/Hz | 平均流速/(m·s-1) | 方差/(cm2·s-2) | 10 | 0.087 | 0.04 | 13 | 0.111 | 0.16 | 16 | 0.135 | 0.25 | 19 | 0.157 | 0.49 | 22 | 0.182 | 0.64 | 25 | 0.202 | 0.64 | 28 | 0.226 | 0.81 | 31 | 0.251 | 1.21 | 34 | 0.272 | 1.96 | 37 | 0.294 | 2.89 | 40 | 0.319 | 2.56 | 43 | 0.342 | 1.96 |
|
|
|
|
[1] |
严军,王二平,孙东坡,等. 矩形断面明渠流速分布特性的试验研究[J]. 武汉大学学报(工学版), 2005(5): 59-64.
|
[2] |
陈兴伟,林木生,程年生,等. 粗糙透水床面明渠水流的垂线流速分布[J]. 水科学进展, 2013(6): 849-854.
|
[3] |
王二平,金辉,张艳艳,等. 矩形明渠流速分布特征及其在流量量测中的应用[J]. 灌溉排水学报, 2008(4): 25-28.
|
[4] |
鲁娟娟. 流速测量技术对比研究[J]. 甘肃水利水电技术, 2011(12): 6-8.
|
[5] |
文华,朱玉琛,付广. 流速仪在国内外的研究现状[J]. 舰船防化, 2007(3): 43-45.
|
[6] |
吴嘉. 流速测量方法综述及仪器的最新进展[J]. 计测技术, 2005(6): 1-4.
|
[7] |
许联锋,陈刚,李建中,等. 粒子图像测速技术研究进展[J]. 力学进展, 2003(4): 533-540.
|
[8] |
黄毅. 声学多普勒测流仪原理及应用[J]. 气象水文海洋仪器, 2013(4): 119-121.
|
[9] |
肖洋,唐洪武,毛野,等. 新型声学多普勒流速仪及其应用[J]. 河海大学学报(自然科学版), 2002(3): 15-18.
|
[10] |
Snyder W H, Castro I P.Acoustic Doppler velocimeter evaluation in stratified towing tank[J]. Journal of Hydraulic Engineering, 1999, 125(6): 595-603.
|
[11] |
华明,唐洪武,王惠民,等. ADV技术测量圆射流流场紊动特性实验[J]. 水利水运科学研究, 2000(3): 18-21.
|
[12] |
陈纯,蒋昌波,程永舟,等. ADV在波浪边界层流动特性研究中的应用[J]. 泥沙研究, 2008(5): 60-65.
|
[13] |
叶小云,陈立,王有生,等. 泥沙浓度与水流紊动的试验研究[J]. 武汉大学学报(工学版), 2003(2): 10-14.
|
[14] |
Wang X Y, Yang Q Y, Lu W Z, et al.Experimental study of near-wall turbulent characteristics in an open-channel with gravel bed using an acoustic Doppler velocimeter[J]. Experiments in Fluids, 2012, 52(1): 85-94.
|
[15] |
刘月琴,万艳春. 弯道水流紊动强度[J]. 华南理工大学学报(自然科学版), 2003(12): 89-93.
|
[16] |
斯凡格林P R,李隆岐. PVC树脂的粉末性质[J]. 聚氯乙烯, 1986(2): 60-65.
|
