Ultraconformable Integrated Wireless Charging Micro-Supercapacitor Skin

doi:10.1007/s40820-024-01352-1

Abstract

Abstract:

Conformable and wireless charging energy storage devices play important roles in enabling the fast development of wearable, non-contact soft electronics. However, current wireless charging power sources are still restricted by limited flexural angles and fragile connection of components, resulting in the failure expression of performance and constraining their further applications in health monitoring wearables and moveable artificial limbs. Herein, we present an ultracompatible skin-like integrated wireless charging micro-supercapacitor, which building blocks (including electrolyte, electrode and substrate) are all evaporated by liquid precursor. Owing to the infiltration and permeation of the liquid, each part of the integrated device attached firmly with each other, forming a compact and all-in-one configuration. In addition, benefitting from the controllable volume of electrode solution precursor, the electrode thickness is easily regulated varying from 11.7 to 112.5 μm. This prepared thin IWC-MSC skin can fit well with curving human body, and could be wireless charged to store electricity into high capacitive micro-supercapacitors (11.39 F cm⁻³) of the integrated device. We believe this work will shed light on the construction of skin-attachable electronics and irregular sensing microrobots.

Key words: Micro-supercapacitor, Electronic skin, Supercapacitor skin, Wireless charging energy storage device

Chang Gao, Qing You, Jiancheng Huang, Jingye Sun, Xuan Yao, Mingqiang Zhu, Yang Zhao, Tao Deng. Ultraconformable Integrated Wireless Charging Micro-Supercapacitor Skin[J]. Nano-Micro Letters, 2024, 16(1): 123-.

Chang Gao, Qing You, Jiancheng Huang, Jingye Sun, Xuan Yao, Mingqiang Zhu, Yang Zhao, Tao Deng. [J]. Nano-Micro Letters, 2024, 16(1): 123-.

/ / Recommend / Download Citations

URL: https://www.qk.sjtu.edu.cn/nml/EN/10.1007/s40820-024-01352-1

https://www.qk.sjtu.edu.cn/nml/EN/Y2024/V16/I1/123

Figures/Tables 5

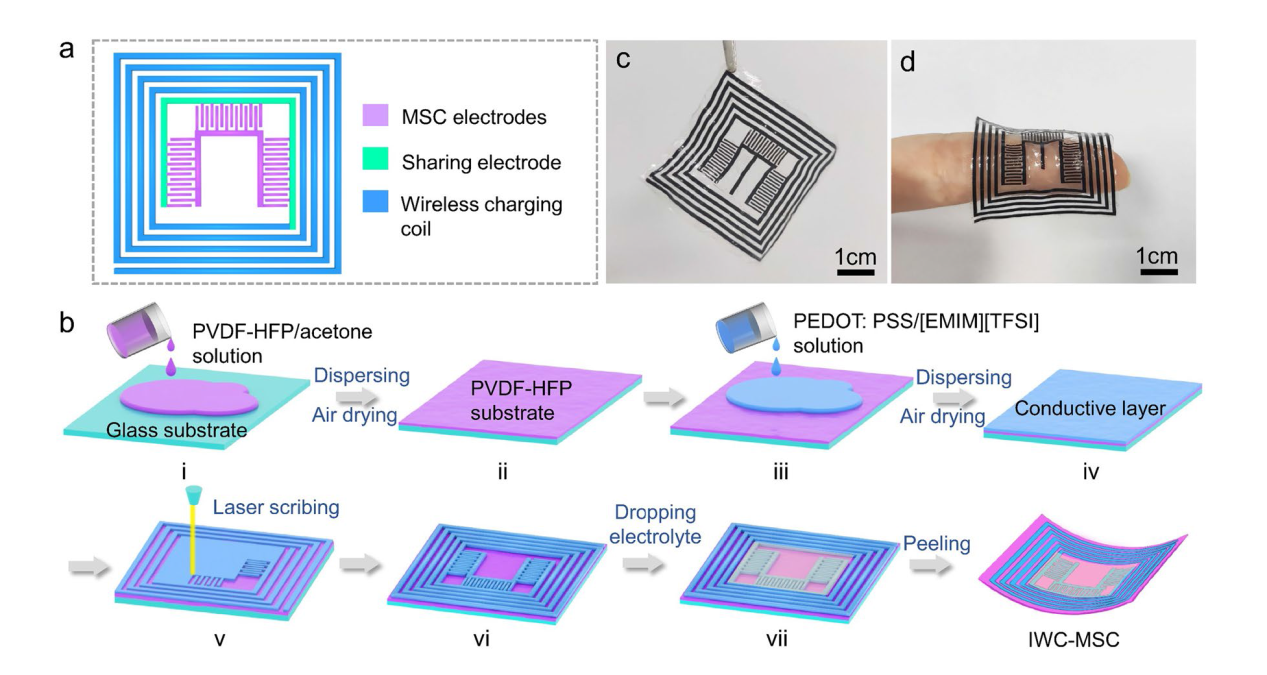

Fig. 1 a A diagram of constructing mechanism of flexible wireless charging micro-supercapacitor integrated device, which is comprised of wireless charging coil and micro-supercapacitor electrodes in a seamless structure. b Fabrication process of IWC-MSC. c, d Pictures of the flexible and thin IWC-MSC

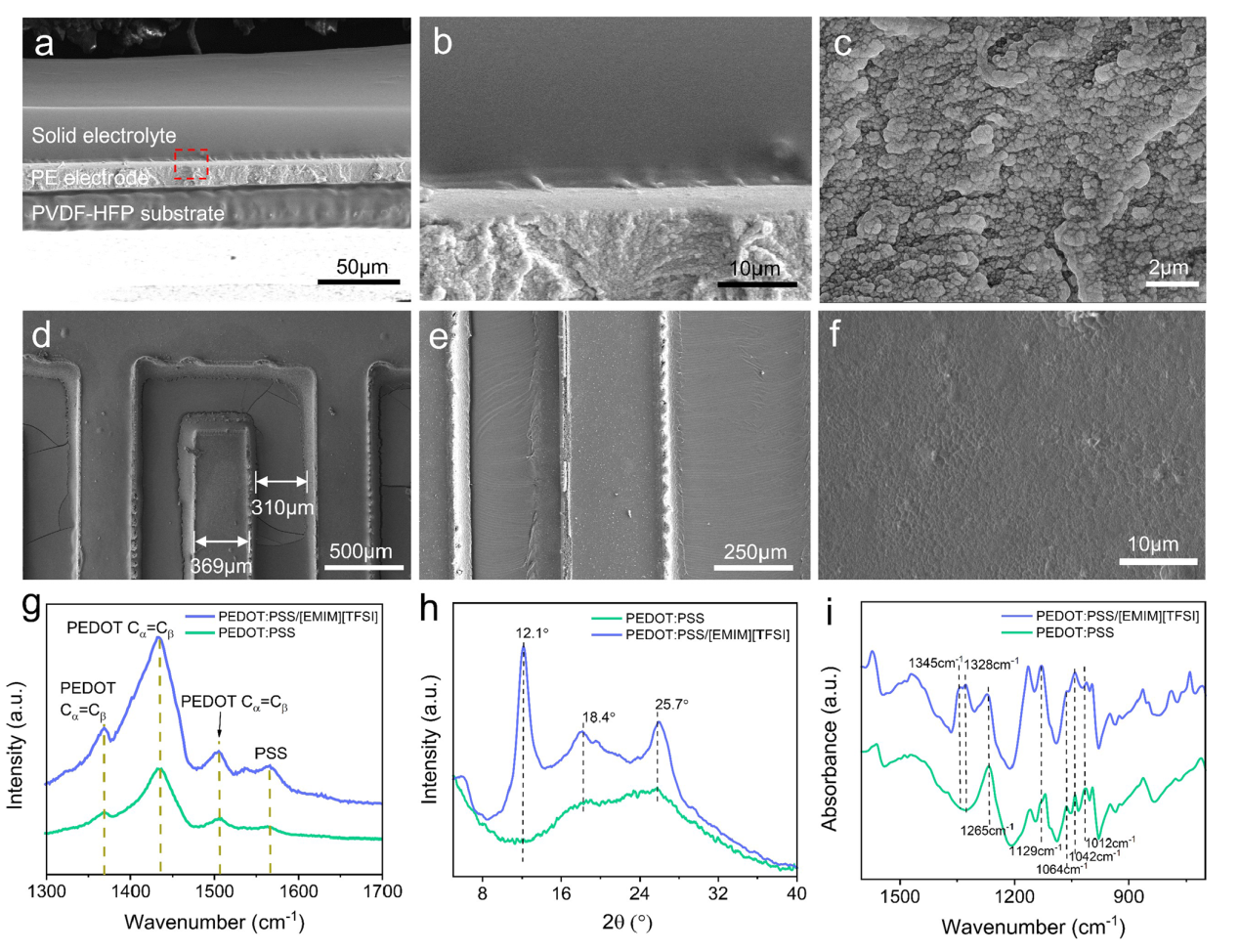

Fig. 2 a SEM image of the cross section of MSC, including PVDF-HFP/[EMIM][TFSI] solid electrolyte, PE electrode and PVDF-HFP substrate. b Cross section interface between the solid electrolyte and PE electrode. c Magnified image of PE electrode. d SEM image of interdigital electrodes of MSC. e Magnified image of MSC electrode. f SEM image of the surface of MSC electrode. g Raman spectrum, h XRD pattern and i FTIR spectra of PEDOT:PSS and PE conductive layer

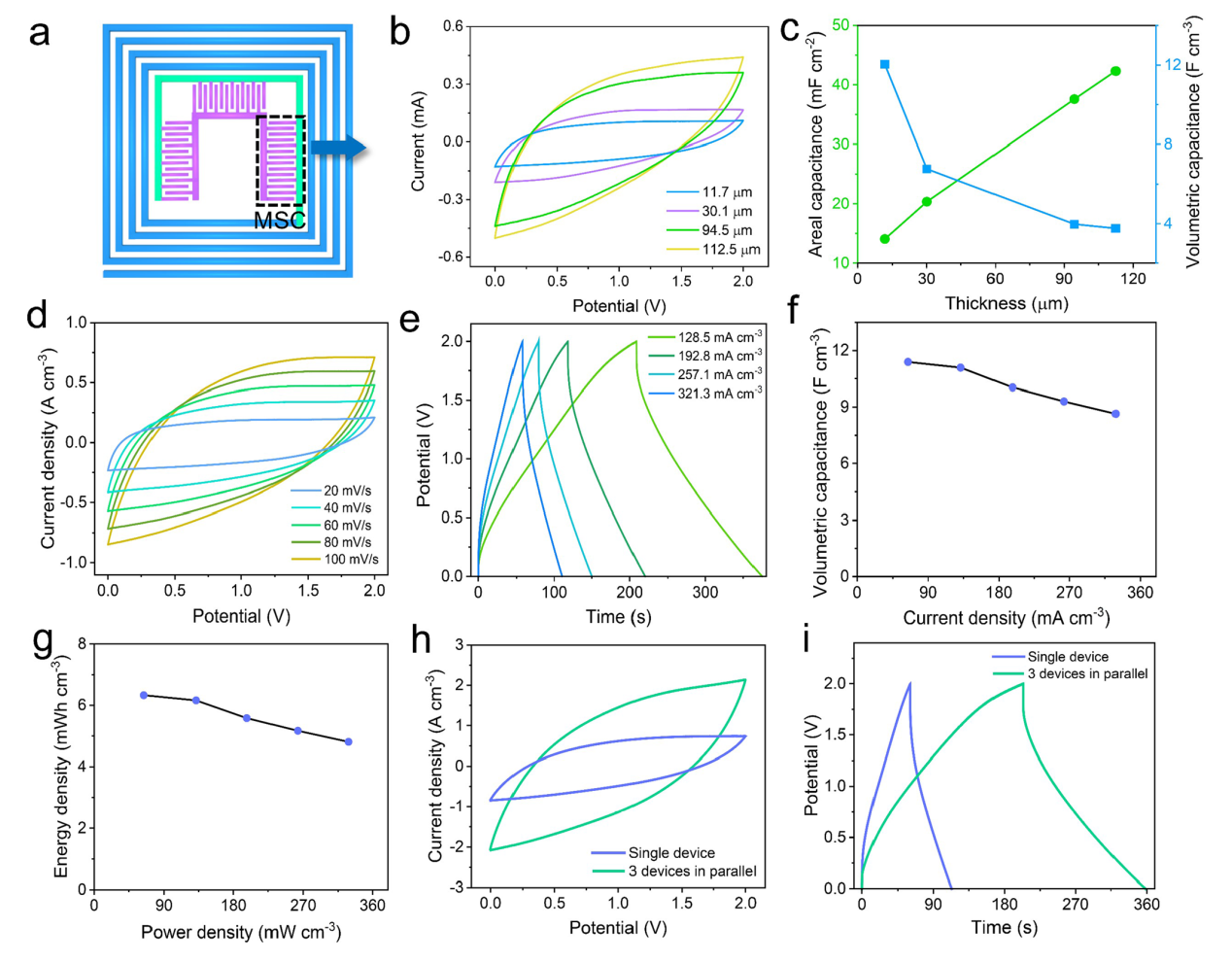

Fig. 3 Electrochemical properties of MSC in the IWC-MSC. a Scheme of one MSC in the integrated IWC-MSC. b CV curves measured at scan rates of 20-100 mV s⁻¹. c Galvanostatic charging/discharging curves of a single MSC with different current densities. d IR_drop related to MSC internal resistance vs different discharge current densities. e Nyquist plot of a single MSC unit; The inset is magnified details of the Nyquist plot. f The specific capacitance of a single MSC calculated from the discharging time under different currents. g Power and energy density of MSC. h CV curves of MSCs connected in parallel. i Galvanostatic charging/discharging curves of a group of three MSCs connected in parallel

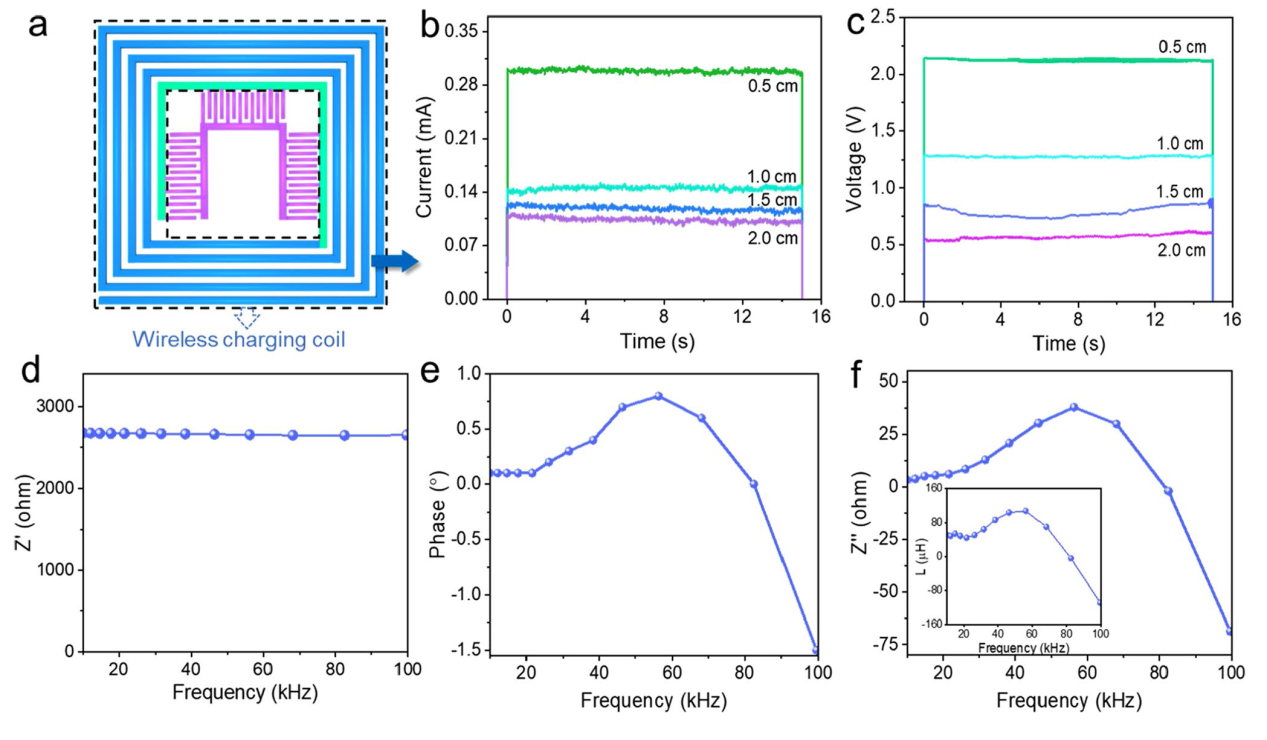

Fig. 4 Performance characterization of wireless charging coil of IWC-MSC. a Scheme of WCC in IWC-MSC. b The received current, and c voltage of WCC of IWC-MSC under different distance to wireless transmitter during wireless charging process. d Real impedance, e phase and f calculated inductance and imaginary impedance (inset) of WCC

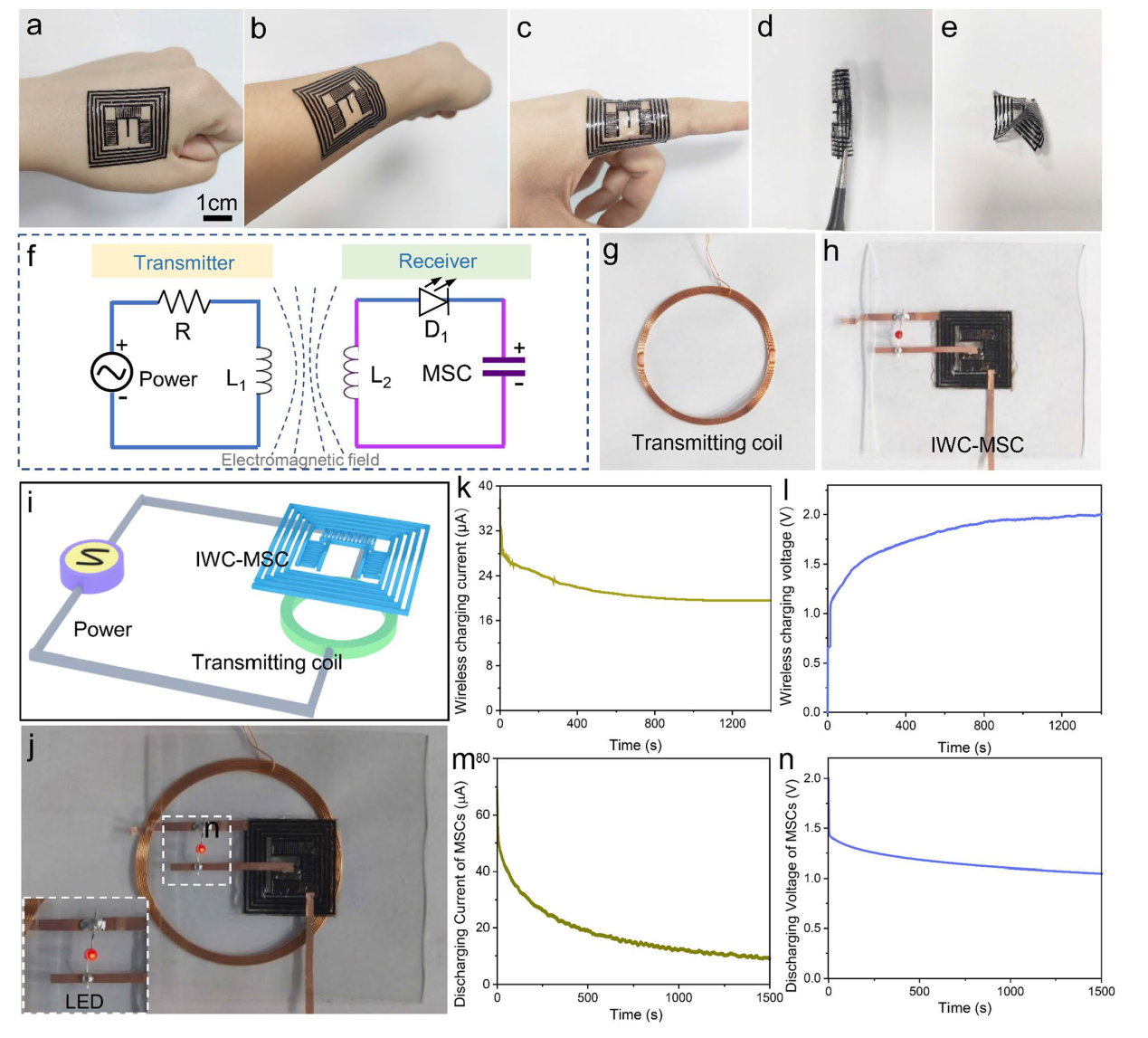

Fig. 5 Display and application of IWC-MSC. a Image of IWC-MSC attaching conformably on the human fist, b arm and c finger. Pictures of d rolled and e crumpled IWC-MSC. f Circuit and i schematic diagram of the wireless charging system. The purple part is IWC-MSC. Photographs of g the wireless transmitting coil of wireless transmitter and h the wireless charging receiver. j A picture of wireless charging system during wireless charging. The inset is red LED lighting during wireless charging. k Induced current and l voltage of WCC during wireless charging process. m Discharging current curve and n discharging voltage curve of MSC after wireless charging

References 40

1.	M.G. Say, I. Sahalianov, R. Brooke, L. Migliaccio, E.D. Głowacki et al., Ultrathin paper microsupercapacitors for electronic skin applications. Adv. Mater. Technol. 7, 2101420 (2022). https://doi.org/10.1002/admt.202101420
2.	Z. Wang, S. Yao, S. Wang, Z. Liu, X. Wan et al., Self-powered energy harvesting and implantable storage system based on hydrogel-enabled all-solid-state supercapacitor and triboelectric nanogenerator. Chem. Eng. J. 463, 142427 (2023). https://doi.org/10.1016/j.cej.2023.142427
3.	D.M. Sayed, N.K. Allam, All-solid-state, self-powered supercapacitors: state-of-the-art and future perspectives. J. Energy Storage 56, 105882 2022). https://doi.org/10.1016/j.est.2022.105882
4.	Y. Wang, Y. Zhao, L. Qu, Laser fabrication of functional micro-supercapacitors. J. Energy Chem. 59, 642-665 (2021). https://doi.org/10.1016/j.jechem.2020.12.002
5.	W. Cheng, J. Fu, H. Hu, D. Ho, Interlayer structure engineering of MXene-based capacitor-type electrode for hybrid micro-supercapacitor toward battery-level energy density. Adv. Sci. 8, e2100775 (2021). https://doi.org/10.1002/advs.202100775
6.	Z. Cao, H. Hu, D. Ho, Micro-redoxcapacitor: a hybrid architecture out of the notorious energy-power density dilemma. Adv. Funct. Mater. 32, 2270111 (2022). https://doi.org/10.1002/adfm.202270111
7.	Z. Cao, G. Liang, D. Ho, C. Zhi, H. Hu, Interlayer injection of low-valence Zn atoms to activate MXene-based micro-redox capacitors with battery-type voltage plateaus. Adv. Funct. Mater. 33, 2303060 (2023). https://doi.org/10.1002/adfm.202303060
8.	Y. Wu, H. Hu, C. Yuan, J. Song, M. Wu, Electrons/ions dual transport channels design: concurrently tuning interlayer conductivity and space within re-stacked few-layered MXenes film electrodes for high-areal-capacitance stretchable micro-supercapacitor-arrays. Nano Energy 74, 104812 2020). https://doi.org/10.1016/j.nanoen.2020.104812
9.	Z. Duan, C. Hu, W. Liu, J. Liu, Z. Chu et al., An all-MXene-based flexible, seamless system with integrated wireless charging coil, micro-supercapacitor, and photodetector. Adv. Mater. Technol. 8, 2300157 (2023). https://doi.org/10.1002/admt.202300157
10.	A. Khodabandehlo, A. Noori, M.S. Rahmanifar, M.F. El-Kady, R.B. Kaner et al., Laser-scribed graphene-polyaniline microsupercapacitor for internet-of-things applications. Adv. Funct. Mater. 32, 2204555 (2022). https://doi.org/10.1002/adfm.202204555
11.	C. Gao, J. Huang, Y. Xiao, G. Zhang, C. Dai et al., A seamlessly integrated device of micro-supercapacitor and wireless charging with ultrahigh energy density and capacitance. Nat. Commun. 12, 2647 (2021). https://doi.org/10.1038/s41467-021-22912-8
12.	S. Zhao, Y. Zhao, C. Li, W. Wang, H.-Y. Liu et al., Aramid nanodielectrics for ultraconformal transparent electronic skins. Adv. Mater. (2023). https://doi.org/10.1002/adma.202305479
13.	J. Liang, H. Sheng, H. Ma, P. Wang, Q. Wang et al., Transparent electronic skin from the integration of strain sensors and supercapacitors. Adv. Mater. Technol. 8, 2201234 (2023). https://doi.org/10.1002/admt.202201234
14.	Y. Yu, J. Nassar, C. Xu, J. Min, Y. Yang et al., Biofuel-powered soft electronic skin with multiplexed and wireless sensing for human-machine interfaces. Sci. Robot. 5, eaaz7946 (2020). https://doi.org/10.1126/scirobotics.aaz7946
15.	F. Wen, Z. Sun, T. He, Q. Shi, M. Zhu et al., Machine learning glove using self-powered conductive superhydrophobic triboelectric textile for gesture recognition in VR/AR applications. Adv. Sci. 7, 2000261 (2020). https://doi.org/10.1002/advs.202000261
16.	C. Gao, J. Gao, C. Shao, Y. Xiao, Y. Zhao et al., Versatile origami micro-supercapacitors array as a wind energy harvester. J. Mater. Chem. A 6, 19750-19756 (2018). https://doi.org/10.1039/C8TA05148H
17.	Z.-S. Wu, K. Parvez, X. Feng, K. Müllen, Graphene-based in-plane micro-supercapacitors with high power and energy densities. Nat. Commun. 4, 2487 (2013). https://doi.org/10.1038/ncomms3487
18.	J. Atoyo, M.R. Burton, J. McGettrick, M.J. Carnie, Enhanced electrical conductivity and seebeck coefficient in PEDOT: PSS via a two-step ionic liquid and NaBH₄ treatment for organic thermoelectrics. Polymers 12, 559 (2020). https://doi.org/10.3390/polym12030559
19.	M.Y. Teo, N. Kim, S. Kee, B.S. Kim, G. Kim et al., Highly stretchable and highly conductive PEDOT: PSS/ionic liquid composite transparent electrodes for solution-processed stretchable electronics. ACS Appl. Mater. Interfaces 9, 819-826 (2017). https://doi.org/10.1021/acsami.6b11988
20.	S. Kee, H. Kim, S.H.K. Paleti, A. El Labban, M. Neophytou et al., Highly stretchable and air-stable PEDOT: PSS/ionic liquid composites for efficient organic thermoelectrics. Chem. Mater. 31, 3519-3526 (2019). https://doi.org/10.1021/acs.chemmater.9b00819
21.	S.H. Chang, C.-H. Chiang, F.-S. Kao, C.-L. Tien, C.-G. Wu, Unraveling the enhanced electrical conductivity of PEDOT: PSS thin films for ITO-free organic photovoltaics. IEEE Photonics J. 6, 8400307 (2014). https://doi.org/10.1109/JPHOT.2014.2331254
22.	B. Yao, H. Wang, Q. Zhou, M. Wu, M. Zhang et al., Ultrahigh-conductivity polymer hydrogels with arbitrary structures. Adv. Mater. 29, 1700974 (2017). https://doi.org/10.1002/adma.201700974
23.	R. del Olmo, T.C. Mendes, M. Forsyth, N. Casado, Mixed ionic and electronic conducting binders containing PEDOT: PSS and organic ionic plastic crystals toward carbon-free solid-state battery cathodes. J. Mater. Chem. A 10, 19777-19786 (2022). https://doi.org/10.1039/D1TA09628A
24.	Z. Li, G. Ma, R. Ge, F. Qin, X. Dong et al., Free-standing conducting polymer films for high-performance energy devices. Angew. Chem. Int. Ed. 55, 979-982 (2016). https://doi.org/10.1002/anie.201509033
25.	A. Noori, M.F. El-Kady, M.S. Rahmanifar, R.B. Kaner, M.F. Mousavi, Towards establishing standard performance metrics for batteries, supercapacitors and beyond. Chem. Soc. Rev. 48, 1272-1341 (2019). https://doi.org/10.1039/C8CS00581H
26.	G.P. Pandey, A.C. Rastogi, C.R. Westgate, All-solid-state supercapacitors with poly(3, 4-ethylenedioxythiophene)-coated carbon fiber paper electrodes and ionic liquid gel polymer electrolyte. J. Power Sources 245, 857-865 (2014). https://doi.org/10.1016/j.jpowsour.2013.07.017
27.	N. Kurra, M.K. Hota, H.N. Alshareef, Conducting polymer micro-supercapacitors for flexible energy storage and Ac line-filtering. Nano Energy 13, 500-508 (2015). https://doi.org/10.1016/j.nanoen.2015.03.018
28.	Y. Chen, J. Xu, Y. Yang, Y. Zhao, W. Yang et al., The preparation and electrochemical properties of PEDOT: PSS/MnO₂/PEDOT ternary film and its application in flexible micro-supercapacitor. Electrochim. Acta 193, 199-205 (2016). https://doi.org/10.1016/j.electacta.2016.02.021
29.	W. Gao, N. Singh, L. Song, Z. Liu, A.L. Reddy et al., Direct laser writing of micro-supercapacitors on hydrated graphite oxide films. Nat. Nanotechnol. 6, 496-500 (2011). https://doi.org/10.1038/nnano.2011.110
30.	M.F. El-Kady, R.B. Kaner, Scalable fabrication of high-power graphene micro-supercapacitors for flexible and on-chip energy storage. Nat. Commun. 4, 1475 (2013). https://doi.org/10.1038/ncomms2446
31.	H.U. Lee, S.W. Kim, Pen lithography for flexible microsupercapacitors with layer-by-layer assembled graphene flake/PEDOT nanocomposite electrodes. J. Mater. Chem. A 5, 13581-13590 (2017). https://doi.org/10.1039/C7TA02936E
32.	B. Nagar, D.P. Dubal, L. Pires, A. Merkoçi, P. Gómez-Romero, Design and fabrication of printed paper-based hybrid micro-supercapacitor by using graphene and redox-active electrolyte. Chemsuschem 11, 1849-1856 (2018). https://doi.org/10.1002/cssc.201800426
33.	Z. Su, Y. Jin, H. Wang, Z. Li, L. Huang et al., PEDOT: PSS and its composites for flexible supercapacitors. ACS Appl. Energy Mater. 5, 11915-11932 (2022). https://doi.org/10.1021/acsaem.2c01524
34.	Y. Yang, L. He, C. Tang, P. Hu, X. Hong et al., Improved conductivity and capacitance of interdigital carbon microelectrodes through integration with carbon nanotubes for micro-supercapacitors. Nano Res. 9, 2510-2519 (2016). https://doi.org/10.1007/s12274-016-1137-3
35.	L. Liu, D. Ye, Y. Yu, L. Liu, Y. Wu, Carbon-based flexible micro-supercapacitor fabrication via mask-free ambient micro-plasma-jet etching. Carbon 111, 121-127 (2017). https://doi.org/10.1016/j.carbon.2016.09.037
36.	H. Pang, Y. Zhang, W.-Y. Lai, Z. Hu, W. Huang, Lamellar, K₂Co₃(P₂O₇)₂·2H₂O nanocrystal whiskers: high-performance flexible all-solid-state asymmetric micro-supercapacitors via inkjet printing. Nano Energy 15,303-312 (2015). https://doi.org/10.1016/j.nanoen.2015.04.034
37.	X. Jin, G. Zhang, G. Sun, H. Yang, Y. Xiao et al., Flexible and high-performance microsupercapacitors with wide temperature tolerance. Nano Energy 64, 103938 2019). https://doi.org/10.1016/j.nanoen.2019.103938
38.	X. Xiao, X. Peng, H. Jin, T. Li, C. Zhang et al., Freestanding mesoporous VN/CNT hybrid electrodes for flexible all-solid-state supercapacitors. Adv. Mater. 25, 5091-5097 (2013). https://doi.org/10.1002/adma.201301465
39.	A. de Izarra, S. Park, J. Lee, Y. Lansac, Y.H. Jang, Ionic liquid designed for PEDOT: PSS conductivity enhancement. J. Am. Chem. Soc. 140, 5375-5384 (2018). https://doi.org/10.1021/jacs.7b10306
40.	H. Park, S.H. Lee, F.S. Kim, H.H. Choi, I.W. Cheong et al., Enhanced thermoelectric properties of PEDOT: PSS nanofilms by a chemical dedoping process. J. Mater. Chem. A 2, 6532-6539 (2014). https://doi.org/10.1039/C3TA14960A
