PDOL-Based Solid Electrolyte Toward Practical Application: Opportunities and Challenges

doi:10.1007/s40820-024-01354-z

Abstract

Abstract:

Polymer solid-state lithium batteries (SSLB) are regarded as a promising energy storage technology to meet growing demand due to their high energy density and safety. Ion conductivity, interface stability and battery assembly process are still the main challenges to hurdle the commercialization of SSLB. As the main component of SSLB, poly(1,3-dioxolane) (PDOL)-based solid polymer electrolytes polymerized in-situ are becoming a promising candidate solid electrolyte, for their high ion conductivity at room temperature, good battery electrochemical performances, and simple assembly process. This review analyzes opportunities and challenges of PDOL electrolytes toward practical application for polymer SSLB. The focuses include exploring the polymerization mechanism of DOL, the performance of PDOL composite electrolytes, and the application of PDOL. Furthermore, we provide a perspective on future research directions that need to be emphasized for commercialization of PDOL-based electrolytes in SSLB. The exploration of these schemes facilitates a comprehensive and profound understanding of PDOL-based polymer electrolyte and provides new research ideas to boost them toward practical application in solid-state batteries.

Key words: Poly(1,3-dioxolane), Solid electrolyte, Polymerization mechanism, Composite electrolyte, Practical application

Hua Yang, Maoxiang Jing, Li Wang, Hong Xu, Xiaohong Yan, Xiangming He. PDOL-Based Solid Electrolyte Toward Practical Application: Opportunities and Challenges[J]. Nano-Micro Letters, 2024, 16(1): 127-.

Hua Yang, Maoxiang Jing, Li Wang, Hong Xu, Xiaohong Yan, Xiangming He. [J]. Nano-Micro Letters, 2024, 16(1): 127-.

/ / Recommend / Download Citations

URL: https://www.qk.sjtu.edu.cn/nml/EN/10.1007/s40820-024-01354-z

https://www.qk.sjtu.edu.cn/nml/EN/Y2024/V16/I1/127

Figures/Tables 18

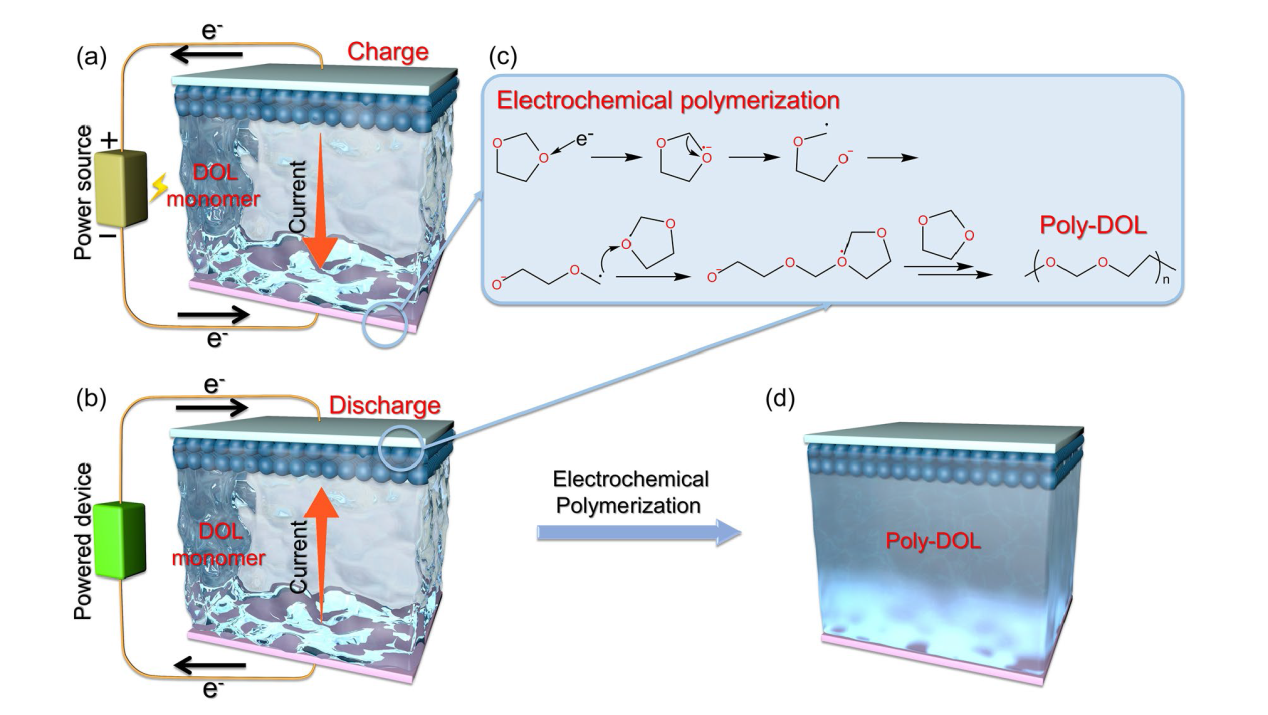

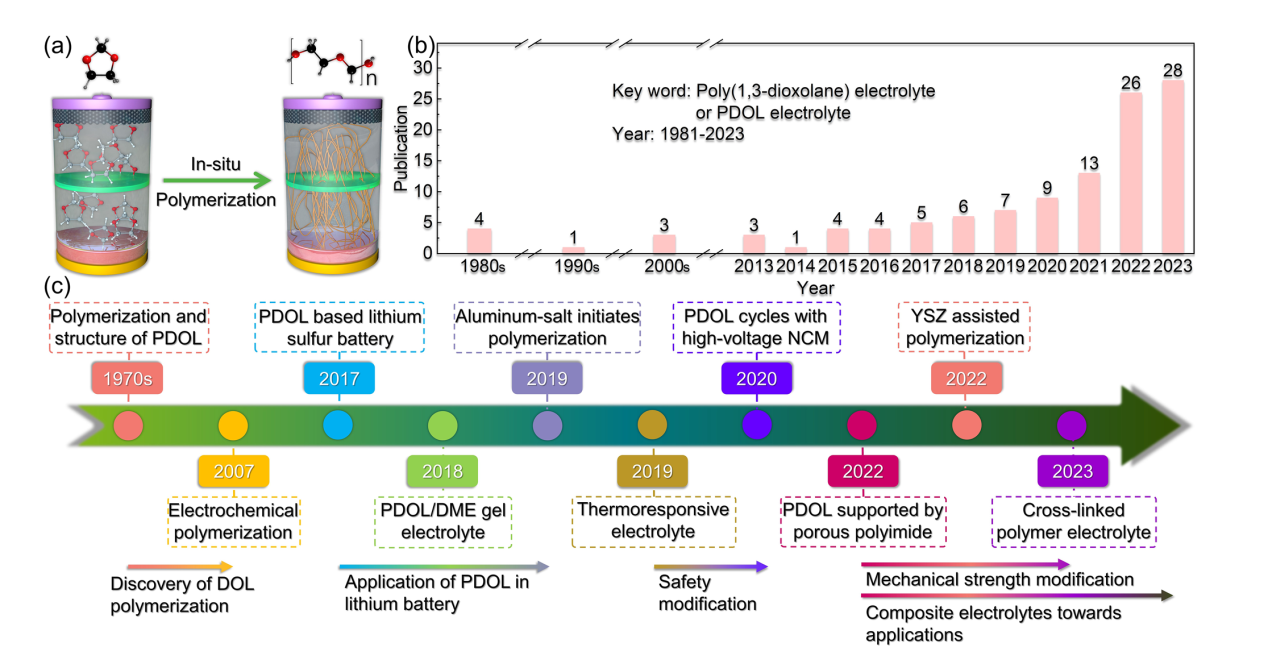

Fig. 1 Overview of research progress on PDOL polymer. a Schematic diagram of in-situ polymerization of DOL monomer inside the battery. b Number of publications related to PDOL electrolyte in each year (Keyword: Poly(1,3-dioxolane) electrolyte or PDOL electrolyte; Data from Web of Science). c Development process of PDOL polymer: The polymerization of DOL and the structure of PDOL began to be studied (1968-1972) [60,61,62], Current is used to initiate DOL polymerization (2007) [63], PDOL inhibits the shuttle effect of polysulfides in lithium-sulfur batteries (2017) [56], PDOL/DME gel electrolyte enabled stable cycle with LiFePO₄ cathode (2018) [58], Initiating DOL polymerization with anhydrous participation of trace aluminum salts (2019) [64], PDOL/PLAS thermoresponsive electrolyte prevents thermal runaway (2019) [65], Realizing normal cycling of PDOL initiated with the assistance of AlF₃ and high-voltage NCM cathode (2020) [66], Porous polyimide supported PDOL enhances the mechanical strength of the electrolyte (2022) [67], PDOL added by YSZ enables long life cycling at high voltage (2022) [68], PDOL-based cross-linked electrolyte enhances the stability of lithium metal (2023) [69]

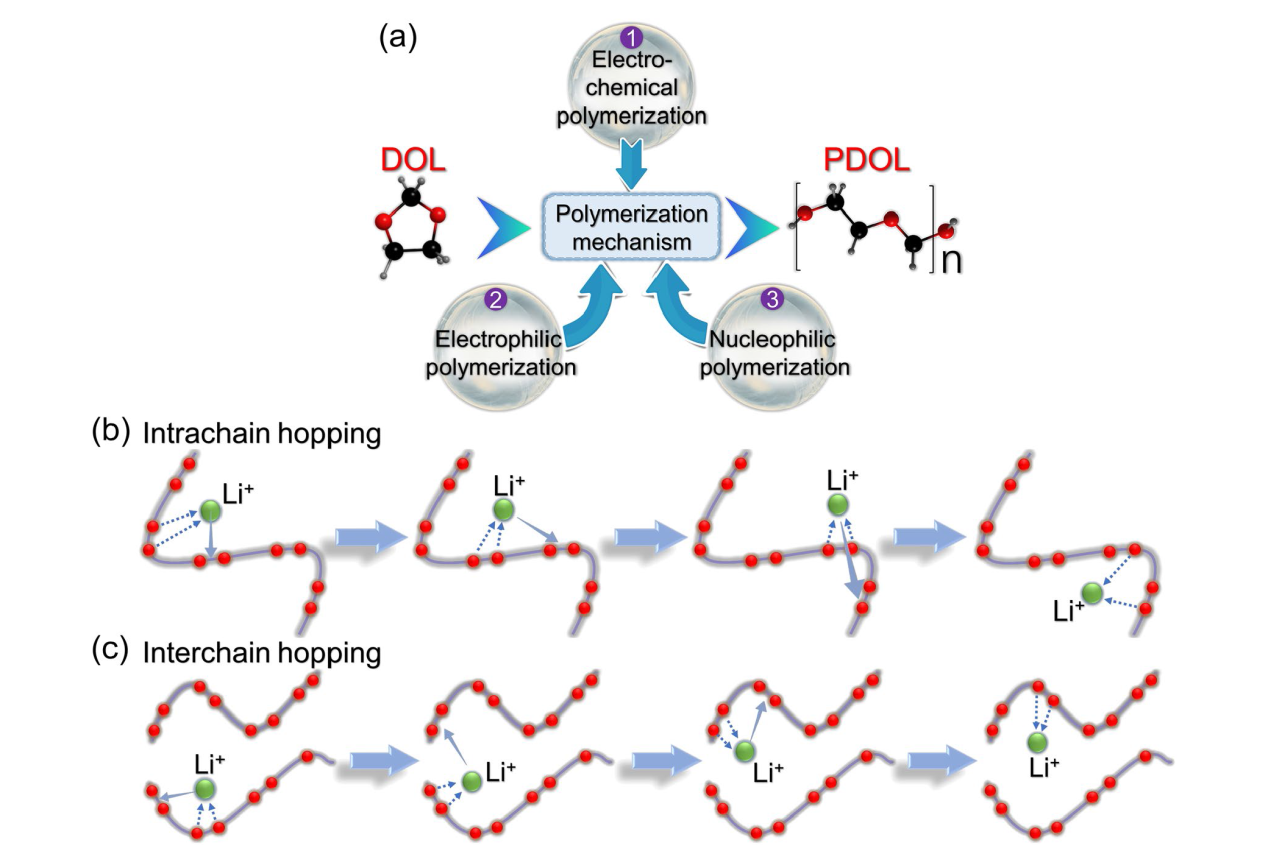

Fig. 2 Polymerization mechanism and Li⁺ conduction mechanism of DOL. a Three polymerization mechanisms of DOL: electrochemical polymerization, electrophilic polymerization, and nucleophilic polymerization [71]. Schematic diagram of b intrachain conduction mechanism and c interchain conduction mechanism for Li.⁺ in PDOL [72]

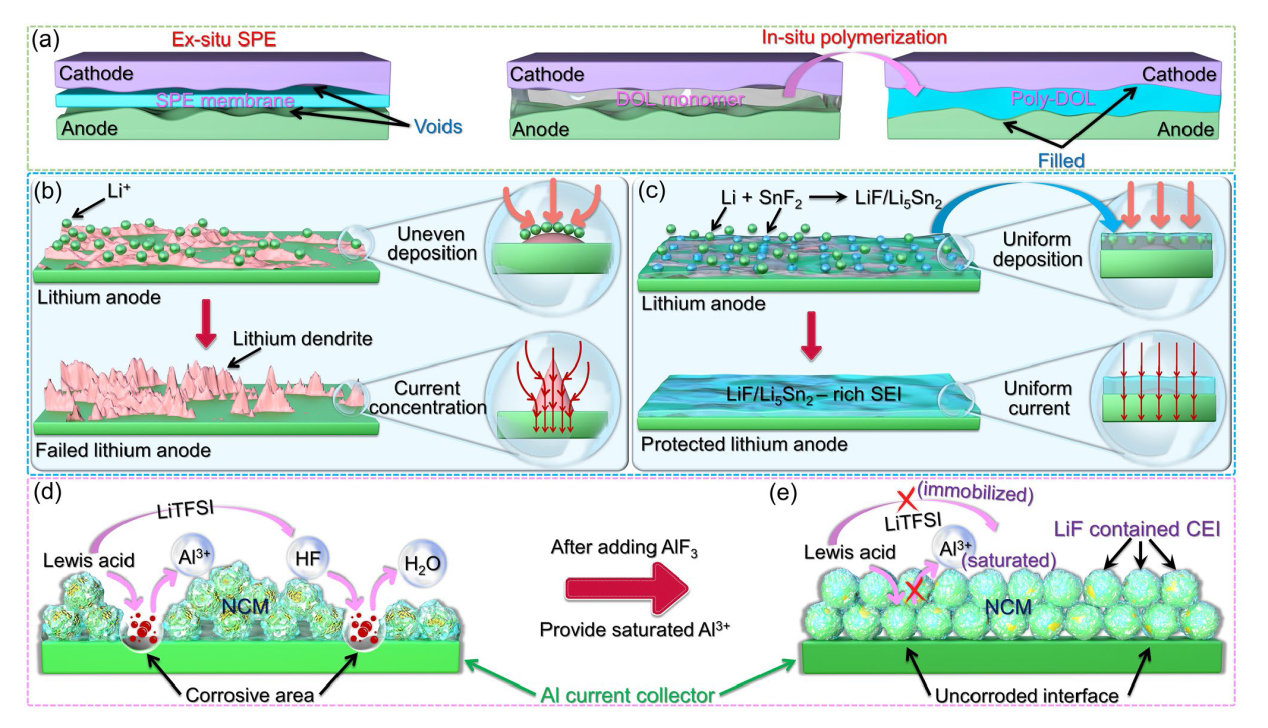

Fig. 3 Applications of current-initiated DOL polymerization. Schematic diagram of electronic and current movements during a charging and b discharging processes. c Electrochemical polymerization mechanism of DOL. d Battery state after current-initiated DOL polymerization [45]

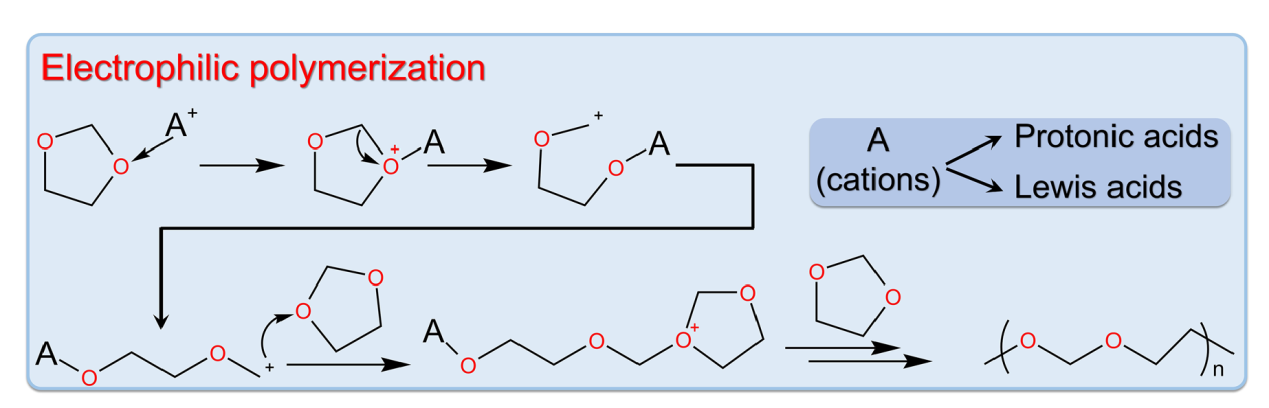

Fig. 4 Electrophilic polymerization mechanism of DOL [71]

Table 1 Classification of different initiators and performance comparison of the PDOL electrolyte initiated by them

Type of initiator	Initiator	Initiation factor	Initiator content	DOL conversion rate (%)	PDOL molecular weight	Electrolyte state	Ionic conductivity (mS cm⁻¹)	Oxidation potential (V)	Refs
Lithium salt	LiPF₆	Protonic acid	2.0 M	91	~ 53 000 (Mn)	Gel	3.8	4.6	[58]
	LiPF₆	Protonic acid	1.0 wt%	98.5	23 588 (Mw)	Solid	0.28	5.2	[68]
	LiDFOB	Protonic acid	0.3 M	90	/	Gel	0.39	5.1	[75]
	LiBF₄	Protonic acid	0.2 M	81.2	-	Solid	0.3	4.9	[76]
	LiFSI	Protonic acid	3.5 M	75	-	Gel	7.9	4.7	[77]
Aluminum salt	Al(OTf)₃	Lewis acid	0.5 mM	86	15 000 (Mn)	Solid	1.1	5.0	[64]
	Al(OTf)₃ + AlF₃	Lewis acid	0.5 mM + 0.3 M	12	18 000 (Mw)	Solid	1.8	4.7	[66]
	AlI₃	Lewis acid	600 ppm	84	-	Gel	-	-	[57]
Tin salt	Sn(OTf)₂	Lewis acid	2.0 mM	90	12 417 (Mw)	Gel	6.2 × 10^-2	4.9	[78]
Tin salt	SnF₂	Lewis acid	1.5 wt%	92	29 552 (Mw)	Solid	1.7 × 10^-2	5.0	[79]
Other salts	ZnCl₂	Lewis acid	25 wt%	-	51 798 (Mn)	-	-	-	[50]
	Sc(OTf)₃	Lewis acid	1.0 mM	84	48 963 (Mn)	Solid	8.7 × 10^-2	~ 5.0	[80]
	Mg(OTf)₂	Lewis acid	1.0 wt%	79.9	~ 57 000 (Mn)	Solid	0.5	4.3	[81]
Acidized materials	Acidized Al₂O₃	Protonic acid	4.0 wt%	89.6	32 000 (Mn)	Gel	3.37	4.5	[82]
Acidized materials	Acidized CNT paper	Protonic acid	-	-	-	Gel	-	-	[56]
Organic materials	TB	Protonic acid	3.0 wt%	89	-	Solid	1.16	4.8	[83]
	S(C₂H₄O₄)	Lewis acid	0.3 M	88.2	5 391 (Mn)	Solid	0.38	4.7	[84]
	HFiP	Nucleophilic	0.5 wt%	67	-	Gel	1.6	4.7	[85]

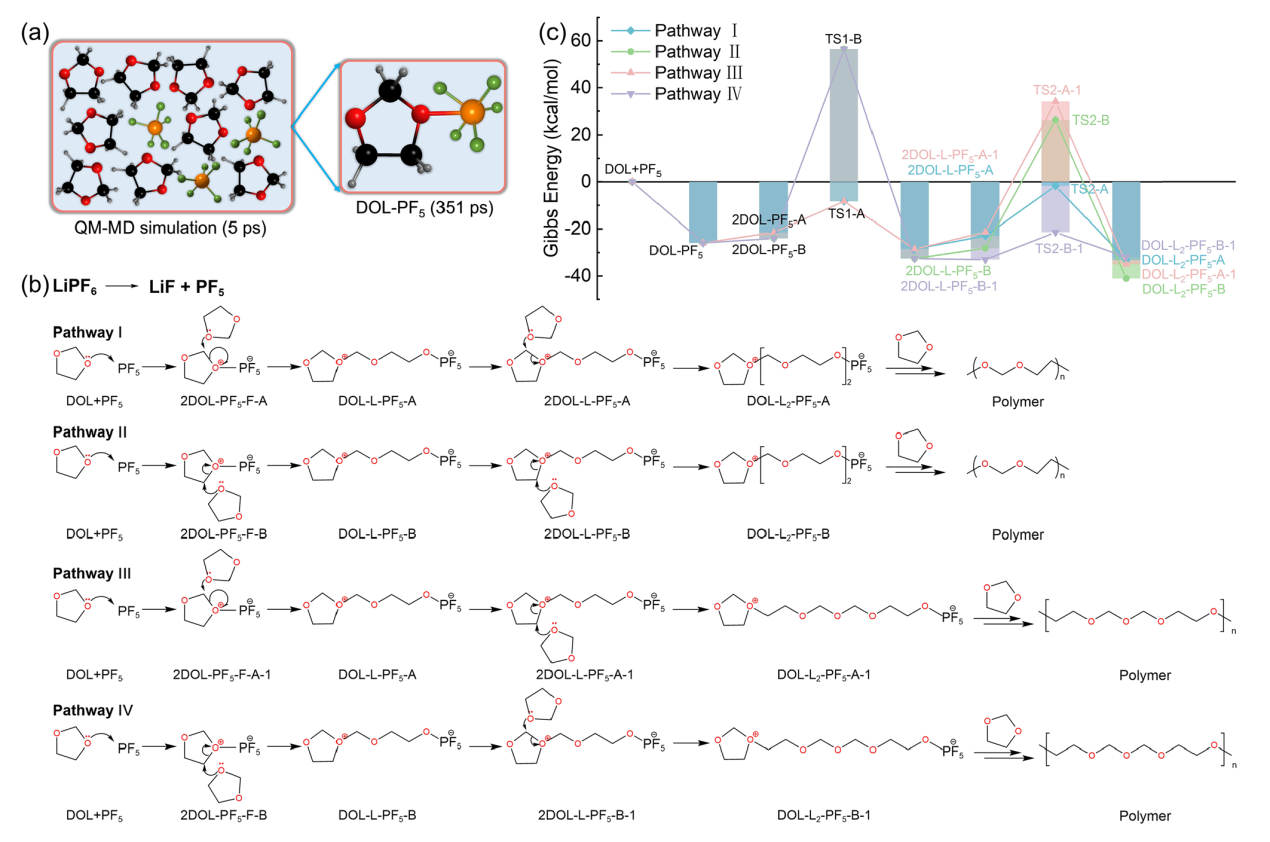

Fig. 5 Schematic diagram of LiPF₆-initiated DOL polymerization process. a Structure of DOL-PF₅ obtained from the 3ps QM-MD simulation of PF₅-DOL system. b Four possible paths of DOL ring-opening polymerization under the action of PF₅ and c reaction Gibbs free energy [86]

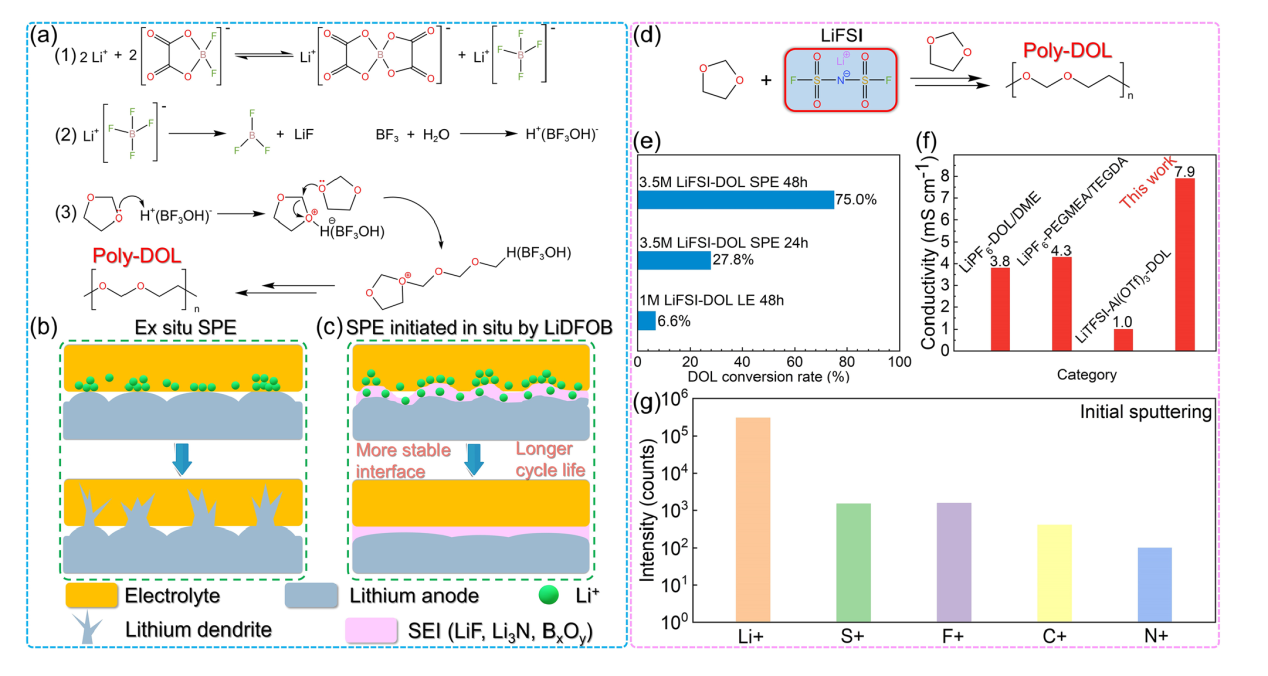

Fig. 6 LiDFOB (LiBF₄) or LiFSI initiated DOL polymerization. a Schematic illustration of the LiDFOB initiated DOL ring-opening polymerization process. b Interphase evolution of ordinary non-in situ polymer electrolytes leads to incomplete interface contact, resulting in uneven ion transport and rapid growth of lithium dendrites [87]. c LiDFOB in-situ initiated polymerization of PDOL electrolyte generates SEI rich in boron oxide compounds at the electrolyte/lithium anode interface, which guides ion uniform deposition, resulting in a more stable interphase and longer cycle life. d LiFSI initiates DOL ring-opening polymerization process. e DOL polymerization conversion rate at different LiFSI content and standing time. f Comparison of ionic conductivity of PDOL gel electrolyte initiated by LiFSI with other PDOL electrolytes. g TOF-SIMS of C + , F + , S + , N + and Li + species on the lithium surface after cycling in the gel electrolyte: species concentration at initial sputtering [77]

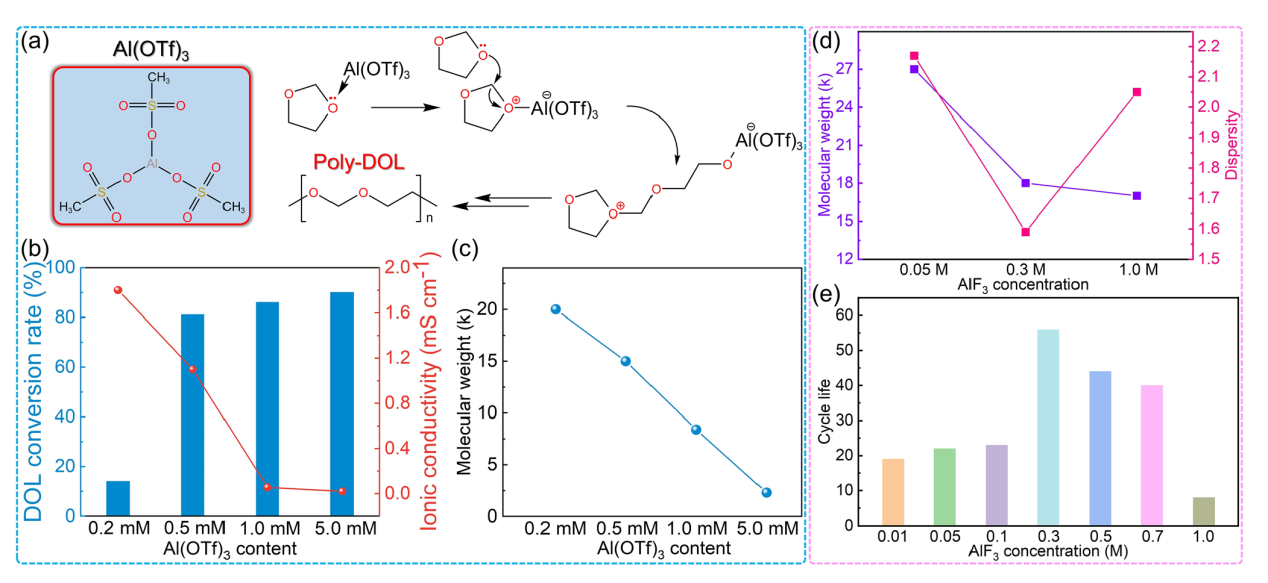

Fig. 7 Aluminum salt initiates DOL polymerization. a Mechanism of DOL polymerization initiated by Al(OTf)₃. b DOL polymerization conversion rate and c molecular weight of PDOL initiated by different aluminum salt initiators content [64]. After adding different contents of AlF₃, d the molecular weight and dispersity of PDOL, and e cycle life of PDOL [66]

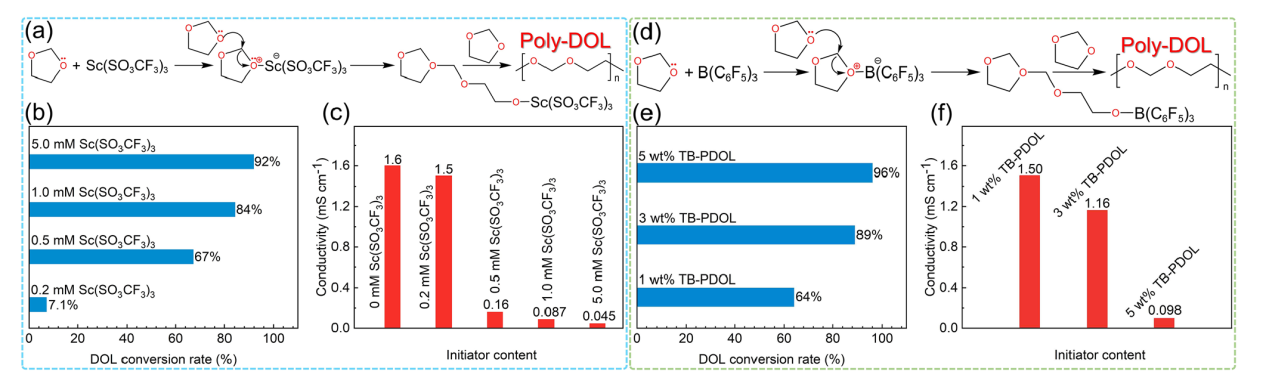

Fig. 8 Scandium salt and TB initiate DOL polymerization. a Mechanism of DOL polymerization initiated by Sc(SO₃CF₃)₃. b DOL polymerization conversion and c ionic conductivity of PDOL electrolyte initiated with different initiator concentrations [92]. d TB initiates the DOL polymerization process. e DOL polymerization conversion rate and f room temperature ionic conductivity initiated by different TB contents [83]

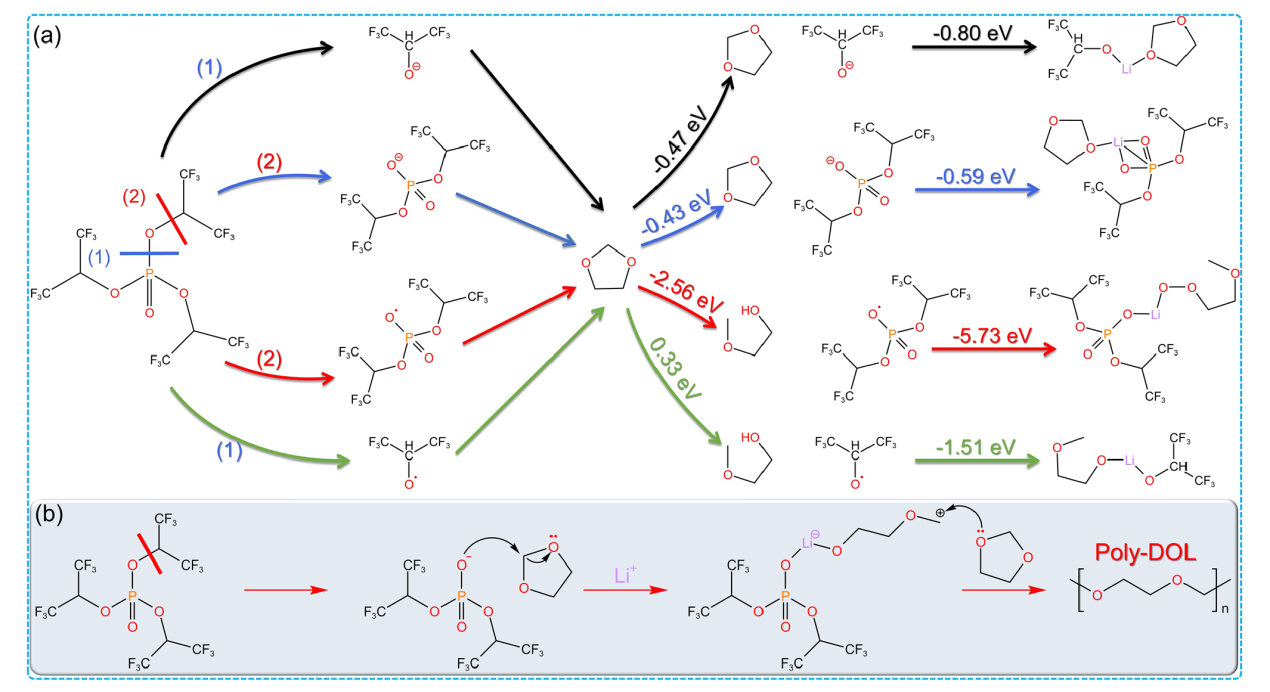

Fig. 9 Nucleophilic polymerization mechanism of DOL. a Some free radicals generated from the decomposition of HFiP and their free energy for ring-opening reactions with DOL. b Schematic diagram of HFiP initiated nucleophilic polymerization of DOL [85]

Fig. 10 Contact mode and interface optimization between PDOL electrolyte and solid-state electrode. a Differences in interface contact modes between electrolytes and solid-state electrodes in ex-situ polymerization and in-situ polymerization [64]. b The uneven deposition of lithium ions on common lithium metal anodes leads to rapid growth of lithium dendrites: in areas where lithium ions are concentrated and deposited, it will further guide the aggregation of ions and currents, leading to the growth of dendrites. c In the SnF₂-initiated PDOL electrolyte, the initiator undergoes a reaction with lithium to generate Li-Sn alloy, and it then forms a robust LiF/Li₅Sn₂-rich SEI incorporating LiF. The SEI facilitates the homogeneous deposition of lithium ions and the even distribution of current, providing protection to the lithium metal anode [79]. d Mechanism diagram of proton corrosion of aluminum current collector caused by Lewis acid interface reaction. e Mechanism diagram of aluminum current collector corrosion inhibition after adding AlF₃ [66]

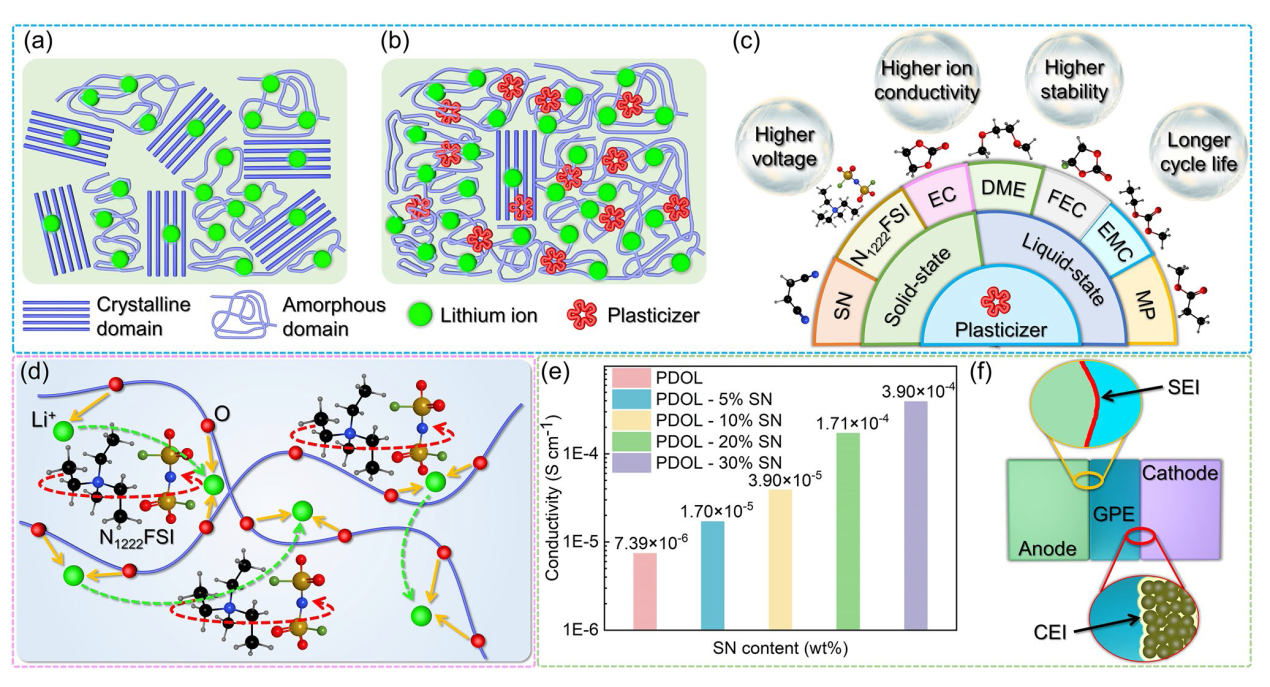

Fig. 11 Improvement of PDOL electrolyte performance by plasticizers. a PDOL polymers without plasticizers possess a significant amount of crystalline domains in their structure, which hinders the mobility of polymer chains. b The addition of plasticizers to PDOL increases the amorphous domains, facilitating chain segment mobility and resulting in enhanced ion conductivity. c The reported types of plasticizers and their enhancements on the performance of PDOL polymers. d The internal rotational motion of N₁₂₂₂FSI leads to orientation disorder and the generation of lattice vacancies in PDOL, thereby enhancing ion conductivity [87]. e The effect of different SN contents on the ion conductivity of PDOL GPE. f The CEI and SEI gradually formed during the cycling process of GPE protect the cathode and anode, respectively [75]

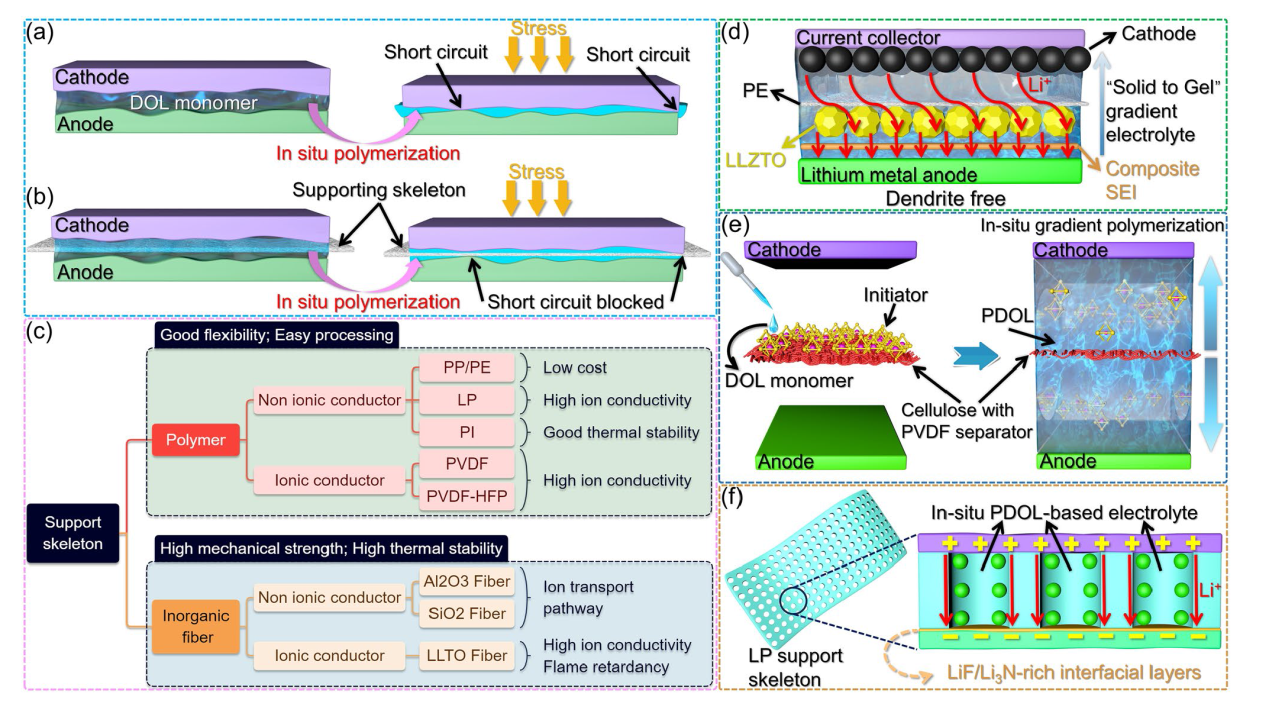

Fig. 12 Function and classification of support skeleton. a In the absence of a support skeleton, the electrode may come into contact and experience short circuits under external pressure during the in-situ polymerization process of DOL. b The presence of support skeletons effectively serves as a mechanical barrier, preventing electrode contact and mitigating the risk of short circuits during the in-situ polymerization process. c The types of support skeletons and their corresponding advantages, they can be broadly categorized into two main groups: polymer-based and inorganic-based materials. d Schematic diagram of the battery structure after DOL gradient polymerization initiated by modified PE, the densely polymerized PDOL solid electrolyte adjacent to the anode serves as a protective barrier for the lithium metal, while the partially polymerized PDOL gel electrolyte in close proximity to the porous cathode effectively permeates and infiltrates the electrode [131]. e Schematic diagram of bidirectional gradient polymerization of DOL on modified cellulose paper [132]. f Schematic diagram of the interphase layer between electrolyte and LP to enhance ion conductivity [76]

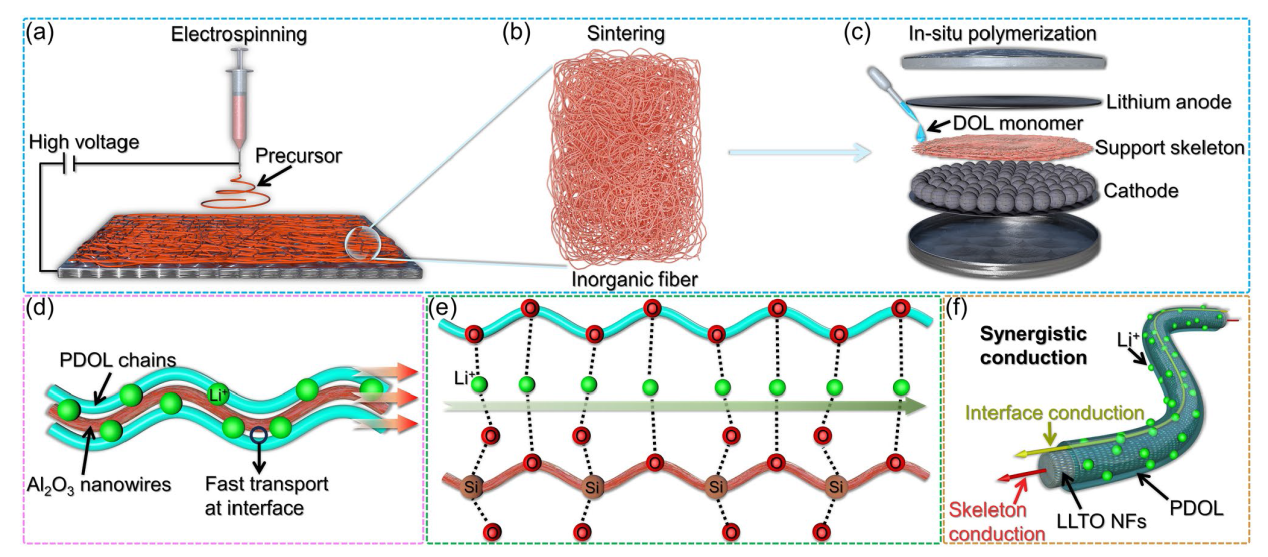

Fig. 13 Inorganic fiber materials as PDOL support skeleton. a The precursor of inorganic materials is electrospun to prepare a fiber network at high voltage. b Inorganic material precursors are sintered to form inorganic fiber support skeletons. c Structural diagram of a battery supported by an inorganic fiber skeleton through in-situ polymerization. d The interface between Al₂O₃ nanowires and PDOL polymer segments constructs a high-speed ion transport channel, accelerating Li⁺ transport [92]. e The oxygen atoms of PDOL and the Si-O bonds of SiO₂ collectively create a highly efficient pathway for Li⁺ migration [139]. f LLTO NFs possess Li⁺ transport capability, while the interface between LLTO NFs and PDOL also exhibits high-speed Li⁺ transport capability, the synergistic conduction of both components enhances the overall ionic conductivity of the electrolyte [80]

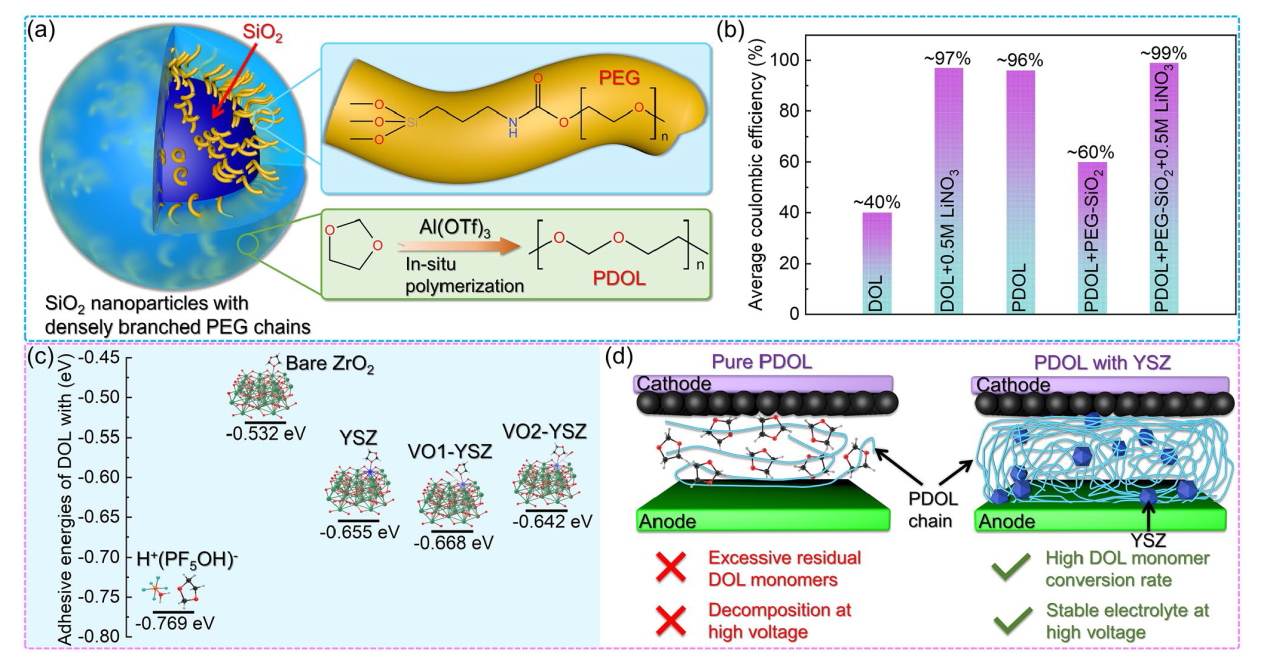

Fig. 14 Inorganic materials enhance the performance of PDOL. a Schematic diagram of PEG grafting on the surface of SiO₂ and co-crystallization with PDOL. b Average coulombic efficiency for 200 cycles of Li//Cu battery assembled with PDOL-SiO₂ composite electrolyte [151]. c DFT calculated ring-opening binding energy of DOL monomer with initiator, ZrO₂, zirconium atom on YSZ and oxygen vacancy on YSZ. d The auxiliary activation of YSZ substantially enhances the monomer conversion rate of DOL, resulting in a significant improvement in the high voltage capability of the electrolyte, this enhancement enables the attainment of a long service life that aligns with high voltage cathode materials [68]

Table 2 Cyclic performance of PDOL polymer electrolyte matched with different cathodes

Battery type	Cathode materials	Initiator	Additive	Voltage range (V)	Initial specific capacity (mAh g⁻¹)	Rate (C)	Cycle number	Capacity retention (%)	Refs
Lithium-sulfur batteries	Sulfur	ACNTP	-	1.7-3.0	683	1.0	400	66.5	[56]
	Sulfur	LiPF₆	DME	1.8-3.0	1005	0.5	500	73.7	[58]
	Sulfur	LiPF₆	DME/Al₂O₃	1.8-3.0	1102	0.1	200	73.0	[59]
	Sulfur	LiFSI	DME	1.7-2.8	910	0.2	300	75.5	[77]
	Sulfur	HFiP	DME	1.8-2.8	1025	0.5	500	68.1	[85]
	Sulfur	LiPF₆	DME	1.7-2.8	870	0.1	500	45.0	[163]
Lithium-ion batteries	LFP	LiPF₆	DME	2.5-4.0	137	0.5	700	95.6	[58]
	LFP	LiDFOB	SN	2.5-4.0	127	1.0	1 000	83.55	[75]
	LFP	LiFSI	DME	2.5-3.8	147	1.0	500	69.3	[77]
	LFP	Sc(OTf)₃	-	2.5-4.0	155	0.5	200	83.5	[91]
	LFP	Al(OTf)₃	PDA	3-3.75	145	1.0	200	87.1	[137]
	LFP	Y(OTf)₃	LLZTO	2.8-3.8	135	0.2	200	~ 70.0	[142]
	LFP	LiPF₆	PI/DME	2.5-3.7	152	0.5	200	91.8	[67]
	LFP	Mg(OTf)₂	FEC	2.8-4.2	127	1.0	2 000	94.0	[81]
	LFP	LiDFOB	FEC/SN	2.8-4.3	142	2.0	1 000	95.0	[123]
	NCM622	LiPF₆	DME	2.8-4.3	165	0.1	100	90.9	[58]
	NCM622	Al(OTf)₃	AlF₃	2.8-4.2	160	0.5	30	80	[66]
	NCM622	LiPF₆	-	2.8-4.3	138	0.5	300	85	[129]
	NCM622	LiPF₆	YSZ	2.8-4.3	165	0.5	800	74	[68]
	NCM523	LiFSI	-	3.0-4.3	136	0.1	100	94	[89]
	NCM811	LiDFOB	FEC/SN	2.8-4.3	145	0.2	100	70.6	[123]
	NCM83	S(C₂H₄O₄)	-	2.8-4.5	205	0.5	100	89.5	[84]
	LCO	LiDFOB	SN	2.8-4.3	140	0.1	60	57.1	[75]
	LMFP	LiBF₄	TTE	3.0-4.3	130	0.2	100	~ 90	[76]
Sodium-ion batteries	NVP	Al(OTf)₃	FEC	2.0-3.8	99	5.0	2 000	93.6	[125]

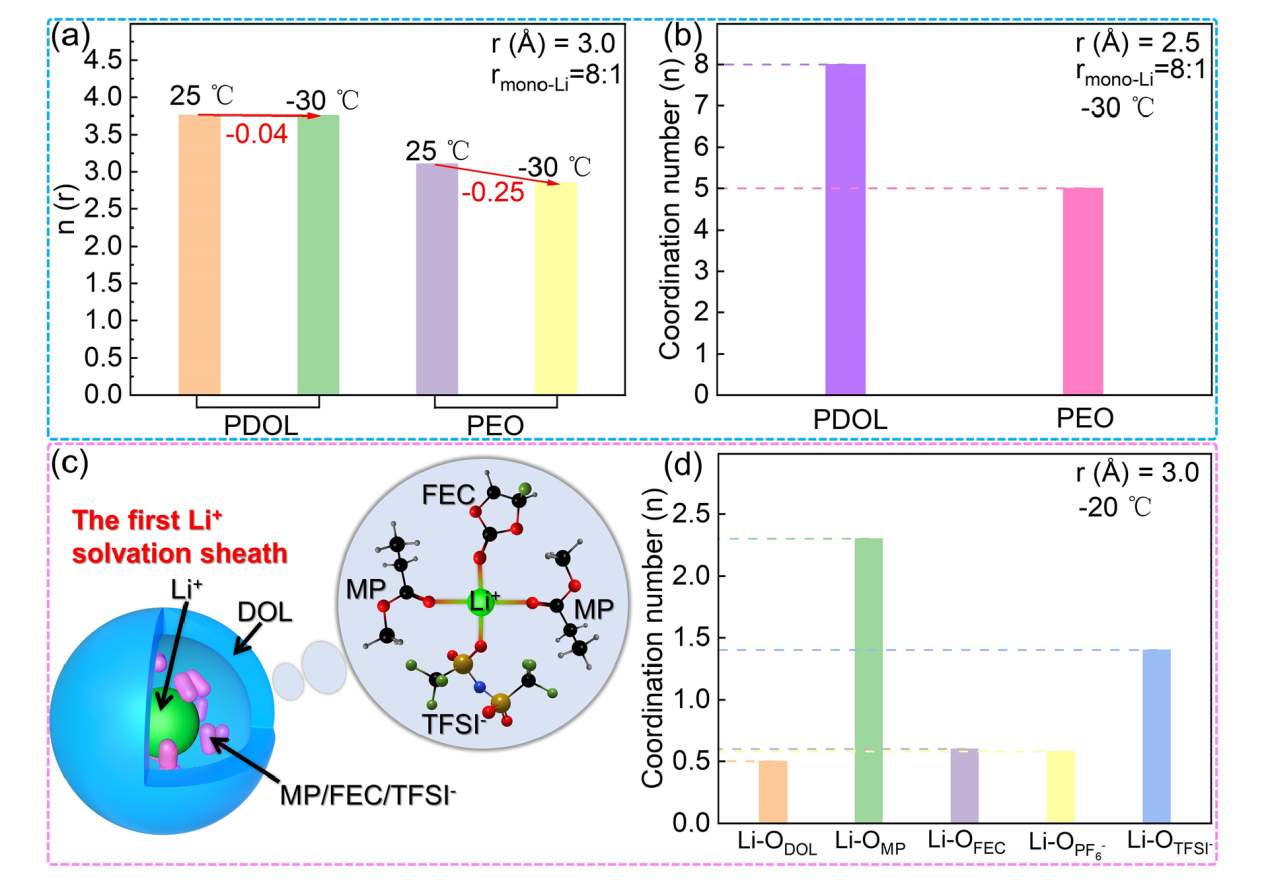

Fig. 15 Low temperature performance of PDOL. a Li-O integrated RDF of PDOL and PEO (r_mono-Li = 8:1). b Local coordination number of Li⁺ and O atoms of PDOL and PEO at −30 °C (r_mono-Li = 8:1) [166]. c The first Li⁺ solvation sheath and snapshot of QSPE from MD simulation for QSPE at -20 °C. d The coordination numbers of Li⁺ in the first solvation shell (3 Å) in QSPE at − 20 °C [128]

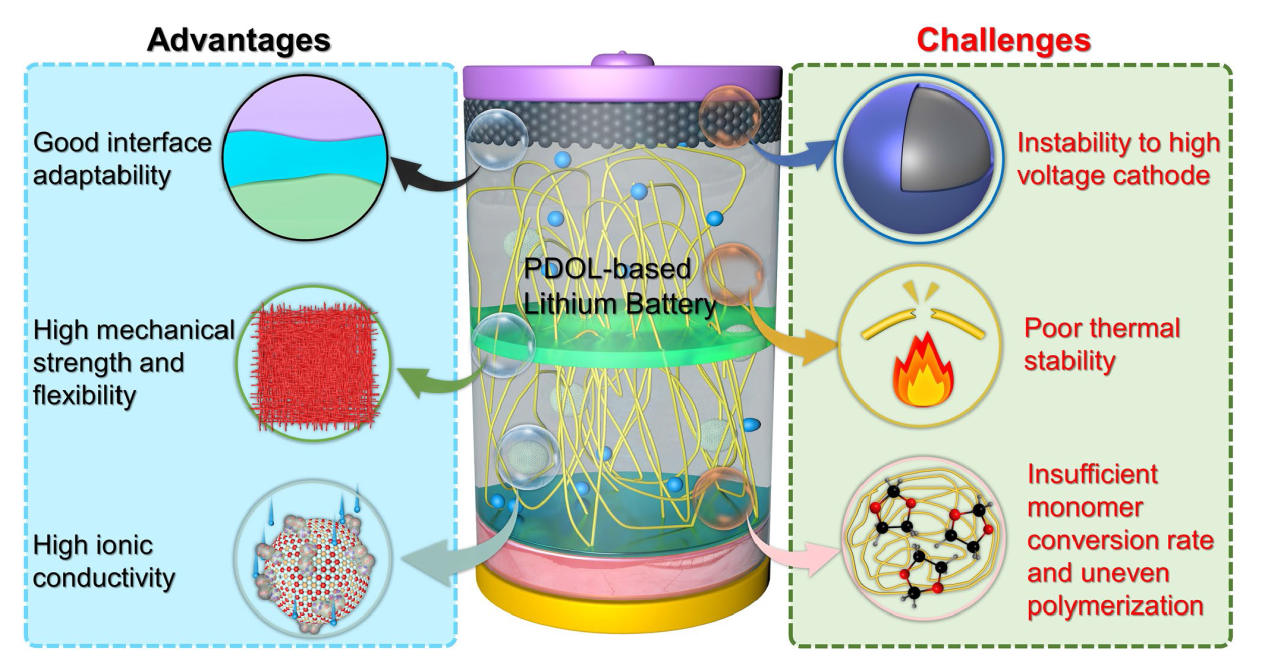

Fig. 16 Advantages of PDOL polymer electrolytes and existing challenges in practical applications

References 174

1.	J.B. Goodenough, K.-S. Park, The Li-ion rechargeable battery: a perspective. J. Am. Chem. Soc. 135, 1167-1176 (2013). https://doi.org/10.1021/ja3091438
2.	Y. Wu, W. Wang, J. Ming, M. Li, L. Xie et al., An exploration of new energy storage system: high energy density, high safety, and fast charging lithium ion battery. Adv. Funct. Mater. 29, 1805978 (2019). https://doi.org/10.1002/adfm.201805978
3.	H. Wang, L. Sheng, G. Yasin, L. Wang, H. Xu et al., Reviewing the current status and development of polymer electrolytes for solid-state lithium batteries. Energy Storage Mater. 33, 188-215 (2020). https://doi.org/10.1016/j.ensm.2020.08.014
4.	H.-J. Ha, E.-H. Kil, Y.H. Kwon, J.Y. Kim, C.K. Lee et al., UV-curable semi-interpenetrating polymer network-integrated, highly bendable plastic crystal composite electrolytes for shape-conformable all-solid-state lithium ion batteries. Energy Environ. Sci. 5, 6491-6499 (2012). https://doi.org/10.1039/C2EE03025J
5.	A.L. Ahmad, U.R. Farooqui, N.A. Hamid, Synthesis and characterization of porous poly(vinylidene fluoride-co-hexafluoro propylene) (PVDF-co-HFP)/poly(aniline) (PANI)/graphene oxide (GO) ternary hybrid polymer electrolyte membrane. Electrochim. Acta 283, 842-849 (2018). https://doi.org/10.1016/j.electacta.2018.07.001
6.	P. Ding, Z. Lin, X. Guo, L. Wu, Y. Wang et al., Polymer electrolytes and interfaces in solid-state lithium metal batteries. Mater. Today 51, 449-474 (2021). https://doi.org/10.1016/j.mattod.2021.08.005
7.	K.K. Fu, Y. Gong, J. Dai, A. Gong, X. Han et al., Flexible, solid-state, ion-conducting membrane with 3D garnet nanofiber networks for lithium batteries. Proc. Natl. Acad. Sci. U.S.A. 113, 7094-7099 (2016). https://doi.org/10.1073/pnas.1600422113
8.	X. Ban, W. Zhang, N. Chen, C. Sun, A high-performance and durable poly(ethylene oxide)-based composite solid electrolyte for all solid-state lithium battery. J. Phys. Chem. C 122, 9852-9858 (2018). https://doi.org/10.1021/acs.jpcc.8b02556
9.	B.K. Choi, Y.W. Kim, H.K. Shin, Ionic conduction in PEO-PAN blend polymer electrolytes. Electrochim. Acta 45, 1371-1374 (2000). https://doi.org/10.1016/s0013-4686(99)00345-x
10.	J. Feng, L. Wang, Y. Chen, P. Wang, H. Zhang et al., PEO based polymer-ceramic hybrid solid electrolytes: a review. Nano Converg. 8, 2 (2021). https://doi.org/10.1186/s40580-020-00252-5
11.	Y. Liu, S. Gorgutsa, C. Santato, M. Skorobogatiy, Flexible, solid electrolyte-based lithium battery composed of LiFePO₄ cathode and Li₄Ti₅O₁₂ anode for applications in smart textiles. J. Electrochem. Soc. 159, A349-A356 (2012). https://doi.org/10.1149/2.020204jes
12.	M.-K. Song, J.-Y. Cho, B.W. Cho, H.-W. Rhee, Characterization of UV-cured gel polymer electrolytes for rechargeable lithium batteries. J. Power. Sources 110, 209-215 (2002). https://doi.org/10.1016/s0378-7753(02)00258-6
13.	F. Liu, N. Awanis Hashim, Y. Liu, M.R. Moghareh Abed, K. Li, Progress in the production and modification of PVDF membranes. J. Membr. Sci. 375, 1-27 (2011). https://doi.org/10.1016/j.memsci.2011.03.014
14.	F. Chen, J. Luo, M.-X. Jing, J. Li, Z.-H. Huang et al., A sandwich structure composite solid electrolyte with enhanced interface stability and electrochemical properties for solid-state lithium batteries. J. Electrochem. Soc. 168, 070513 (2021). https://doi.org/10.1149/1945-7111/ac0f89
15.	J. Hu, P. He, B. Zhang, B. Wang, L.-Z. Fan, Porous film host-derived 3D composite polymer electrolyte for high-voltage solid state lithium batteries. Energy Storage Mater. 26, 283-289 (2020). https://doi.org/10.1016/j.ensm.2020.01.006
16.	K. Yang, L. Chen, J. Ma, C. Lai, Y. Huang et al., Stable interface chemistry and multiple ion transport of composite electrolyte contribute to ultra-long cycling solid-state LiNi_0.8Co_0.1Mn_0.1O₂/lithium metal batteries. Angew. Chem. Int. Ed. 60, 24668-24675 (2021). https://doi.org/10.1002/anie.202110917
17.	A. Rahimpour, M. Jahanshahi, A. Mollahosseini, B. Rajaeian, Structural and performance properties of UV-assisted TiO₂ deposited nano-composite PVDF/SPES membranes. Desalination 285, 31-38 (2011). https://doi.org/10.1016/j.desal.2011.09.026
18.	S. Golcuk, A.E. Muftuoglu, S.U. Celik, A. Bozkurt, Synthesis and characterization of polymer electrolyte membranes based on PVDF and styrene via photoinduced grafting. J. Polym. Res. 20, 144 (2013). https://doi.org/10.1007/s10965-013-0144-2
19.	S. Rajendran, Experimental investigations on PAN-PEO hybrid polymer electrolytes. Solid State Ion. 130, 143-148 (2000). https://doi.org/10.1016/s0167-2738(00)00283-6
20.	X. He, J. Ren, L. Wang, W. Pu, C. Jiang et al., Synthesis of PAN/SnCl₂ composite as Li-ion battery anode material. Ionics 12, 323-326 (2006). https://doi.org/10.1007/s11581-006-0051-1
21.	W.-P. Chen, H. Duan, J.-L. Shi, Y. Qian, J. Wan et al., Bridging interparticle Li⁺ conduction in a soft ceramic oxide electrolyte. J. Am. Chem. Soc. 143, 5717-5726 (2021). https://doi.org/10.1021/jacs.0c12965
22.	X. He, Q. Shi, X. Zhou, C. Wan, C. Jiang, In situ composite of nano SiO₂-P(VDF-HFP) porous polymer electrolytes for Li-ion batteries. Electrochim. Acta 51, 1069-1075 (2005). https://doi.org/10.1016/j.electacta.2005.05.048
23.	J. Cao, L. Wang, M. Fang, Y. Shang, L. Deng et al., Interfacial compatibility of gel polymer electrolyte and electrode on performance of Li-ion battery. Electrochim. Acta 114, 527-532 (2013). https://doi.org/10.1016/j.electacta.2013.10.052
24.	J. Cao, L. Wang, M. Fang, X. He, J. Li et al., Structure and electrochemical properties of composite polymer electrolyte based on poly vinylidene fluoride-hexafluoropropylene/titania-poly(methyl methacrylate) for lithium-ion batteries. J. Power. Sources 246, 499-504 (2014). https://doi.org/10.1016/j.jpowsour.2013.07.107
25.	W. Pu, X. He, L. Wang, Z. Tian, C. Jiang et al., Preparation of P(AN-MMA) gel electrolyte for Li-ion batteries. Ionics 14, 27-31 (2008). https://doi.org/10.1007/s11581-007-0155-2
26.	J. Cao, L. Wang, X. He, M. Fang, J. Gao et al., In situ prepared nano-crystalline TiO₂-poly(methyl methacrylate) hybrid enhanced composite polymer electrolyte for Li-ion batteries. J. Mater. Chem. A 1, 5955-5961 (2013). https://doi.org/10.1039/C3TA00086A
27.	S. Zhang, J. Cao, Y. Shang, L. Wang, X. He et al., Nanocomposite polymer membrane derived from nano TiO₂-PMMA and glass fiber nonwoven: high thermal endurance and cycle stability in lithium ion battery applications. J. Mater. Chem. A 3, 17697-17703 (2015). https://doi.org/10.1039/C5TA02781K
28.	Y. Li, H. Shimizu, Compatibilization by homopolymer: significant improvements in the modulus and tensile strength of PPC/PMMA blends by the addition of a small amount of PVAc. ACS Appl. Mater. Interfaces 1, 1650-1655 (2009). https://doi.org/10.1021/am900314k
29.	P. Pal, A. Ghosh, Influence of TiO₂ nano-particles on charge carrier transport and cell performance of PMMA-LiClO₄ based nano-composite electrolytes. Electrochim. Acta 260, 157-167 (2018). https://doi.org/10.1016/j.electacta.2017.11.070
30.	Z. Tian, W. Pu, X. He, C. Wan, C. Jiang, Preparation of a microporous polymer electrolyte based on poly(vinyl chloride)/poly(acrylonitrile-butyl acrylate) blend for Li-ion batteries. Electrochim. Acta 52, 3199-3206 (2007). https://doi.org/10.1016/j.electacta.2006.09.068
31.	H. Buschmann, J. Dölle, S. Berendts, A. Kuhn, P. Bottke et al., Structure and dynamics of the fast lithium ion conductor “Li₇La₃Zr₂O₁₂.” Phys. Chem. Chem. Phys. 13, 19378-19392 (2011). https://doi.org/10.1039/c1cp22108f
32.	J.B. Bates, N.J. Dudney, G.R. Gruzalski, R.A. Zuhr, A. Choudhury et al., Fabrication and characterization of amorphous lithium electrolyte thin films and rechargeable thin-film batteries. J. Power. Sources 43, 103-110 (1993). https://doi.org/10.1016/0378-7753(93)80106-y
33.	V. Thangadurai, W. Weppner, Li₆ALa₂Ta₂O₁₂ (A = Sr, Ba): novel garnet-like oxides for fast lithium ion conduction. Adv. Funct. Mater. 15, 107-112 (2005). https://doi.org/10.1002/adfm.200400044
34.	R. Kanno, M. Murayama, Lithium ionic conductor thio-LISICON: the Li₂S-GeS₂-P₂S₅ system. J. Electrochem. Soc. 148, A742 (2001). https://doi.org/10.1149/1.1379028
35.	M. Murayama, R. Kanno, M. Irie, S. Ito, T. Hata et al., Synthesis of new lithium ionic conductor thio-LISICON—lithium silicon sulfides system. J. Solid State Chem. 168, 140-148 (2002). https://doi.org/10.1006/jssc.2002.9701
36.	H. Ben youcef, O. Garcia-Calvo, N. Lago, S. Devaraj, M. Armand, Cross-linked solid polymer electrolyte for all-solid-state rechargeable lithium batteries. Electrochim. Acta 220, 587-594 (2016). https://doi.org/10.1016/j.electacta.2016.10.122
37.	L. Long, S. Wang, M. Xiao, Y. Meng, Polymer electrolytes for lithium polymer batteries. J. Mater. Chem. A 4, 10038-10069 (2016). https://doi.org/10.1039/C6TA02621D
38.	Z. Wei, Z. Zhang, S. Chen, Z. Wang, X. Yao et al., UV-cured polymer electrolyte for LiNi_0.85Co_0.05Al_0.1O₂// Li solid state battery working at ambient temperature. Energy Storage Mater. 22, 337-345 (2019). https://doi.org/10.1016/j.ensm.2019.02.004
39.	S.H. Siyal, M. Li, H. Li, J.-L. Lan, Y. Yu et al., Ultraviolet irradiated PEO/LATP composite gel polymer electrolytes for lithium-metallic batteries (LMBs). Appl. Surf. Sci. 494, 1119-1126 (2019). https://doi.org/10.1016/j.apsusc.2019.07.179
40.	C. Liu, S. Wang, X. Wu, S. Xiao, C. Liu et al., In situ construction of zwitterionic polymer electrolytes with synergistic cation-anion regulation functions for lithium metal batteries. Adv. Funct. Mater. 34, 2307248 (2024). https://doi.org/10.1002/adfm.202307248
41.	Y.M. Jeon, S. Kim, M. Lee, W.B. Lee, J.H. Park, Polymer-clay nanocomposite solid-state electrolyte with selective cation transport boosting and retarded lithium dendrite formation. Adv. Energy Mater. 10, 2003114 (2020). https://doi.org/10.1002/aenm.202003114
42.	Y. Li, X. Wang, H. Zhou, X. Xing, A. Banerjee et al., Thin solid electrolyte layers enabled by nanoscopic polymer binding. ACS Energy Lett. 5, 955-961 (2020). https://doi.org/10.1021/acsenergylett.0c00040
43.	H. Wu, B. Tang, X. Du, J. Zhang, X. Yu et al., LiDFOB initiated in situ polymerization of novel eutectic solution enables room-temperature solid lithium metal batteries. Adv. Sci. 7, 2003370 (2020). https://doi.org/10.1002/advs.202003370
44.	Y. Wang, J. Ju, S. Dong, Y. Yan, F. Jiang et al., Facile design of sulfide-based all solid-state lithium metal battery: in situ polymerization within self-supported porous argyrodite skeleton. Adv. Funct. Mater. 31, 2101523 (2021). https://doi.org/10.1002/adfm.202101523
45.	Y. Yan, J. Ju, S. Dong, Y. Wang, L. Huang et al., In situ polymerization permeated three-dimensional Li⁺-percolated porous oxide ceramic framework boosting all solid-state lithium metal battery. Adv. Sci. 8, 2003887 (2021). https://doi.org/10.1002/advs.202003887
46.	K. Zhang, F. Wu, X. Wang, L. Zheng, X. Yang et al., An ion-dipole-reinforced polyether electrolyte with ion-solvation cages enabling high-voltage-tolerant and ion-conductive solid-state lithium metal batteries. Adv. Funct. Mater. 32, 2270031 (2022). https://doi.org/10.1002/adfm.202270031
47.	S. Huo, L. Sheng, W. Xue, L. Wang, H. Xu et al., Challenges of stable ion pathways in cathode electrode for all-solid-state lithium batteries: a review. Adv. Energy Mater. 13, 2204343 (2023). https://doi.org/10.1002/aenm.202204343
48.	Y.Q. Mi, W. Deng, C. He, O. Eksik, Y.P. Zheng et al., In situ polymerized 1, 3-dioxolane electrolyte for integrated solid-state lithium batteries. Angew. Chem. Int. Ed. 62, e202218621 (2023). https://doi.org/10.1002/anie.202218621
49.	B. Deng, M.-X. Jing, L.-X. Li, R. Li, H. Yang et al., Nano-zirconia boosting the ionic conductivity and lithium dendrite inhibition ability of a poly(1, 3-dioxolane) solid electrolyte for high-voltage solid-state lithium batteries. Sustain. Energy Fuels 5, 5461-5470 (2021). https://doi.org/10.1039/D1SE01132D
50.	T. Chen, H. Wu, J. Wan, M. Li, Y. Zhang et al., Synthetic poly-dioxolane as universal solid electrolyte interphase for stable lithium metal anodes. J. Energy Chem. 62, 172-178 (2021). https://doi.org/10.1016/j.jechem.2021.03.018
51.	H. Huang, D. Li, L. Hou, H. Du, H. Wei et al., Advanced protective layer design on the surface of Mg-based metal and application in batteries: challenges and progress. J. Power. Sources 542, 231755 (2022). https://doi.org/10.1016/j.jpowsour.2022.231755
52.	G. Zheng, C. Wang, A. Pei, J. Lopez, F. Shi et al., High-performance lithium metal negative electrode with a soft and flowable polymer coating. ACS Energy Lett. 1, 1247-1255 (2016). https://doi.org/10.1021/acsenergylett.6b00456
53.	J. Chen, H. Lu, X. Zhang, Y. Zhang, J. Yang et al., Electrochemical polymerization of nonflammable electrolyte enabling fast-charging lithium-sulfur battery. Energy Storage Mater. 50, 387-394 (2022). https://doi.org/10.1016/j.ensm.2022.05.044
54.	N. Wang, X. Zhang, Z. Ju, X. Yu, Y. Wang et al., Thickness-independent scalable high-performance Li-S batteries with high areal sulfur loading via electron-enriched carbon framework. Nat. Commun. 12, 4519 (2021). https://doi.org/10.1038/s41467-021-24873-4
55.	X. Gao, X. Zheng, Y. Tsao, P. Zhang, X. Xiao et al., All-solid-state lithium-sulfur batteries enhanced by redox mediators. J. Am. Chem. Soc. 143, 18188-18195 (2021). https://doi.org/10.1021/jacs.1c07754
56.	G. Xu, A. Kushima, J. Yuan, H. Dou, W. Xue et al., Ad hoc solid electrolyte on acidized carbon nanotube paper improves cycle life of lithium-sulfur batteries. Energy Environ. Sci. 10, 2544-2551 (2017). https://doi.org/10.1039/C7EE01898C
57.	L. Ma, M.S. Kim, L.A. Archer, Stable artificial solid electrolyte interphases for lithium batteries. Chem. Mater. 29, 4181-4189 (2017). https://doi.org/10.1021/acs.chemmater.6b03687
58.	F.-Q. Liu, W.-P. Wang, Y.-X. Yin, S.-F. Zhang, J.-L. Shi et al., Upgrading traditional liquid electrolyte via in situ gelation for future lithium metal batteries. Sci. Adv. 4, eaat5383 (2018). https://doi.org/10.1126/sciadv.aat5383
59.	W.-P. Wang, J. Zhang, Y.-X. Yin, H. Duan, J. Chou et al., A rational reconfiguration of electrolyte for high-energy and long-life lithium-chalcogen batteries. Adv. Mater. 32, e2000302 (2020). https://doi.org/10.1002/adma.202000302
60.	Y. Yamashita, M. Okada, H. Kasahara, Kinetic studies on the polymerization of 1,3-dioxolane catalyzed by triethyl oxonium tetrafluoroborate. Makromol. Chem. 117, 256-264 (1968). https://doi.org/10.1002/macp.1968.021170124
61.	Y. Yamashita, M. Okada, K. Suyama, H. Kasahara, Equilibrium polymerization of 1,3-dioxolane. Makromol. Chem. 114, 146-154 (1968). https://doi.org/10.1002/macp.1968.021140111
62.	S. Sasaki, Y. Takahashi, H. Tadokoro, Structural studies of polyformals. II. Crystal structure of poly-1, 3-dioxolane:modification II. J. Polym. Sci. Polym. Phys. Ed. 10, 2363-2378 (1972). https://doi.org/10.1002/pol.1972.180101206
63.	L. Kong, H. Zhan, Y. Li, Y. Zhou, In situ fabrication of lithium polymer battery basing on a novel electro-polymerization technique. Electrochem. Commun. 9, 2557-2563 (2007). https://doi.org/10.1016/j.elecom.2007.08.001
64.	Q. Zhao, X. Liu, S. Stalin, K. Khan, L.A. Archer, Solid-state polymer electrolytes with in-built fast interfacial transport for secondary lithium batteries. Nat. Energy 4, 365-373 (2019). https://doi.org/10.1038/s41560-019-0349-7
65.	J. Zhou, T. Qian, J. Liu, M. Wang, L. Zhang et al., High-safety all-solid-state lithium-metal battery with high-ionic-conductivity thermoresponsive solid polymer electrolyte. Nano Lett. 19, 3066-3073 (2019). https://doi.org/10.1021/acs.nanolett.9b00450
66.	C.-Z. Zhao, Q. Zhao, X. Liu, J. Zheng, S. Stalin et al., Rechargeable lithium metal batteries with an In-built solid-state polymer electrolyte and a high voltage/loading Ni-rich layered cathode. Adv. Mater. 32, e1905629 (2020). https://doi.org/10.1002/adma.201905629
67.	Y. Huang, S. Liu, Q. Chen, K. Jiao, B. Ding et al., Constructing highly conductive and thermomechanical stable quasi-solid electrolytes by self-polymerization of liquid electrolytes within porous polyimide nanofiber films. Adv. Funct. Mater. 32, 2201496 (2022). https://doi.org/10.1002/adfm.202201496
68.	H. Yang, B. Zhang, M. Jing, X. Shen, L. Wang et al., In situ catalytic polymerization of a highly homogeneous PDOL composite electrolyte for long-cycle high-voltage solid-state lithium batteries. Adv. Energy Mater. 12, 2270162 (2022). https://doi.org/10.1002/aenm.202270162
69.	H. Xu, J. Zhang, H. Zhang, J. Long, L. Xu et al., In situ topological interphases boosting stable solid-state lithium metal batteries. Adv. Energy Mater. 13, 2204411 (2023). https://doi.org/10.1002/aenm.202204411
70.	P.H. Plesch, P.H. Westermann, The polymerization of 1,3-dioxolane. I. Structure of the polymer and thermodynamics of its formation. J. Polym. Sci C Polym. Symp. 16, 3837-3843 (1967). https://doi.org/10.1002/polc.5070160724
71.	D. Aurbach, O. Youngman, P. Dan, The electrochemical behavior of 1, 3-dioxolane—LiClO₄ solutions—II. Contaminated solutions. Electrochim. Acta 35, 639-655 (1990). https://doi.org/10.1016/0013-4686(90)87056-8
72.	H. Xu, H. Zhang, J. Ma, G. Xu, T. Dong et al., Overcoming the challenges of 5 V spinel LiNi_0.5Mn_1.5O₄ cathodes with solid polymer electrolytes. ACS Energy Lett. 4, 2871-2886 (2019). https://doi.org/10.1021/acsenergylett.9b01871
73.	G.H. Newman, R.W. Francis, L.H. Gaines, B.M.L. Rao, Hazard investigations of LiClO₄/dioxolane electrolyte. J. Electrochem. Soc. 127, 2025-2027 (1980). https://doi.org/10.1149/1.2130056
74.	Q. Liu, L. Wang, X. He, Toward practical solid-state polymer lithium batteries by in situ polymerization process: a review. Adv. Energy Mater. 13, 2300798 (2023). https://doi.org/10.1002/aenm.202300798
75.	Q. Liu, B. Cai, S. Li, Q. Yu, F. Lv et al., Long-cycling and safe lithium metal batteries enabled by the synergetic strategy of ex situ anodic pretreatment and an in-built gel polymer electrolyte. J. Mater. Chem. A 8, 7197-7204 (2020). https://doi.org/10.1039/D0TA02148B
76.	S. Wen, C. Luo, Q. Wang, Z. Wei, Y. Zeng et al., Integrated design of ultrathin crosslinked network polymer electrolytes for flexible and stable all-solid-state lithium batteries. Energy Storage Mater. 47, 453-461 (2022). https://doi.org/10.1016/j.ensm.2022.02.035
77.	H. Cheng, J. Zhu, H. Jin, C. Gao, H. Liu et al., In situ initiator-free gelation of highly concentrated lithium bis(fluorosulfonyl)imide-1, 3-dioxolane solid polymer electrolyte for high performance lithium-metal batteries. Mater. Today Energy 20, 100623 (2021). https://doi.org/10.1016/j.mtener.2020.100623
78.	J. Zheng, W. Zhang, C. Huang, Z. Shen, X. Wang et al., In-situ polymerization with dual-function electrolyte additive toward future lithium metal batteries. Mater. Today Energy 26, 100984 (2022). https://doi.org/10.1016/j.mtener.2022.100984
79.	W. Li, J. Gao, H. Tian, X. Li, S. He et al., SnF₂-catalyzed formation of polymerized dioxolane as solid electrolyte and its thermal decomposition behavior. Angew. Chem. Int. Ed. 61, e202114805 (2022). https://doi.org/10.1002/anie.202114805
80.	S. Zheng, Y. Chen, K. Chen, S. Yang, R. Bagherzadeh et al., In situ construction of polyether-based composite electrolyte with bi-phase ion conductivity and stable electrolyte/electrode interphase for solid-state lithium metal batteries. J. Mater. Chem. A 10, 19641-19648 (2022). https://doi.org/10.1039/D2TA02229J
81.	Z. Li, W. Tang, Y. Deng, M. Zhou, X. Wang et al., Enabling highly stable lithium metal batteries by using dual-function additive catalyzed in-built quasi-solid-state polymer electrolytes. J. Mater. Chem. A 10, 23047-23057 (2022). https://doi.org/10.1039/D2TA06153H
82.	S. Wang, L. Zhou, M.K. Tufail, L. Yang, P. Zhai et al., In-Situ synthesized Non-flammable gel polymer electrolyte enable highly safe and Dendrite-Free lithium metal batteries. Chem. Eng. J. 415, 128846 (2021). https://doi.org/10.1016/j.cej.2021.128846
83.	J. Xiang, Y. Zhang, B. Zhang, L. Yuan, X. Liu et al., A flame-retardant polymer electrolyte for high performance lithium metal batteries with an expanded operation temperature. Energy Environ. Sci. 14, 3510-3521 (2021). https://doi.org/10.1039/D1EE00049G
84.	J. Zhao, M. Li, H. Su, Y. Liu, P. Bai et al., In situ fabricated non-flammable quasi-solid electrolytes for Li-metal batteries. Small Meth. 7, 2300228 (2023). https://doi.org/10.1002/smtd.202300228
85.	J. Wei, H. Yue, Z. Shi, Z. Li, X. Li et al., In situ gel polymer electrolyte with inhibited lithium dendrite growth and enhanced interfacial stability for lithium-metal batteries. ACS Appl. Mater. Interfaces 13, 32486-32494 (2021). https://doi.org/10.1021/acsami.1c07032
86.	M. Xie, Y. Wu, Y. Liu, P.P. Yu, R. Jia et al., Pathway of in situ polymerization of 1, 3-dioxolane in LiPF 6 electrolyte on Li metal anode. Mater. Today Energy 21, 100730 (2021). https://doi.org/10.1016/j.mtener.2021.100730
87.	A. Hu, Z. Liao, J. Huang, Y. Zhang, Q. Yang et al., In-situ construction of dual lithium-ion migration channels in polymer electrolytes for lithium metal batteries. Chem. Eng. J. 448, 137661 (2022). https://doi.org/10.1016/j.cej.2022.137661
88.	P. Cheng, H. Zhang, Q. Ma, W. Feng, H. Yu et al., Highly salt-concentrated electrolyte comprising lithium bis(fluorosulfonyl)imide and 1, 3-dioxolane-based ether solvents for 4-V-class rechargeable lithium metal cell. Electrochim. Acta 363, 137198 (2020). https://doi.org/10.1016/j.electacta.2020.137198
89.	G. Yang, W. Hou, Y. Zhai, Z. Chen, C. Liu et al., Polymeric concentrated electrolyte enables simultaneous stabilization of electrode/electrolyte interphases for quasi-solid-state lithium metal batteries. EcoMat 5, e12325 (2023). https://doi.org/10.1002/eom2.12325
90.	Y. Wu, J. Ma, H. Jiang, L. Wang, F. Zhang et al., Confined in situ polymerization of poly(1, 3-dioxolane) and poly(vinylene carbonate)-based quasi-solid polymer electrolyte with improved uniformity for lithium metal batteries. Mater. Today Energy 32, 101239 (2023). https://doi.org/10.1016/j.mtener.2022.101239
91.	G. Yang, Y. Zhai, J. Yao, S. Song, L. Lin et al., Synthesis and properties of poly(1, 3-dioxolane) in situ quasi-solid-state electrolytes via a rare-earth triflate catalyst. Chem. Commun. 57, 7934-7937 (2021). https://doi.org/10.1039/d1cc02916a
92.	L. Zhang, H. Gao, S. Xiao, J. Li, T. Ma et al., In-situ construction of ceramic-polymer all-solid-state electrolytes for high-performance room-temperature lithium metal batteries. ACS Mater. Lett. 4, 1297-1305 (2022). https://doi.org/10.1021/acsmaterialslett.2c00238
93.	W. Zhang, S. Zhang, L. Fan, L. Gao, X. Kong et al., Tuning the LUMO energy of an organic interphase to stabilize lithium metal batteries. ACS Energy Lett. 4, 644-650 (2019). https://doi.org/10.1021/acsenergylett.8b02483
94.	Y.-K. Han, J. Yoo, T. Yim, Distinct reaction characteristics of electrolyte additives for high-voltage lithium-ion batteries: tris(trimethylsilyl) phosphite, borate, and phosphate. Electrochim. Acta 215, 455-465 (2016). https://doi.org/10.1016/j.electacta.2016.08.131
95.	Y. Liu, X. Tao, Y. Wang, C. Jiang, C. Ma et al., Self-assembled monolayers direct a LiF-rich interphase toward long-life lithium metal batteries. Science 375, 739-745 (2022). https://doi.org/10.1126/science.abn1818
96.	Q. Zhao, S. Stalin, L.A. Archer, Stabilizing metal battery anodes through the design of solid electrolyte interphases. Joule 5, 1119-1142 (2021). https://doi.org/10.1016/j.joule.2021.03.024
97.	P. Zhai, T. Wang, H. Jiang, J. Wan, Y. Wei et al., 3D artificial solid-electrolyte interphase for lithium metal anodes enabled by insulator-metal-insulator layered heterostructures. Adv. Mater. 33, e2006247 (2021). https://doi.org/10.1002/adma.202006247
98.	L. Ye, X. Li, A dynamic stability design strategy for lithium metal solid state batteries. Nature 593, 218-222 (2021). https://doi.org/10.1038/s41586-021-03486-3
99.	H. Xie, C. Yang, Y. Ren, S. Xu, T.R. Hamann et al., Amorphous-carbon-coated 3D solid electrolyte for an electro-chemomechanically stable lithium metal anode in solid-state batteries. Nano Lett. 21, 6163-6170 (2021). https://doi.org/10.1021/acs.nanolett.1c01748
100.	Y. Wang, Z. Wang, L. Zhao, Q. Fan, X. Zeng et al., Lithium metal electrode with increased air stability and robust solid electrolyte interphase realized by silane coupling agent modification. Adv. Mater. 33, e2008133 (2021). https://doi.org/10.1002/adma.202008133
101.	H. Wan, Z. Wang, S. Liu, B. Zhang, X. He et al., Critical interphase overpotential as a lithium dendrite-suppression criterion for all-solid-state lithium battery design. Nat. Energy 8, 473-481 (2023). https://doi.org/10.1038/s41560-023-01231-w
102.	P. Jiang, J. Cao, B. Wei, G. Qian, S. Wang et al., LiF involved interphase layer enabling thousand cycles of LAGP-based solid-state Li metal batteries with 80% capacity retention. Energy Storage Mater. 48, 145-154 (2022). https://doi.org/10.1016/j.ensm.2022.03.017
103.	J. Li, H. Hu, W. Fang, J. Ding, D. Yuan et al., Impact of fluorine-based lithium salts on SEI for all-solid-state PEO-based lithium metal batteries. Adv. Funct. Mater. 33, 2303718 (2023). https://doi.org/10.1002/adfm.202303718
104.	C. Guo, K. Du, R. Tao, Y. Guo, S. Yao et al., Inorganic filler enhanced formation of stable inorganic-rich solid electrolyte interphase for high performance lithium metal batteries. Adv. Funct. Mater. 33, 2301111 (2023). https://doi.org/10.1002/adfm.202301111
105.	H. Sun, X. Xie, Q. Huang, Z. Wang, K. Chen et al., Fluorinated poly-oxalate electrolytes stabilizing both anode and cathode interfaces for all-solid-state Li/NMC811 batteries. Angew. Chem. Int. Ed. 60, 18335-18343 (2021). https://doi.org/10.1002/anie.202107667
106.	J. Xie, S.-Y. Sun, X. Chen, L.-P. Hou, B.-Q. Li et al., Fluorinating the solid electrolyte interphase by rational molecular design for practical lithium-metal batteries. Angew. Chem. Int. Ed. 61, e202204776 (2022). https://doi.org/10.1002/anie.202204776
107.	A. Hu, W. Chen, X. Du, Y. Hu, T. Lei et al., An artificial hybrid interphase for an ultrahigh-rate and practical lithium metal anode. Energy Environ. Sci. 14, 4115-4124 (2021). https://doi.org/10.1039/D1EE00508A
108.	X. Pei, Y. Li, T. Ou, X. Liang, Y. Yang et al., Li-N interaction induced deep eutectic gel polymer electrolyte for high performance lithium-metal batteries. Angew. Chem. Int. Ed. 61, e202205075 (2022). https://doi.org/10.1002/anie.202205075
109.	X. Yi, Y. Guo, S. Chi, S. Pan, C. Geng et al., Surface Li₂CO₃ mediated phosphorization enables compatible interfaces of composite polymer electrolyte for solid-state lithium batteries. Adv. Funct. Mater. 33, 2303574 (2023). https://doi.org/10.1002/adfm.202303574
110.	M.-X. Jing, H. Yang, C. Han, F. Chen, L.-K. Zhang et al., Synergistic enhancement effects of LLZO fibers and interfacial modification for polymer solid electrolyte on the ambient-temperature electrochemical performances of solid-state battery. J. Electrochem. Soc. 166, A3019-A3027 (2019). https://doi.org/10.1149/2.1171913jes
111.	M.-X. Jing, H. Yang, C. Han, F. Chen, W.-Y. Yuan et al., Improving room-temperature electrochemical performance of solid-state lithium battery by using electrospun La₂Zr₂O₇ fibers-filled composite solid electrolyte. Ceram. Int. 45, 18614-18622 (2019). https://doi.org/10.1016/j.ceramint.2019.06.085
112.	J.Y. Kim, O.B. Chae, M. Wu, E. Lim, G. Kim et al., Extraordinary dendrite-free Li deposition on highly uniform facet wrinkled Cu substrates in carbonate electrolytes. Nano Energy 82, 105736 (2021). https://doi.org/10.1016/j.nanoen.2020.105736
113.	J. Wang, Q. Kang, J. Yuan, Q. Fu, C. Chen et al., Dendrite-free lithium and sodium metal anodes with deep plating/stripping properties for lithium and sodium batteries. Carbon Energy 3, 153-166 (2021). https://doi.org/10.1002/cey2.94
114.	J. Duan, L. Huang, T. Wang, Y. Huang, H. Fu et al., Shaping the contact between Li metal anode and solid-state electrolytes. Adv. Funct. Mater. 30, 1908701 (2020). https://doi.org/10.1002/adfm.201908701
115.	Q. Li, S. Zhu, Y. Lu, 3D porous Cu current collector/Li-metal composite anode for stable lithium-metal batteries. Adv. Funct. Mater. 27, 1606422 (2017). https://doi.org/10.1002/adfm.201606422
116.	Q. Wu, M. Fang, S. Jiao, S. Li, S. Zhang et al., Phase regulation enabling dense polymer-based composite electrolytes for solid-state lithium metal batteries. Nat. Commun. 14, 6296 (2023). https://doi.org/10.1038/s41467-023-41808-3
117.	J. Li, Y. Ji, H. Song, S. Chen, S. Ding et al., Insights into the interfacial degradation of high-voltage all-solid-state lithium batteries. Nano-Micro Lett. 14, 191 (2022). https://doi.org/10.1007/s40820-022-00936-z
118.	Y. Ma, J.H. Teo, F. Walther, Y. Ma, R. Zhang et al., Advanced nanoparticle coatings for stabilizing layered Ni-rich oxide cathodes in solid-state batteries. Adv. Funct. Mater. 32, 2270135 (2022). https://doi.org/10.1002/adfm.202270135
119.	W. Bao, G. Qian, L. Zhao, Y. Yu, L. Su et al., Simultaneous enhancement of interfacial stability and kinetics of single-crystal LiNi_0.6Mn_0.2Co_0.2O₂ through optimized surface coating and doping. Nano Lett. 20, 8832-8840 (2020). https://doi.org/10.1021/acs.nanolett.0c03778
120.	J. Zhao, J. Zhang, P. Hu, J. Ma, X. Wang et al., A sustainable and rigid-flexible coupling cellulose-supported poly(propylene carbonate) polymer electrolyte towards 5 V high voltage lithium batteries. Electrochim. Acta 188, 23-30 (2016). https://doi.org/10.1016/j.electacta.2015.11.088
121.	M. Liu, D. Zhou, Y.-B. He, Y. Fu, X. Qin et al., Novel gel polymer electrolyte for high-performance lithium-sulfur batteries. Nano Energy 22, 278-289 (2016). https://doi.org/10.1016/j.nanoen.2016.02.008
122.	L.-X. Li, R. Li, Z.-H. Huang, M.-Q. Liu, J. Xiang et al., High-performance gel electrolyte for enhanced interface compatibility and lithium metal stability in high-voltage lithium battery. Colloids Surf. A Physicochem. Eng. Aspects 651, 129665 (2022). https://doi.org/10.1016/j.colsurfa.2022.129665
123.	Y. Liu, Y. Xu, Porous membrane host-derived in situ polymer electrolytes with double-stabilized electrode interface enable long cycling lithium metal batteries. Chem. Eng. J. 433, 134471 (2022). https://doi.org/10.1016/j.cej.2021.134471
124.	Z. Geng, Y. Huang, G. Sun, R. Chen, W. Cao et al., In-situ polymerized solid-state electrolytes with stable cycling for Li/LiCoO₂ batteries. Nano Energy 91, 106679 (2022). https://doi.org/10.1016/j.nanoen.2021.106679
125.	J. Ma, X. Feng, Y. Wu, Y. Wang, P. Liu et al., Stable sodium anodes for sodium metal batteries (SMBs) enabled by in situ formed quasi solid-state polymer electrolyte. J. Energy Chem. 77, 290-299 (2023). https://doi.org/10.1016/j.jechem.2022.09.040
126.	S. Song, W. Gao, G. Yang, Y. Zhai, J. Yao et al., Hybrid poly-ether/carbonate ester electrolyte engineering enables high oxidative stability for quasi-solid-state lithium metal batteries. Mater. Today Energy 23, 100893 (2022). https://doi.org/10.1016/j.mtener.2021.100893
127.	K. Khan, Z. Tu, Q. Zhao, C. Zhao, L.A. Archer, Synthesis and properties of poly-ether/ethylene carbonate electrolytes with high oxidative stability. Chem. Mater. 31, 8466-8472 (2019). https://doi.org/10.1021/acs.chemmater.9b02823
128.	J. Yu, X. Lin, J. Liu, J.T.T. Yu, M.J. Robson et al., In situ fabricated quasi-solid polymer electrolyte for high-energy-density lithium metal battery capable of subzero operation. Adv. Energy Mater. 12, 2102932 (2022). https://doi.org/10.1002/aenm.202102932
129.	H. Yang, M.-X. Jing, H.-P. Li, W.-Y. Yuan, B. Deng et al., ‘Environment-friendly’ polymer solid electrolyte membrane via a rapid surface-initiating polymeration strategy. Chem. Eng. J. 421, 129710 (2021). https://doi.org/10.1016/j.cej.2021.129710
130.	Z.K. Liu, J. Guan, H.X. Yang, P.X. Sun, N.W. Li et al., Ternary-salt solid polymer electrolyte for high-rate and long-life lithium metal batteries. Chem. Commun. 58, 10973-10976 (2022). https://doi.org/10.1039/D2CC04128F
131.	L.-X. Li, R. Li, Z.-H. Huang, H. Yang, M.-Q. Liu et al., A multifunctional gradient solid electrolyte remarkably improving interface compatibility and ion transport in solid-state lithium battery. ACS Appl. Mater. Interfaces 14, 30786-30795 (2022). https://doi.org/10.1021/acsami.2c05578
132.	J. Ma, Y. Wu, H. Jiang, X. Yao, F. Zhang et al., In situ directional polymerization of poly(1, 3-dioxolane) solid electrolyte induced by cellulose paper-based composite separator for lithium metal batteries. Energy Environ. Mater. 6, 12370 (2023). https://doi.org/10.1002/eem2.12370
133.	X. Li, L. Cong, S. Ma, S. Shi, Y. Li et al., Low resistance and high stable solid-liquid electrolyte interphases enable high-voltage solid-state lithium metal batteries. Adv. Funct. Mater. 31, 2010611 (2021). https://doi.org/10.1002/adfm.202010611
134.	B. Han, P. Jiang, S. Li, X. Lu, Functionalized gel polymer electrolyte membrane for high performance Li metal batteries. Solid State Ion. 361, 115572 (2021). https://doi.org/10.1016/J.SSI.2021.115572
135.	J. Sun, X. Yao, Y. Li, Q. Zhang, C. Hou et al., Composite solid electrolytes: facilitating interfacial stability via bilayer heterostructure solid electrolyte toward high-energy, safe and adaptable lithium batteries. Adv. Energy Mater. 10, 2070131 (2020). https://doi.org/10.1002/aenm.202070131
136.	Y. Liu, Y. Xu, Y. Zhang, C. Yu, X. Sun, Thin Li_1.3Al_0.3Ti_1.7(PO₄)₃-based composite solid electrolyte with a reinforced interface of in situ formed poly(1, 3-dioxolane) for lithium metal batteries. J. Colloid Interface Sci. 644, 53-63 (2023). https://doi.org/10.1016/j.jcis.2023.03.182
137.	D. Chen, M. Zhu, P. Kang, T. Zhu, H. Yuan et al., Self-enhancing gel polymer electrolyte by in situ construction for enabling safe lithium metal battery. Adv. Sci. 9, e2103663 (2022). https://doi.org/10.1002/advs.202103663
138.	Y. Li, W. Zhang, Q. Dou, K.W. Wong, K.M. Ng, Li₇La₃Zr₂O₁₂ ceramic nanofiber-incorporated composite polymer electrolytes for lithium metal batteries. J. Mater. Chem. A 7, 3391-3398 (2019). https://doi.org/10.1039/C8TA11449H
139.	Z. Shen, J. Zhong, J. Chen, W. Xie, K. Yang et al., SiO₂ nanofiber composite gel polymer electrolyte by in situ polymerization for stable Li metal batteries. Chin. Chemical Lett. 34, 107370 (2023). https://doi.org/10.1016/j.cclet.2022.03.093
140.	D. Lin, W. Liu, Y. Liu, H.R. Lee, P.C. Hsu et al., High ionic conductivity of composite solid polymer electrolyte via in situ synthesis of monodispersed SiO₂ nanospheres in poly(ethylene oxide). Nano Lett. 16, 459-465 (2016). https://doi.org/10.1021/acs.nanolett.5b04117
141.	Y.-Y. Lin, Y.-M. Chen, S.-S. Hou, J.-S. Jan, Y.-L. Lee et al., Diode-like gel polymer electrolytes for full-cell lithium ion batteries. J. Mater. Chem. A 5, 17476-17481 (2017). https://doi.org/10.1039/C7TA04886F
142.	L.-H. Chen, Z.-Y. Huang, S.-L. Chen, R.-A. Tong, H.-L. Wang et al., In situ polymerization of 1, 3-dioxolane infiltrating 3D garnet framework with high ionic conductivity and excellent interfacial stability for integrated solid-state Li metal battery. Rare Met. 41, 3694-3705 (2022). https://doi.org/10.1007/s12598-022-02080-4
143.	H. Huo, Y. Chen, J. Luo, X. Yang, X. Guo et al., Rational design of hierarchical “ceramic-in-polymer” and “polymer-in-ceramic” electrolytes for dendrite-free solid-state batteries. Adv. Energy Mater. 9, 1804004 (2019). https://doi.org/10.1002/aenm.201804004
144.	H. Liang, L. Wang, A. Wang, Y. Song, Y. Wu et al., Tailoring practically accessible polymer/inorganic composite electrolytes for all-solid-state lithium metal batteries: a review. Nano-Micro Lett. 15, 42 (2023). https://doi.org/10.1007/s40820-022-00996-1
145.	Z. Wan, D. Lei, W. Yang, C. Liu, K. Shi et al., All-solid-state batteries: low resistance-integrated all-solid-state battery achieved by Li₇La₃Zr₂O₁₂ nanowire upgrading polyethylene oxide (PEO) composite electrolyte and PEO cathode binder. Adv. Funct. Mater. 29, 1970006 (2019). https://doi.org/10.1002/adfm.201970006
146.	X. Zhang, S. Wang, C. Xue, C. Xin, Y. Lin et al., Self-suppression of lithium dendrite in all-solid-state lithium metal batteries with poly(vinylidene difluoride)-based solid electrolytes. Adv. Mater. 31, e1806082 (2019). https://doi.org/10.1002/adma.201806082
147.	Z. Zou, Y. Li, Z. Lu, D. Wang, Y. Cui et al., Mobile ions in composite solids. Chem. Rev. 120, 4169-4221 (2020). https://doi.org/10.1021/acs.chemrev.9b00760
148.	L. Han, C. Liao, X. Mu, N. Wu, Z. Xu et al., Flame-retardant ADP/PEO solid polymer electrolyte for dendrite-free and long-life lithium battery by generating Al P-rich SEI layer. Nano Lett. 21, 4447-4453 (2021). https://doi.org/10.1021/acs.nanolett.1c01137
149.	B. Xu, X. Li, C. Yang, Y. Li, N.S. Grundish et al., Interfacial chemistry enables stable cycling of all-solid-state Li metal batteries at high current densities. J. Am. Chem. Soc. 143, 6542-6550 (2021). https://doi.org/10.1021/jacs.1c00752
150.	W. Liu, D. Lin, J. Sun, G. Zhou, Y. Cui, Improved lithium ionic conductivity in composite polymer electrolytes with oxide-ion conducting nanowires. ACS Nano 10, 11407-11413 (2016). https://doi.org/10.1021/acsnano.6b06797
151.	N.W. Utomo, Y. Deng, Q. Zhao, X. Liu, L.A. Archer, Structure and evolution of quasi-solid-state hybrid electrolytes formed inside electrochemical cells. Adv. Mater. 34, e2110333 (2022). https://doi.org/10.1002/adma.202110333
152.	S. Huo, L. Sheng, W. Xue, L. Wang, H. Xu et al., Challenges of polymer electrolyte with wide electrochemical window for high energy solid-state lithium batteries. InfoMat 5, e12394 (2023). https://doi.org/10.1002/inf2.12394
153.	S. Xue, S. Yao, M. Jing, L. Zhu, X. Shen et al., Three-dimension ivy-structured MoS₂ nanoflakes-embedded nitrogen doped carbon nanofibers composite membrane as free-standing electrodes for Li/polysulfides batteries. Electrochim. Acta 299, 549-559 (2019). https://doi.org/10.1016/j.electacta.2019.01.044
154.	S. Li, S. Pang, X. Wu, X. Qian, S. Yao et al., Improve redox activity and cycling stability of the lithium-sulfur batteries via in situ formation of a sponge-like separator modification layer. Int. J. Energy Res. 44, 4933-4943 (2020). https://doi.org/10.1002/er.5201
155.	B. Deng, M.-X. Jing, R. Li, L.-X. Li, H. Yang et al., Integrating high ionic conductive PDOL solid/gel composite electrolyte for enhancement of interface combination and lithium dentrite inhibition of solid-state lithium battery. J. Colloid Interface Sci. 620, 199-208 (2022). https://doi.org/10.1016/j.jcis.2022.04.008
156.	Z. Zhuang, Y. Tang, B. Ju, F. Tu, In situ synthesis of graphitic C₃N₄-poly(1, 3-dioxolane) composite interlayers for stable lithium metal anodes. Sustain. Energy Fuels 5, 2433-2440 (2021). https://doi.org/10.1039/D1SE00212K
157.	X. Wang, X. Shen, P. Zhang, A.-J. Zhou, J.-B. Zhao, Promoted Li+ conduction in PEO-based all-solid-state electrolyte by hydroxyl-modified glass fiber fillers. Rare Met. 42, 875-884 (2023). https://doi.org/10.1007/s12598-022-02218-4
158.	P. Yao, B. Zhu, H. Zhai, X. Liao, Y. Zhu et al., PVDF/palygorskite nanowire composite electrolyte for 4 V rechargeable lithium batteries with high energy density. Nano Lett. 18, 6113-6120 (2018). https://doi.org/10.1021/acs.nanolett.8b01421
159.	J. Wu, T. Zhou, B. Zhong, Q. Wang, W. Liu et al., Designing anion-derived solid electrolyte interphase in a siloxane-based electrolyte for lithium-metal batteries. ACS Appl. Mater. Interfaces 14, 27873-27881 (2022). https://doi.org/10.1021/acsami.2c05098
160.	J. Fu, X. Ji, J. Chen, L. Chen, X. Fan et al., Lithium nitrate regulated sulfone electrolytes for lithium metal batteries. Angew. Chem. Int. Ed. 59, 22194-22201 (2020). https://doi.org/10.1002/anie.202009575
161.	F. Chen, M.-X. Jing, H. Yang, W.-Y. Yuan, M.-Q. Liu et al., Improved ionic conductivity and Li dendrite suppression of PVDF-based solid electrolyte membrane by LLZO incorporation and mechanical reinforcement. Ionics 27, 1101-1111 (2021). https://doi.org/10.1007/s11581-020-03891-0
162.	J. Li, L. Zhu, J. Zhang, M. Jing, S. Yao et al., Approaching high performancePVDF-HFPbased solid composite electrolytes withLLTOnanorods for solid-state lithium-ion batteries. Int. J. Energy Res. 45, 7663-7674 (2021). https://doi.org/10.1002/er.6347
163.	W.-W. Shao, J.-X. Li, L. Zhong, H.-F. Wu, M.-Q. Liu et al., A high ion conductive solid electrolyte film and interface stabilization strategy for solid-state Li-S battery. Colloids Surf. A Physicochem. Eng. Aspects 679, 132593 (2023). https://doi.org/10.1016/j.colsurfa.2023.132593
164.	L. Han, L. Wang, Z. Chen, Y. Kan, Y. Hu et al., Incombustible polymer electrolyte boosting safety of solid-state lithium batteries: a review. Adv. Funct. Mater. 33, 2300892 (2023). https://doi.org/10.1002/adfm.202300892
165.	C.-B. Jin, N. Yao, Y. Xiao, J. Xie, Z. Li et al., Taming solvent-solute interaction accelerates interfacial kinetics in low-temperature lithium-metal batteries. Adv. Mater. 35, 2208340 (2023). https://doi.org/10.1002/adma.202208340
166.	J. Zhou, H. Ji, Y. Qian, J. Liu, T. Yan et al., Molecular simulations guided polymer electrolyte towards superior low-temperature solid lithium-metal batteries. ACS Appl. Mater. Interfaces 13, 48810-48817 (2021). https://doi.org/10.1021/acsami.1c14825
167.	L.E. Camacho-Forero, P.B. Balbuena, Effects of charged interfaces on electrolyte decomposition at the lithium metal anode. J. Power. Sources 472, 228449 (2020). https://doi.org/10.1016/j.jpowsour.2020.228449
168.	F. Liu, T. Li, Y. Yang, J. Yan, N. Li et al., Investigation on the copolymer electrolyte of poly(1, 3-dioxolane-co-formaldehyde). Macromol. Rapid Commun. 41, e2000047 (2020). https://doi.org/10.1002/marc.202000047
169.	Y. Du, L. Zhao, C. Xiong, Z. Sun, S. Liu et al., Ameliorating structural and electrochemical properties of traditional poly-dioxolane electrolytes via integrated design of ultra-stable network for solid-state batteries. Energy Storage Mater. 56, 310-318 (2023). https://doi.org/10.1016/j.ensm.2023.01.017
170.	J. Cui, Y. Du, L. Zhao, X. Li, Z. Sun et al., Thermal stable poly-dioxolane based electrolytes via a robust crosslinked network for dendrite-free solid-state li-metal batteries. Chem. Eng. J. 461, 141973 (2023). https://doi.org/10.1016/j.cej.2023.141973
171.	D.F. Miranda, C. Versek, M.T. Tuominen, T.P. Russell, J.J. Watkins, Cross-linked Block copolymer/ionic liquid self-assembled blends for polymer gel electrolytes with high ionic conductivity and mechanical strength. Macromolecules 46, 9313-9323 (2013). https://doi.org/10.1021/ma401302r
172.	S. Chen, B. Chen, J. Fan, J. Feng, Exploring the application of sustainable poly(propylene carbonate) copolymer in toughening epoxy thermosets. ACS Sustain. Chem. Eng. 3, 2077-2083 (2015). https://doi.org/10.1021/acssuschemeng.5b00343
173.	J. Qin, W. Luo, M. Li, P. Chen, S. Wang et al., A novel multiblock copolymer of CO₂-based PPC-mb-PBS: from simulation to experiment. ACS Sustain. Chem. Eng. 5, 5922-5930 (2017). https://doi.org/10.1021/acssuschemeng.7b00634
174.	J.H. Han, J.Y. Lee, D.H. Suh, Y.T. Hong, T.-H. Kim, Electrode-impregnable and cross-linkable poly(ethylene oxide)-poly(propylene oxide)-poly(ethylene oxide) triblock polymer electrolytes with high ionic conductivity and a large voltage window for flexible solid-state supercapacitors. ACS Appl. Mater. Interfaces 9, 33913-33924 (2017). https://doi.org/10.1021/acsami.7b09909

[1]	DONG Qian (董钱), GUO Liqiang(郭立强), WANG Weilin (王伟琳), CHENG Guanggui (程广贵). Low Voltage Indium-Oxide-Zinc Thin Film Transistor Gated by KH550 Solid Electrolyte [J]. J Shanghai Jiaotong Univ Sci, 2023, 28(2): 186-191.
[2]	SHAO Wen-jing. Application of Thickness Tolerance [J]. Ocean Engineering Equipment and Technology, 2018, 5(增刊): 182-185.
[3]	Zerui Chen, Wei Zhao, Qian Liu, Yifei Xu, Qinghe Wang, Jinmin Lin, Hao Bin Wu. Janus Quasi-Solid Electrolyte Membranes with Asymmetric Porous Structure for High-Performance Lithium-Metal Batteries [J]. Nano-Micro Letters, 2024, 16(1): 114-.

Please choose a citation manager

Content to export
