Kinetic-Thermodynamic Promotion Engineering toward High-Density Hierarchical and Zn-Doping Activity-Enhancing ZnNiO@CF for High-Capacity Desalination

doi:10.1007/s40820-024-01371-y

Abstract

Abstract:

Despite the promising potential of transition metal oxides (TMOs) as capacitive deionization (CDI) electrodes, the actual capacity of TMOs electrodes for sodium storage is significantly lower than the theoretical capacity, posing a major obstacle. Herein, we prepared the kinetically favorable Zn_xNi_1 − xO electrode in situ growth on carbon felt (Zn_xNi_1 − xO@CF) through constraining the rate of OH⁻ generation in the hydrothermal method. Zn_xNi_1 − xO@CF exhibited a high-density hierarchical nanosheet structure with three-dimensional open pores, benefitting the ion transport/electron transfer. And tuning the moderate amount of redox-inert Zn-doping can enhance surface electroactive sites, actual activity of redox-active Ni species, and lower adsorption energy, promoting the adsorption kinetic and thermodynamic of the Zn_0.2Ni_0.8O@CF. Benefitting from the kinetic-thermodynamic facilitation mechanism, Zn_0.2Ni_0.8O@CF achieved ultrahigh desalination capacity (128.9 mg_NaCl g⁻¹), ultra-low energy consumption (0.164 kW h kg_NaCl⁻¹), high salt removal rate (1.21 mg_NaCl g⁻¹ min⁻¹), and good cyclability. The thermodynamic facilitation and Na⁺ intercalation mechanism of Zn_0.2Ni_0.8O@CF are identified by the density functional theory calculations and electrochemical quartz crystal microbalance with dissipation monitoring, respectively. This research provides new insights into controlling electrochemically favorable morphology and demonstrates that Zn-doping, which is redox-inert, is essential for enhancing the electrochemical performance of CDI electrodes.

Key words: Zinc-nickel metal oxide, High-density hierarchical, Capacitive deionization, Zinc-doping

Jie Ma, Siyang Xing, Yabo Wang, Jinhu Yang, Fei Yu. Kinetic-Thermodynamic Promotion Engineering toward High-Density Hierarchical and Zn-Doping Activity-Enhancing ZnNiO@CF for High-Capacity Desalination[J]. Nano-Micro Letters, 2024, 16(1): 143-.

Jie Ma, Siyang Xing, Yabo Wang, Jinhu Yang, Fei Yu. [J]. Nano-Micro Letters, 2024, 16(1): 143-.

/ / Recommend / Download Citations

URL: https://www.qk.sjtu.edu.cn/nml/EN/10.1007/s40820-024-01371-y

https://www.qk.sjtu.edu.cn/nml/EN/Y2024/V16/I1/143

Figures/Tables 5

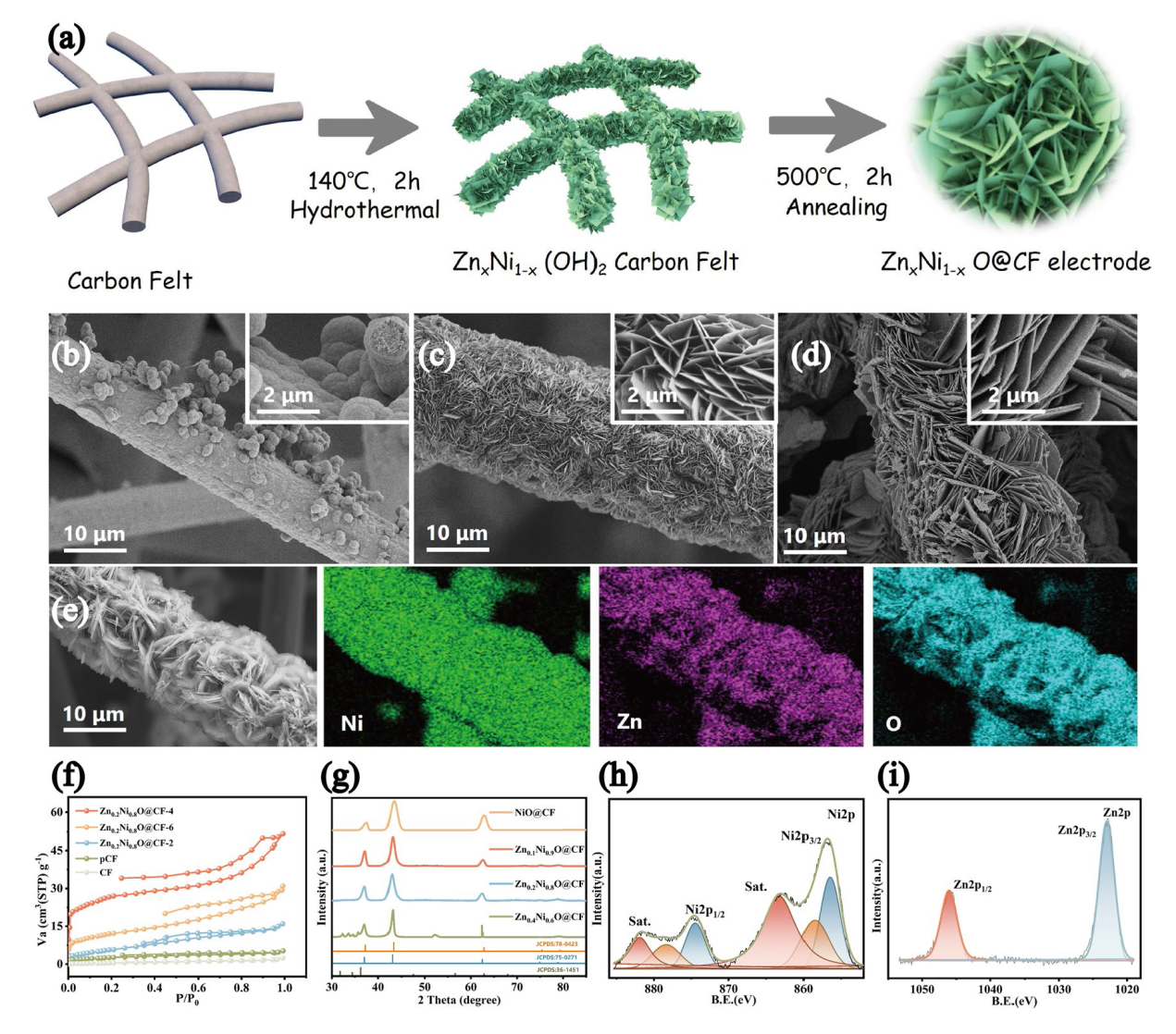

Fig. 1 a Schematic illustration of the layer Zn_xNi_1 − xO@CF preparation. SEM of the b Zn_0.2Ni_0.8O@CF-2, c Zn_0.2Ni_0.8O@CF-4 and d Zn_0.2Ni_0.8O@CF-6. e EDS mapping image of Zn_0.2Ni_0.8O@CF-4, f N₂ adsorption/desorption isotherms and g XRD patterns of Zn_xNi_1 − xO@CF with different Zn-doping. XPS spectrum of Ni 2p h and Zn 2p i for Zn_0.2Ni_0.8O@CF

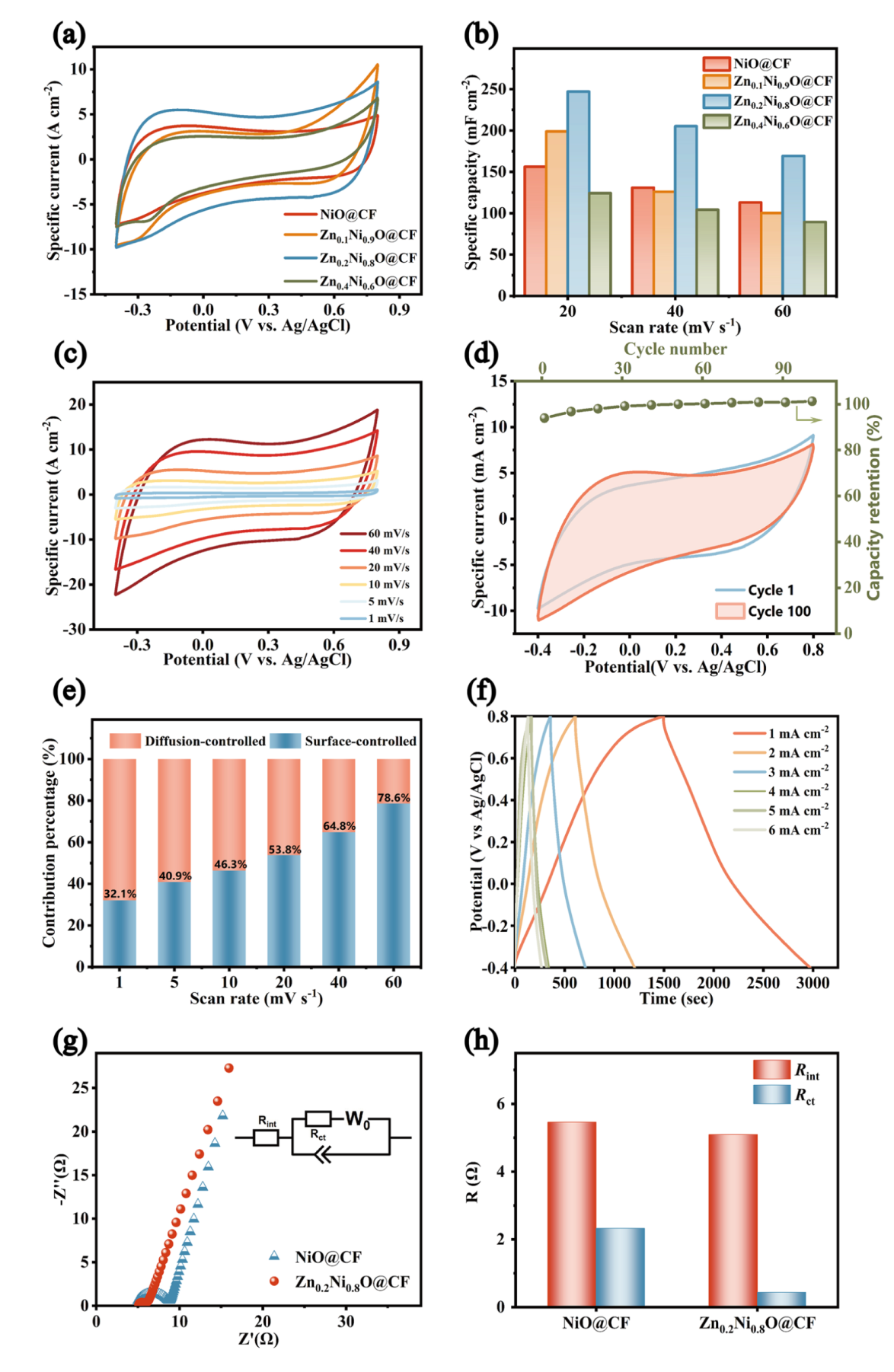

Fig. 2 a CV curves of NiO@CF, Zn_0.1Ni_0.9O@CF, Zn_0.2Ni_0.8O@CF and Zn_0.4Ni_0.6O@CF and b specific capacity of various scan rates. c CV curves of Zn_0.2Ni_0.8O@CF measured at different scan rates and d after 100 cycles at 10 mV s⁻¹. e Normalized contribution ratios of surface-/diffusion-controlled capacities and f GCD profiles of Zn_0.2Ni_0.8O@CF. g Nyquist plots and h simulated internal and charge transfer resistance of NiO@CF and Zn_0.2Ni_0.8O@CF

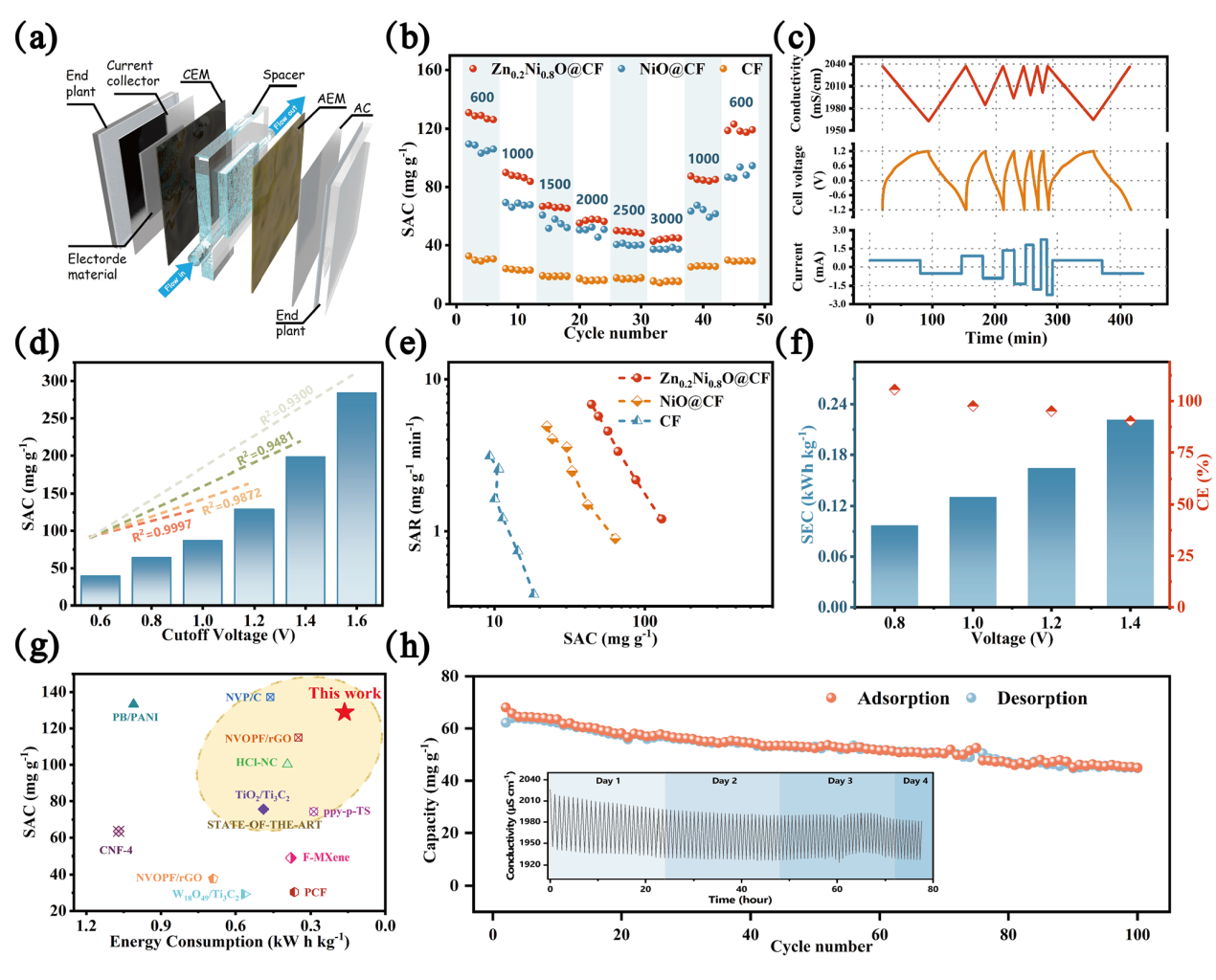

Fig. 3 a Schematic diagram of CDI process. b SAC of Zn_0.2Ni_0.8O, NiO and CF electrodes at different current densities. c The profiles of the conductivity, voltage, and current at various specific current. d SAC of Zn_0.2Ni_0.8O at different cut-off voltages. e Ragone plots of various electrodes. f CE and SEC of Zn_0.2Ni_0.8O. g Comparison of SAC and SEC between Zn_0.2Ni_0.8O and other state-of-the-art materials. h Cycling and regeneration performance of Zn_0.2Ni_0.8O at 1500 mA m⁻² over 100 cycles. Inset is the real-time conductivity and voltage profiles

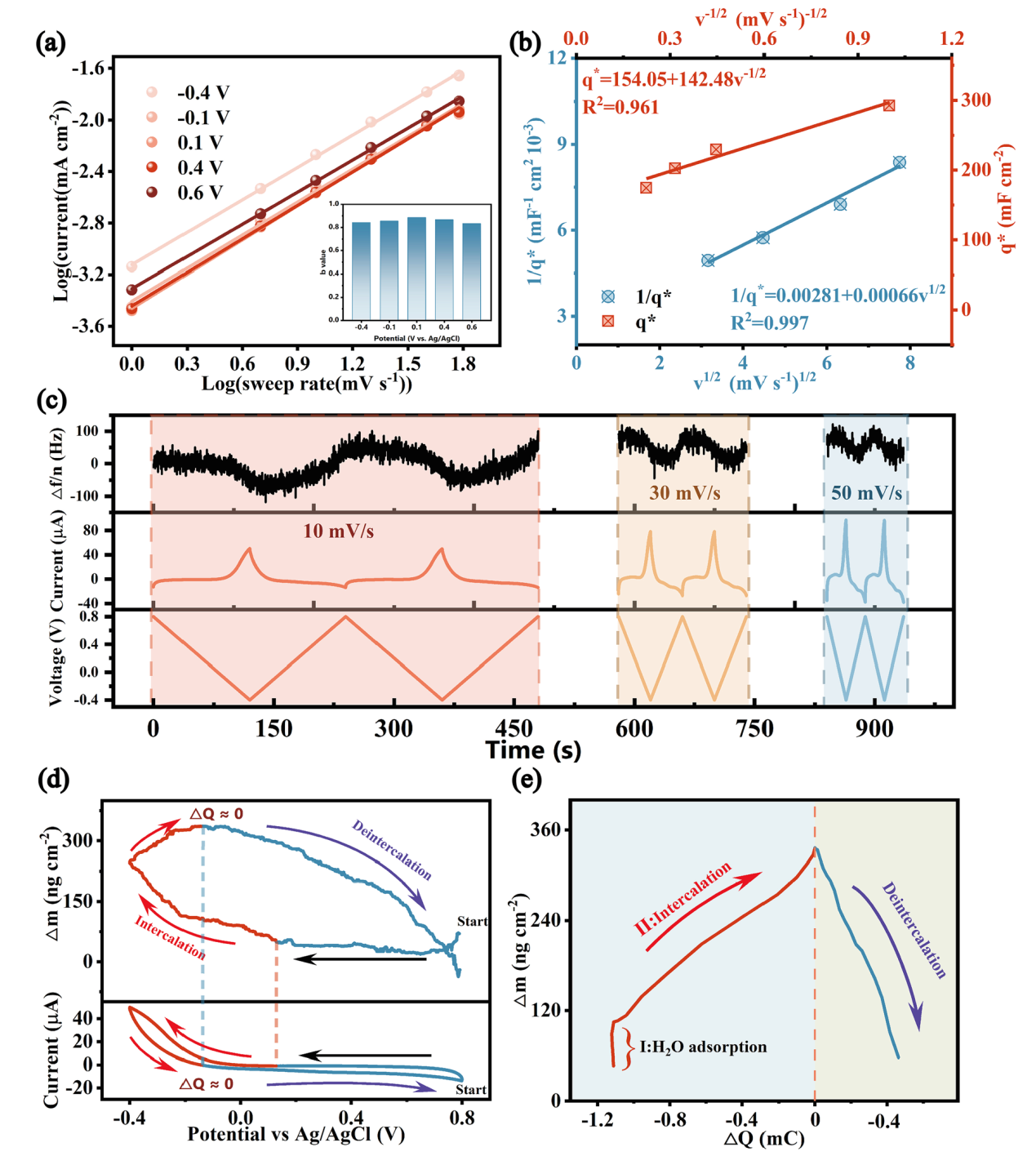

Fig. 4 a Calculation of b-values of Zn_0.2Ni_0.8O based on CV curves. b The relationship between 1/q^∗ and v^1/2 and between q^∗ and v^−1/2. c △f/5 responses of Zn_0.2Ni_0.8O from EQCM-D during CV at different scan rates. The simultaneous d mass change and current response and e change in electrode mass versus charge passed during Zn_0.2Ni_0.8O electrode adsorption/desorption processes at 10 mV s⁻¹ between − 0.4 ~ 0.8 V. Blue region highlights the process of adsorption and yellow highlights the process of desorption

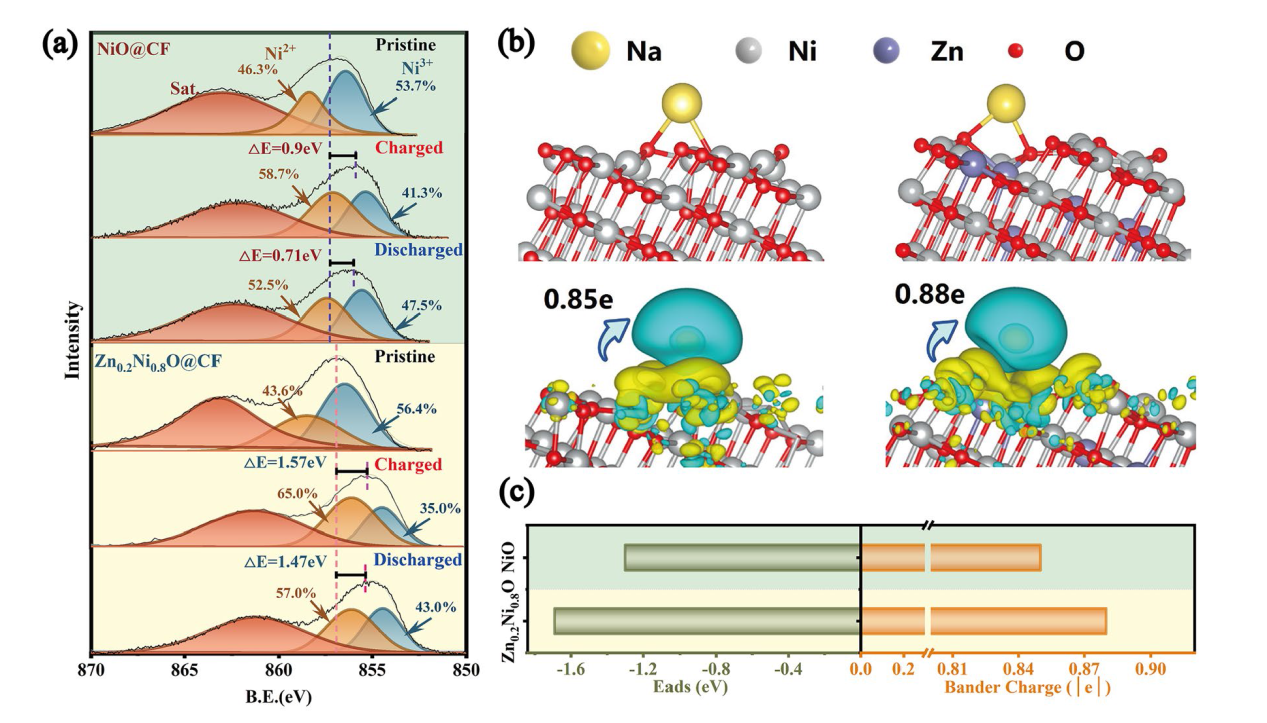

Fig. 5 a Ex situ XPS spectra/data of Ni 2p_3/2 of NiO and Zn_0.2Ni_0.8O electrodes in original states and in completely adsorption/desorption states after the third desalination cycle at ± 1.4 V at 1000 mA cm⁻². b Side view of relaxed adsorption configurations for corresponding E_ads for Na⁺ on NiO and Zn_0.2Ni_0.8O with (225) surfaces, along with the Bader charge and difference charge density analysis. c E_ads and Bader charge for single Na⁺ analysis of the electrodes

References 85

1.	M. Metzger, M.M. Besli, S. Kuppan, S. Hellstrom, S. Kim et al., Techno-economic analysis of capacitive and intercalative water deionization. Energy Environ. Sci. 13, 1544-1560 (2020). https://doi.org/10.1039/D0EE00725K
2.	P. Srimuk, X. Su, J. Yoon, D. Aurbach, V. Presser, Charge-transfer materials for electrochemical water desalination, ion separation and the recovery of elements. Nat. Rev. Mater. 5, 517-538 (2020). https://doi.org/10.1038/s41578-020-0193-1
3.	C. Chen, C.-S. Lee, Y. Tang, Fundamental understanding and optimization strategies for dual-ion batteries: a review. Nano-Micro Lett. 15, 121 (2023). https://doi.org/10.1007/s40820-023-01086-6
4.	X. Zhao, H. Wei, H. Zhao, Y. Wang, N. Tang, Electrode materials for capacitive deionization: a review. J. Electroanal. Chem. 873, 114416 (2020). https://doi.org/10.1016/j.jelechem.2020.114416
5.	W. Tang, D. He, C. Zhang, P. Kovalsky, T.D. Waite, Comparison of Faradaic reactions in capacitive deionization (CDI) and membrane capacitive deionization (MCDI) water treatment processes. Water Res. 120, 229-237 (2017). https://doi.org/10.1016/j.watres.2017.05.009
6.	J. Lee, S. Kim, C. Kim, J. Yoon, Hybrid capacitive deionization to enhance the desalination performance of capacitive techniques. Energy Environ. Sci. 7, 3683-3689 (2014). https://doi.org/10.1039/C4EE02378A
7.	S. Porada, R. Zhao, A. van der Wal, V. Presser, P.M. Biesheuvel, Review on the science and technology of water desalination by capacitive deionization. Prog. Mater. Sci. 58, 1388-1442 (2013). https://doi.org/10.1016/j.pmatsci.2013.03.005
8.	Y. Jiang, L. Chai, D. Zhang, F. Ouyang, X. Zhou et al., Facet-controlled LiMn₂O₄/C as deionization electrode with enhanced stability and high desalination performance. Nano-Micro Lett. 14, 176 (2022). https://doi.org/10.1007/s40820-022-00897-3
9.	Z. Liu, H. Li, Exploration of the exceptional capacitive deionization performance of CoMn₂O₄ microspheres electrode. Energy Environ. Mater. 6, 12255 (2023). https://doi.org/10.1002/eem2.12255
10.	S. Wang, G. Wang, T. Wu, C. Li, Y. Wang et al., Membrane-free hybrid capacitive deionization system based on redox reaction for high-efficiency NaCl removal. Environ. Sci. Technol. 53, 6292-6301 (2019). https://doi.org/10.1021/acs.est.9b00662
11.	J. Ma, Y. Xiong, X. Dai, F. Yu, Zinc spinel ferrite nanoparticles as a pseudocapacitive electrode with ultrahigh desalination capacity and long-term stability. Environ. Sci. Technol. Lett. 7, 118-125 (2020). https://doi.org/10.1021/acs.estlett.0c00027
12.	M. Liang, X. Bai, F. Yu, J. Ma, A confinement strategy to in situ prepare a peanut-like N-doped, C-wrapped TiO₂ electrode with an enhanced desalination capacity and rate for capacitive deionization. Nano Res. 14, 684-691 (2021). https://doi.org/10.1007/s12274-020-3097-x
13.	F. Yu, H. Yin, X. Bai, J. Pan, X. Zhang et al., Cu@Cu₂O/carbon for efficient desalination in capacitive deionization. Chin. Chem. Lett. 34, 108362 (2023). https://doi.org/10.1016/j.cclet.2023.108362
14.	X. Zhang, E.A. Toledo-Carrillo, D. Yu, J. Dutta, Effect of surface charge on the fabrication of hierarchical Mn-based Prussian blue analogue for capacitive desalination. ACS Appl. Mater. Interfaces 14, 40371-40381 (2022). https://doi.org/10.1021/acsami.2c08192
15.	W. Shi, X. Liu, T. Deng, S. Huang, M. Ding et al., Enabling superior sodium capture for efficient water desalination by a tubular polyaniline decorated with Prussian blue nanocrystals. Adv. Mater. 32, 1907404 (2020). https://doi.org/10.1002/adma.201907404
16.	J. Guo, Y. Wang, Y. Cai, H. Zhang, Y. Li et al., Ni-doping Cu-Prussian blue analogue/carbon nanotubes composite (Ni-CuPBA/CNTs) with 3D electronic channel-rich network structure for capacitive deionization. Desalination 528, 115622 (2022). https://doi.org/10.1016/j.desal.2022.115622
17.	J. Cao, Y. Wang, L. Wang, F. Yu, J. Ma, Na₃V₂(PO₄)₃@C as faradaic electrodes in capacitive deionization for high-performance desalination. Nano Lett. 19, 823-828 (2019). https://doi.org/10.1021/acs.nanolett.8b04006
18.	S. Xing, Y. Cheng, F. Yu, J. Ma, Na₃(VO)₂(PO₄)₂F nanocuboids/graphene hybrid materials as faradic electrode for extra-high desalination capacity. J. Colloid Interface Sci. 598, 511-518 (2021). https://doi.org/10.1016/j.jcis.2021.04.051
19.	J. Lei, Y. Xiong, F. Yu, J. Ma, Flexible self-supporting CoFe-LDH/MXene film as a chloride ions storage electrode in capacitive deionization. Chem. Eng. J. 437, 135381 (2022). https://doi.org/10.1016/j.cej.2022.135381
20.	M. Liang, L. Wang, V. Presser, X. Dai, F. Yu et al., Combining battery-type and pseudocapacitive charge storage in Ag/Ti₃ C₂ t_x MXene electrode for capturing chloride ions with high capacitance and fast ion transport. Adv. Sci. 7, e2000621 (2020). https://doi.org/10.1002/advs.202000621
21.	X. Shen, Y. Xiong, R. Hai, F. Yu, J. Ma, All-MXene-based integrated membrane electrode constructed using Ti₃C₂T_x as an intercalating agent for high-performance desalination. Environ. Sci. Technol. 54, 4554-4563 (2020). https://doi.org/10.1021/acs.est.9b05759
22.	J. Zhang, J. Wang, F. Zhu, P. Mao, Z. Wu et al., Dispersing bentonite by electron beam irradiation and its adsorption performance of Cr(VI) in the aqueous solution. Water Air Soil Pollut. 233, 503 (2022). https://doi.org/10.1007/s11270-022-05980-4
23.	Y. Xiong, F. Yu, S. Arnold, L. Wang, V. Presser et al., Three-dimensional cobalt hydroxide hollow cube/vertical nanosheets with high desalination capacity and long-term performance stability in capacitive deionization. Research 2021, 9754145 (2021). https://doi.org/10.34133/2021/9754145
24.	F. Yu, L. Wang, Y. Wang, X. Shen, Y. Cheng et al., Faradaic reactions in capacitive deionization for desalination and ion separation. J. Mater. Chem. A 7, 15999-16027 (2019). https://doi.org/10.1039/C9TA01264H
25.	X. He, Fundamental perspectives on the electrochemical water applications of metal-organic frameworks. Nano-Micro Lett. 15, 148 (2023). https://doi.org/10.1007/s40820-023-01124-3
26.	Y. Li, J. Jiao, Q. Wu, Q. Song, W. Xie et al., Environmental applications of graphene oxide composite membranes. Chin. Chem. Lett. 33, 5001-5012 (2022). https://doi.org/10.1016/j.cclet.2022.01.034
27.	S. Chen, Q. Wen, Y. Zhu, Y. Ji, Y. Pu et al., Boron-promoted reductive deoxygenation coupling reaction of sulfonyl chlorides for the C(sp3)-S bond construction. Chin. Chem. Lett. 33, 5101-5105 (2022). https://doi.org/10.1016/j.cclet.2022.04.022
28.	X. Cai, J. Du, G. Zhong, Y. Zhang, L. Mao et al., Constructing a CeO₂/Zn_xCd_1-xIn₂S₄ S-scheme hollow heterostructure for efficient photocatalytic H₂ evolution. Acta Phys. Chim. Sin. (2023). https://doi.org/10.3866/pku.whxb202302017
29.	Y. Chen, C. Chen, X. Cao, Z. Wang, N. Zhang et al., Recent advances in defect and interface engineering for electroreduction of CO₂ and N₂. Acta Phys. Chim. Sin. (2023). https://doi.org/10.3866/pku.whxb202212053
30.	W. Jiang, H. Jiang, W. Liu, X. Guan, Y. Li et al., Pickering emulsion templated proteinaceous microsphere with bio-stimuli responsiveness. Acta Phys. Chim. Sin. (2023). https://doi.org/10.3866/pku.whxb202301041
31.	X. Wang, Y. Cheng, G. Xue, Z. Zhou, M. Zhao et al., Giant enhancement of optical second harmonic generation in hollow-core fiber integrated with GaSe nanoflakes. Acta Phys. Chim. Sin. (2023). https://doi.org/10.3866/pku.whxb202212028
32.	Y. Xiong, F. Yu, J. Ma, Research progress in chlorine ion removal electrodes for desalination by capacitive deionization. Acta Phys. Chim. Sin. 38, 2006037 (2020). https://doi.org/10.3866/pku.whxb202006037
33.	J. Mou, L. Chen, J. Fan, L. Zeng, X. Jiang et al., Construction of a highly active Rh/CeO₂-ZrO₂-Al₂O₃ catalyst based on Rh micro-chemical state regulation and its three-way catalytic activity. Acta Phys. Chim. Sin. 39, 2302041 (2023). https://doi.org/10.3866/pku.whxb202302041
34.	N. Yabuuchi, K. Kubota, M. Dahbi, S. Komaba, Research development on sodium-ion batteries. Chem. Rev. 114, 11636-11682 (2014). https://doi.org/10.1021/cr500192f
35.	S.P. Ong, V.L. Chevrier, G. Hautier, A. Jain, C. Moore et al., Voltage, stability and diffusion barrier differences between sodium-ion and lithium-ion intercalation materials. Energy Environ. Sci. 4, 3680-3688 (2011). https://doi.org/10.1039/C1EE01782A
36.	A. Ali, M. Ammar, A. Mukhtar, T. Ahmed, M. Ali et al., 3D NiO nanowires@NiO nanosheets core-shell structures grown on nickel foam for high performance supercapacitor electrode. J. Electroanal. Chem. 857, 113710 (2020). https://doi.org/10.1016/j.jelechem.2019.113710
37.	B. Gnana Sundara Raj et al., Pseudocapacitive properties of nickel oxide nanoparticles synthesized via ultrasonication approach. Ionics 26, 953-960 (2020). https://doi.org/10.1007/s11581-019-03236-6
38.	C. Yuan, X. Zhang, L. Su, B. Gao, L. Shen, Facile synthesis and self-assembly of hierarchical porous NiO nano/micro spherical superstructures for high performance supercapacitors. J. Mater. Chem. 19, 5772-5777 (2009). https://doi.org/10.1039/B902221J
39.	L. Fang, C. Wang, L. Huangfu, N. Bahlawane, H. Tian et al., Enabling full conversion reaction with high reversibility to approach theoretical capacity for sodium storage. Adv. Funct. Mater. 29, 1906680 (2019). https://doi.org/10.1002/adfm.201906680
40.	L. Fang, Z. Lan, W. Guan, P. Zhou, N. Bahlawane et al., Hetero-interface constructs ion reservoir to enhance conversion reaction kinetics for sodium/lithium storage. Energy Storage Mater. 18, 107-113 (2019). https://doi.org/10.1016/j.ensm.2018.10.002
41.	X. Xiong, C. Yang, G. Wang, Y. Lin, X. Ou et al., SnS nanoparticles electrostatically anchored on three-dimensional N-doped graphene as an active and durable anode for sodium-ion batteries. Energy Environ. Sci. 10, 1757-1763 (2017). https://doi.org/10.1039/C7EE01628J
42.	M. Okubo, E. Hosono, J. Kim, M. Enomoto, N. Kojima et al., Nanosize effect on high-rate Li-ion intercalation in LiCoO₂ electrode. J. Am. Chem. Soc. 129, 7444-7452 (2007). https://doi.org/10.1021/ja0681927
43.	P. Simon, Y. Gogotsi, B. Dunn, Where do batteries end and supercapacitors begin? Science 343, 1210-1211 (2014). https://doi.org/10.1126/science.1249625
44.	S. Wang, Y. Zou, F. Xu, C. Xiang, H. Peng et al., Morphological control and electrochemical performance of NiCo₂O₄@NiCo layered double hydroxide as an electrode for supercapacitors. J. Energy Storage 41, 102862 (2021). https://doi.org/10.1016/j.est.2021.102862
45.	J.A. Dawson, M.S. Islam, A nanoscale design approach for enhancing the Li-ion conductivity of the Li₁₀GeP₂S₁₂ solid electrolyte. ACS Mater. Lett. 4, 424-431 (2022). https://doi.org/10.1021/acsmaterialslett.1c00766
46.	Z. Jia, R. Ding, W. Yu, Y. Li, A. Wang et al., Unraveling the charge storage and activity-enhancing mechanisms of Zn-doping perovskite fluorides and engineering the electrodes and electrolytes for wide-temperature aqueous supercabatteries. Adv. Funct. Mater. 32, 2107674 (2022). https://doi.org/10.1002/adfm.202107674
47.	S. Cao, Y. Li, Y. Tang, Y. Sun, W. Li et al., Space-confined metal ion strategy for carbon materials derived from cobalt benzimidazole frameworks with high desalination performance in simulated seawater. Adv. Mater. 35, e2301011 (2023). https://doi.org/10.1002/adma.202301011
48.	H. Zhou, G. Zhu, S. Dong, P. Liu, Y. Lu et al., Ethanol-induced Ni²⁺-intercalated cobalt organic frameworks on vanadium pentoxide for synergistically enhancing the performance of 3D-printed micro-supercapacitors. Adv. Mater. 35, e2211523 (2023). https://doi.org/10.1002/adma.202211523
49.	X.-T. Wang, T. Ouyang, L. Wang, J.-H. Zhong, Z.-Q. Liu, Surface reorganization on electrochemically-induced Zn-Ni-co spinel oxides for enhanced oxygen electrocatalysis. Angew. Chem. Int. Ed. 59, 6492-6499 (2020). https://doi.org/10.1002/anie.202000690
50.	X. Liu, Z. Chang, L. Luo, T. Xu, X. Lei et al., Hierarchical Zn_xCo_3-xO₄ nanoarrays with high activity for electrocatalytic oxygen evolution. Chem. Mater. 26, 1889-1895 (2014). https://doi.org/10.1021/cm4040903
51.	J. Li, Z. Liu, Q. Zhang, Y. Cheng, B. Zhao et al., Anion and cation substitution in transition-metal oxides nanosheets for high-performance hybrid supercapacitors. Nano Energy 57, 22-33 (2019). https://doi.org/10.1016/j.nanoen.2018.12.011
52.	Z. Li, M. Shao, L. Zhou, R. Zhang, C. Zhang et al., A flexible all-solid-state micro-supercapacitor based on hierarchical CuO@layered double hydroxide core-shell nanoarrays. Nano Energy 20, 294-304 (2016). https://doi.org/10.1016/j.nanoen.2015.12.030
53.	S.-I. Kim, J.-S. Lee, H.-J. Ahn, H.-K. Song, J.-H. Jang, Facile route to an efficient NiO supercapacitor with a three-dimensional nanonetwork morphology. ACS Appl. Mater. Interfaces 5, 1596-1603 (2013). https://doi.org/10.1021/am3021894
54.	X. Lou, C. Yuan, E. Rhoades, Q. Zhang, L. Archer, Encapsulation and Ostwald ripening of Au and Au-Cl complex nanostructures in silica shells. Adv. Funct. Mater. 16, 1679-1684 (2006). https://doi.org/10.1002/adfm.200500909
55.	C.-Y. Cao, W. Guo, Z.-M. Cui, W.-G. Song, W. Cai, Microwave-assisted gas/liquid interfacial synthesis of flowerlike NiO hollow nanosphere precursors and their application as supercapacitor electrodes. J. Mater. Chem. 21, 3204-3209 (2011). https://doi.org/10.1039/C0JM03749D
56.	T. Liu, J. Serrano, J. Elliott, X. Yang, W. Cathcart et al., Exceptional capacitive deionization rate and capacity by block copolymer-based porous carbon fibers. Sci. Adv. 6, 0906 (2020). https://doi.org/10.1126/sciadv.aaz0906
57.	X. Gong, S. Zhang, W. Luo, N. Guo, L. Wang et al., Enabling a large accessible surface area of a pore-designed hydrophilic carbon nanofiber fabric for ultrahigh capacitive deionization. ACS Appl. Mater. Interfaces 12, 49586-49595 (2020). https://doi.org/10.1021/acsami.0c13503
58.	H. Chen, L. Hu, M. Chen, Y. Yan, L. Wu, Nickel-cobalt layered double hydroxide nanosheets for high-performance supercapacitor electrode materials. Adv. Funct. Mater. 24, 934-942 (2014). https://doi.org/10.1002/adfm.201301747
59.	Q. Pan, F. Zheng, D. Deng, B. Chen, Y. Wang, Interlayer spacing regulation of NiCo-LDH nanosheets with ultrahigh specific capacity for battery-type supercapacitors. ACS Appl. Mater. Interfaces 13, 56692-56703 (2021). https://doi.org/10.1021/acsami.1c19320
60.	D. Li, S. Wang, G. Wang, C. Li, X. Che et al., Facile fabrication of NiCoAl-layered metal oxide/graphene nanosheets for efficient capacitive deionization defluorination. ACS Appl. Mater. Interfaces 11, 31200-31209 (2019). https://doi.org/10.1021/acsami.9b10307
61.	B. Peng, Y. Chen, F. Wang, Z. Sun, L. Zhao et al., Unusual site-selective doping in layered cathode strengthens electrostatic cohesion of alkali-metal layer for practicable sodium-ion full cell. Adv. Mater. 34, e2103210 (2022). https://doi.org/10.1002/adma.202103210
62.	Q. Yin, D. Rao, G. Zhang, Y. Zhao, J. Han et al., CoFe-Cl layered double hydroxide: a new cathode material for high-performance chloride ion batteries. Adv. Funct. Mater. 29, 1900983 (2019). https://doi.org/10.1002/adfm.201900983
63.	S. Fleischmann, J.B. Mitchell, R. Wang, C. Zhan, D.-E. Jiang et al., Pseudocapacitance: from fundamental understanding to high power energy storage materials. Chem. Rev. 120, 6738-6782 (2020). https://doi.org/10.1021/acs.chemrev.0c00170
64.	J. Ji, L.L. Zhang, H. Ji, Y. Li, X. Zhao et al., Nanoporous Ni(OH)₂ thin film on 3D Ultrathin-graphite foam for asymmetric supercapacitor. ACS Nano 7, 6237-6243 (2013). https://doi.org/10.1021/nn4021955
65.	X. Lu, D. Zheng, T. Zhai, Z. Liu, Y. Huang et al., Facile synthesis of large-area manganese oxide nanorod arrays as a high-performance electrochemical supercapacitor. Energy Environ. Sci. 4, 2915-2921 (2011). https://doi.org/10.1039/C1EE01338F
66.	J. Guo, X. Xu, J.P. Hill, L. Wang, J. Dang et al., Graphene-carbon 2D heterostructures with hierarchically-porous P, N-doped layered architecture for capacitive deionization. Chem. Sci. 12, 10334-10340 (2021). https://doi.org/10.1039/D1SC00915J
67.	B. Zhao, R. Wang, Y. Li, Y. Ren, X. Li et al., Dependence of electromagnetic interference shielding ability of conductive polymer composite foams with hydrophobic properties on cellular structure. J. Mater. Chem. C 8, 7401-7410 (2020). https://doi.org/10.1039/D0TC00987C
68.	M.E. Suss, S. Porada, X. Sun, P.M. Biesheuvel, J. Yoon et al., Water desalination via capacitive deionization: what is it and what can we expect from it? Energy Environ. Sci. 8, 2296-2319 (2015). https://doi.org/10.1039/C5EE00519A
69.	C. Zhang, D. Wang, Z. Wang, G. Zhang, Z. Liu et al., Boosting capacitive deionization performance of commercial carbon fibers cloth via structural regulation based on catalytic-etching effect. Energy Environ. Mater. 6, 12276 (2023). https://doi.org/10.1002/eem2.12276
70.	W. Lei, J. Liang, P. Tan, S. Yang, L. Fan et al., Preparation of edible starch nanomaterials for the separation of polyphenols from fruit pomace extract and determination of their adsorption properties. Int. J. Biol. Macromol. 222, 2054-2064 (2022). https://doi.org/10.1016/j.ijbiomac.2022.10.004
71.	R. Liu, Y. Wang, Y. Wu, X. Ye, W. Cai, Controllable synthesis of nickel-cobalt-doped Prussian blue analogs for capacitive desalination. Electrochim. Acta 442, 141815 (2023). https://doi.org/10.1016/j.electacta.2023.141815
72.	N. Liu, L. Yu, B. Liu, F. Yu, L. Li et al., Ti₃C₂-MXene partially derived hierarchical 1D/2D TiO₂/Ti₃C₂ heterostructure electrode for high-performance capacitive deionization. Adv. Sci. 10, 2204041 (2023). https://doi.org/10.1002/advs.202204041
73.	H.-Y. Huang, Y.-H. Tu, Y.-H. Yang, Y.-T. Lu, C.-C. Hu, Dopant-designed conducting polymers for constructing a high-performance, electrochemical deionization system achieving low energy consumption and long cycle life. Chem. Eng. J. 457, 141373 (2023). https://doi.org/10.1016/j.cej.2023.141373
74.	J. Liang, J. Yu, W. Xing, W. Tang, N. Tang et al., 3D interconnected network architectures assembled from W₁₈O₄₉ and Ti₃C₂ MXene with excellent electrochemical properties and CDI performance. Chem. Eng. J. 435, 134922 (2022). https://doi.org/10.1016/j.cej.2022.134922
75.	Z. Bo, Z. Huang, C. Xu, Y. Chen, E. Wu et al., Anion-kinetics-selective graphene anode and cation-energy-selective MXene cathode for high-performance capacitive deionization. Energy Storage Mater. 50, 395-406 (2022). https://doi.org/10.1016/j.ensm.2022.05.042
76.	Q. Li, X. Xu, J. Guo, J.P. Hill, H. Xu et al., Two-dimensional MXene-polymer heterostructure with ordered In-plane mesochannels for high-performance capacitive deionization. Angew. Chem. Int. Ed. 60, 26528-26534 (2021). https://doi.org/10.1002/anie.202111823
77.	A. Amiri, Y. Chen, C. Bee Teng, M. Naraghi, Porous nitrogen-doped MXene-based electrodes for capacitive deionization. Energy Storage Mater. 25, 731-739 (2020). https://doi.org/10.1016/j.ensm.2019.09.013
78.	H.-S. Kim, J.B. Cook, H. Lin, J.S. Ko, S.H. Tolbert et al., Oxygen vacancies enhance pseudocapacitive charge storage properties of MoO_3-x. Nat. Mater. 16, 454-460 (2017). https://doi.org/10.1038/nmat4810
79.	R. Niu, H. Li, Y. Ma, L. He, J. Li An, insight into the improved capacitive deionization performance of activated carbon treated by sulfuric acid. Electrochim. Acta 176, 755-762 (2015). https://doi.org/10.1016/j.electacta.2015.07.012
80.	S. Wang, F. Li, A.D. Easley, J.L. Lutkenhaus, Real-time insight into the doping mechanism of redox-active organic radical polymers. Nat. Mater. 18, 69-75 (2019). https://doi.org/10.1038/s41563-018-0215-1
81.	N. Shpigel, M.D. Levi, S. Sigalov, O. Girshevitz, D. Aurbach et al., In situ hydrodynamic spectroscopy for structure characterization of porous energy storageelectrodes. Nat. Mater. 15, 570-575 (2016). https://doi.org/10.1038/nmat4577
82.	P. Roach, D. Farrar, C.C. Perry, Interpretation of protein adsorption: surface-induced conformational changes. J. Am. Chem. Soc. 127, 8168-8173 (2005). https://doi.org/10.1021/ja042898o
83.	X. Sun, J. Sun, C. Wu, L. Guo, L. Hou et al., Unveiling composition/crystal structure-dependent electrochemical behaviors via experiments and first-principles calculations: rock-salt NiCoO₂ vs. spinel Ni_1.5Co_1.5O₄. Mater. Today Energy 19, 100592 (2021). https://doi.org/10.1016/j.mtener.2020.100592
84.	J. Yang, C. Yu, X. Fan, S. Liang, S. Li et al., Electroactive edge site-enriched nickel-cobalt sulfide into graphene frameworks for high-performance asymmetric supercapacitors. Energy Environ. Sci. 9, 1299-1307 (2016). https://doi.org/10.1039/C5EE03633J
85.	Z. Wang, Z. Zhao, Y. Zhang, X. Yang, X. Sun et al., Spatially self-confined formation of ultrafine NiCoO₂ Nanoparticles@Ultralong amorphous N-doped carbon nanofibers as an anode towards efficient capacitive Li⁺ storage. Chemistry 25, 863-873 (2019). https://doi.org/10.1002/chem.201804823
