海洋工程装备与技术 ›› 2015, Vol. 2 ›› Issue (1): 32-35.

• 海洋油气勘探开发技术与装备 • 上一篇    下一篇

天然气凝析液管道射流清管器清管效果影响因素分析

姚海元, 李清平, 程兵, 陈绍凯, 刘永飞

  1. 中海油研究总院,北京 100028
  • 收稿日期:2014-08-28 出版日期:2015-02-20 发布日期:2016-03-31
  • 作者简介:

    作者简介:姚海元(1977--),男,高级工程师,主要从事石油工业流动安全保障方面的研究.

  • 基金资助:
    国家科技重大专项(2011ZX05026-004)

Analysis of Influence Factors for Pigging Effectiveness of Bypass Pig in Natural Gas Liquid Pipelines

Hai-yuan YAO, Qing-ping LI, Bing CHENG, Shao-kai CHEN, Yong-fei LIU

  1. CNOOC Research Institute, Beijing 100028, China
  • Received:2014-08-28 Online:2015-02-20 Published:2016-03-31

RichHTML

0

PDF (PC)

219

摘要：

传统清管器在天然气凝析液管道清管作业中存在清管器运行速度过快,清管段塞大等诸多缺陷.为解决传统清管器的这一系列问题,射流清管技术得到了发展.为了分析射流清管器设计及应用过程中需要考虑的因素,利用OLGA 7.2模拟软件建立了海底管道清管模型,对射流清管器旁通率,管道管径,气液比,清管器质量等因素进行了分析,为射流清管器的设计及其应用提供借鉴.

关键词: 海底油气管道, 射流清管器, 旁通率, 清管, 影响因素

Abstract:

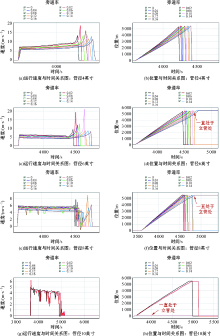

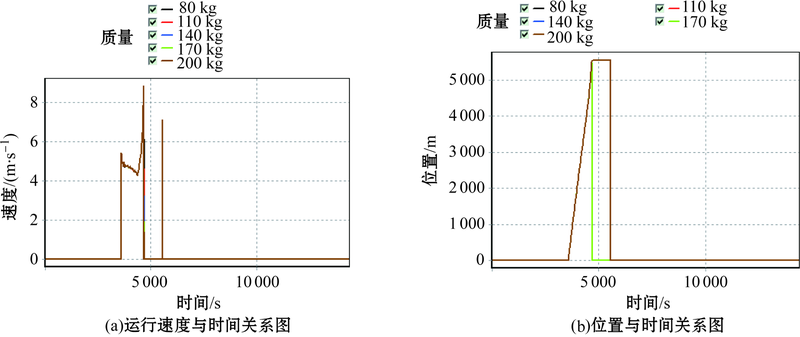

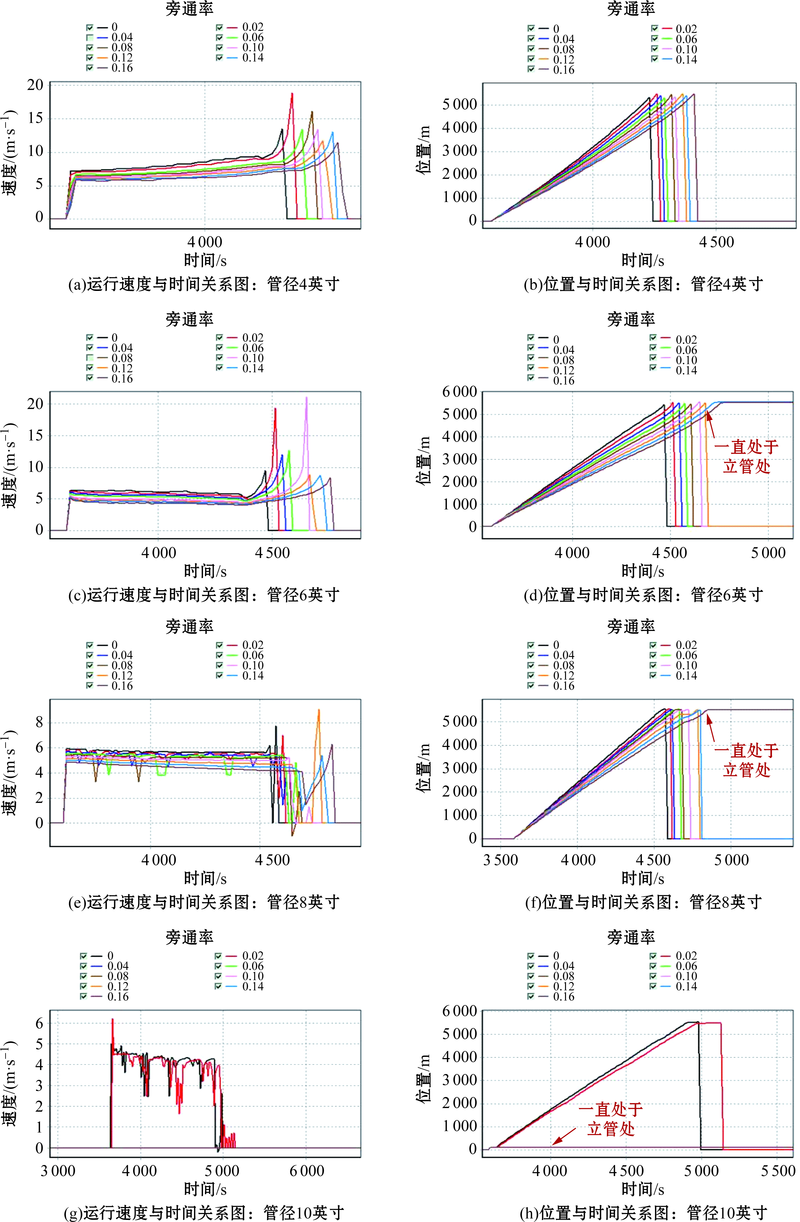

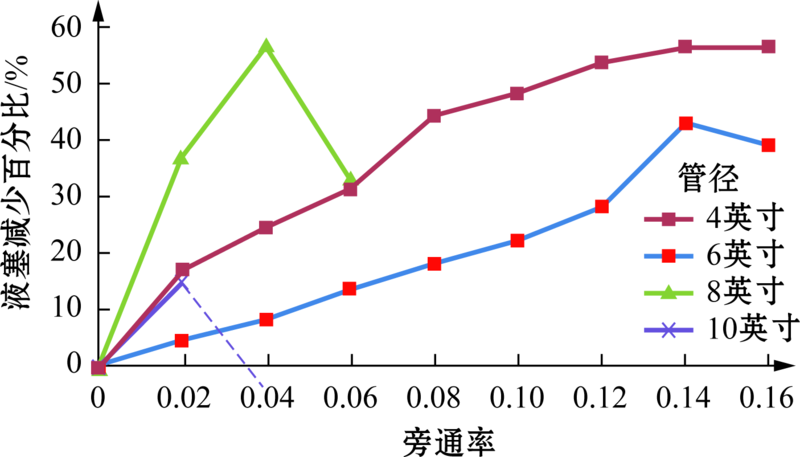

There exist many problems such as high pigging velocity and long pigging slug in the pigging process in natural gas liquid pipelines by using traditional pig. In order to solve these problems, bypass pigging technology has been developed. To analyze relevant factors in the design and application of bypass pig, a subsea pipeline pigging model is built by using OLGA software (version 7.2) and the factors including bypass ratio of the bypass pig, pipe diameter, gas liquid ratio, pig weight etc. have been analyzed, which can provide reference for the design and application of bypass pig.

Key words: subsea oil and gas pipeline, bypass pig, bypass ratio, pigging, influence factor
