大型全回转浮吊总装工艺探讨

白洋, 高指林, 薛政权

  1. 海洋石油工程股份有限公司,天津 300451
  • 收稿日期:2014-12-23 出版日期:2015-02-20 发布日期:2016-03-31
  • 作者简介:

    作者简介:白洋(1981--),男,工程师,主要从事海洋工程结构制造技术研究.

Research on Assembly Process of All Slewing Floating Crane

Yang BAI, Zhi-lin GAO, Zheng-quan XUE

  1. Offshore Oil Engineering Co., Ltd., Tianjin 300451, China
  • Received:2014-12-23 Online:2015-02-20 Published:2016-03-31

RichHTML

0

PDF (PC)

338

摘要：

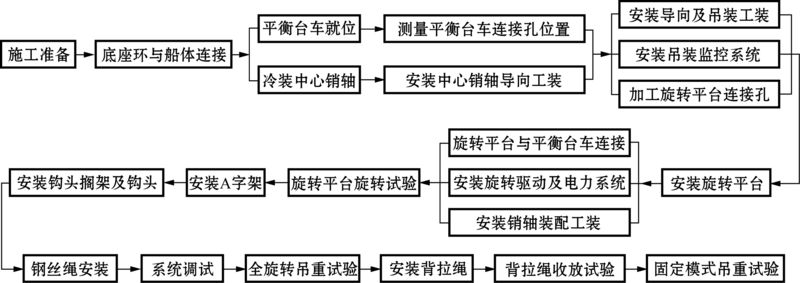

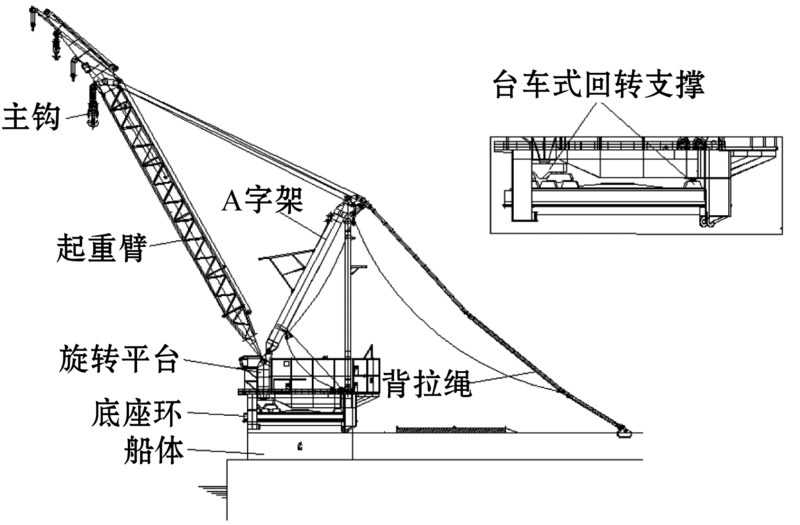

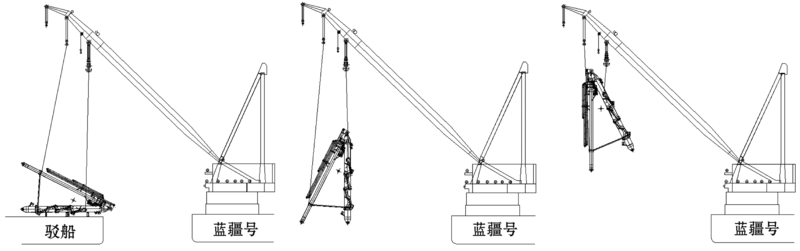

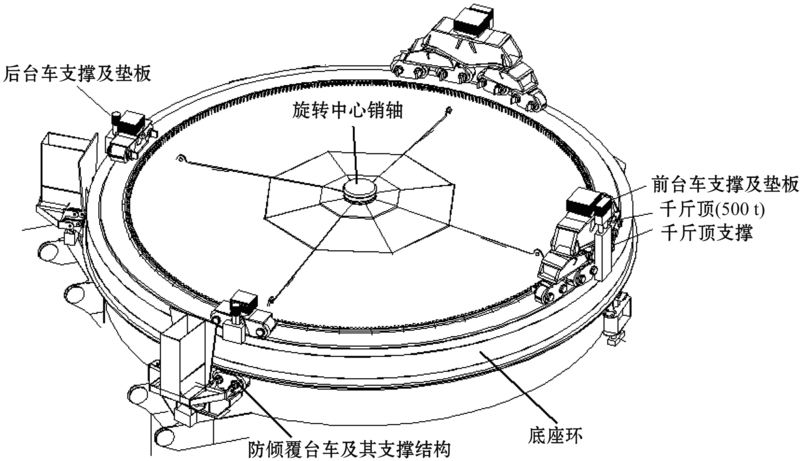

海洋石油开发依赖大型的浮式起重船(简称浮吊)."海洋石油201"号深水铺管起重船的4000 t浮吊在设计制造上采用欧洲标准,建造总装精度高,难度大,工艺复杂,总装质量直接影响浮吊的运行性能.详细介绍了其总装流程,精密测量,虚拟装配,工装设计,吊装等关键技术,并对此类型浮吊的总装工艺做了进一步探讨.

关键词: 全回转浮吊, 总装工艺, 精密测量, 虚拟装配, 工装设计

Abstract:

Offshore oil development project relies on floating crane. On "HYSY201" deepwater pipe-laying crane vessel, the 4000 t all slewing floating crane is designed according to European standards. Its building and assembly are precision, difficult and complex, and the assembly quality directly affects the performance of the floating crane. The key technologies including assembly procedure, precision measurement, virtual assembly, tooling design, and lifting are introduced in detail. The general assembly process for such floating cranes are discussed.

Key words: all slewing floating crane, assembly process, precision measurement, virtual assembly, tooling design
