深水油气田中的集束管道

摘要
图/表
参考文献
相关文章
Metrics

全文: PDF(1772 KB) HTML
输出: BibTeX | EndNote (RIS)

摘要

对深水油气田开发中使用的两种集束管系统(集束海底管道和集束立管)进行了研究.对两种集束管系统的总体组成,结构形式,各组件功能,设计要求,预制方法,海上安装等进行了详细的阐述;对两种系统的相似性和差异性进行了论述.依据集束管系统的应用案例,可为我国的油气田开发提供参考.

	服务

	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	RSS
	作者相关文章
	王猛
	孙国民

关键词 ：深水, 集束管, 海底管道, 立管

Abstract：

We present the study on two type bundle systems currently applied in deep water field development: pipeline bundles and riser bundles. General description of structure type, components function, design requirements, and fabrication and installation methods are discussed. A review of the similarities and differences between the two systems is presented. These practical examples of bundle systems can provide reference for the deep water field development in China.

Key words： deep water bundled pipe offshore pipeline riser

收稿日期: 2014-08-28 出版日期: 2016-03-30

TE973.92

作者简介:

作者简介:王猛(1980--),男,硕士,工程师,主要从事海洋石油和天然气管道设计与研究.

引用本文:

王猛, 孙国民. 深水油气田中的集束管道[J]. 海洋工程装备与技术, 2014, 1(3): 218-222.
Meng WANG, Guo-min SUN. Bundled Pipes in Deep Water Field Development. Ocean Engineering Equipment and Technology, 2014, 1(3): 218-222.

链接本文:

https://www.qk.sjtu.edu.cn/oeet/CN/ 或 https://www.qk.sjtu.edu.cn/oeet/CN/Y2014/V1/I3/218

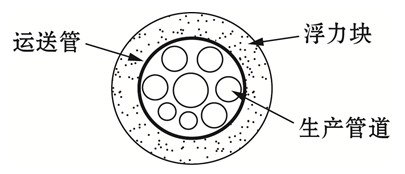

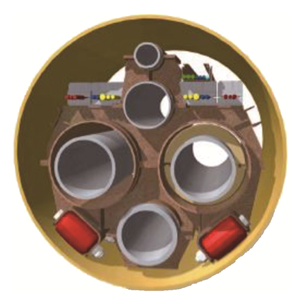

Fig.1 封闭式结构

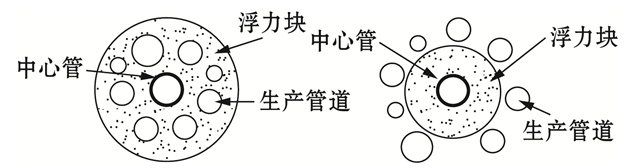

Fig.2 开放式结构

Fig.3 集束立管的浮力块

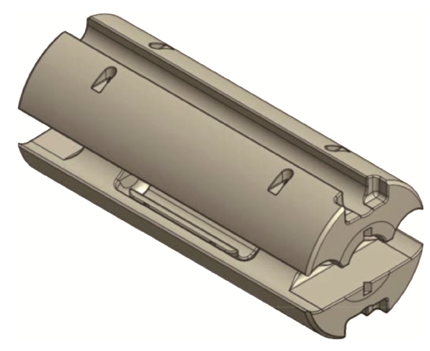

Fig.4 间隔器

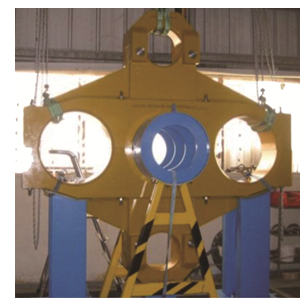

Fig.5 PU导向框架

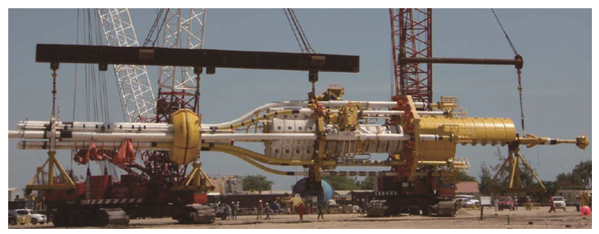

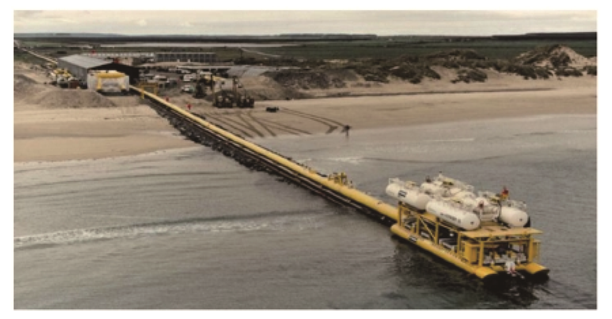

Fig.6 集束海底管道端部管汇

Fig.7 集束立管底部塔形结构

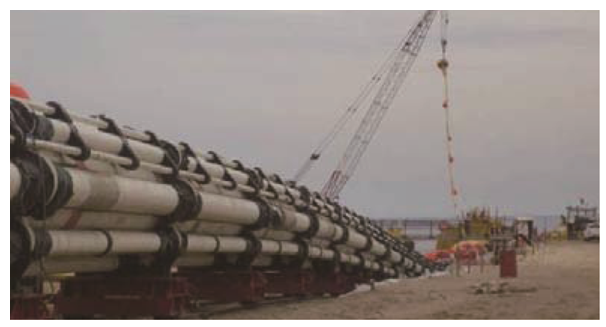

Fig.8 集束立管组装

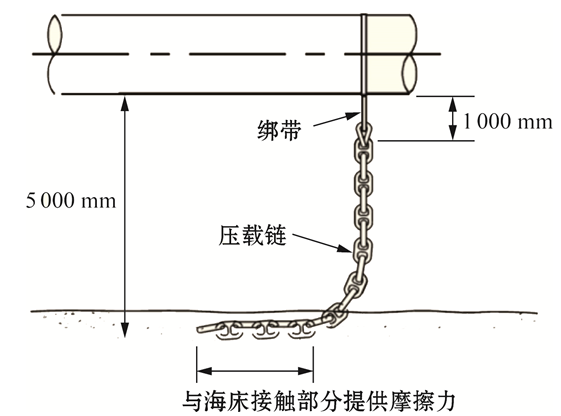

Fig.9 压载链

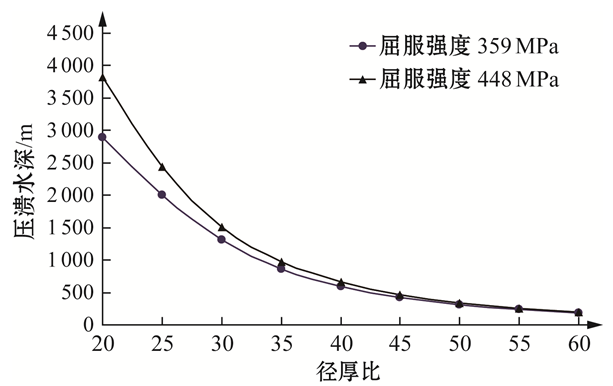

Fig.10 压溃水深与径厚比的关系
