深水隔水管水下监测低功耗平台设计

白浩1, 张梦娜2,*, 申晓红2, 王海燕2

  1. 1. 湛江南海西部石油勘察设计有限公司,广东 湛江 524057
    2. 西北工业大学航海学院,陕西 西安 710072
  • 收稿日期:2015-02-11 出版日期:2015-04-10 发布日期:2016-03-30
  • 通讯作者: 张梦娜
  • 作者简介:

    作者简介:白浩(1986--),男,工程师,主要从事石油机械工程方面的研究.

  • 基金资助:
    国家科技重大专项(2011ZX05026-001-06)

Design of Low-Power Platform for Deepwater Riser Underwater Monitoring

Hao BAI1, Meng-na ZHANG2, Xiao-hong SHEN2, Hai-yan WANG2

  1. 1. Zhanjiang Nanhai West Oil Survey & Design Co., Ltd., Zhanjiang, Guangdong 524057, China
    2. College of Marine Engineering, Northwestern Polytechnical University, Xi'an, Shaanxi 710072, China
  • Received:2015-02-11 Online:2015-04-10 Published:2016-03-30

RichHTML

0

PDF (PC)

304

摘要：

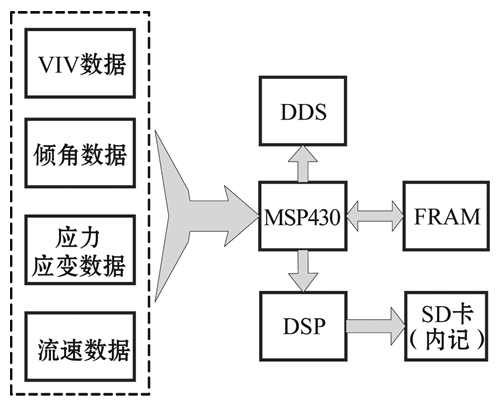

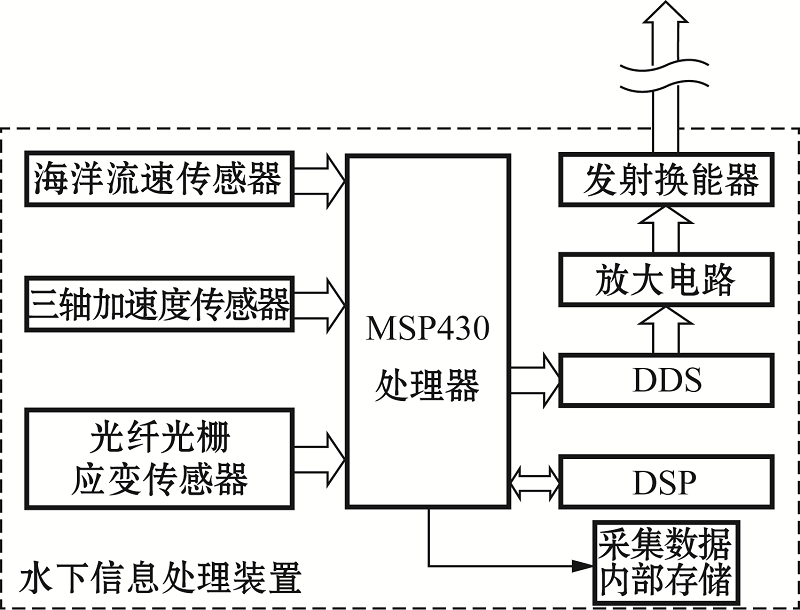

水下信息处理平台是隔水管疲劳监测装置的神经中枢,控制疲劳参数检测,信号处理,数据发射,监测设备的休眠与启动等一系列流程.低功耗水下信息处理平台的硬件系统包括低功耗微处理机,高速数字信号处理器(DSP),多种传感器,信号调制与发送电路,电源及其他附件等.为了提高监测设备的服役期限,对"十一五"期间的低功耗水下信息处理平台进行优化设计,增加了存储模块,优化空间布局与程序流程,使得电路板面积大大缩小.优化后,水下信息处理平台的可靠性进一步增强,进而降低了隔水管监测系统的体积和质量,提高了其便捷性和适用性.

关键词: 海洋油气管道, 深水隔水管, 疲劳, 低功耗, 水下信息处理平台, 优化设计

Abstract:

Underwater information processing platform is the nerve center of the riser fatigue monitoring device. It controls fatigue parameters detection, signal processing, data transmission, dormancy and initiation of the monitoring equipment and a series of processes. The hardware system of the low-power-consumption underwater information processing platform consists of low-power microprocessor, high-speed digital signal processor (DSP), a variety of sensors, signal modulation and transmission circuit, power supply and other accessories and so on. In order to improve the service period of the monitoring equipment, we optimize the design of the low-power underwater information processing platform during the "Eleventh Five-Year" period. We add storage modules and optimize spatial layout and program flow to greatly reduce the circuit board area. After optimization, the reliability of the underwater information processing platform is enhanced further. And then the volume and weight of the riser monitoring system are reduced and its convenience and applicability are improved.

Key words: marine oil and gas pipeline, deepwater riser, fatigue, low power consumption, underwater information processing platform, optimal design
