Application of cardiac magnetic resonance feature-tracking in assessment of postoperative ventricular strain after repairing of single ventricle with Fontan operation

doi:10.16150/j.1671-2870.2019.05.005

Abstract

Abstract:

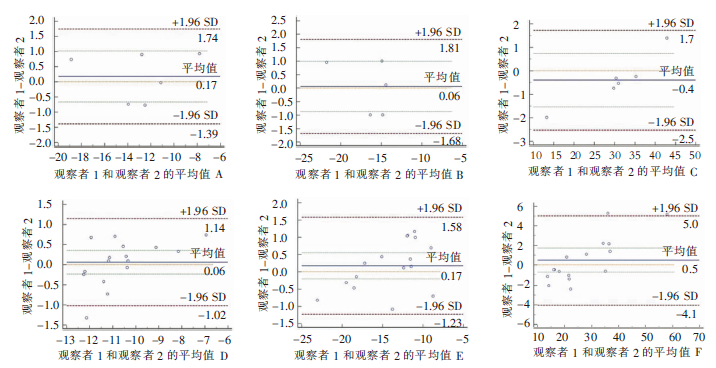

Objective: To compare 2D global strain between single left ventricle (SLV) group, single right ventricle (SRV) group after Fontan operation and normal healthy controls using feature tracking (FT) of cardiac magnetic resonance (CMR). Methods: Twenty two patients with single ventricle received Fontan operation with a mean age of (11.18±4.22) years and performing cardiac MRI(CMR) after Fontan operation between July 1, 2015 and January 30, 2017 were retrospectively analyzed. The mean year of MRI follow-up after surgery was (6.41±2.91) years. Of the 22 single ventricle patients, 6 were dominant left ventricle, 16 were 22 dominant right ventricle. Ten age-matched healthy children performing CMR were served as controls for providing reference values of strain. CMR function and ventricle strain comparisons were performed between SLV group, SRV group and control group. Bland-Altman method was used to compare the consistence among the groups. Results: End-diastolic volume index (117.79±56.82) mL versus (73.24±13.77) mL and ejection fraction(EF)(49.61±15.32)% versus (60.95±5.94)% were significantly different between healthy controls and Fontan operation repaired group(P<0.05). The comparison of SLV group and SRV group showed no significant difference in EF(49.00±17.68)% versus (48.0±13.77)% (P>0.05). In the comparison of strain among SLV, SRV and healthy control groups, the global longitudinal strain (-20.24±1.90) for SLV versus (-12.75±3.67) for SRV versus (-9.06±5.93) for controls was signi-ficantly different (P<0.05). The global longitudinal and circumferential strain of Fontan operation repaired groups had good consistence, and were better than radial strain. Conclusions: CMR-FT can be used as a method to evaluate cardiac function of complex congenital heart disease after Fontan operation. Compared with the ejection fraction, the 2D global longitudinal strain can be used as a reference value for evaluating the myocardial contraction function in single ventricle patients.

Key words: Single ventricle, Feature-tracking, Strain, Children

CLC Number:

R725.4

HU Liwei, SUN Aimin, WANG Qian, GUO Chen, OUYANG Rongzhen, YAO Xiaofen, ZHONG Yumin. Application of cardiac magnetic resonance feature-tracking in assessment of postoperative ventricular strain after repairing of single ventricle with Fontan operation[J]. Journal of Diagnostics Concepts & Practice, 2019, 18(05): 509-514.

Figures/Tables 6

References 24

[1]	Lev M, Liberthson RR, Kirkpatrick JR, et al. Single (primitive) ventricle[J]. Circulation, 1969, 39(5):577-591. pmid: 5797412
[2]	Mair DD, Puga FJ, Danielson GK. The Fontan procedure for tricuspid atresia: early and late results of a 25-year experience with 216 patients[J]. J Am Coll Cardiol, 2001, 37(3):933-939. pmid: 11693773
[3]	Gewillig MH, Lundström UR, Deanfield JE, et al. Impact of Fontan operation on left ventricular size and contracti-lity in tricuspid atresia[J]. Circulation, 1990, 81(1):118-127. pmid: 2297819
[4]	Shah AM, Claggett B, Sweitzer NK, et al. Prognostic Importance of Changes in Cardiac Structure and Function in Heart Failure With Preserved Ejection Fraction and the Impact of Spironolactone[J]. Circ Heart Fail, 2015, 8(6):1052-1058. doi: 10.1161/CIRCHEARTFAILURE.115.002249 URL
[5]	Claus P, Omar AMS, Pedrizzetti G, et al. Tissue Tracking Technology for Assessing Cardiac Mechanics: Principles, Normal Values, and Clinical Applications[J]. JACC Cardiovasc Imaging, 2015, 8(12):1444-1460. doi: S1936-878X(15)00845-1 pmid: 26699113
[6]	Aurich M, Keller M, Greiner S, et al. Left ventricular mechanics assessed by two-dimensional echocardiography and cardiac magnetic resonance imaging: comparison of high-resolution speckle tracking and feature tracking[J]. Eur Heart J Cardiovasc Imaging, 2016, 17(12):1370-1378. doi: 10.1093/ehjci/jew042 URL
[7]	Ghelani SJ, Harrild DM, Gauvreau K, et al. Echocardiography and magnetic resonance imaging based strain analysis of functional single ventricles: a study of intra- and inter-modality reproducibility[J]. Int J Cardiovasc Imaging, 2016, 32(7):1113-1120. doi: 10.1007/s10554-016-0882-4 pmid: 27091734
[8]	Secchi F, Resta EC, Di Leo G, et al. Segmentation of cardiac magnetic resonance cine images of single ventricle: including or excluding the accessorial ventricle?[J]. Int J Cardiovasc Imaging, 2014, 30(6):1117-1124. doi: 10.1007/s10554-014-0438-4 URL
[9]	Hor KN, Gottliebson WM, Carson C, et al. Comparison of magnetic resonance feature tracking for strain calculation with harmonic phase imaging analysis[J]. JACC Cardiovasc Imaging, 2010, 3(2):144-151. doi: 10.1016/j.jcmg.2009.11.006 URL
[10]	李俊超, 程流泉, 陈韵岱. 心肌应变的磁共振成像测量与临床应用[J]. 中国医学影像学杂志, 2017, 25(4):307-309,313.
[11]	Garot J, Bluemke DA, Osman N F, et al. Fast determination of regional myocardial strain fields from tagged cardiac images using harmonic phase MRI[J]. Circulation, 2000, 101(9):981-988. pmid: 10704164
[12]	Shang Q, Sarikouch S, Patel S, et al. Assessment of ventriculo-vascular properties in repaired coarctation using cardiac magnetic resonance-derived aortic, left atrial and left ventricular strain[J]. Eur Radiol, 2017, 27(1):167-177. doi: 10.1007/s00330-016-4373-8 URL
[13]	Berganza FM, de Alba CG, Özcelik N, et al. Cardiac Magnetic Resonance Feature Tracking Biventricular Two-Dimensional and Three-Dimensional Strains to Evaluate Ventricular Function in Children After Repaired Tetralogy of Fallot as Compared with Healthy Children[J]. Pedia-tr Cardiol, 2017, 38(3):566-574.
[14]	Tutarel O, Orwat S, Radke RM, et al. Assessment of myo-cardial function using MRI-based feature tracking in adults after atrial repair of transposition of the great arteries: Reference values and clinical utility[J]. Int J Cardiol, 2016, 220:246-250. doi: 10.1016/j.ijcard.2016.06.108 pmid: 27389449
[15]	钟玉敏, 朱铭, 孙爱敏, 等. 核磁共振在单心室心功能检测中的应用[J]. 中国医学影像技术, 2009, 25(2):185-187.
[16]	St John Sutton M, Pfeffer MA, Moye L, et al. Cardiovascular death and left ventricular remodeling two years after myocardial infarction: baseline predictors and impact of long-term use of captopril: information from the Survival and Ventricular Enlargement (SAVE) trial[J]. Circulation, 1997, 96(10): 3294-3299. pmid: 9396419
[17]	Hurlburt HM, Aurigemma GP, Hill JC, et al. Direct ultrasound measurement of longitudinal, circumferential, and radial strain using 2-dimensional strain imaging in normal adults[J]. Echocardiography, 2007, 24(7):723-731. doi: 10.1111/j.1540-8175.2007.00460.x URL
[18]	Buss S J, Breuninger K, Lehrke S, et al. Assessment of myocardial deformation with cardiac magnetic resonance strain imaging improves risk stratification in patients with dilated cardiomyopathy[J]. Eur Heart J Cardiovasc Ima-ging, 2015, 16(3):307-315.
[19]	Kato A, Riesenkampff E, Yim D, et al. Pediatric Fontan patients are at risk for myocardial fibrotic remodeling and dysfunction[J]. Int J Cardiol, 2017, 240:172-177. doi: 10.1016/j.ijcard.2017.04.073 URL
[20]	Kutty S, Rangamani S, Venkataraman J, et al. Reduced global longitudinal and radial strain with normal left ventricular ejection fraction late after effective repair of aortic coarctation: a CMR feature tracking study[J]. Int J Cardiovasc Imaging, 2013, 29(1):141-150. doi: 10.1007/s10554-012-0061-1 URL
[21]	MacIver DH1, Stephenson RS, Jensen B, et al. The end of the unique myocardial band: Part I. Anatomical considerations[J]. Eur J Cardiothorac Surg, 2018, 53(1):112-119. doi: 10.1093/ejcts/ezx290 pmid: 28958005
[22]	Pedrizzetti G, Claus P, Kilner PJ, et al. Principles of cardiovascular magnetic resonance feature tracking and echocardiographic speckle tracking for informed clinica-luse[J]. J Cardiovasc Magn Reson, 2016, 18(1):51. doi: 10.1186/s12968-016-0269-7 URL
[23]	Andre F, Steen H, Matheis P, et al. Age- and gender-related normal left ventricular deformation assessed by cardiovascular magnetic resonance feature tracking[J]. J Cardiovasc Magn Reson, 2015, 17:25. doi: 10.1186/s12968-015-0123-3 URL
[24]	Schuster A, Stahnke VC, Unterberg-Buchwald C, et al. Cardiovascular magnetic resonance feature-tracking assessment of myocardial mechanics: Intervendor agreement and considerations regarding reproducibility[J]. Clin Radiol, 2015, 70(9):989-998. doi: 10.1016/j.crad.2015.05.006 pmid: 26139384

参数	术后组(n=22)	健康对照组(n=10)	P值	SLV 组(n=6)	SRV 组(n=16)	P值
年龄 (年)	11.18±4.22	10.80±2.41	0.620	9.33±3.01	12.56±4.25	0.249
男/女	15/6	5/5	/	4/2	12/4	/
术后随访时间(年）	6.41±2.91		/	5.28±1.6	6.93±3.26	0.154
心率(次/分)	88±12	73±15	0.237	90±14	86±10	0.910
舒张末容积^a)(mL)	117.79±56.82	73.24±13.77	0.013	136.56±62.57	101.38±49.15	0.047
收缩末容积^a)(mL)	66.13±56.91	28.36±5.51	0.133	78.01±68.35	57.53±43.54	0.461
每博量体积^a)（mL）	54.96±19.02	44.88±10.55	0.350	64.63±18.55	43.76±11.67	0.122
EF(%）	49.61±15.32	60.95±5.94	0.036	49.00±17.68	48.0±13.77	0.935
心肌质量(g)	79.34±50.39	75.69±21.13	0.699	78.81±43.02	81.88±59.80	0.883

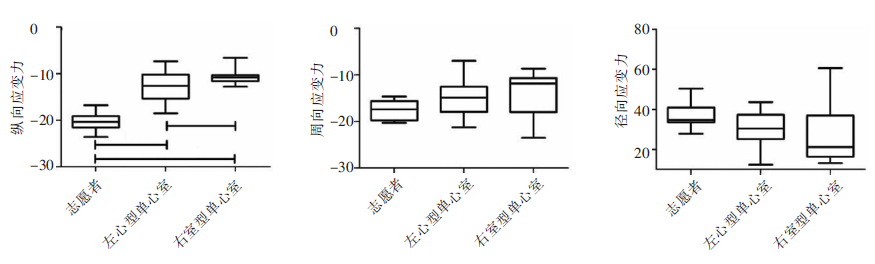

2D整体应变力	健康对照组左心室（n=10）	SLV 组(n=6)	SRV 组(n=16)	P 值
纵向应变力	-20.24±1.90	-12.75±3.67	-9.06±5.93	0.039
周向应变力	-17.51±2.05	-14.87±4.63	-14.34±4.70	0.506
径向应变力	36.86±6.21	30.22±10.23	27.57±13.36	0.555
