Journal of Diagnostics Concepts & Practice ›› 2023, Vol. 22 ›› Issue (05): 472-479.doi: 10.16150/j.1671-2870.2023.05.009
• Original articles • Previous Articles Next Articles
ZHANG Jiao, LÜ Jiajia, LU Wenli, ZHANG Lidan(), LI Wei
Received:
2022-01-24
Online:
2023-10-25
Published:
2024-03-15
CLC Number:
ZHANG Jiao, LÜ Jiajia, LU Wenli, ZHANG Lidan, LI Wei. Pediatric chronic myeloid leukemia with a BCR- FIBCD1-ABL1 fusion transcript: a case report and literature review[J]. Journal of Diagnostics Concepts & Practice, 2023, 22(05): 472-479.
Figure 1
Bone marrow FISH detection In figure 1A, a total of 200 cells were analyzed with bone marrow cell FISH detection, and BCR-ABL1 fusion gene positive cells accounted for 30%. Figure 1B showed that 200 cells were analyzed after half a year of imatinib treatment, and no BCR-ABL1 fusion gene was found.

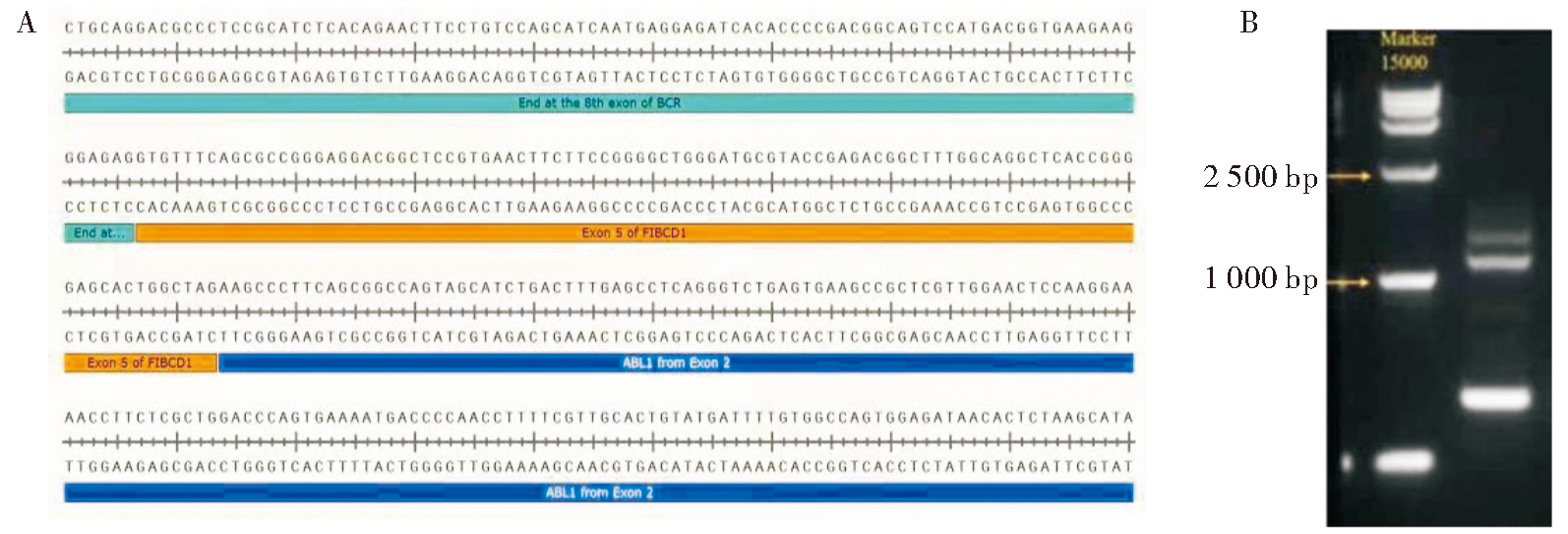

Figure 3A
Nested PCR detection of peripheral blood found the type of BCR (e8) - FIBCD1 (e5) - ABL1 (a2) fusion gene, showing the exon 5 fragment of FIBCD1 was inserted into the e8a2 fusion gene; 3B: gel electrophoresis analysis showed that the molecular weight of BCR (e8) - FIBCD1 (e5) - ABL1 (a2) fusion gene was about 1200 000
Table 1
Clinical and genotypic characteristics of patients with e8a2 BCL-ABL1 fusion gene positive chronic myeloid leukemia
Case | Age | Sex | Presentation | Genotype | Therapy | Follow-up(month) | Prognosis |
---|---|---|---|---|---|---|---|
1[ | 51 | Male | hepatomegaly thrombocytosis | e8a2 | hydroxyurea+αlpha interferon | 12 | PHR |
2[ | 40 | Female | splenomegaly thrombocytosis | e8-ABLint1a- a2 | imatinib | 65 | resistant |
3[ | 46 | Male | leukocytosis Splenomegaly | e8-ABLint1a- a2 | imatinib | 3 | MMR |
4[ | 25 | Male | anorexia nausea | e8-BCRint8 -a2 | dasatinib | 3 | EMR |
5[ | 51 | Female | abdominal pain | e8-MAST2e2 -a2 | imatinib | 16 | MMR |
6[ | 40 | Male | leukocytosis | e8-ABLint1b -a2 | imatinib | 33 | MMR |
7[ | 35 | Male | leukocytosis | e8-ABLint1b -a2 | imatinib | 30 | MMR |
8[ | 47 | Male | leukocytosis | e8-ABLint1b -a2 | imatinib | 39 | MMR |
9-13[ | -- | -- | -- | e8-ABLint1b -a2 | imatinib | -- | MMR |
14[ | -- | -- | -- | e8-DRG1e4 -a2 | imatinib | -- | MMR |
15[ | -- | -- | -- | e8-ABLint1a- a2 | imatinib | -- | MMR |
16[ | 43 | Male | splenomegaly thrombopenia | e8-BCRint8 -a2 | imatinib | 12 | MMR |
17[ | 55 | Male | acceleration phase | e8-ABLint1b -a2 | αlpha interferon | 24 | death |
18[ | 49 | Male | fatigue、facial and palpebral conjunctiva congestion | e8a2withTP53、CDH10 mutation | dasatinib | 6 | MMR |
19[ | 67 | Male | -- | e8-PRDM12e4-a2 | nilotinib / imatinib | 82 | DMR |
20[ | 58 | Female | -- | e8-SPECC1Le3-a2 | imatinib | 66 | MMR |
21[ | 69 | Female | leukocytosis | e8-ABLint1b- a2 | hydroxyurea | 48 | no progression |
22[ | 25 | Male | anorexia nausea | e8a2 | dasatinib | 6 | MMR |
23[ | 34 | Male | lymphadenopathy splenomegaly leukocytosis | e8a2 | imatinib | 2 | extramedullary blast crisis |
24[ | 70 | Male | NA | e8a2 | NA | NA | NA |
25[ | 25 | Female | NA | e8a2 | NA | NA | NA |
26[ | 74 | Male | NA | e8-ABLint1b-a2 | nilotinib | 12 | MMR |
[1] |
QUINTÁS-CARDAMA A, CORTES J. Molecular biology of bcr-abl1-positive chronic myeloid leukemia[J]. Blood, 2009, 113(8):1619-1630.
doi: 10.1182/blood-2008-03-144790 URL |
[2] |
BERTORELLE R, BONALDI L, BIANCHINI E, et al. The e19a2 BCR/ABL fusion transcript with additional chromosomal aberrations on a new case of chronic mye-loid leukemia (CML) of mild type[J]. Leukemia, 2001, 15(12):2003-2004.
doi: 10.1038/sj.leu.2402292 |
[3] |
HAYETTE S, TIGAUD I, THOMAS X, et al. Identification of a rare e6a2 BCR-ABL fusion gene during the di-sease progression of chronic myelomonocytic leukemia: a case report[J]. Leukemia, 2004, 18(10):1735-1736.
doi: 10.1038/sj.leu.2403476 |
[4] |
CALLET-BAUCHU E, SALLES G, GAZZO S, et al. Identification of a novel e8/a4 BCR/ABL fusion transcript in a case of a transformed Sézary syndrome[J]. Haematologica, 2007, 92(9):1277-1278.
doi: 10.3324/haematol.11341 URL |
[5] |
HOW G F, LIM L C, KULKARNI S, et al. Two patients with novel BCR/ABL fusion transcripts (e8/a2 and e13/a2) resulting from translocation breakpoints within BCR exons[J]. Br J Haematol, 1999, 105(2):434-436.
doi: 10.1111/bjh.1999.105.issue-2 URL |
[6] |
STELLA S, MASSIMINO M, TIRRÒ E, et al. Detection and clinical implications of a novel BCR-ABL1 E12A2 insertion/deletion in a CML patient expressing the E13A2 Isoform[J]. Anticancer Res, 2019, 39(12):6965-6971.
doi: 10.21873/anticanres.13918 URL |
[7] |
DUAN M H, LI H, CAI H. A rare e13a3 (b2a3) BCR-ABL1 fusion transcript with normal karyotype in chronic myeloid leukemia: The challenges in diagnosis and monitoring minimal residual disease (MRD)[J]. Leuk Res, 2017, 59:8-11.
doi: 10.1016/j.leukres.2017.05.009 URL |
[8] |
GUI X, ZHANG Y, PAN J, et al. Chronic myeloid leukemia with e14a3 BCR-ABL transcript: analysis of characteristics and prognostic significance[J]. Leuk Lymphoma, 2015, 56(12):3343-3347.
doi: 10.3109/10428194.2015.1037751 URL |
[9] |
QIN Y Z, JIANG B, JIANG Q, et al. Imatinib mesylate resistance in a chronic myeloid leukemia patient with a novel e8a2 BCR-ABL transcript variant[J]. Acta Haematol, 2008, 120(3):146-149.
doi: 10.1159/000178145 URL |
[10] |
PARK I J, LIM Y A, LEE W G, et al. A case of chronic myelogenous leukemia with e8a2 fusion transcript[J]. Cancer Genet Cytogenet, 2008, 185(2):106-108.
doi: 10.1016/j.cancergencyto.2008.06.001 URL |
[11] |
CHEN L, WU Y, YOU Y, et al. A novel e8a2 BCR-ABL1 intronic fusion through insertion of a chromosome 22 BCR gene fragment into chromosome 9 in an atypical Philadelphia (Ph) chromosome chronic myeloid leukemia patient[J]. Leuk Lymphoma, 2016, 57(12):2930-2933.
doi: 10.3109/10428194.2016.1173211 URL |
[12] |
RIVA E, MANRIQUE ARECHAVALETA G, DE ALMEIDA C, et al. A novel e8a2 BCR-ABL1 fusion with insertion of MAST2 exon 2 in a four-way translocation t (1;17;9;22) (p35;q24;q44;q11) in a patient with chronic myeloid leukemia[J]. Leuk Lymphoma, 2016, 57(1):203-205.
doi: 10.3109/10428194.2015.1043549 URL |
[13] |
CAYUELA J M, ROUSSELOT P, NICOLINI F, et al. Identification of a rare e8a2 BCR-ABL fusion gene in three novel chronic myeloid leukemia patients treated with imatinib[J]. Leukemia, 2005, 19(12):2334-2336.
doi: 10.1038/sj.leu.2403986 |
[14] |
QIN Y Z, JIANG Q, JIANG H, et al. Prevalence and outcomes of uncommon BCR-ABL1 fusion transcripts in patients with chronic myeloid leukaemia: data from a single centre[J]. Br J Haematol, 2018, 182(5):693-700.
doi: 10.1111/bjh.2018.182.issue-5 URL |
[15] |
TCHIRKOV A, COUDERC J L, PÉRISSEL B, et al. Major molecular response to imatinib in a patient with chronic myeloid leukemia expressing a novel form of e8a2 BCR-ABL transcript[J]. Leukemia, 2006, 20(1):167-168.
doi: 10.1038/sj.leu.2404012 |
[16] |
BRANFORD S, RUDZKI Z, HUGHES T P. A novel BCR-ABL transcript (e8a2) with the insertion of an inverted sequence of ABL intron 1b in a patient with Philadelphia-positive chronic myeloid leukaemia[J]. Br J Haematol, 2000, 109(3):635-637.
doi: 10.1046/j.1365-2141.2000.02042.x URL |
[17] |
ZHANG Y, CHENG Z, YAN W Z, et al. Molecular characterization and therapeutic reaction to dasatinib in a CML patient harboring a novel e8a2 BCR-ABL1 transcript with a somatic mutation in TP53BP2 and cadherin-10 genes[J]. Leuk Lymphoma, 2018, 59(1):233-236.
doi: 10.1080/10428194.2017.1323269 URL |
[18] |
HUET S, DULUCQ S, CHAUVEAU A, et al. Molecular characterization and follow-up of five CML patients with new BCR-ABL1 fusion transcripts[J]. Genes Chromosomes Cancer, 2015, 54(10):595-605.
doi: 10.1002/gcc.v54.10 URL |
[19] |
SUGIMOTO T, IJIMA K, HISATOMI H, et al. Second case of CML with aberrant BCR-ABL fusion transcript (e8/a2) with insertion of an inverted ABL intron 1b sequence[J]. Am J Hematol, 2004, 77(2):164-166.
doi: 10.1002/ajh.v77:2 URL |
[20] | 向航, 吴耀辉, 李小青, 等. 达沙替尼治疗e8a2 BCR-ABL1慢性粒细胞白血病1例并文献复习[J]. 临床血液学杂志, 2016, 29(5):752-754. |
XIANG H, WU Y H, LI X Q, et al. A case of e8a2 BCR-ABL1 chronic myeloid leukemia treated with dasatinib and literature review[J]. J Clin Hematol, 2016, 29(5):752-754. | |
[21] | 余铭珊. 以淋巴结肿大为首发症状的罕见型BCR/ABL1慢性粒细胞白血病1例并文献复习[D]. 广西: 广西医科大学, 2017. |
YU M S. A case of rare BCR/ACL 1 chronic myelogenous leukemia with lymphadenopathy as the first symptom and review of the literature[D]. Guangxi: Guangxi Medical University, 2017. | |
[22] | ZOU Y, DU C, CHEN H M, et al. Application of Real-time Quantitative PCR in Detecting Atypical BCR/ABL mRNA Transcripts in Chronic Myelocytic Leukemia[J]. Zhongguo Shi Yan Xue Ye Xue Za Zhi, 2017, 25(4):1016-1021. |
[23] |
BURMEISTER T, BULLINGER L, LE COUTRE P. The Recurrent Atypical e8a2 BCR::ABL1 Transcript with Insertion of an Inverted 55 Base Pair ABL1 Intron 1b Sequence: A Detailed Molecular Analysis[J]. Acta Haematol, 2023, 146(5):413-418.
doi: 10.1159/000531128 URL |
[24] |
HIJIYA N, SCHULTZ K R, METZLER M, et al. Pediatric chronic myeloid leukemia is a unique disease that requires a different approach[J]. Blood, 2016, 127(4):392-399.
doi: 10.1182/blood-2015-06-648667 pmid: 26511135 |
[25] |
DEMEHRI S, PASCHKA P, SCHULTHEIS B, et al. e8a2 BCR-ABL: more frequent than other atypical BCR-ABL variants?[J]. Leukemia, 2005, 19(4):681-684.
doi: 10.1038/sj.leu.2403604 |
[26] |
TANIZAWA A. Optimal management for pediatric chronic myeloid leukemia[J]. Pediatr Int, 2016, 58(3):171-179.
doi: 10.1111/ped.12876 pmid: 26646444 |
[27] |
DE LA FUENTE J, BARUCHEL A, BIONDI A, et al. Managing children with chronic myeloid leukaemia (CML): recommendations for the management of CML in children and young people up to the age of 18 years[J]. Br J Haematol, 2014, 167(1):33-47.
doi: 10.1111/bjh.2014.167.issue-1 URL |
[28] |
GORE L, KEARNS P R, DE MARTINO M L, et al. Dasatinib in pediatric patients with chronic myeloid leukemia in chronic phase: results from a phase Ⅱ trial[J]. J Clin Oncol, 2018, 36(13):1330-1338.
doi: 10.1200/JCO.2017.75.9597 URL |
[29] |
HIJIYA N, MASCHAN A, RIZZARI C, et al. Phase 2 study of nilotinib in pediatric patients with Philadelphia chromosome-positive chronic myeloid leukemia[J]. Blood, 2019, 134(23):2036-2045.
doi: 10.1182/blood.2019000069 pmid: 31511239 |
