The three-dimensional balanced steady state free precession magnetic resonance imaging sequence in diagnosis of anomalous origin of the coronary artery from the pulmonary artery in children

doi:10.16150/j.1671-2870.2020.02.009

Abstract

Abstract:

Objective: To evaluate the value of three-dimensional balanced steady state free precession sequence (3D b-SSFP) magnetic resonance imaging (MRI) sequence in diagnosis of anomalous origin of the coronary artery from the pulmonary artery（ACAPA）. Methods: The whole heart MRI3D b-SSFP performed on 21 children with an age of (33.67±43.32) months was retrospectively analyzed. All the subjects had DSA or surgical operation confirmed ACAPA, and 19 cases were isolated heart abnormality. The imaging quality of 3D b-SSFP was evaluated and inter-observer agreement was validated by the Kappa coefficient. Relationship between heart rate and imaging quality was assessed by regression analysis. The diagnostic accuracy of 3D b-SSFP for ACAPA was assessed by comparison with findings from DSA or surgical operation. Results: The subjective scores on the image quality from two observers were 2.84±0.82 and 2.83±0.83, and inter-observer agreement was 81.8% (95% CI 57.0%-86.6%). The heart rate (HR) of investigated subjects was(105.85±18.20) beat/min, and the left ventricular end diastolic volume and ejection fraction were (79.63±37.46) mL/m² and (34.28±21.39)% respectively. Left ventricular late gadolinium enhancement(LGE) was positive in 8 of 10. Regression analysis showed negative correlations between vessel sharpness and HR in both 2 observers, and correlation coefficients were -0.277 and -0.263, respectively. MRI3D b-SSFP identified ACAPA in 18 out of the 21 cases investigated, yielding a diagnostic accuracy of 85.71%. The MRI imaging of 2 cases was beyond recognition due to blurred edge and 1 case was misdiagnosed as normal. Conclusion: Cardiac MRI displays cardiac anatomy and coronary artery and facilitates evaluation of cardiac function. The 3D b-SSFP is a valuable MRI sequence for diagnosing ACAPA.

Key words: Magnetic resonance imaging, Congenital heart disease, Anomalous origin of the coronary artery, Pediatric

CLC Number:

R543

GU Xiaohong, SUN Aimin, WANG Qian, ZHU Ming, ZHONG Yumin. The three-dimensional balanced steady state free precession magnetic resonance imaging sequence in diagnosis of anomalous origin of the coronary artery from the pulmonary artery in children[J]. Journal of Diagnostics Concepts & Practice, 2020, 19(02): 145-150.

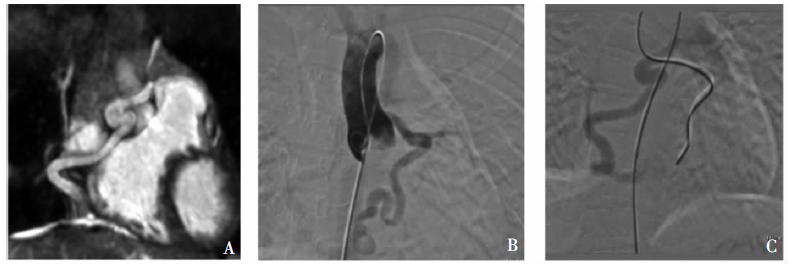

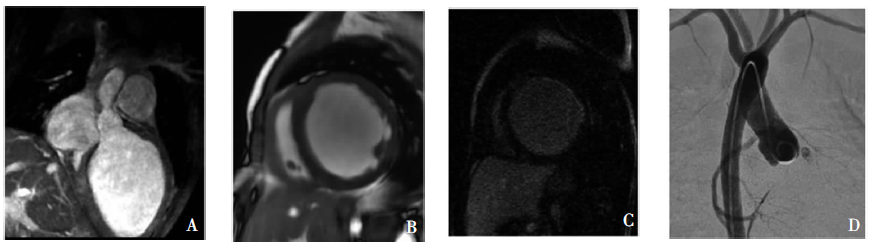

Figures/Tables 4

References 23

[1]	Dodge-Khatami A, Mavroudis C, Backer CL. Anomalous origin of the left coronary artery from the pulmonary artery: collective review of surgical therapy[J]. Ann Thorac Surg, 2002, 74(3):946-955. pmid: 12238882
[2]	Sabaté-Rotés A, Betrián Blasco P, Giralt García G, et al. Casual diagnosis of anomalous origin of the left coronary artery from the pulmonary artery[J]. Int J Cardiol, 2016, 203:120-122. doi: 10.1016/j.ijcard.2015.10.138 pmid: 26512822
[3]	Tangcharoen T, Bell A, Hegde S, et al. Detection of coronary artery anomalies in infants and young children with congenital heart disease by using MR imaging[J]. Radiology, 2011, 259(1):240-247. doi: 10.1148/radiol.10100828 pmid: 21325034
[4]	Uribe S, Hussain T, Valverde I, et al. Congenital heart disease in children: coronary MR angiography during systole and diastole with dual cardiac phase whole-heart imaging[J]. Radiology, 2011, 260(1):232-240. doi: 10.1148/radiol.11101659 URL
[5]	Uribe S, Tangchaoren T, Parish V, et al. Volumetric cardiac quantification by using 3D dual-phase whole-heart MR imaging[J]. Radiology, 2008, 248(2):606-614. doi: 10.1148/radiol.2482071568 URL
[6]	Scheffler K, Lehnhardt S. Principles and applications of balanced SSFP techniques[J]. Eur Radiol, 2003, 13(11):2409-2418. pmid: 12928954
[7]	Jahnke C, Paetsch I, Schnackenburg B, et al. Coronary MR angiography with steady-state free precession: individually adapted breath-hold technique versus free-breathing technique[J]. Radiology, 2004, 232(3):669-676. doi: 10.1148/radiol.2323031225 URL
[8]	Delgado JA, Abad P, Rascovsky S, et al. Assessment of cardiac volumes using an isotropic whole-heart dual cardiac phase sequence in pediatric patients[J]. J Magn Reson Imaging, 2014, 39(3):708-716. doi: 10.1002/jmri.24203 pmid: 23723135
[9]	Younus Z, Iftikhar R, Ahmed I. Anomalous origin of left coronary artery from pulmonary artery(ALCAPA)[J]. J Coll Physicians Surg Pak, 2013, 23(10):743-744.
[10]	Angelini P. Normal and anomalous coronary arteries: definitions and classification[J]. Am Heart J, 1989, 117(2):418-434. pmid: 2644796
[11]	Angelini P, Velasco JA, Flamm S. Coronary anomalies: incidence, pathophysiology, and clinical relevance[J]. Circulation, 2002, 105(20):2449-2454. pmid: 12021235
[12]	Angelini P. Coronary artery anomalies: an entity in search of an identity[J]. Circulation, 2007, 115(10):1296-1305. pmid: 17353457
[13]	Pérez-Pomares JM, de la Pompa JL, Franco D, et al. Congenital coronary artery anomalies: a bridge from embryology to anatomy and pathophysiology--a position statement of the development, anatomy, and pathology ESC Working Group[J]. Cardiovasc Res, 2016, 109(2):204-216. doi: 10.1093/cvr/cvv251 pmid: 26811390
[14]	Mazurak M1, Kusa J. The radiologist's tragedy, or Bland-White-Garland syndrome (BWGS). On the 80(th) anniversary of the first clinical description of ALCAPA (anomalous left coronary artery from the pulmonary artery)[J]. Kardiochir Torakochirurgia Pol, 2014, 11(2):225-229.
[15]	Shriki JE, Shinbane JS, Rashid MA, et al. Identifying, characterizing, and classifying congenital anomalies of the coronary arteries[J]. Radiographics, 2012, 32(2):453-468. doi: 10.1148/rg.322115097 pmid: 22411942
[16]	Peña E, Nguyen ET, Merchant N, et al. ALCAPA syndrome: not just a pediatric disease[J]. Radiographics, 2009, 29(2):553-565. doi: 10.1148/rg.292085059 URL
[17]	Sørensen TS, Körperich H, Greil GF, et al. Operator-independent isotropic three-dimensional magnetic resonance imaging for morphology in congenital heart disea-se: a validation study[J]. Circulation, 2004, 110(2):163-169. pmid: 15210590
[18]	Fenchel M, Greil GF, Martirosian P, et al. Three-dimensional morphological magnetic resonance imaging in infants and children with congenital heart disease[J]. Pedia-tr Radiol. 2006 Dec; 36(12):1265-1272.
[19]	Hussain T, Lossnitzer D, Bellsham-Revell H, et al. Three-dimensional dual-phase whole-heart MR imaging: clinical implications for congenital heart disease[J]. Radiology. 2012 May; 263(2):547-554. doi: 10.1148/radiol.12111700 URL
[20]	Goo HW. Coronary artery imaging in children[J]. Korean J Radiol, 2015, 16(2):239-250. doi: 10.3348/kjr.2015.16.2.239 URL
[21]	Fratz S, Chung T, Greil GF, et al. Guidelines and protocols for cardiovascular magnetic resonance in children and adults with congenital heart disease: SCMR expert consensus group on congenital heart disease[J]. J Cardiovasc Magn Reson, 2013, 15:51. doi: 10.1186/1532-429X-15-51 URL
[22]	Browne LP, Kearney D, Taylor MD, et al. ALCAPA: the role of myocardial viability studies in determining prognosis[J]. Pediatr Radiol, 2010, 40(2):163-167. doi: 10.1007/s00247-009-1412-5 pmid: 19795113
[23]	Secinaro A, Ntsinjana H, Tann O, et al. Cardiovascular magnetic resonance findings in repaired anomalous left coronary artery to pulmonary artery connection(ALCAPA)[J]. J Cardiovasc Magn Reson, 2011, 13:27. doi: 10.1186/1532-429X-13-27 URL

参数	2D cine b-SSFP	3D b-SSFP	CE-MRA	LGE-MRI
TR/TE（ms）	3.5/1.7	4.7/2.4	2.0/1.1	6.1/3.0
翻转角（°）	60	90	35	25
扫描视野（mm）	220~300	260~400	260~400	220~300
层数	12~16	70~90	70~90	10~12
采集像素（mm³）	1.3×1.6×（6~8）	0.5~0.6	1.3×1.3×1.8	1.5×1.5×（6~8）
重建像素（mm³）	1.0×0.9×（6~8）	（0.5~0.6）×（0.5~0.6）×（0.5~0.6）	0.76×0.76×0.9	0.63×0.63×（6~8）
加速因子	2.0	2.0	1.8	无
激励次数	3~4	1	1	1
膈肌导航	无	无	无	无
心电门控	是	是	是	是
