Study on the diagnostic efficacy of ADNEX model in differentiating metastatic and primary ovarian cancer

doi:10.16150/j.1671-2870.2023.06.010

Abstract

Abstract:

Objective: To study the clinical value of the International Ovarian Tumor Analysis(IOTA) ADNEX(the Assessment of Differential NEopasia in the adneXa) model in differentiating metastatic ovarian cancer from primary ovarian cancer. Methods: Patients who underwent transvaginal ultrasonography and operation in our hospital from March 2016 to April 2021 were selected. Preoperative ultrasound examination was performed, and the model prediction results were recorded. Based on the postoperative pathological results， the sensitivity, specificity and area under receiver operating characteristic (ROC) curve of the ADNEX model with and without CA125 in distinguishing metastatic and primary ovarian cancer was calculated. Results: A total of 197 patients with ovarian cancer were enrolled, including 153 patients with primary ovarian cancer (36 patients with stage Ⅰ ovarian cancer, 117 patients with stage Ⅰ-Ⅳ ovarian cancer) and 44 patients with metastatic ovarian cancer. The area under the ROC curve of ADNEX model without CA125 in differentiating metastatic and primary ovarian cancer was 0.621 (95% confidence interval 0.534-0.708), with a sensitivity of 93.2% and a specificity of 31.4%.The area under the ROC curve of ADNEX model with CA125 was 0.810 (95% confidence interval 0.747-0.872), with a sensitivity of 79.5% and a specificity of 69.3%. The difference between the two was statistically significant (P<0.001). Conclusions: ADNEX model has good clinical value in the differentiation of metastatic and primary ovarian cancer. Use of CA125 in ADNEX can improve the diagnostic efficiency of the model.

Key words: Ovarian cancer, metastatic, IOTA, ADNEX model, Ultrasound diagnosis

CLC Number:

R447
R737.31

NI Zhongxin, CHEN Hui. Study on the diagnostic efficacy of ADNEX model in differentiating metastatic and primary ovarian cancer[J]. Journal of Diagnostics Concepts & Practice, 2023, 22(06): 573-578.

Figures/Tables 6

Table 1

Table 2

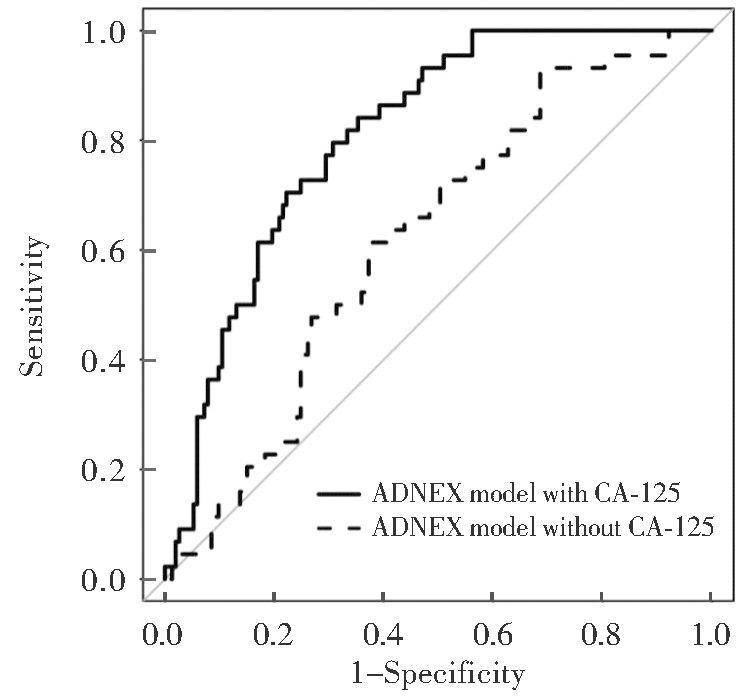

Figure1

Table 3

Table 4

Table 5

References 26

[1]	HEINTZ A, ODICINO F, MAISONNEUVE P, et al. Carcinoma of the Ovary[J]. INT J GYNECOL OBSTET, 2006, 95:S161-S192.
[2]	JAYSON G C, KOHN E C, KITCHENER H C, et al. Ovarian cancer[J]. The Lancet, 2014, 384(9951):1376-1388. doi: 10.1016/S0140-6736(13)62146-7 URL
[3]	SIEGEL R L, MILLER K D, JEMAL A. Cancer statistics, 2019[J]. CA Cancer J Clin, 2019, 69(1):7-34. doi: 10.3322/caac.v69.1 URL
[4]	TESTA A C, FERRANDINA G, TIMMERMAN D, et al. Imaging in gynecological disease (1): ultrasound features of metastases in the ovaries differ depending on the origin of the primary tumor[J]. Ultrasound Obstet Gynecol, 2007, 29(5):505-511. doi: 10.1002/uog.v29:5 URL
[5]	CHEONG J H, HYUNG W J, CHEN J, et al. Survival benefit of metastasectomy for Krukenberg tumors from gastric cancer[J]. Gynecol Oncol, 2004, 94(2):477-482. pmid: 15297191
[6]	TIMMERMAN D, PLANCHAMP F, BOURNE T, et al. ESGO/ISUOG/IOTA/ESGE Consensus Statement on preoperative diagnosis of ovarian tumors[J]. Ultrasound Obstet Gynecol, 2021, 58(1):148-168.
[7]	FROYMAN W, LANDOLFO C, DE COCK B, et al. Risk of complications in patients with conservatively managed ovarian tumours (IOTA5): a 2-year interim analysis of a multicentre, prospective, cohort study[J]. Lancet Oncol, 2019, 20(3):448-458. doi: S1470-2045(18)30837-4 pmid: 30737137
[8]	TIMMERMAN D, VALENTIN L, BOURNE T H, et al. Terms, definitions and measurements to describe the sonographic features of adnexal tumors: a consensus opi-nion from the International Ovarian Tumor Analysis (IOTA) Group[J]. Ultrasound Obstet Gynecol, 2000, 16(5):500-505. doi: 10.1046/j.1469-0705.2000.00287.x URL
[9]	TIMMERMAN D, TESTA A C, BOURNE T, et al. Logistic regression model to distinguish between the benign and malignant adnexal mass before surgery: a multicenter study by the International Ovarian Tumor Analysis Group[J]. J Clin Oncol. 2005, 23(34):8794-8801. doi: 10.1200/JCO.2005.01.7632 pmid: 16314639
[10]	TIMMERMAN D, TESTA A C, BOURNE T, et al. Simple ultrasound-based rules for the diagnosis of ovarian cancer[J]. Ultrasound Obstet Gynecol, 2008, 31(6):681-690. doi: 10.1002/uog.5365 pmid: 18504770
[11]	VAN CALSTER B, VAN HOORDE K, VALENTIN L, et al. Evaluating the risk of ovarian cancer before surgery using the ADNEX model to differentiate between benign, borderline, early and advanced stage invasive, and secondary metastatic tumours: prospective multicentre diagnostic study[J]. BMJ, 2014, 349:g5920. doi: 10.1136/bmj.g5920 URL
[12]	MEINHOLD-HEERLEIN I, FOTOPOULOU C, HARTER P, et al. The new WHO classification of ova-rian, fallopian tube, and primary peritoneal cancer and its clinical implications[J]. Arch Gynecol Obstet, 2016, 293(4):695-700. doi: 10.1007/s00404-016-4035-8 URL
[13]	PRAT J; FIGO Committee on Gynecologic Oncology. Staging classification for cancer of the ovary, fallopian tube, and peritoneum[J]. Int J Gynaecol Obstet, 2014, 124(1):1-5. doi: 10.1016/j.ijgo.2013.10.001 pmid: 24219974
[14]	MORO F, PASCIUTO T, DJOKOVIC D, et al. Role of CA125/CEA ratio and ultrasound parameters in identifyi-ng metastases to the ovaries in patients with multilocular and multilocular-solid ovarian masses[J]. Ultrasound Obstet Gynecol, 2019, 53(1):116-123. doi: 10.1002/uog.2019.53.issue-1 URL
[15]	SZUBERT S, WOJTOWICZ A, MOSZYNSKI R, et al. External validation of the IOTA ADNEX model performed by two independent gynecologic centers[J]. Gynecol Oncol, 2016, 142(3):490-495. doi: 10.1016/j.ygyno.2016.06.020 pmid: 27374142
[16]	EPSTEIN E, VAN CALSTER B, TIMMERMAN D, et al. Subjective ultrasound assessment, the ADNEX model and ultrasound-guided tru-cut biopsy to differentiate disseminated primary ovarian cancer from metastatic non-ovarian cancer[J]. Ultrasound Obstet Gynecol, 2016, 47(1):110-116. doi: 10.1002/uog.14892 pmid: 25925783
[17]	MEYS E M J, JEELOF L S, ACHTEN N M J, et al. Estimating risk of malignancy in adnexal masses: external validation of the ADNEX model and comparison with other frequently used ultrasound methods[J]. Ultrasound Obstet Gynecol, 2017, 49(6):784-792. doi: 10.1002/uog.17225 pmid: 27514486
[18]	ARAUJO K G, JALES R M, PEREIRA P N, et al. Performance of the IOTA ADNEX model in preoperative discrimination of adnexal masses in a gynecological oncolo-gy center[J]. Ultrasound Obstet Gynecol, 2017, 49(6):778-783. doi: 10.1002/uog.2017.49.issue-6 URL
[19]	CHEN H, QIAN L, JIANG M, et al. Performance of IOTA ADNEX model in evaluating adnexal masses in a gynecological oncology center in China[J]. Ultrasound Obstet Gynecol, 2019, 54(6):815-822. doi: 10.1002/uog.20363 pmid: 31152572
[20]	WESTWOOD M, RAMAEKERS B, LANG S, et al. Risk scores to guide referral decisions for people with suspected ovarian cancer in secondary care: a systematic review and cost-effectiveness analysis[J]. Health Technol Assess, 2018, 22(44):1-264. doi: 10.3310/hta22440 pmid: 30165935
[21]	SAYASNEH A, FERRARA L, DE COCK B, et al. Evaluating the risk of ovarian cancer before surgery using the ADNEX model: a multicentre external validation study[J]. Br J Cancer, 2016, 115(5):542-548. doi: 10.1038/bjc.2016.227
[22]	VAN CALSTER B, VALENTIN L, FROYMAN W, et al. Validation of models to diagnose ovarian cancer in patients managed surgically or conservatively: multicentre cohort study[J]. BMJ, 2020,370:m2614.
[23]	NUNES N, AMBLER G, FOO X, et al. Use of IOTA simple rules for diagnosis of ovarian cancer: meta-analysis[J]. Ultrasound Obstet Gynecol, 2014, 44(5):503-514. doi: 10.1002/uog.13437 pmid: 24920435
[24]	ZIKAN M, FISCHEROVA D, PINKAVOVA I, et al. Ultrasonographic appearance of metastatic non-gynecological pelvic tumors[J]. Ultrasound Obstet Gynecol, 2012, 39(2):215-225. doi: 10.1002/uog.10068 pmid: 21845744
[25]	薛改琴, 陈敏华, 苗润琴, 等. 超声对胃肠道恶性肿瘤继发卵巢转移癌的诊断价值[J]. 中国超声医学杂志, 2002, 18(12):946-948.
	XUE G Q, CHEN M H, MIAO R Q, et al. Diagnostic value of ultrasound in ovarian metastatic carcinoma secondary to gastrointestinal malignancy[J]. Chin J Ultrasound Med, 2002, 18(12):946-948.
[26]	HART W R. Diagnostic challenge of secondary (metastatic) ovarian tumors simulating primary endometrioid and mucinous neoplasms[J]. Pathol Int, 2005, 55(5):231-243. pmid: 15871720

Histological type	n (%)
Primary ovarian malignant	153 (77.66)
Serous carcinoma	105 (53.30)
Clear cell carcinoma	15 (7.61)
Ovarian endometrioid carcinoma	15 (7.61)
Carcinosarcoma	3 (1.52)
Mucinous carcinoma	6 (3.05)
Neuroendocrine carcinomas	2 (1.02)
Immature teratomas	2 (1.02)
Granular cell tumor	2 (1.02)
Dysgerminomas	1 (0.51)
Malignant Brenner tumor	1 (0.51)
Ovarian endometrioid carcinoma + clear cell carcinoma	1 (0.51)
Ovarian metastasis	44 (22.34)

Variables	Overall	OC Stages Ⅰ	OC Stages Ⅱ-Ⅳ	Ovarian metastasis	P
Overall [n (%)]	197 (100%)	36 (18.27)	117 (59.39)	44 (22.34)	-
Age [years, median (IQR)]	55.00(48.00-63.00)	56.50(47.00-63.00)	58.00(51.00-64.00)	50.00(38.75-56.50)	<0.001
Menopause [n (%)]					0.014
Yes	126 (63.96)	24 (66.67)	82 (70.09)	20 (45.45)
No	71 (36.04)	12 (33.33)	35 (29.91)	24 (54.55)
CA125 [U/mL, median (IQR)]	210.60(39.10-883.30)	59.30(15.08-311.68)	596.20(122.20-2162.80)	37.95(13.25-102.68)	<0.001
Maximum diameter of lesion, mm, median (IQR)	77.00(51.00-111.00)	91.00(70.00-148.00)	70.00(44.00-100.00)	80.50(57.50-117.75)	0.017
Solid tissue present [n (%)]	195 (98.98)	35 (97.22)	117 (100.00)	43 (97.73)	0.164
Maximum diameter of largest solid component, if present, mm, median (IQR)	56.00(37.00-82.00)	50.00(33.00-63.50)	52.00(34.00-85.00)	68.00(51.50-90.50)	0.038
Papillary projections present [n (%)]					0.260
0	161 (81.73)	26 (72.22)	95 (81.20)	40 (90.91)
1	7 (3.55)	1 (2.78)	5 (4.27)	1 (2.27)
2	3 (1.52)	0 (0.00)	3 (2.56)	0 (0.00)
≥3	26 (13.20)	9 (25.00)	14 (11.97)	3 (6.82)
More than 10 locules [n (%)]	33 (16.75)	7 (19.44)	15 (12.82)	11 (25.00)	0.163
Ascites [n (%)]	48 (24.37)	3 (8.33)	41 (35.04)	4 (9.09)	<0.001

Discrimination	AUC (95%CI)		P
Discrimination	ADNEX model with CA125	ADNEX model without CA125	P
Primary OC vs metastasis	0.810 (0.747-0.872)	0.621 (0.534-0.708)	<0.001
Stage Ⅰ OC vs stages Ⅱ-Ⅳ OC	0.826 (0.745-0.907)	0.771 (0.687-0.854)	0.156
Stage Ⅰ OC vs metastasis	0.620 (0.486-0.754)	0.654 (0.524-0.784)	0.033
Stages Ⅱ-Ⅳ OC vs metastasis	0.890 (0.839-0.940)	0.710 (0.624-0.796)	<0.001

Discrimination	ADNEX model	Sensitivity (95%CI)	Specificity (95%CI)	PPV (95%CI)	NPV (95%CI)	LR+ (95%CI)	LR- (95%CI)	Optimal cutoff value
Primary OC vs metastasis	With CA125	0.795 (0.676-0.915)	0.693 (0.620-0.766)	0.427 (0.320-0.534)	0.922 (0.873-0.971)	2.589 (1.955-3.430)	0.295 (0.163-0.534)	0.140
Primary OC vs metastasis	Without CA125	0.932 (0.857-1.000)	0.314 (0.240- 0.387)	0.281 (0.208- 0.354)	0.941 (0.877-1.006)	1.358 (1.188-1.552)	0.217 (0.071-0.664)	0.110
Stage Ⅰ OC vs stages Ⅱ-Ⅳ OC	With CA125	0.701 (0.618-0.784)	0.833 (0.712- 0.955)	0.932 (0.879-0.984)	0.462 (0.340-0.583)	4.205 (2.006-8.813)	0.359 (0.262-0.491)	0.840
Stage Ⅰ OC vs stages Ⅱ-Ⅳ OC	Without CA125	0.821 (0.751-0.890)	0.639 (0.482-0.796)	0.881 (0.820-0.942)	0.523 (0.375-0.670)	2.272 (1.459-3.538)	0.281 (0.178-0.444)	0.691
Stage Ⅰ OC vs metastasis	With CA125	0.727 (0.596-0.859)	0.639 (0.482-0.796)	0.711 (0.579-0.844)	0.657 (0.500-0.814)	2.014 (1.258-3.225)	0.427 (0.248-0.734)	0.381
Stage Ⅰ OC vs metastasis	Without CA125	0.841 (0.733-0.949)	0.556 (0.393-0.718)	0.698 (0.575-0.822)	0.741 (0.575-0.906)	1.892 (1.285-2.787)	0.286 (0.137-0.600)	0.297
Stages Ⅱ-Ⅳ OC vs metastasis	With CA125	0.841 (0.733-0.949)	0.803 (0.731-0.875)	0.617 (0.494-0.740)	0.931 (0.881-0.980)	4.278 (2.901-6.307)	0.198 (0.100-0.393)	0.239
Stages Ⅱ-Ⅳ OC vs metastasis	Without CA125	0.795 (0.676-0.915)	0.607 (0.518-0.695)	0.432 (0.324-0.540)	0.887 (0.818-0.957)	2.023 (1.544-2.651)	0.337 (0.185-0.615)	0.208

ADNEX model	Cutoff value	Sensitivity (95%CI)	Specificity (95%CI)	PPV(95%CI)	NPV(95%CI)	LR+(95%CI)	LR-(95%CI)
With CA125	0.10	0.886 (0.793-0.980)	0.549 (0.470-0.628)	0.361 (0.271-0.452)	0.944 (0.896-0.992)	1.965 (1.602-2.411)	0.207 (0.090-0.478)
	0.15	0.750 (0.622-0.878)	0.706 (0.634-0.778)	0.423 (0.313-0.533)	0.908 (0.856-0.960)	2.550 (1.891-3.438)	0.354 (0.210-0.597)
	0.20	0.614 (0.470-0.758)	0.810 (0.748-0.873)	0.482 (0.351-0.613)	0.879 (0.826-0.933)	3.237 (2.164-4.844)	0.477 (0.326-0.697)
	0.25	0.477 (0.330-0.625)	0.876 (0.824-0.928)	0.525 (0.370-0.680)	0.854 (0.798-0.909)	3.843 (2.280-6.479)	0.597 (0.447-0.797)
Without CA125	0.10	0.932 (0.857-1.000)	0.288 (0.216-0.359)	0.273 (0.202-0.345)	0.936 (0.866-1.006)	1.308 (1.150-1.487)	0.237 (0.077-0.727)
	0.15	0.727 (0.596-0.859)	0.477 (0.398-0.556)	0.286 (0.202-0.369)	0.859 (0.785-0.933)	1.391 (1.099-1.761)	0.572 (0.343-0.952)
	0.20	0.250 (0.122-0.378)	0.778 (0.712-0.844)	0.244 (0.119-0.370)	0.783 (0.717-0.848)	1.125 (0.623-2.032)	0.964 (0.797-1.167)
	0.25	0.045 (0.000- 0.107)	0.967 (0.939-0.995)	0.286 (0.000-0.620)	0.779 (0.720-0.838)	1.391 (0.279-6.925)	0.987 (0.919-1.059)
