Versatile MXene Gels Assisted by Brief and Low-Strength Centrifugation

doi:10.1007/s40820-023-01302-3

Abstract

Abstract:

Due to the mutual repulsion between their hydrophilic surface terminations and the high surface energy facilitating their random restacking, 2D MXene nanosheets usually cannot self-assemble into 3D macroscopic gels with various applications in the absence of proper linking agents. In this work, a rapid spontaneous gelation of Ti₃C₂T_x MXene with a very low dispersion concentration of 0.5 mg mL⁻¹ into multifunctional architectures under moderate centrifugation is illustrated. The as-prepared MXene gels exhibit reconfigurable internal structures and tunable rheological, tribological, electrochemical, infrared-emissive and photothermal-conversion properties based on the pH-induced changes in the surface chemistry of Ti₃C₂T_x nanosheets. By adopting a gel with optimized pH value, high lubrication, exceptional specific capacitances (~ 635 and ~ 408 F g⁻¹ at 5 and 100 mV s⁻¹, respectively), long-term capacitance retention (~ 96.7% after 10,000 cycles) and high-precision screen- or extrusion-printing into different high-resolution anticounterfeiting patterns can be achieved, thus displaying extensive potential applications in the fields of semi-solid lubrication, controllable devices, supercapacitors, information encryption and infrared camouflaging.

Key words: MXene, Centrifugation-assisted rapid gelation, Lubrication, Supercapacitor, Anti-counterfeiting applications

Weiyan Yu, Yi Yang, Yunjing Wang, Lulin Hu, Jingcheng Hao, Lu Xu, Weimin Liu. Versatile MXene Gels Assisted by Brief and Low-Strength Centrifugation[J]. Nano-Micro Letters, 2024, 16(1): 94-.

Weiyan Yu, Yi Yang, Yunjing Wang, Lulin Hu, Jingcheng Hao, Lu Xu, Weimin Liu. [J]. Nano-Micro Letters, 2024, 16(1): 94-.

/ / Recommend / Download Citations

URL: https://www.qk.sjtu.edu.cn/nml/EN/10.1007/s40820-023-01302-3

https://www.qk.sjtu.edu.cn/nml/EN/Y2024/V16/I1/94

Figures/Tables 5

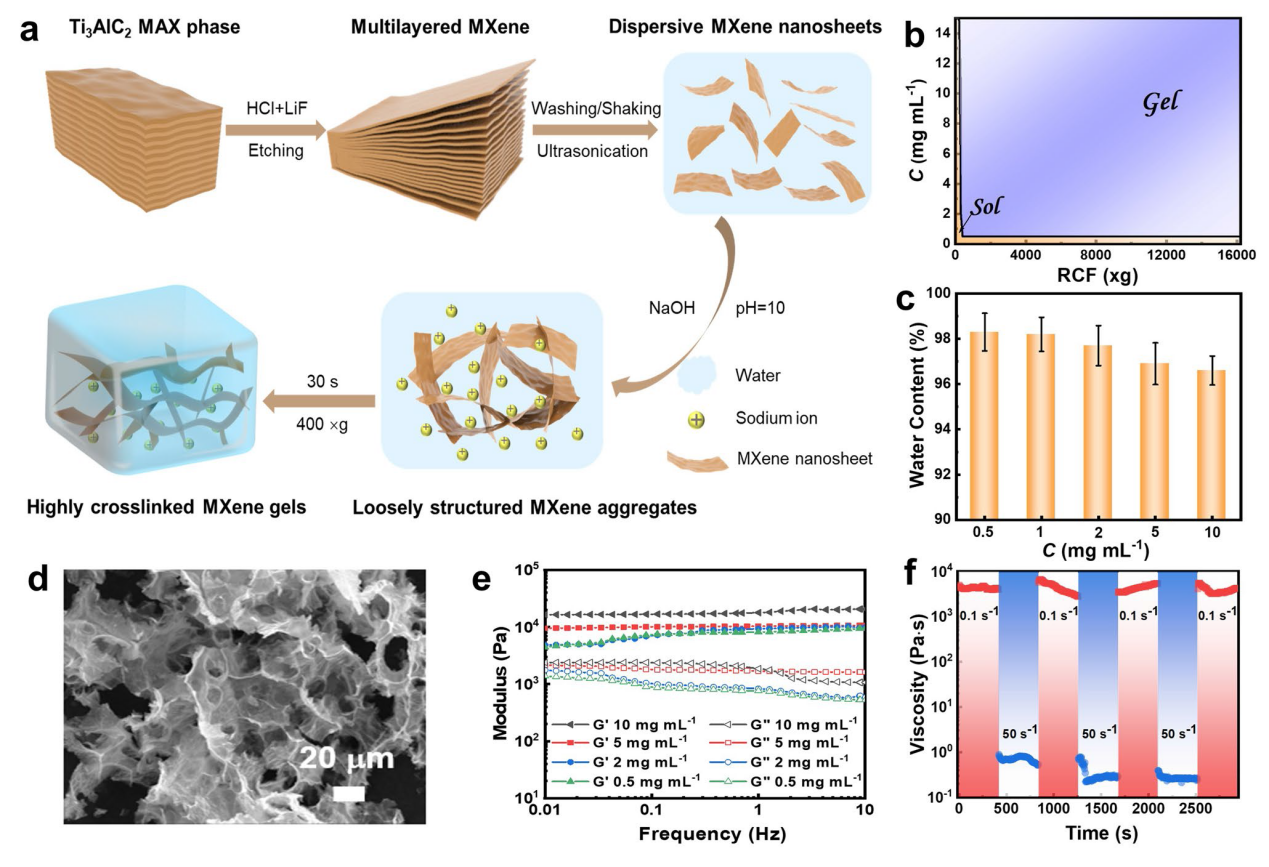

Fig. 1 Preparation and characterization of the MXene gel. a Schematic illustration of producing Ti₃C₂T_x MXene gelators and centrifugation-assisted MXene gels. b Phase diagram of different-concentration pH 10 Ti₃C₂T_x dispersions after exposure to different relative centrifugal forces (RCFs). The blue-colored region refers to a particle concentration and RCF required for obtaining a gel. c Water content of MXene gels prepared with Ti₃C₂T_x dispersions in different concentrations. d Scanning electron microscopy (SEM) observation of a MXene gel formed with a dispersion concentration of 10 mg mL⁻¹. e Rheological property of the gels prepared with different initial particle concentrations. f Thixotropic property of the gel formed with a dispersion concentration of 10 mg mL⁻¹. T = 25 °C. (Color figure online)

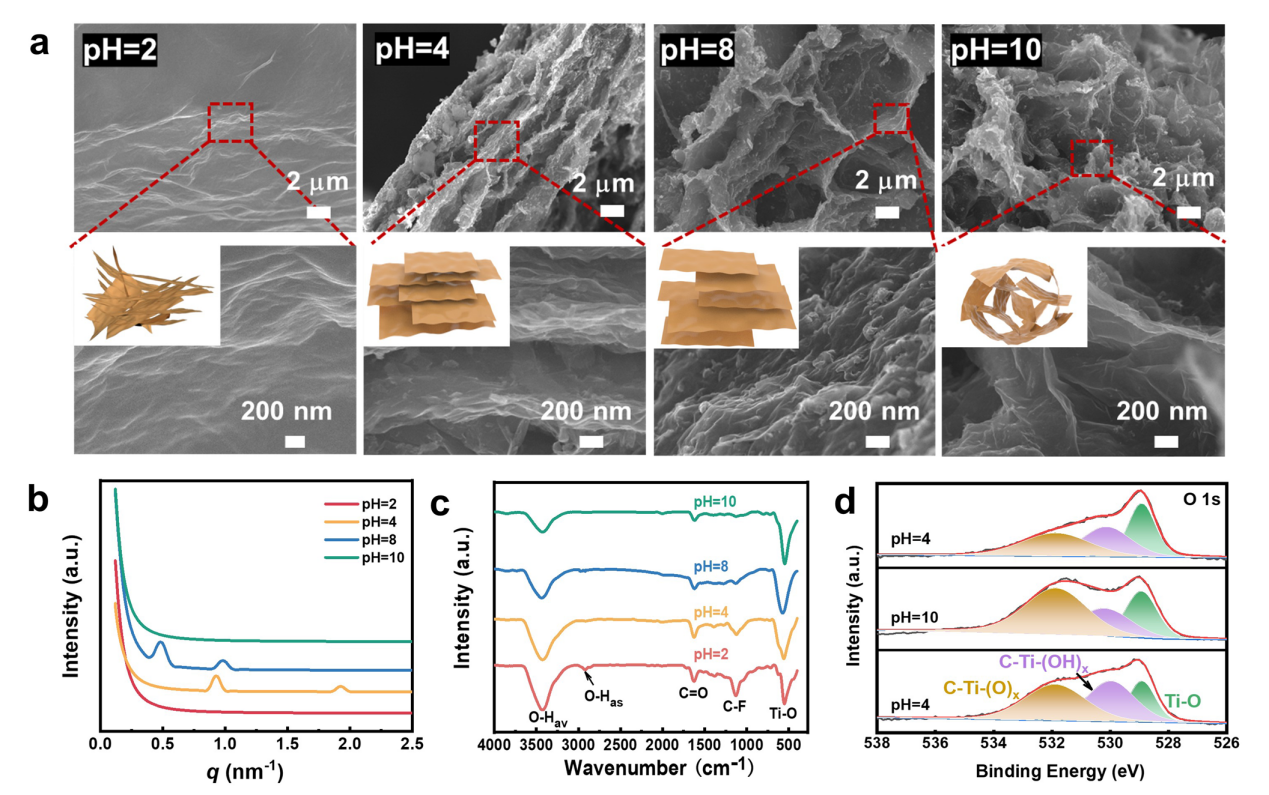

Fig. 2 pH-dependent internal structures of the MXene gel. a SEM images, b SAXS profiles, c FTIR spectra and d XPS O 1s patterns of freeze-dried Ti₃C₂T_x gels with different internal pH values. Insets in a are schematic illustrations of the aggregation behavior of MXene nanosheets inside a gel. T = 25 °C

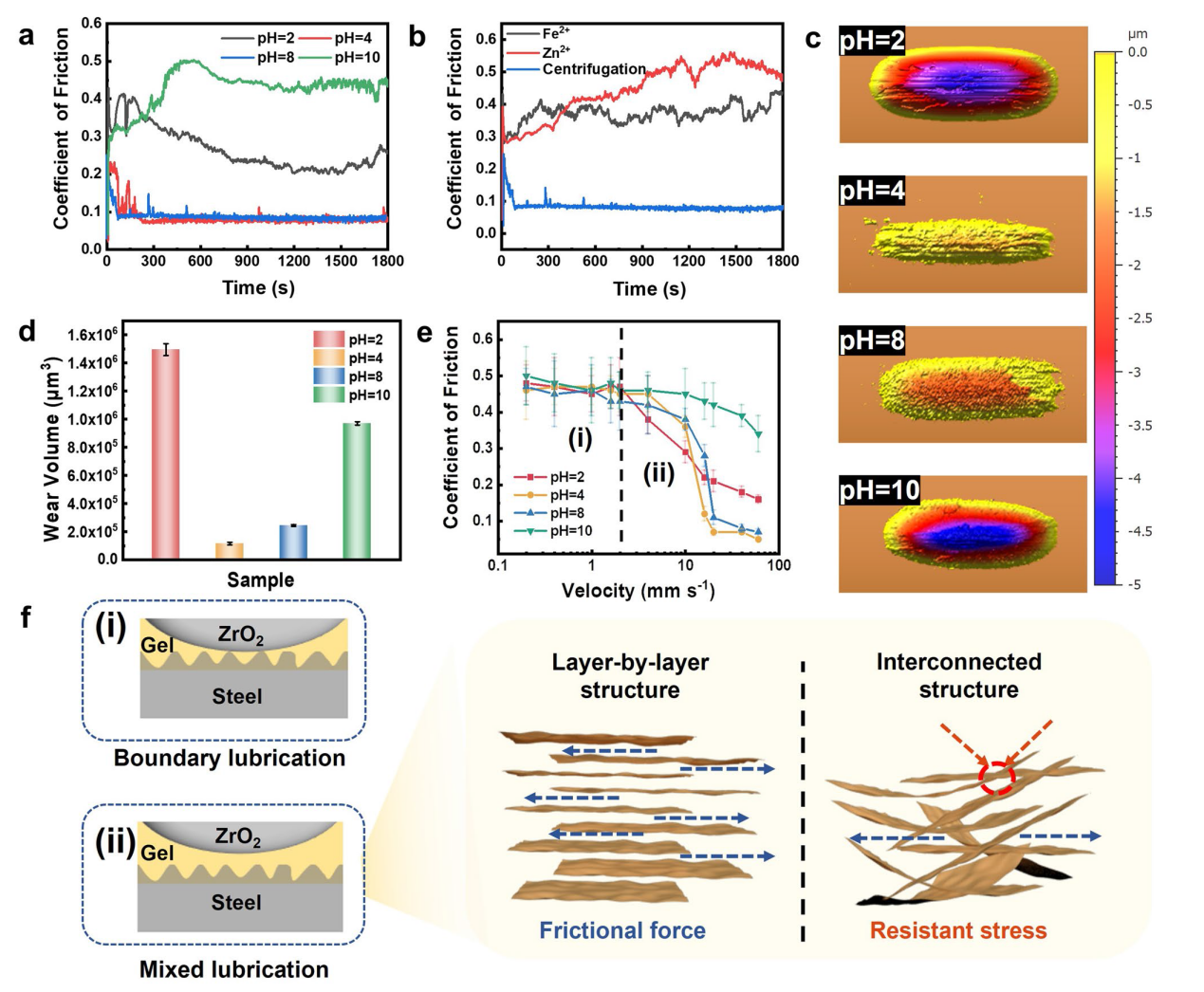

Fig. 3 Tribological property of the MXene gel. a CoF of Ti₃C₂T_x gels with different pH values for the steel/ZrO₂ tribopair at 10 N and 10 mm s⁻¹. b Comparison between the CoF of centrifugation- and metal ions-induced MXene gels. c 3D surface topography and d abrasive volume of the steel substrate lubricated with Ti₃C₂T_x gels in different pH values. e Effect of sliding velocity on the CoF of MXene gels at a constant load of 10 N. f Schematic illustrations of the impact of sliding velocity and internal microstructure on the lubrication mechanism. T = 25 °C

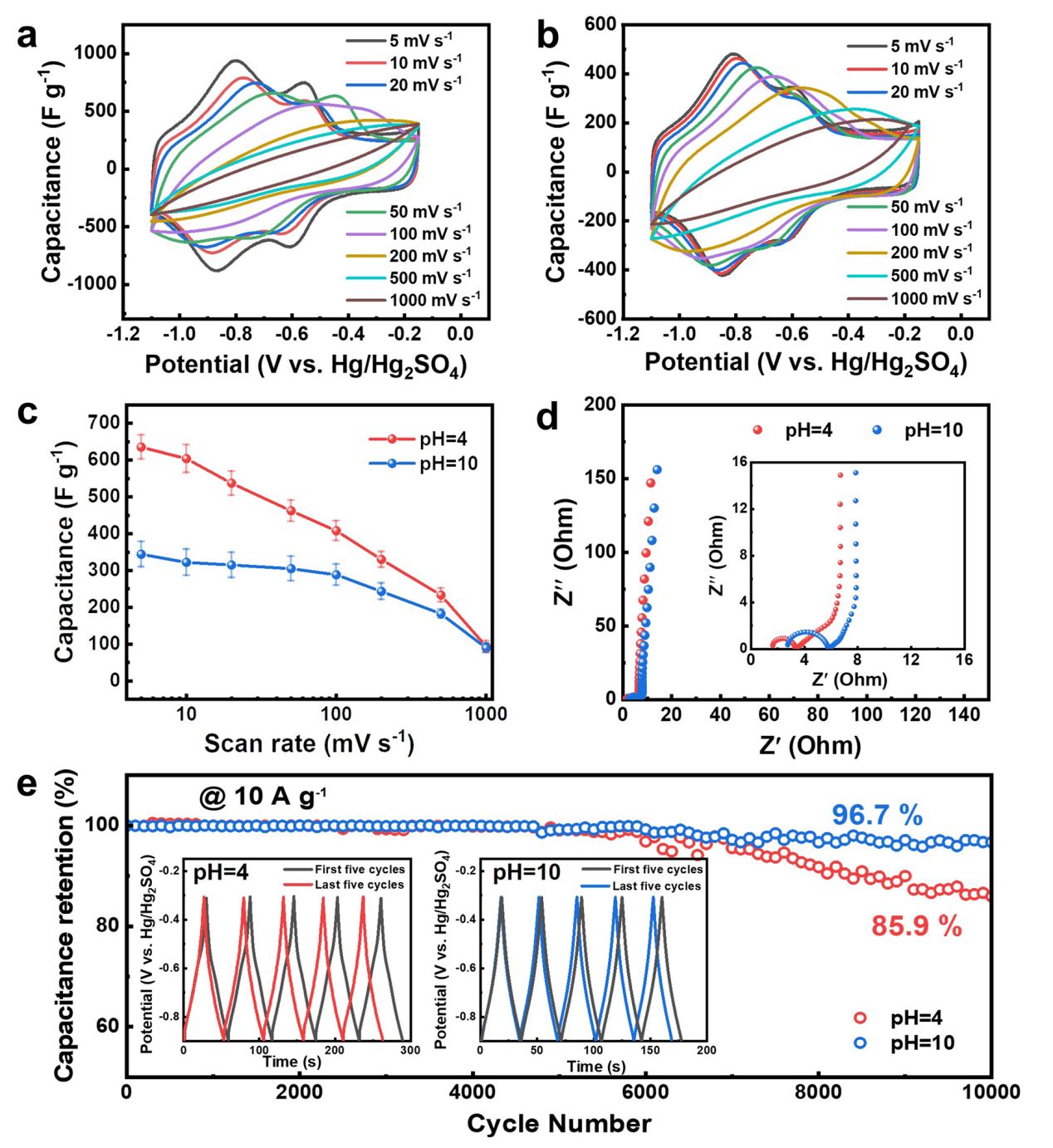

Fig. 4 Electrochemical performance of the MXene gel electrode in 3 mol L⁻¹ H₂SO₄ electrolyte. CV curves of a pH 4 and b 10 MXene gels at various scanning rates. c Specific capacitance of the pH 4 and 10 gels at different scanning speeds. d Electrochemical impedance spectroscopy (EIS) data and e capacitance retention tests of the gel electrodes at 10 A g⁻¹. Insets in d and e are the Nyquist plots at high-frequency range and the GCD curves for the first and last five cycles, respectively. T = 25 °C

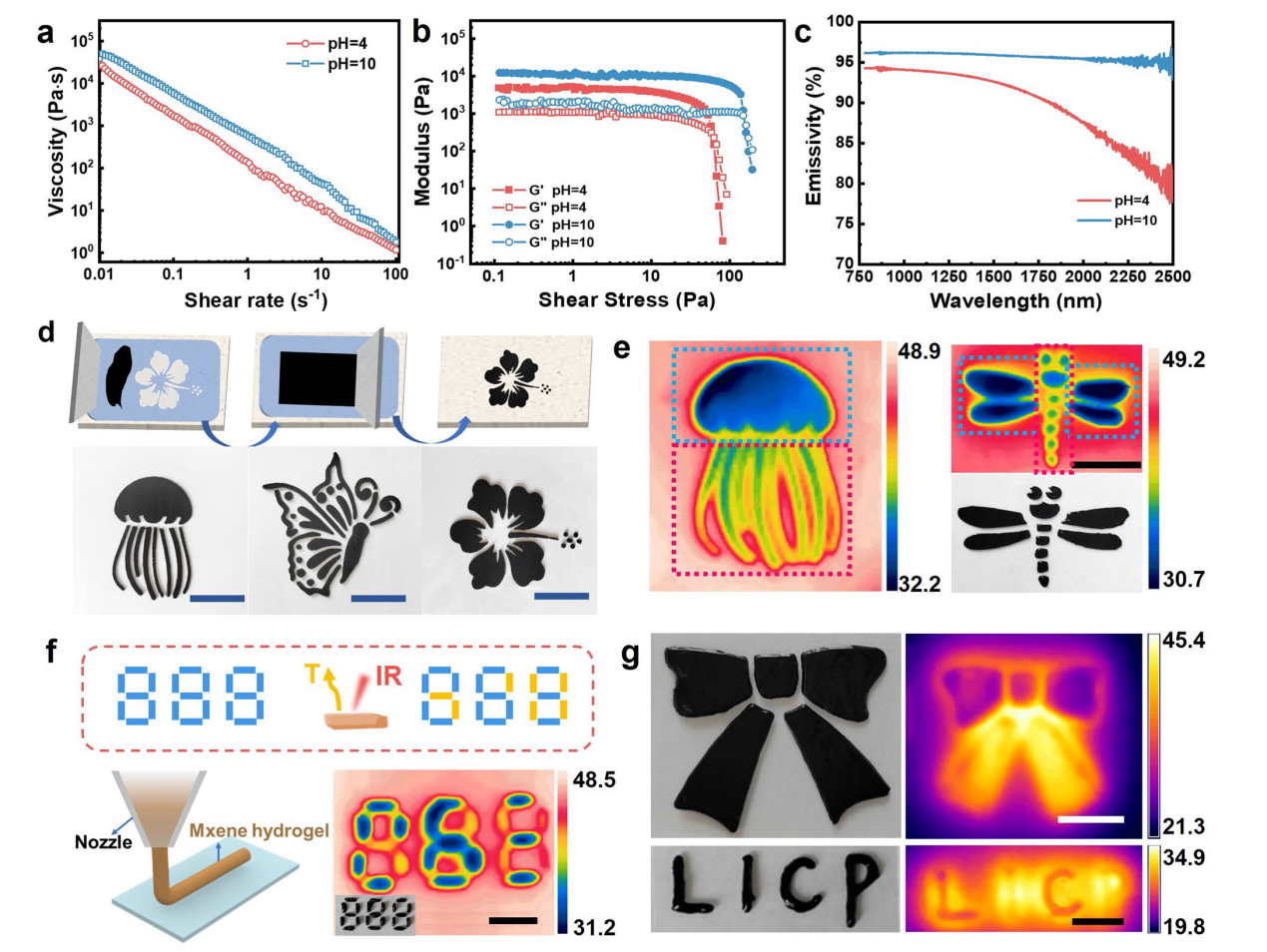

Fig. 5 Rheological property, ink printing and anticounterfeiting applications of the MXene gel. a Viscosity of the Ti₃C₂T_x gels in a shear rate from 0.01 to 100 s⁻¹. b G′ and G′′ of the gels as a function of shear stress. c Emissivity spectra of the gels in the NIR band (750-2500 nm). d Screen-printing process and screen-printed patterns of the MXene gel inks. e Security jellyfish and dragonfly patterns for photoemissive anticounterfeiting. The blue and red rectangular boxes indicate the areas covered by the pH 4 and 10 gels, respectively. f Schematic and photographic illustrations of the photothermal encryption using the passwords from extrusion-printing of the MXene gels. g Extrusion-printed anticounterfeiting patterns before (left) and after (high) exposure to 3 W cm⁻² NIR irradiations. Scale bar = 1 cm. (Color figure online)

References 65

1.	M. Ghidiu, M.R. Lukatskaya, M.-Q. Zhao, Y. Gogotsi, M.W. Barsoum, Conductive two-dimensional titanium carbide ‘clay’ with high volumetric capacitance. Nature 516, 78-81 (2014). https://doi.org/10.1038/nature13970
2.	M.R. Lukatskaya, S. Kota, Z. Lin, M.-Q. Zhao, N. Shpigel et al., Ultra-high-rate pseudocapacitive energy storage in two-dimensional transition metal carbides. Nat. Energy 2, 17105 2017). https://doi.org/10.1038/nenergy.2017.105
3.	Y. Liu, W. Zhang, W. Zheng, Quantum dots compete at the Acme of MXene family for the optimal catalysis. Nano-Micro Lett. 14, 158 (2022). https://doi.org/10.1007/s40820-022-00908-3
4.	Y. Chen, X. Xie, X. Xin, Z.-R. Tang, Y.-J. Xu, Ti₃C₂T_x-based three-dimensional hydrogel by a graphene oxide-assisted self-convergence process for enhanced photoredox catalysis. ACS Nano 13, 295-304 (2019). https://doi.org/10.1021/acsnano.8b06136
5.	Y. Ma, N. Liu, L. Li, X. Hu, Z. Zou et al., A highly flexible and sensitive piezoresistive sensor based on MXene with greatly changed interlayer distances. Nat. Commun. 8, 1207 (2017). https://doi.org/10.1038/s41467-017-01136-9
6.	Z. Yang, S. Lv, Y. Zhang, J. Wang, L. Jiang et al., Self-assembly 3D porous crumpled MXene spheres as efficient gas and pressure sensing material for transient all-MXene sensors. Nano-Micro Lett. 14, 56 (2022). https://doi.org/10.1007/s40820-022-00796-7
7.	M. Malaki, R.S. Varma, Mechanotribological aspects of MXene-reinforced nanocomposites. Adv. Mater. 32, e2003154 (2020). https://doi.org/10.1002/adma.202003154
8.	S. Liu, Q. Gao, K. Hou, Z. Li, J. Wang et al., Solvent-free covalent MXene nanofluid: a new lubricant combining the characteristics of solid and liquid lubricants. Chem. Eng. J. 462, 142238 (2023). https://doi.org/10.1016/j.cej.2023.142238
9.	Y. Li, C. Xiong, H. Huang, X. Peng, D. Mei et al., 2D Ti₃C₂T_x MXenes: visible black but infrared white materials. Adv. Mater. 33, 2103054 (2021). https://doi.org/10.1002/adma.202103054
10.	X. Wu, T. Tu, Y. Dai, P. Tang, Y. Zhang et al., Direct ink writing of highly conductive MXene frames for tunable electromagnetic interference shielding and electromagnetic wave-induced thermochromism. Nano-Micro Lett. 13, 148 (2021). https://doi.org/10.1007/s40820-021-00665-9
11.	Y.-Z. Zhang, Y. Wang, Q. Jiang, J.K. El-Demellawi, H. Kim et al., MXene printing and patterned coating for device applications. Adv. Mater. 32, e1908486 (2020). https://doi.org/10.1002/adma.201908486
12.	Y. Deng, T. Shang, Z. Wu, Y. Tao, C. Luo et al., Fast gelation of Ti₃C₂T_x MXene initiated by metal ions. Adv. Mater. 31, 1902432 (2019). https://doi.org/10.1002/adma.201902432
13.	M.-Q. Zhao, X. Xie, C.E. Ren, T. Makaryan, B. Anasori et al., Hollow MXene spheres and 3D macroporous MXene frameworks for Na-ion storage. Adv. Mater. 29, 1702410 (2017). https://doi.org/10.1002/adma.201702410
14.	F. Song, J. Hu, G. Li, J. Wang, S. Chen et al., Room-temperature assembled MXene-based aerogels for high mass-loading sodium-ion storage. Nano-Micro Lett. 14, 37 (2021). https://doi.org/10.1007/s40820-021-00781-6
15.	A. Vahid Mohammadi, J. Rosen, Y. Gogotsi, The world of two-dimensional carbides and nitrides (MXenes). Science 372, eabf1581 (2021). https://doi.org/10.1126/science.abf1581
16.	X. Xu, T. Guo, M. Lanza, H.N. Alshareef, Status and prospects of MXene-based nanoelectronic devices. Matter 6, 800-837 (2023). https://doi.org/10.1016/j.matt.2023.01.019
17.	K. Sano, N. Igarashi, Y. Ebina, T. Sasaki, T. Hikima et al., A mechanically adaptive hydrogel with a reconfigurable network consisting entirely of inorganic nanosheets and water. Nat. Commun. 11, 6026 (2020). https://doi.org/10.1038/s41467-020-19905-4
18.	C. Luo, W. Lv, C. Qi, L. Zhong, Z.-Z. Pan et al., Realizing ultralow concentration gelation of graphene oxide with artificial interfaces. Adv. Mater. 31, e1805075 (2019). https://doi.org/10.1002/adma.201805075
19.	H.-P. Cong, X.-C. Ren, P. Wang, S.-H. Yu, Macroscopic multifunctional graphene-based hydrogels and aerogels by a metal ion induced self-assembly process. ACS Nano 6, 2693-2703 (2012). https://doi.org/10.1021/nn300082k
20.	L. Hu, Y. Yang, J. Hao, L. Xu, Dual-driven mechanically and tribologically adaptive hydrogels solely constituted of graphene oxide and water. Nano Lett. 22, 6004-6009 (2022). https://doi.org/10.1021/acs.nanolett.2c01489
21.	Y. Yang, H. Sun, B. Zhang, L. Hu, L. Xu et al., Hydrogels totally from inorganic nanosheets and water with mechanical robustness, self-healing, controlled lubrication and anti-corrosion. Nano Res. 16, 1533-1544 (2023). https://doi.org/10.1007/s12274-022-4730-7
22.	T. Shang, Z. Lin, C. Qi, X. Liu, P. Li et al., 3D macroscopic architectures from self-assembled MXene hydrogels. Adv. Funct. Mater. 29, 1903960 (2019). https://doi.org/10.1002/adfm.201903960
23.	Z. Fan, J. Jin, C. Li, J. Cai, C. Wei et al., 3D-printed Zn-ion hybrid capacitor enabled by universal divalent cation-gelated additive-free Ti₃C₂ MXene ink. ACS Nano 15, 3098-3107 (2021). https://doi.org/10.1021/acsnano.0c09646
24.	R. Bian, R. Lin, G. Wang, G. Lu, W. Zhi et al., 3D assembly of Ti₃C₂-MXene directed by water/oil interfaces. Nanoscale 10, 3621-3625 (2018). https://doi.org/10.1039/c7nr07346a
25.	G. Shi, Y. Zhu, M. Batmunkh, M. Ingram, Y. Huang et al., Cytomembrane-inspired MXene ink with amphiphilic surfactant for 3D printed microsupercapacitors. ACS Nano 16, 14723-14736 (2022). https://doi.org/10.1021/acsnano.2c05445
26.	J. Orangi, F. Hamade, V.A. Davis, M. Beidaghi, 3D printing of additive-free 2D Ti₃C₂T_x (MXene) ink for fabrication of micro-supercapacitors with ultra-high energy densities. ACS Nano 14, 640-650 (2020). https://doi.org/10.1021/acsnano.9b07325
27.	L. Ding, D. Xiao, Z. Lu, J. Deng, Y. Wei et al., Oppositely charged Ti₃C₂T_x MXene membranes with 2D nanofluidic channels for osmotic energy harvesting. Angew. Chem. Int. Ed. 132, 8798-8804 (2020). https://doi.org/10.1002/ange.201915993
28.	Y. Yang, J. Wang, Y. Yang, A. Chen, J. Wang et al., Low-load MXene nanosheet/melamine composite sponges for enhanced electromagnetic interference shielding. ACS Appl. Nano Mater. 6, 10953-10959 (2023). https://doi.org/10.1021/acsanm.3c01723
29.	L. Yin, Y. Yang, H. Yang, H. Kang, J. Wang et al., Rapid foaming of dense MXene films induced by acid-base neutralization reaction. Cell Rep. Phys. Sci. 4, 101421 (2023). https://doi.org/10.1016/j.xcrp.2023.101421
30.	W. Wang, T. Cai, Z. Cheng, Y. Yang, J. Wang et al., A shape programmable MXene-based supermolecular nanocomposite film. Compos. Part A Appl. Sci. Manuf. 159, 106997 (2022). https://doi.org/10.1016/j.compositesa.2022.106997
31.	L. Xu, L. Feng, R. Dong, J. Hao, S. Dong, Transfection efficiency of DNA enhanced by association with salt-free catanionic vesicles. Biomacromolecules 14, 2781-2789 (2013). https://doi.org/10.1021/bm400616y
32.	L. Xu, L. Feng, S. Dong, J. Hao, Magnetic controlling of migration of DNA and proteins using one-step modified gold nanoparticles. Chem. Commun. 51, 9257-9260 (2015). https://doi.org/10.1039/C5CC01738F
33.	L.J. Michot, I. Bihannic, S. Maddi, S.S. Funari, C. Baravian et al., Liquid-crystalline aqueous clay suspensions. Proc. Natl. Acad. Sci. U.S.A. 103, 16101-16104 (2006). https://doi.org/10.1073/pnas.0605201103
34.	M.D. Mourad, D.V. Byelov, A.V. Petukhov, H.W. Lekkerkerker, Structure of the repulsive gel/glass in suspensions of charged colloidal platelets. J. Phys.: Condens. Matter 20, 494201 2008). https://doi.org/10.1088/0953-8984/20/49/494201
35.	Z. Deng, L. Li, P. Tang, C. Jiao, Z.Z. Yu et al., Controllable surface-grafted MXene inks for electromagnetic wave modulation and infrared anti-counterfeiting applications. ACS Nano 16, 16976-16986 (2022). https://doi.org/10.1021/acsnano.2c07084
36.	D. Chen, Y. Long, Z. Wu, X. Dong, N. Wang et al., A gelation-assisted approach for versatile MXene inks. Adv. Funct. Mater. 32, 2204372 (2022). https://doi.org/10.1002/adfm.202204372
37.	Y. Bai, Q. Yu, J. Zhang, M. Cai, Y. Liang et al., Soft-nanocomposite lubricants of supramolecular gel with carbon nanotubes. J. Mater. Chem. A 7, 7654-7663 (2019). https://doi.org/10.1039/C8TA11051D
38.	Y. Bai, C. Zhang, Q. Yu, J. Zhang, M. Zhang et al., Supramolecular PFPE gel lubricant with anti-creep capability under irradiation conditions at high vacuum. Chem. Eng. J. 409, 128120 (2021). https://doi.org/10.1016/j.cej.2020.128120
39.	C.J. Zhang, L. McKeon, M.P. Kremer, S.H. Park, O. Ronan et al., Additive-free MXene inks and direct printing of micro-supercapacitors. Nat. Commun. 10, 1795 (2019). https://doi.org/10.1038/s41467-019-09398-1
40.	Z. Fan, H. He, J. Yu, J. Wang, L. Yin et al., Binder-free Ti₃C₂T_x MXene doughs with high redispersibility. ACS Mater. Lett. 2, 1598-1605 (2020). https://doi.org/10.1021/acsmaterialslett.0c00422
41.	H. Ma, J. Wang, J. Wang, K. Shang, Y. Yang et al., Blade-coated Ti₃C₂T MXene films for pseudocapacitive energy storage and infrared stealth. Diam. Relat. Mater. 131, 109587 (2023). https://doi.org/10.1016/j.diamond.2022.109587
42.	S. Barwich, M.E. Möbius, The elastic response of graphene oxide gels as a crumpling phenomenon. Soft Matter 18, 8223-8228 (2022). https://doi.org/10.1039/d2sm00918h
43.	D. Zhao, R. Zhao, S. Dong, X. Miao, Z. Zhang et al., Alkali-induced 3D crinkled porous Ti₃C₂ MXene architectures coupled with NiCoP bimetallic phosphide nanoparticles as anodes for high-performance sodium-ion batteries. Energy Environ. Sci. 12, 2422-2432 (2019). https://doi.org/10.1039/C9EE00308H
44.	H. Chen, Y. Wen, Y. Qi, Q. Zhao, L. Qu et al., Pristine titanium carbide MXene films with environmentally stable conductivity and superior mechanical strength. Adv. Funct. Mater. 30, 1906996 (2020). https://doi.org/10.1002/adfm.201906996
45.	W. Xing, C. Liu, Z. Zhou, L. Zhang, J. Zhou et al., Superior CO₂ uptake of N-doped activated carbon through hydrogen-bonding interaction. Energy Environ. Sci. 5, 7323-7327 (2012). https://doi.org/10.1039/C2EE21653A
46.	H. Hong, H.Y. Kim, W.I. Cho, H.C. Song, H.C. Ham et al., Surface-functionalized three-dimensional MXene supports to boost the hydrogen evolution activity of Pt catalysts in alkaline media. J. Mater. Chem. A 11, 5328-5336 (2023). https://doi.org/10.1039/D2TA08852E
47.	D. Zhang, J. Liu, Q. Chen, W. Jiang, Y. Wang et al., A sandcastle worm-inspired strategy to functionalize wet hydrogels. Nat. Commun. 12, 6331 (2021). https://doi.org/10.1038/s41467-021-26659-0
48.	Z. Zhang, C. Qin, H. Feng, Y. Xiang, B. Yu et al., Design of large-span stick-slip freely switchable hydrogels via dynamic multiscale contact synergy. Nat. Commun. 13, 6964 (2022). https://doi.org/10.1038/s41467-022-34816-2
49.	R. Xu, M. Hua, S. Wu, S. Ma, Y. Zhang et al., Continuously growing multi-layered hydrogel structures with seamless interlocked interface. Matter 5, 634-653 (2022). https://doi.org/10.1016/j.matt.2021.11.018
50.	W. Guo, J. Yin, H. Qiu, Y. Guo, H. Wu et al., Friction of low-dimensional nanomaterial systems. Friction 2, 209-225 (2014). https://doi.org/10.1007/s40544-014-0064-0
51.	Z. Xue, X. Li, X. Chen, C. Huang, H. Ye et al., Mechanical and tribological performances enhanced by self-assembled structures. Adv. Mater. 32, e2002004 (2020). https://doi.org/10.1002/adma.202002004
52.	J. Guo, C. Zeng, P. Wu, G. Liu, F. Zhou et al., Surface-functionalized Ti₃C₂T_x MXene as a kind of efficient lubricating additive for supramolecular gel. ACS Appl. Mater. Interfaces 14, 52566-52573 (2022). https://doi.org/10.1021/acsami.2c17729
53.	J. Guo, P. Wu, C. Zeng, W. Wu, X. Zhao et al., Fluoropolymer grafted Ti₃C₂T_x MXene as an efficient lubricant additive for fluorine-containing lubricating oil. Tribol. Int. 170, 107500 (2022). https://doi.org/10.1016/j.triboint.2022.107500
54.	J. Guo, Z. Shang, Y. Sun, C. Li, J. Xia et al., Surface-modified Ti₃C₂T_x MXene as anti-wear and extreme pressure additive for PFPE supramolecular gel. Tribol. Int. 186, 108611 (2023). https://doi.org/10.1016/j.triboint.2023.108611
55.	Y. Wu, Q. Wei, M. Cai, F. Zhou, Interfacial friction control. Adv. Mater Interfaces 2, 1400392 (2015). https://doi.org/10.1002/admi.201400392
56.	L. Zhai, Stimuli-responsive polymer films. Chem. Soc. Rev. 42, 7148-7160 (2013). https://doi.org/10.1039/c3cs60023h
57.	Y. Ru, R. Fang, Z. Gu, L. Jiang, M. Liu, Reversibly thermosecreting organogels with switchable lubrication and anti-icing performance. Angew. Chem. Int. Ed. 59, 11876-11880 (2020). https://doi.org/10.1002/anie.202004122
58.	X. Yang, C. Cheng, Y. Wang, L. Qiu, D. Li, Liquid-mediated dense integration of graphene materials for compact capacitive energy storage. Science 341, 534-537 (2013). https://doi.org/10.1126/science.1239089
59.	T.S. Mathis, N. Kurra, X. Wang, D. Pinto, P. Simon et al., Energy storage data reporting in perspective—guidelines for interpreting the performance of electrochemical energy storage systems. Adv. Energy Mater. 9, 1902007 (2019). https://doi.org/10.1002/aenm.201902007
60.	M. Hu, H. Zhang, T. Hu, B. Fan, X. Wang et al., Emerging 2D MXenes for supercapacitors: status, challenges and prospects. Chem. Soc. Rev. 49, 6666-6693 (2020). https://doi.org/10.1039/d0cs00175a
61.	T. Wang, H.C. Chen, F. Yu, X.S. Zhao, H. Wang, Boosting the cycling stability of transition metal compounds-based supercapacitors. Energy Storage Mater. 16, 545-573 (2019). https://doi.org/10.1016/j.ensm.2018.09.007
62.	T. Liu, Y. Li, Addressing the Achilles’ heel of pseudocapacitive materials: long-term stability. InfoMat 2, 807-842 (2020). https://doi.org/10.1002/inf2.12105
63.	H. Li, J. Liang, Recent development of printed micro-supercapacitors: printable materials, printing technologies, and perspectives. Adv. Mater. 32, e1805864 (2020). https://doi.org/10.1002/adma.201805864
64.	A. Shahsafi, P. Roney, Y. Zhou, Z. Zhang, Y. Xiao et al., Temperature-independent thermal radiation. Proc. Natl. Acad. Sci. U.S.A. 116, 26402-26406 (2019). https://doi.org/10.1073/pnas.1911244116
65.	K. Li, T.-H. Chang, Z. Li, H. Yang, F. Fu et al., Biomimetic MXene textures with enhanced light-to-heat conversion for solar steam generation and wearable thermal management. Adv. Energy Mater. 9, 1901687 (2019). https://doi.org/10.1002/aenm.201901687
	R. Hu, W. Xi, Y. Liu, K. Tang, J. Song et al., Thermal camouflaging metamaterials. Mater. Today 45, 120-141 (2021). https://doi.org/10.1016/j.mattod.2020.11.013

[1]	CAO Zheng, LEI Xuelin, ZHANG Hang, CAI Xiaojiang. Cryogenic Minimal Quantity Lubrication Assisted Cutting Process for Polyimide Materials [J]. Journal of Shanghai Jiao Tong University, 2022, 56(6): 784-793.
[2]	DU Yushi, JU Changjiang, YANG Genke. Online Estimation of Supercapacitor State of Charge Based on Nonlinear Observer [J]. Journal of Shanghai Jiao Tong University, 2022, 56(12): 1630-1637.
[3]	WU Jing, TAN Haiyun, SHI Yuchao, HOU Weihong, TANG Ming. High Performance Capacitors Based on Graphene and Boron Nitride [J]. Journal of Shanghai Jiao Tong University, 2022, 56(10): 1325-1333.
[4]	LI Rui,MENG Xianghui. Analysis of Factors Affecting Tribo-Dynamics of Guide Shoe of Marine Diesel Engine [J]. Journal of Shanghai Jiaotong University, 2020, 54(10): 1035-1044.
[5]	CHEN Shi1,ZHANG Zhinan1,CAI Xiaojiang2,WEI Xinsheng2. Influence of Grinding Parameters on Workpiece Surface Morphology and Friction Performance [J]. Journal of Shanghai Jiaotong University, 2018, 52(5): 575-581.
[6]	WU Xingyang,GE Zhou,RUAN Jingjie,YANG Yi,NIU Haozhi,CHEN Teng,ZHANG Jianhua. Edge-Profiling Effect on the Tribological Properties of Protrusion Textured N-Si-DLC Films in Air [J]. Journal of Shanghai Jiaotong University, 2018, 52(5): 554-560.
[7]	ZANG Shuyan,GUO Feng,LI Chao,LI Xinming. Characteristics of Lubrication Film in Slider-on-Disc Contact Under Limited Lubricant Supply [J]. Journal of Shanghai Jiaotong University, 2018, 52(5): 533-537.
[8]	WANG Zhijian,CHEN Xiaoyang,SHEN Xuejin. A Mixed EHL Model of Finite-Length Line Contact Considering Asperity Elasto-Plastic Deformation and the Lubricant Properties [J]. Journal of Shanghai Jiaotong University, 2018, 52(5): 525-532.
[9]	Siavash Iravani, Rajender S. Varma. MXenes for Bioinspired Soft Actuators: Advancements in Angle-Independent Structural Colors and Beyond [J]. Nano-Micro Letters, 2024, 16(1): 142-.
[10]	Jianmin Yang, Li Chang, Xiqi Zhang, Ziquan Cao, Lei Jiang. Ionic Liquid-Enhanced Assembly of Nanomaterials for Highly Stable Flexible Transparent Electrodes [J]. Nano-Micro Letters, 2024, 16(1): 140-.
[11]	Poushali Das, Parham Khoshbakht Marvi, Sayan Ganguly, Xiaowu (Shirley) Tang, Bo Wang, Seshasai Srinivasan, Amin Reza Rajabzadeh, Andreas Rosenkranz. MXene-Based Elastomer Mimetic Stretchable Sensors: Design, Properties, and Applications [J]. Nano-Micro Letters, 2024, 16(1): 135-.
[12]	Leqi Lei, Shuo Meng, Yifan Si, Shuo Shi, Hanbai Wu, Jieqiong Yang, Jinlian Hu. Wettability Gradient-Induced Diode: MXene-Engineered Membrane for Passive-Evaporative Cooling [J]. Nano-Micro Letters, 2024, 16(1): 159-.
[13]	Chang Gao, Qing You, Jiancheng Huang, Jingye Sun, Xuan Yao, Mingqiang Zhu, Yang Zhao, Tao Deng. Ultraconformable Integrated Wireless Charging Micro-Supercapacitor Skin [J]. Nano-Micro Letters, 2024, 16(1): 123-.
[14]	Ze Wu, Xiuli Tan, Jianqiao Wang, Youqiang Xing, Peng Huang, Bingjue Li, Lei Liu. MXene Hollow Spheres Supported by a C-Co Exoskeleton Grow MWCNTs for Efficient Microwave Absorption [J]. Nano-Micro Letters, 2024, 16(1): 107-.
[15]	Hailong Ma, Huajing Fang, Xinxing Xie, Yanming Liu, He Tian, Yang Chai. Optoelectronic Synapses Based on MXene/Violet Phosphorus van der Waals Heterojunctions for Visual-Olfactory Crossmodal Perception [J]. Nano-Micro Letters, 2024, 16(1): 104-.

Please choose a citation manager

Content to export
