Optoelectronic Synapses Based on MXene/Violet Phosphorus van der Waals Heterojunctions for Visual-Olfactory Crossmodal Perception

doi:10.1007/s40820-024-01330-7

Abstract

Abstract:

The crossmodal interaction of different senses, which is an important basis for learning and memory in the human brain, is highly desired to be mimicked at the device level for developing neuromorphic crossmodal perception, but related researches are scarce. Here, we demonstrate an optoelectronic synapse for vision-olfactory crossmodal perception based on MXene/violet phosphorus (VP) van der Waals heterojunctions. Benefiting from the efficient separation and transport of photogenerated carriers facilitated by conductive MXene, the photoelectric responsivity of VP is dramatically enhanced by 7 orders of magnitude, reaching up to 7.7 A W⁻¹. Excited by ultraviolet light, multiple synaptic functions, including excitatory postsynaptic currents, paired-pulse facilitation, short/long-term plasticity and “learning-experience” behavior, were demonstrated with a low power consumption. Furthermore, the proposed optoelectronic synapse exhibits distinct synaptic behaviors in different gas environments, enabling it to simulate the interaction of visual and olfactory information for crossmodal perception. This work demonstrates the great potential of VP in optoelectronics and provides a promising platform for applications such as virtual reality and neurorobotics.

Key words: Violet phosphorus, MXene, Van der Waals heterojunctions, Optoelectronic synapses, Crossmodal perception

Hailong Ma, Huajing Fang, Xinxing Xie, Yanming Liu, He Tian, Yang Chai. Optoelectronic Synapses Based on MXene/Violet Phosphorus van der Waals Heterojunctions for Visual-Olfactory Crossmodal Perception[J]. Nano-Micro Letters, 2024, 16(1): 104-.

Hailong Ma, Huajing Fang, Xinxing Xie, Yanming Liu, He Tian, Yang Chai. [J]. Nano-Micro Letters, 2024, 16(1): 104-.

/ / Recommend / Download Citations

URL: https://www.qk.sjtu.edu.cn/nml/EN/10.1007/s40820-024-01330-7

https://www.qk.sjtu.edu.cn/nml/EN/Y2024/V16/I1/104

Figures/Tables 6

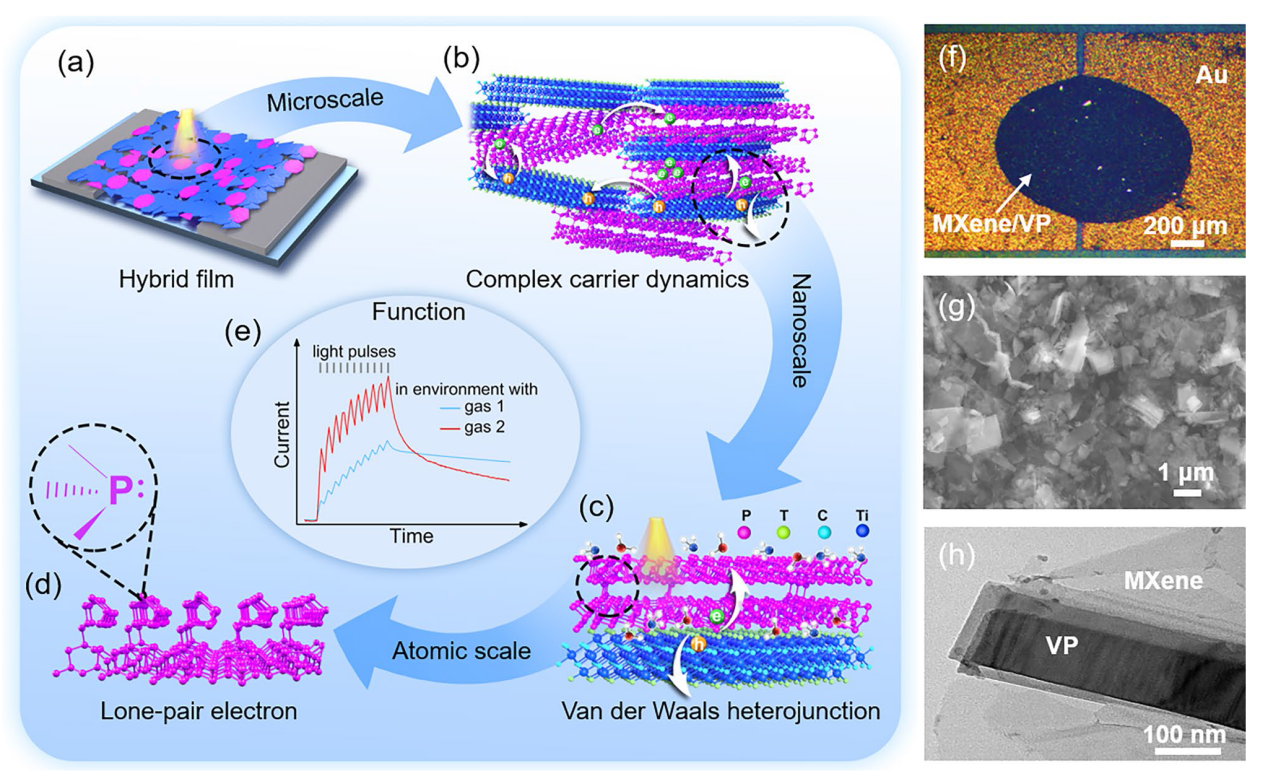

Fig. 1 a Schematic illustration of the device configuration. b Schematic diagram of complex carrier dynamics processes such as separation, hopping transport, trapping and recombination of photogenerated carriers in MXene/VP heterojunctions network. c Schematic diagram of the MXene/VP van der Waals heterojunction. d Atomic structure of VP and lone-pair electrons of P atom. e Output characteristics of the visual-olfactory crossmodal optoelectronic synapse. f Optical microscope image of the device. g SEM image of the MXene/VP hybrid film. h TEM image of a single MXene/VP heterojunction

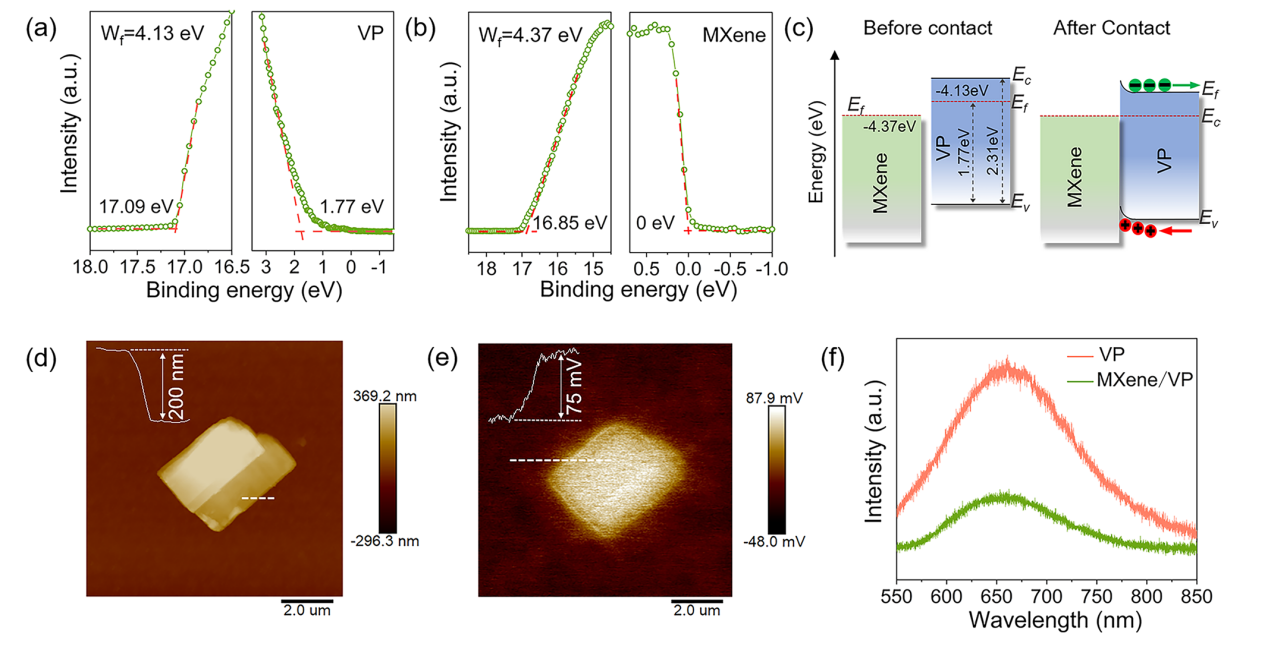

Fig. 2 UPS spectra of a VP and b MXene. c Band structure diagram of MXene and VP before and after forming heterojunction. d The AFM image of the MXene/VP heterojunction. e KPFM image corresponding to d. f PL spectra of the pure VP and MXene/VP hybrid film upon excitation at 532 nm

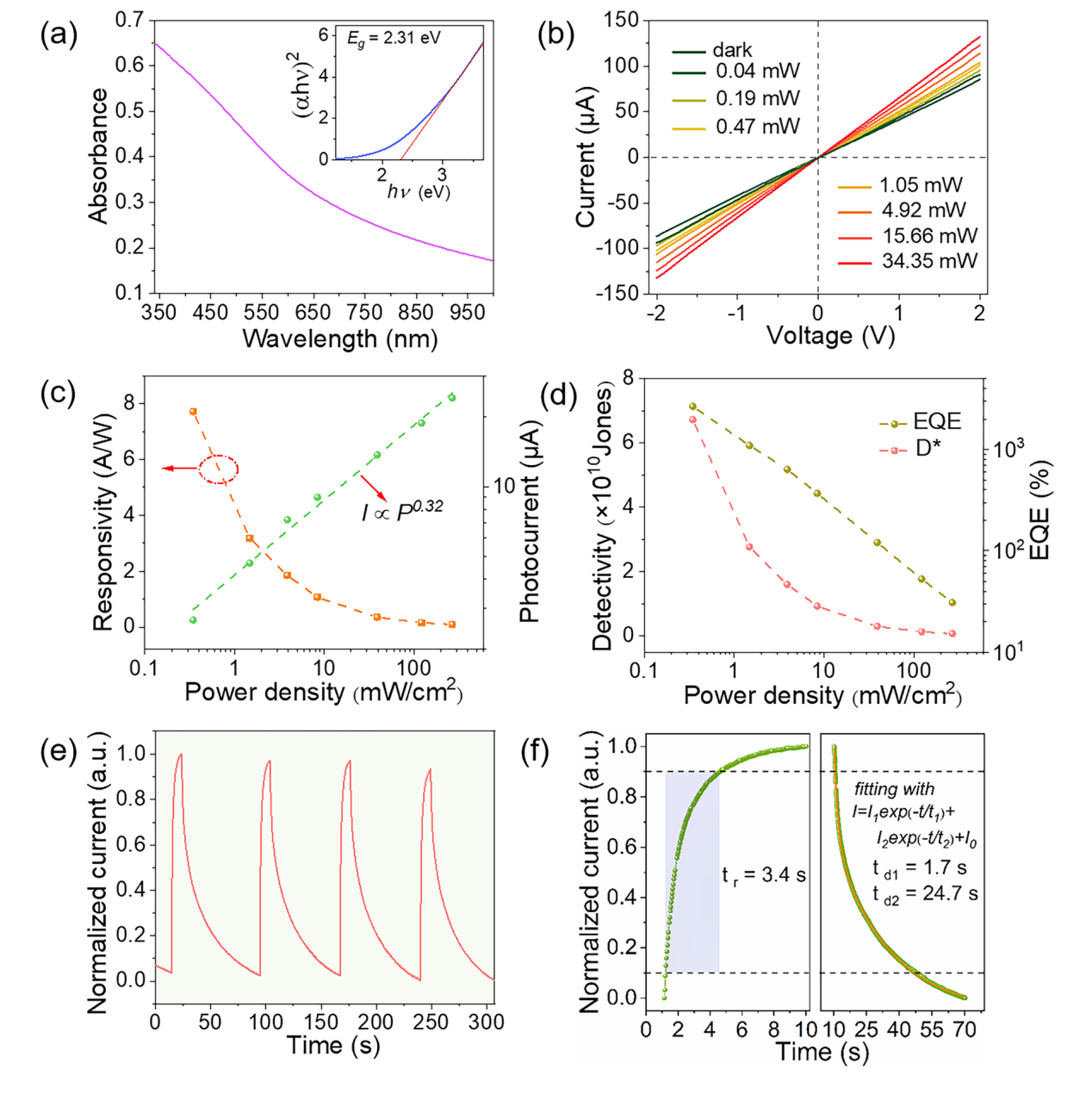

Fig. 3 a Optical absorption spectrum of the VP nanosheets dispersion, inset is the calculated band gap of VP. b I-V curves of the MXene/VP heterojunction device under different light powers at 360 nm. c Photocurrent and responsivity, as well as d D^*and EQE of the MXene/VP heterojunction device under different light power densities. e Time-resolved photoelectric response of the MXene/VP heterojunction device at 360 nm. f Rise and decay times of the MXene/VP heterojunction device

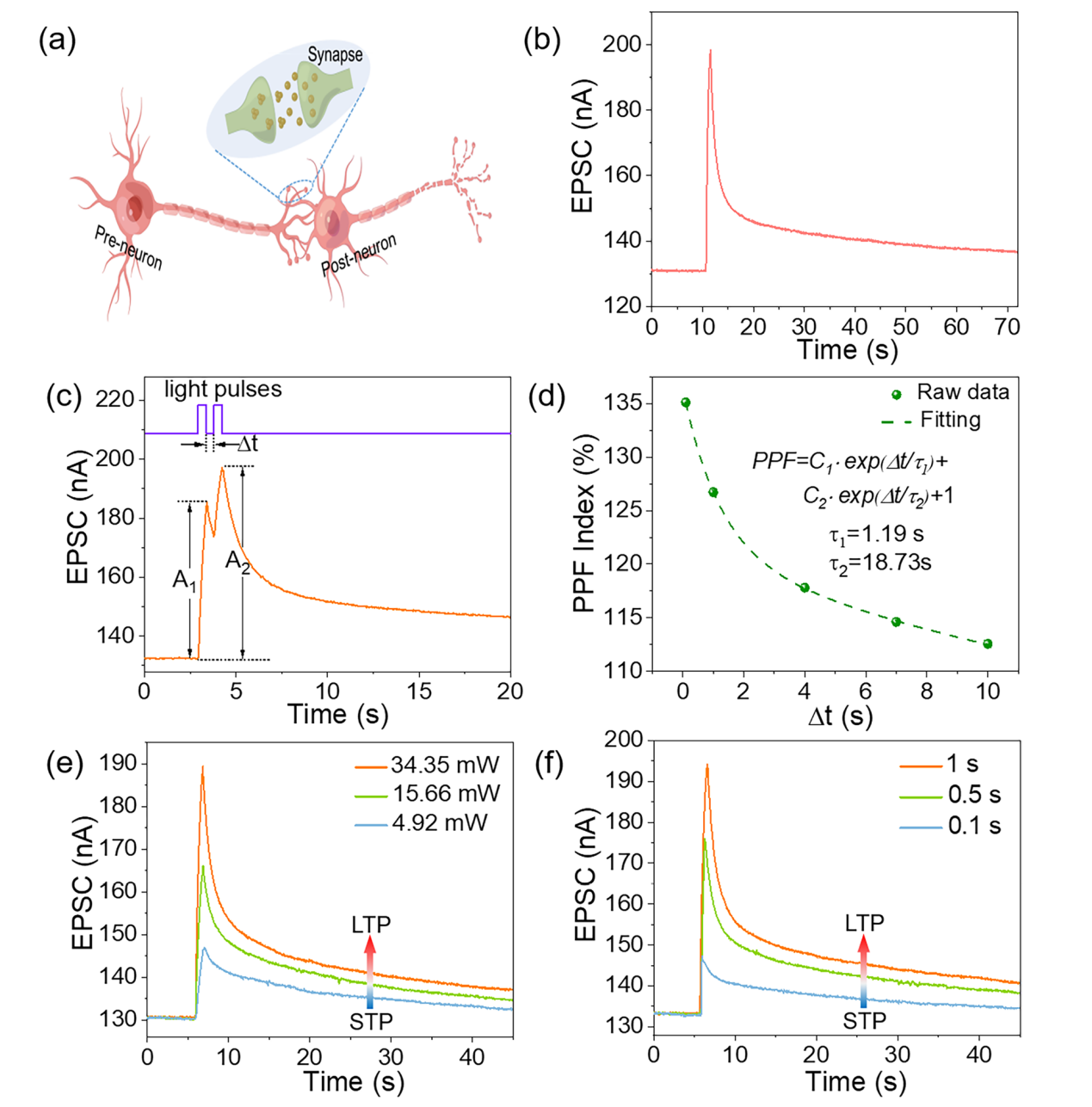

Fig. 4 a Schematic diagram of biological neurons and synapses. b EPSC of the MXene/VP optoelectronic synapse triggered by a light pulse (360 nm, duration of 1 s). c EPSC triggered by a pair of light pulses with an interval time of Δt. d PPF index as a function of the interval time of light pulse pairs. The transition from STP to LTP by increasing the light e pulse intensity and f pulse width

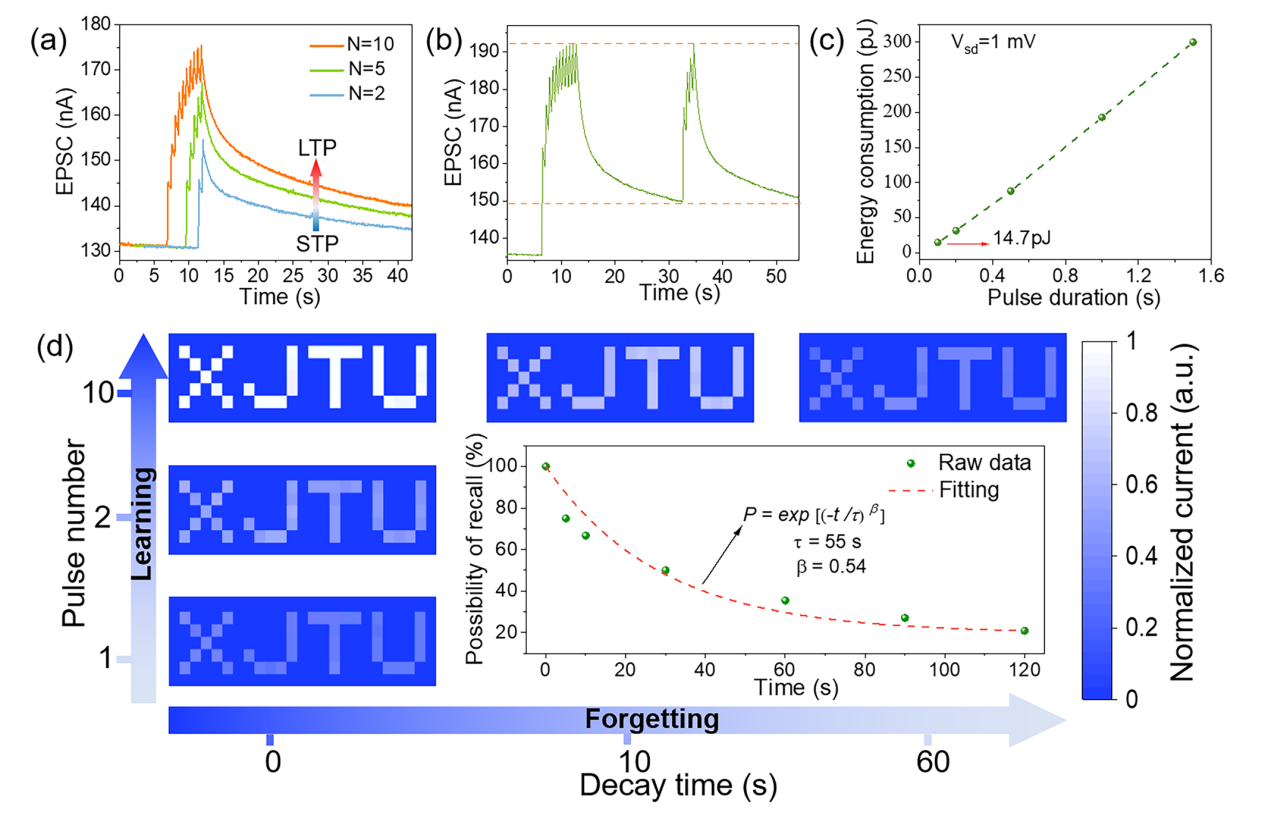

Fig. 5 a The transition from STP to LTP by increasing the number of light pulses. b The “learning-experience” behavior of the MXene/VP optoelectronic synapse. c The energy consumption of the MXene/VP optoelectronic synapse. d Normalized EPSC mapping images with a “XJTU” letter pattern under increasing light pulse numbers (vertical axis) and decay time (horizontal axis). The inset is the image forgetting process fitted with the Ebbinghaus forgetting curve

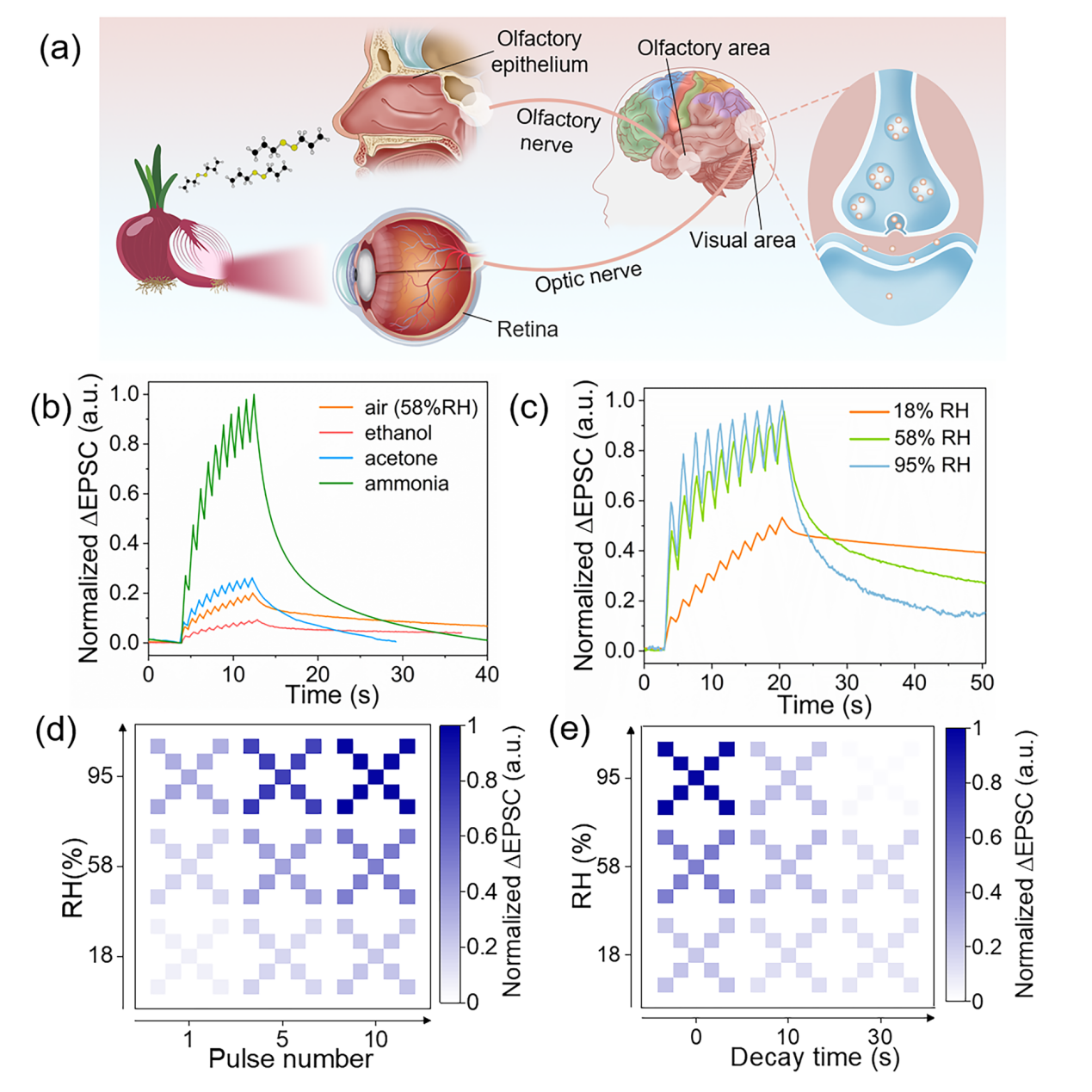

Fig. 6 a Schematic diagram of crossmodal interaction between vision and olfaction in the human perceptual system. b ΔEPSCs triggered by 10 successive light pulses in environments with different gas atmospheres. c ΔEPSCs triggered by 10 successive light pulses in environments with different RH. The d recognition and e forgetting process of the letter “X” pattern in environments with different RH

References 64

1.	J. Guo, A. Guo, Crossmodal interactions between olfactory and visual learning in Drosophila. Science 309(5732), 307-310 (2005). https://doi.org/10.1126/science.1111280
2.	C. Jiang, J. Liu, Y. Ni, S. Qu, L. Liu et al., Mammalian-brain-inspired neuromorphic motion-cognition nerve achieves cross-modal perceptual enhancement. Nat. Commun. 14, 1344 (2023). https://doi.org/10.1038/s41467-023-36935-w
3.	S. Kuang, T. Zhang, Smelling directions: olfaction modulates ambiguous visual motion perception. Sci. Rep. 4, 5796 (2014). https://doi.org/10.1038/srep05796
4.	R. Yuan, Q. Duan, P.J. Tiw, G. Li, Z. Xiao et al., A calibratable sensory neuron based on epitaxial VO₂ for spike-based neuromorphic multisensory system. Nat. Commun. 13, 3973 (2022). https://doi.org/10.1038/s41467-022-31747-w
5.	J. Zhu, X. Zhang, R. Wang, M. Wang, P. Chen et al., A heterogeneously integrated spiking neuron array for multimode-fused perception and object classification. Adv. Mater. 34(24), e2200481 (2022). https://doi.org/10.1002/adma.202200481
6.	H. Tan, Y. Zhou, Q. Tao, J. Rosen, S. van Dijken, Bioinspired multisensory neural network with crossmodal integration and recognition. Nat. Commun. 12, 1120 (2021). https://doi.org/10.1038/s41467-021-21404-z
7.	Y. Qiao, J. Luo, T. Cui, H. Liu, H. Tang et al., Soft electronics for health monitoring assisted by machine learning. Nano-Micro Lett. 15, 66 (2023). https://doi.org/10.1007/s40820-023-01029-1
8.	X. Chen, T. Wang, J. Shi, W. Lv, Y. Han et al., A novel artificial neuron-like gas sensor constructed from CuS quantum dots/Bi₂S₃ nanosheets. Nano-Micro Lett. 14, 8 (2021). https://doi.org/10.1007/s40820-021-00740-1
9.	K. Liang, R. Wang, B. Huo, H. Ren, D. Li et al., Fully printed optoelectronic synaptic transistors based on quantum dot-metal oxide semiconductor heterojunctions. ACS Nano 16(6), 8651-8661 (2022). https://doi.org/10.1021/acsnano.2c00439
10.	X. Han, Z. Xu, W. Wu, X. Liu, P. Yan et al., Recent progress in optoelectronic synapses for artificial visual-perception system. Small Struct. 1(3), 2000029 (2020). https://doi.org/10.1002/sstr.202000029
11.	D. Xie, K. Yin, Z.-J. Yang, H. Huang, X. Li et al., Polarization-perceptual anisotropic two-dimensional ReS₂ neuro-transistor with reconfigurable neuromorphic vision. Mater. Horiz. 9(5), 1448-1459 (2022). https://doi.org/10.1039/d1mh02036f
12.	S.W. Cho, C. Jo, Y.H. Kim, S.K. Park, Progress of materials and devices for neuromorphic vision sensors. Nano-Micro Lett. 14, 203 (2022). https://doi.org/10.1007/s40820-022-00945-y
13.	F. Zhou, Z. Zhou, J. Chen, T.H. Choy, J. Wang et al., Optoelectronic resistive random access memory for neuromorphic vision sensors. Nat. Nanotechnol. 14, 776-782 (2019). https://doi.org/10.1038/s41565-019-0501-3
14.	J. Yu, X. Yang, G. Gao, Y. Xiong, Y. Wang et al., Bioinspired mechano-photonic artificial synapse based on graphene/MoS₂ heterostructure. Sci. Adv. 7, eabd9117 (2021). https://doi.org/10.1126/sciadv.abd9117
15.	S. Wang, X. Chen, C. Zhao, Y. Kong, B. Lin et al., An organic electrochemical transistor for multi-modal sensing, memory and processing. Nat. Electron. 6, 281-291 (2023). https://doi.org/10.1038/s41928-023-00950-y
16.	W. Zhou, X. Zhang, J. Chen, L. Wang, D. Chen, Nostril-specific olfactory modulation of visual perception in binocular rivalry. J. Neurosci. 32(48), 17225-17229 (2012). https://doi.org/10.1523/JNEUROSCI.2649-12.2012
17.	D. Oberfeld, H. Hecht, U. Allendorf, F. Wickelmaier, Ambient lighting modifies the flavor of wine. J. Sens. Stud. 24(6), 797-832 (2009). https://doi.org/10.1111/j.1745-459x.2009.00239.x
18.	B. Zhou, G. Feng, W. Chen, W. Zhou, Olfaction warps visual time perception. Cereb. Cortex 28(5), 1718-1728 (2018). https://doi.org/10.1093/cercor/bhx068
19.	G. Lee, J.-H. Baek, F. Ren, S.J. Pearton, G.-H. Lee et al., Artificial neuron and synapse devices based on 2D materials. Small 17(20), 2100640 (2021). https://doi.org/10.1002/smll.202100640
20.	F. Liao, Z. Zhou, B.J. Kim, J. Chen, J. Wang et al., Bioinspired in-sensor visual adaptation for accurate perception. Nat. Electron. 5, 84-91 (2022). https://doi.org/10.1038/s41928-022-00713-1
21.	W. Huh, D. Lee, C.-H. Lee, Memristors based on 2D materials as an artificial synapse for neuromorphic electronics. Adv. Mater. 32(51), e2002092 (2020). https://doi.org/10.1002/adma.202002092
22.	H.-S. Zhang, X.-M. Dong, Z.-C. Zhang, Z.-P. Zhang, C.-Y. Ban et al., Co-assembled perylene/graphene oxide photosensitive heterobilayer for efficient neuromorphics. Nat. Commun. 13, 4996 (2022). https://doi.org/10.1038/s41467-022-32725-y
23.	X. Zhu, C. Gao, Y. Ren, X. Zhang, E. Li et al., High-contrast bidirectional optoelectronic synapses based on 2D molecular crystal heterojunctions for motion detection. Adv. Mater. 35(24), e2301468 (2023). https://doi.org/10.1002/adma.202301468
24.	K.C. Kwon, J.H. Baek, K. Hong, S.Y. Kim, H.W. Jang, Memristive devices based on two-dimensional transition metal chalcogenides for neuromorphic computing. Nano-Micro Lett. 14, 58 (2022). https://doi.org/10.1007/s40820-021-00784-3
25.	M. Wang, S. Cai, C. Pan, C. Wang, X. Lian et al., Robust memristors based on layered two-dimensional materials. Nat. Electron. 1, 130-136 (2018). https://doi.org/10.1038/s41928-018-0021-4
26.	D. Xie, G. Gao, B. Tian, Z. Shu, H. Duan et al., Porous metal-organic framework/ReS₂ heterojunction phototransistor for polarization-sensitive visual adaptation emulation. Adv. Mater. 35(26), e2212118 (2023). https://doi.org/10.1002/adma.202212118
27.	P.V. Pham, S.C. Bodepudi, K. Shehzad, Y. Liu, Y. Xu et al., 2D heterostructures for ubiquitous electronics and optoelectronics: principles, opportunities, and challenges. Chem. Rev. 122(6), 6514-6613 (2022). https://doi.org/10.1021/acs.chemrev.1c00735
28.	L. Zhang, X. Li, F. Yao, L. Li, H. Huang et al., Fast identification of the crystallographic orientation of violet phosphorus nanoflakes with preferred In-plane cleavage edge orientation. Adv. Funct. Mater. 32(18), 2111057 (2022). https://doi.org/10.1002/adfm.202111057
29.	L. Zhou, J. Kang, Y. Dong, Y. Wang, Y. Li et al., Solvent-stabilized few-layer violet phosphorus and its ultrafast nonlinear optics. Nano Res. 16, 5843-5849 (2023). https://doi.org/10.1007/s12274-022-5224-3
30.	X. Ye, M. Qi, H. Qiang, M. Chen, X. Zheng et al., Laser-ablated violet phosphorus/graphene heterojunction as ultrasensitive ppb-level room-temperature NO sensor. Chin. Chem. Lett. 34(9), 108199 (2023). https://doi.org/10.1016/j.cclet.2023.108199
31.	A.G. Ricciardulli, Y. Wang, S. Yang, P. Samorì, Two-dimensional violet phosphorus: a p-type semiconductor for (opto)electronics. J. Am. Chem. Soc. 144(8), 3660-3666 (2022). https://doi.org/10.1021/jacs.1c12931
32.	L. Jin, R. Guo, T. Han, R. Wang, Y. Zhang, Ultrathin 2D violet phosphorus nanosheets: facile liquid-phase exfoliation, characterization, and photoelectrochemical application. Adv. Funct. Mater. 33(27), 2213583 (2023). https://doi.org/10.1002/adfm.202213583
33.	Y. Li, S. Cai, W.K. Lai, C. Wang, L. Rogée et al., Impurity-induced robust trionic effect in layered violet phosphorus. Adv. Opt. Mater. 10(1), 2101538 (2022). https://doi.org/10.1002/adom.202101538
34.	J. Zhou, T.-Y. Cai, S. Ju, Anisotropic exciton excitations and optical properties of Hittorf’s phosphorene. Phys. Rev. Res. 2, 033288 (2020). https://doi.org/10.1103/physrevresearch.2.033288
35.	Y. Zhang, T. Zhu, N. Zhang, Y. Li, X. Li et al., Air-stable violet phosphorus/MoS₂ van der waals heterostructure for high-responsivity and gate-tunable photodetection. Small 19(33), e2301463 (2023). https://doi.org/10.1002/smll.202301463
36.	M. Naguib, M. Kurtoglu, V. Presser, J. Lu, J. Niu et al., Two-dimensional nanocrystals produced by exfoliation of Ti₃AlC₂. Adv. Mater. 23(37), 4248-4253 (2011). https://doi.org/10.1002/adma.201102306
37.	H. Ma, L. Jia, Y. Lin, H. Fang, W. Wu et al., A self-powered photoelectrochemical ultraviolet photodetector based on Ti₃C₂T_x/TiO₂ in situ formed heterojunctions. Nanotechnology 33(7), 075502 (2021). https://doi.org/10.1088/1361-6528/ac0eaa
38.	A. VahidMohammadi, J. Rosen, Y. Gogotsi, The world of two-dimensional carbides and nitrides (MXenes). Science 372(6547), eabf1581 (2021). https://doi.org/10.1126/science.abf1581
39.	X. Liu, K. Chen, X. Li, Q. Xu, J. Weng et al., Electron matters: recent advances in passivation and applications of black phosphorus. Adv. Mater. 33(50), e2005924 (2021). https://doi.org/10.1002/adma.202005924
40.	Z. Li, Z. Li, Z. Shi, X. Fang, Facet-dependent, fast response, and broadband photodetector based on highly stable all-inorganic CsCu₂I₃ single crystal with 1D electronic structure. Adv. Funct. Mater. 30(28), 2002634 (2020). https://doi.org/10.1002/adfm.202002634
41.	Q. Liang, Q. Wang, Q. Zhang, J. Wei, S.X. Lim et al., High-performance, room temperature, ultra-broadband photodetectors based on air-stable PdSe₂. Adv. Mater. 31(24), e1807609 (2019). https://doi.org/10.1002/adma.201807609
42.	X. Yang, X. Liu, L. Qu, F. Gao, Y. Xu et al., Boosting photoresponse of self-powered InSe-based photoelectrochemical photodetectors via suppression of interface doping. ACS Nano 16(5), 8440-8448 (2022). https://doi.org/10.1021/acsnano.2c02986
43.	F.I. Alzakia, B. Tang, S.J. Pennycook, S.C. Tan, Engineering the photoresponse of liquid-exfoliated 2D materials by size selection and controlled mixing for an ultrasensitive and ultraresponsive photodetector. Mater. Horiz. 7(12), 3325-3338 (2020). https://doi.org/10.1039/D0MH01493A
44.	H. Fang, H. Ma, C. Zheng, S. Lennon, W. Wu et al., A high-performance transparent photodetector via building hierarchical g-C₃N₄ nanosheets/CNTs van der Waals heterojunctions by a facile and scalable approach. Appl. Surf. Sci. 529, 147122 (2020). https://doi.org/10.1016/j.apsusc.2020.147122
45.	L. Groc, D. Choquet, Linking glutamate receptor movements and synapse function. Science 368(6496), eaay4631 (2020). https://doi.org/10.1126/science.aay4631
46.	R.S. Zucker, W.G. Regehr, Short-term synaptic plasticity. Annu. Rev. Physiol. 64, 355-405 (2002). https://doi.org/10.1146/annurev.physiol.64.092501.114547
47.	C.S. Yang, D.S. Shang, N. Liu, G. Shi, X. Shen et al., A synaptic transistor based on quasi-2D molybdenum oxide. Adv. Mater. 29(27), 1700906 (2017). https://doi.org/10.1002/adma.201700906
48.	J. Zeng, J. Zhao, T. Bu, G. Liu, Y. Qi et al., A flexible tribotronic artificial synapse with bioinspired neurosensory behavior. Nano-Micro Lett. 15, 18 (2022). https://doi.org/10.1007/s40820-022-00989-0
49.	J.H. Baek, K.J. Kwak, S.J. Kim, J. Kim, J.Y. Kim et al., Two-terminal lithium-mediated artificial synapses with enhanced weight modulation for feasible hardware neural networks. Nano-Micro Lett. 15, 69 (2023). https://doi.org/10.1007/s40820-023-01035-3
50.	Y. Liu, Y. Wei, M. Liu, Y. Bai, G. Liu et al., Two-dimensional metal-organic framework film for realizing optoelectronic synaptic plasticity. Angew. Chem. Int. Ed. 60(32), 17440-17445 (2021). https://doi.org/10.1002/anie.202106519
51.	N. Li, C. He, Q. Wang, J. Tang, Q. Zhang et al., Gate-tunable large-scale flexible monolayer MoS₂ devices for photodetectors and optoelectronic synapses. Nano Res. 15, 5418-5424 (2022). https://doi.org/10.1007/s12274-022-4122-z
52.	J. Sun, S. Oh, Y. Choi, S. Seo, M.J. Oh et al., Optoelectronic synapse based on IGZO-alkylated graphene oxide hybrid structure. Adv. Funct. Mater. 28(47), 1804397 (2018). https://doi.org/10.1002/adfm.201804397
53.	Y. Chen, Y. Kang, H. Hao, X. Xie, J. Zeng et al., All two-dimensional integration-type optoelectronic synapse mimicking visual attention mechanism for multi-target recognition. Adv. Funct. Mater. 33(6), 2209781 (2023). https://doi.org/10.1002/adfm.202209781
54.	V. Krishnamurthi, T. Ahmed, M. Mohiuddin, A. Zavabeti, N. Pillai et al., A visible-blind photodetector and artificial optoelectronic synapse using liquid-metal exfoliated ZnO nanosheets. Adv. Opt. Mater. 9(16), 2100449 (2021). https://doi.org/10.1002/adom.202100449
55.	Z. Luo, Y. Xie, Z. Li, Y. Wang, L. Li et al., Plasmonically engineered light-matter interactions in Au-nanoparticle/MoS₂ heterostructures for artificial optoelectronic synapse. Nano Res. 15, 3539-3547 (2022). https://doi.org/10.1007/s12274-021-3875-0
56.	S.G. Hu, Y. Liu, T.P. Chen, Z. Liu, Q. Yu et al., Emulating the Ebbinghaus forgetting curve of the human brain with a NiO-based memristor. Appl. Phys. Lett. 103(13), 133701 (2013). https://doi.org/10.1063/1.4822124
57.	Y. Tsushima, Y. Nishino, H. Ando, Olfactory stimulation modulates visual perception without training. Front. Neurosci. 15, 642584 (2021). https://doi.org/10.3389/fnins.2021.642584
58.	H. An, T. Habib, S. Shah, H. Gao, A. Patel et al., Water sorption in MXene/polyelectrolyte multilayers for ultrafast humidity sensing. ACS Appl. Nano Mater. 2(2), 948-955 (2019). https://doi.org/10.1021/acsanm.8b02265
59.	J. Tang, H. Wan, L. Chang, B. Hu, S. Cui et al., Tunable infrared sensing properties of MXenes enabled by intercalants. Adv. Opt. Mater. 10, 2200623 (2022). https://doi.org/10.1002/adom.202200623
60.	L. Sun, S. Qu, Y. Du, L. Yang, Y. Li et al., Bio-inspired vision and neuromorphic image processing using printable metal oxide photonic synapses. ACS Photonics 10(1), 242-252 (2023). https://doi.org/10.1021/acsphotonics.2c01583
61.	Y. Mo, B. Luo, H. Dong, B. Hou, Light-stimulated artificial synapses based on Si-doped GaN thin films. J. Mater. Chem. C 10(36), 13099-13106 (2022). https://doi.org/10.1039/D2TC02168D
62.	Z. Wan, Q. Zhang, F. Hu, Y. Dong, R. Li et al., Topological insulator optoelectronic synapses for high-accuracy binary image recognition using recurrent neural networks. Adv. Opt. Mater. 11, 2201852 (2023). https://doi.org/10.1002/adom.202201852
63.	R.A. Bjork, E.L. Bjork, A new theory of disuse and an old theory of stimulus fluctuation, in From Learning Processes to Cognitive Processes. ed. by A. Healy, S. Kosslyn, R. Shiffrin (Erlbaum, Hillsdale, 1992), pp. 35-67
64.	N. Gaspelin, E. Ruthruff, H. Pashler, Divided attention: an undesirable difficulty in memory retention. Mem. Cogn. 41, 978-988 (2013). https://doi.org/10.3758/s13421-013-0326-5
