Sonographic findings of thyroid tuberculosis: Report of a case and review of literature

doi:10.16150/j.1671-2870.2020.03.012

Abstract

Abstract:

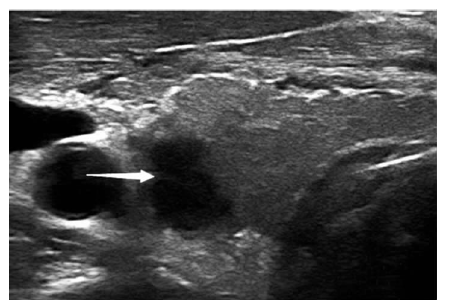

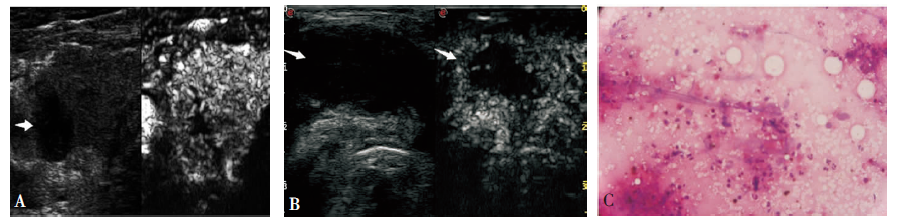

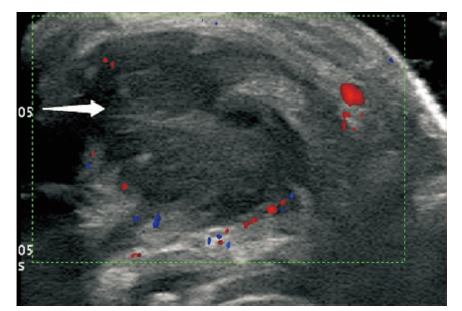

Objective: To investigate the sonographic appearance of thyroid tuberculosis on conventional ultrasound and contrast-enhanced ultrasound (CEUS), so as to improve the understanding and diagnosis of the disease. Methods: The features on conventional ultrasound and CEUS of one case with thyroid tuberculosis were analyzed and reviewed with relevant literature and pathological findings. Results: On conventional ultrasound,it appeared as two inhomogeneously hypoechoic, irregular and ill-defined nodules without calcifications and no changes in the posterior echo was found. CEUS showed heterogeneous and low enhancement with slow wash-in and fast wash-out. The nodules were finally confirmed as thyroid tuberculosis by cytological examination. Conclusions: The sonographic appearance of thyroid tuberculosis is not specific, similar to the features of papillary thyroid carcinoma. The final diagnosis depends on pathological examination.

Key words: Thyroid, Tuberculosis, Ultrasound

CLC Number:

R521.9

FEI Yuanxin, KUANG Lijun, LU Caifeng, LI Weiwei, ZHOU Wei, ZHOU Qinghua. Sonographic findings of thyroid tuberculosis: Report of a case and review of literature[J]. Journal of Diagnostics Concepts & Practice, 2020, 19(03): 269-273.

Figures/Tables 4

References 39

[1]	宋树林, 卢亦波, 牟敏红. 多部位结核合并甲状腺结核1例[J]. 实用放射学杂志, 2018, 34(5):816-817.
[2]	张迅, 曾炜, 常才. 甲状腺结核超声表现1例[J]. 上海医学影像, 2007(3):217.
[3]	彭禹, 徐光, 郭发金. 甲状腺结核的声像图表现[J]. 中国医学影像技术, 2005(09):1425-1426.
[4]	王开旭, 艾尼瓦尔·艾力. 甲状腺结核误诊为甲状腺癌一例[J]. 中国防痨杂志, 2017, 39(9):1026.
[5]	周萍, 周伟, 周建桥, 等. 甲状腺乳头状癌的灰阶超声造影特征与颈部淋巴结转移的关系[J]. 诊断学理论与实践, 2011(01):45-49.
[6]	周伟, 倪晓枫, 叶廷军, 等. 超声引导下小于5 mm甲状腺结节细针穿刺细胞学检查与超声评估的应用价值[J]. 中国超声医学杂志, 2014(1):7-10.
[7]	Borggreve HF, Kiers A, de Heide LJ. A Somali man with a painful thyroid mass: thyroid tuberculosis[J]. Ned Tijdschr Geneeskd, 2005, 149(35):1954-1957. pmid: 16159036
[8]	Al-Mulhim AA, Zakaria HM, Abdel Hadi MS, et al. Thyroid tuberculosis mimicking carcinoma: Report of two cases[J]. Surg Today, 2002, 32(12):1064-1067. doi: 10.1007/s005950200214 URL
[9]	Attifi H, Messary A. Graves' disease revealing thyroid tuberculosis[J]. Pan Afr Med J, 2017, 26:163.
[10]	Ponce Villar x000FA, Planells Roig M, Coret Franco A, et al. Presentation of primary thyroid tuberculosis as a sub-acute thyroid abscess. A case report[J]. Semergen, 2015, 41(6):e58-e60. doi: 10.1016/j.semerg.2014.04.001 URL
[11]	Kohen A, Essakalli L, Amarti A, et al. Thyroid tuberculosis associated with papillary microcarcinoma of the thyroid gland:A case report[J]. Rev Laryngol Otol Rhinol(Bord), 2001, 122(3):205-208.
[12]	Cuesta Hernández M, Gómez Hoyos E, Agrela Rojas E, et al. Thyroid tuberculosis; a rare cause of compressive goiter[J]. Endocrinol Nutr, 2013, 60(8):e11-e13. doi: 10.1016/j.endonu.2012.10.005 URL
[13]	Kabiri H, Atoini F, Zidane A. Thyroid tuberculosis[J]. Ann Endocrinol (Paris), 2007, 68(2-3):196-198. doi: 10.1016/j.ando.2007.04.007 URL
[14]	Tabacu E, Galie N, Galbenu P, et al. Thyroid tuberculosis--a clinical case[J]. Pneumologia, 2000, 49(1):41-44. pmid: 10916415
[15]	Girgin S, Gedik E, Büyükbayram H. Asymptomatic thyroid tuberculosis in a multinodular goitre patient: A case report[J]. Acta Chir Belg, 2007, 107(4):457-459. pmid: 17966549
[16]	Akbulut S, Gomceli I, Cakabay B, et al. Clinical presentation of primary thyroid tuberculosis[J]. Thyroid, 2010, 20(2):231-232. doi: 10.1089/thy.2009.0097 pmid: 20151834
[17]	Goyal P, Mittal D, Ghosh S, et al. Cytological diagnosis of primary thyroid tuberculosis[J]. JNMA, 2015, 53(197):28-30.
[18]	Ozekinci S, Mizrak B, Saruhan G, et al. Histopathologic diagnosis of thyroid tuberculosis[J]. Thyroid, 2009, 19(9):983-986. doi: 10.1089/thy.2009.0189 pmid: 19678750
[19]	Ortiz-Flores A, Gioia F, Montánez-Fernández L, et al. Incidental finding of a primary thyroid tuberculosis[J]. Oxf Med Case Reports, 2017, 2017(6):omx22.
[20]	Meng L, Hu S, Huang L, et al. Papillary thyroid cancer coexisting with thyroid tuberculosis: A case report[J]. Oncol Lett, 2014, 7(5):1563-1565. doi: 10.3892/ol.2014.1901 URL
[21]	Khazaeni K, Irani S. Paralysis of a true vocal cord: A rare presentation of thyroid tuberculosis[J]. Otolaryngol Head Neck Surg, 2012, 146(4):680-681. doi: 10.1177/0194599811421284 URL
[22]	Sanehi S, Dravid C, Chaudhary N, et al. Primary thyroid tuberculosis[J]. Indian J Otolaryngol Head Neck Surg, 2007, 59(2):154-156. doi: 10.1007/s12070-007-0045-y URL
[23]	da Silva BP, Amorim EG, Pavin EJ, et al. Primary thyroid tuberculosis: A rare etiology of hypothyroidism and anterior cervical mass mimicking carcinoma[J]. Arq Bras Endocrinol Metabol, 2009, 53(4):475-478. doi: 10.1590/S0004-27302009000400015 URL
[24]	Levitt DL, Mesmar B, Munir KM. Renal transplant-associated thyroid tuberculosis[J]. J Endocr Soc, 2017, 1(5):553-559. doi: 10.1210/js.2016-1058 pmid: 29264509
[25]	Terzidis K, Tourli P, Kiapekou E, et al. Thyroid tuberculosis[J]. Hormones (Athens), 2007, 6(1):75-79.
[26]	Lioté HA, Spaulding C, Bazelly B, et al. Thyroid tuberculosis associated with mediastinal lymphadenitis[J]. Tubercle, 1987, 68(3):229-231. pmid: 3448799
[27]	Bodh A, Sharma N, Negi L, et al. Thyroid tuberculosis in a child: A rare entity[J]. J Lab Physicians, 2014, 6(1):40-42. doi: 10.4103/0974-2727.129090 URL
[28]	Luiz HV, Pereira BD, Silva TN, et al. Thyroid tuberculosis with abnormal thyroid function--case report and review of the literature[J]. Endocr Pract, 2013, 19(2):e44-e49.
[29]	Majid U, Islam N. Thyroid tuberculosis: A case series and a review of the literature[J]. J Thyroid Res, 2011, 2011:359864.
[30]	El Malki HO, Mohsine R, Benkhraba K, et al. Thyroid tuberculosis: Diagnosis and treatment[J]. Chemotherapy, 2006, 52(1):46-49. pmid: 16340200
[31]	Chandanwale SS, Buch AC, Vimal SS, et al. Thyroid tuberculosis: Presenting symptom of mediastinal tuberculous lymphadenitis--an unusual case[J]. Indian J Tuberc, 2014, 61(1):84-87.
[32]	Sharma K, Kanaujia V, Jain A, et al. Tuberculous orbital abscess associated with thyroid tuberculosis[J]. J Ophthalmic Vis Res, 2011, 6(3):204-207.
[33]	Kang M, Ojili V, Khandelwal N, et al. Tuberculous abscess of the thyroid gland: A report of two cases[J]. J Clin Ultrasound, 2006, 34(5):254-257. doi: 10.1002/jcu.20166 URL
[34]	邓晓刚, 郭梗. 甲状腺结核18例报告[J]. 中华结核和呼吸杂志, 1994, 17(1):35-35.
[35]	刘颖, 林僖, 李安华, 等. 甲状腺乳头状微小癌与非微小癌超声特征的对比研究[J]. 中国超声医学杂志, 2016, 32(9):769-772.
[36]	Zhang B, Jiang XY, Liu JB, et al. Utility of contrast-enhanced ultrasound for evaluation of thyroid nodules[J]. Thyroid, 2010, 20(1):51-57. doi: 10.1089/thy.2009.0045 pmid: 20067379
[37]	周琦, 姜珏, 杜晓鹏, 等. 超声造影在甲状腺乳头状癌中的诊断价值[J]. 中国超声医学杂志, 2011, 27(7):595-597.
[38]	Mondal A, Patra DK. Efficacy of fine needle aspiration cytology in the diagnosis of tuberculosis of the thyroid gland: a study of 18 cases[J]. J Laryngol Otol, 1995, 109(1):36-38. pmid: 7876734
[39]	苏长安. 彩色多普勒超声对亚急性甲状腺炎的诊断价值[J]. 中国超声诊断杂志, 2002, 3(3):230.

作者及年份	例数 (n)	性别	年龄(岁)	临床表现	灰阶超声特征		病理		其他结核部位
作者及年份	例数 (n)	性别	年龄(岁)	临床表现	回声	钙化(n)	穿刺阳性	手术阳性	其他结核部位
Borggreve等^[7],2005年	1	男	21	发热、疼痛	混合	1	1	0	肺
Al-Mulhim等^[8],2002年	2	男	44	无	低	0	0	1	无
		男	22	肿块	混合	0	0	1	无
Attifi等^[9],2017年	1	女	68	肿块	低	0	1	0	无
Ponce Villar等^[10],2015年	1	女	59	疼痛	混合	1	1	0	无
Kohen等^[11],2001年	1	女	47	肿块	低	0	0	1	无
Cuesta Hernández等^[12],2013年	1	女	71	肿块	低	0	0	1	无
Kabiri等^[13],2007年	1	女	70	肿块	低	0	0	1	无
Tabacu等^[14],2000年	1	男	38	肿块	低	0	0	1	无
Girgin等^[15],2007年	1	女	41	肿块	低	0	0	1	无
Akbulut等^[16],2010年	1	女	54	疼痛	混合	1	0	1	无
Goyalet等^[17],2015年	1	女	16	发热、疼痛	混合	1	1	0	无
Ozekinci等^[18],2009年	3	女	平均41.7	肿块(2例)	低(1例),混合(2例)	1	0	1	无
Ortize Flores等^[19],2017年	1	女	63	疼痛	低	0	1	0	无
Meng等^[20],2014年	1	女	56	肿块	低	0	1	1	无
Khazaeni等^[21],2012年	1	男	49	无	低	0	0	1	无
Sanehi等^[22],2007年	1	女	33	发热、疼痛	混合	1	1	0	无
da Silva等^[23],2009年	1	女	62	疼痛	低	0	0	1	无
Levitt等^[24],2017年	1	女	63	发热、疼痛	混合	1	1	0	无
Terzidis等^[25],2007年	1	男	49	发热、疼痛	低	1	0	1	肺
Lioteé等^[26],1987年	1	男	25	疼痛	低	1	0	1	纵隔
Bodh等^[27],2014年	1	女	11	疼痛	低	0	1	0	无
Luiz等^[28],2013年	1	男	45	疼痛	低	0	1	0	无
Majid等^[29],2011年	1	女	49	无	低	0	0	1	无
El Malki等^[30],2006年	8	女(6例) 男(2例)	平均52.7	肿块（7例）	低（5例）混合（3例）	1	1	7	无
Chandanwale等^[31],2014年	1	男	33	疼痛	混合	0	1	0	纵隔
Sharma等^[32],2011年	1	男	6	疼痛	混合	1	1	0	左上眼睑
