Application of 2D-ultrasonography in prenatal assessment of fetal thymus development

doi:10.16150/j.1671-2870.2021.05.010

Abstract

Abstract:

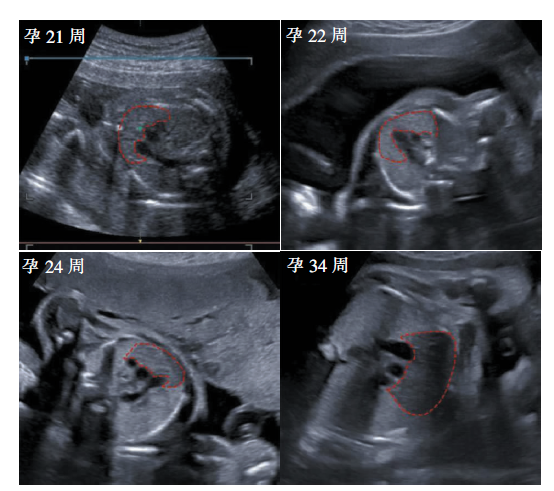

Objective: To investigate the value of prenatal ultrasound measurement of thymus size and to determine whether maternal administration of euthyrox affects fetal thymus development. Methods: A total of 311 healthy pregnant women(18-40 weeks of gestation)(healthy Group) were enrolled,and prenatal ultrasound examination were performed once in each pregnancy in the department of ultrasound of the hospital from January 2018 to January 2021.In addition, 31 pregnant women (14 cases at 28 weeks and 17 cases at 34 weeks) who took euthyrox(euthyrox Group) for hypothyroidism were selected. The morphology, echo and size of fetal thymus were observed and the anteroposterior diameter, transverse diameter, circumference and area of fetal thymus were measured by 2D-ultrasound;The correlation between ultrasonic parameters and gestational age in healthy group and was analyzed. The differences in thymus related parameters between the euthyrox Group and health Group were compared to determine if maternal administration of euthyrox may affect fetal thymus development. Results: The parameters of fetal thymus (the anteroposterior diameter, transverse diameter, circumference and area)in the healthy group were linearly correlated with gestational age. There was no significant difference in parameters of fetal thymus between the euthyrox group and the healthy group during the same period. Conclusions: 2D-ultrasound may serve as an effective approach to assess prenatal thymus development,and maternal administration of euthyrox had no effect on fetal thymus development.

Key words: Ultrasound, Fetal thymus, Hypothyroidism

CLC Number:

R445.1

YANG Tian, JI Xiang, NIU Jianmei, KONG Xiaoxiao, LV Mingli. Application of 2D-ultrasonography in prenatal assessment of fetal thymus development[J]. Journal of Diagnostics Concepts & Practice, 2021, 20(05): 471-474.

Figures/Tables 5

References 13

[1]	Sciaky-Tamir Y, Hershkovitz R, Mazor M, et al. The use of imaging technology in the assessment of the fetal inflammatory response syndrome-imaging of the fetal thymus[J]. Prenat Diagn, 2015,35(5):413-419. doi: 10.1002/pd.4560 URL
[2]	玄英华, 吴青青, 王莉. 超声检测胎儿胸腺的意义及研究进展[J/CD]. 中华医学超声杂志(电子版), 2013,10(10):8-10.
[3]	Karl K, Heling KS, Sarut Lopez A, et al. Thymic-thoracic ratio in fetuses with trisomy 21, 18 or 13[J]. Ultrasound Obstet Gynecol, 2012,40(4):412-417. doi: 10.1002/uog.11068 pmid: 22173875
[4]	Olearo E, Oberto M, Oggè G, et al. Thymic volume in healthy, small for gestational age and growth restricted fetuses[J]. Prenat Diagn, 2012,32(7):662-667. doi: 10.1002/pd.3883 URL
[5]	Mohamed N, Eviston DP, Quinton AE, et al. Smaller fetal thymuses in pre-eclampsia: a prospective cross-sectional study[J]. Ultrasound Obstet Gynecol, 2011,37(4):410-415. doi: 10.1002/uog.8953 pmid: 21308839
[6]	Melville JM, Bischof RJ, Meeusen EN, et al. Changes in fetal thymic immune cell populations in a sheep model of intrauterine inflammation[J]. Reprod Sci, 2012,19(7):740-747. doi: 10.1177/1933719111432873 URL
[7]	Kuypers E, Wolfs TG, Collins JJ, et al. Intraamniotic lipopolysaccharide exposure changes cell populations and structure of the ovine fetal thymus[J]. Reprod Sci, 2013, 20(8):946-956. doi: 10.1177/1933719112472742 pmid: 23314960
[8]	Aksakal SE, Kandemir O, Altınbas S, et al. Fetal tyhmus size as a predictor of histological chorioamnionitis in preterm premature rupture of membranes[J]. J Matern Fetal Neonatal Med, 2014,27(11):1118-1122. doi: 10.3109/14767058.2013.850666 pmid: 24089697
[9]	Li L, Bahtiyar MO, Buhimschi CS, et al. Assessment of the fetal thymus by two- and three-dimensional ultrasound during normal human gestation and in fetuses with congenital heart defects[J]. Ultrasound Obstet Gynecol, 2011,37(4):404-409. doi: 10.1002/uog.8853 pmid: 20886509
[10]	Gamez F, De Leon-Luis J, Pintado P, et al. Fetal thymus size in uncomplicated twin and singleton pregnancies[J]. Ultrasound Obstet Gynecol, 2010,36(3):302-307. doi: 10.1002/uog.7578 pmid: 20131331
[11]	夏春华, 郑艳芬, 曾华北. 胎儿胸腺的临床应用及超声测评胎儿胸腺发育的研究进展[J]. 中国医学工程, 2015,23(10): 208-209.
[12]	Chaoui R, Heling KS, Lopez AS, et al. The thymic-thoracic ratio in fetal heart defects: a simple way to identify fetuses at high risk for microdeletion 22q11[J]. Ultrasound Obstet Gynecol, 2011,37(4):397-403. doi: 10.1002/uog.8952 pmid: 21308838
[13]	杜金超, 肖智博, 吕富荣, 等. 快速平衡稳态采集与单次激发快速自旋回波序列诊断正常胎儿胸腺的价值比较[J]. 中国医学影像技术, 2017,33(10):1526-1530.

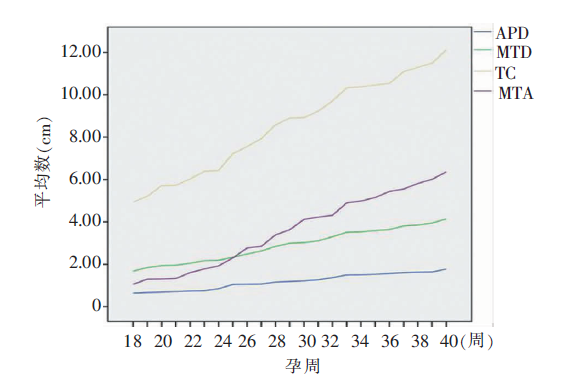

孕周	例数（n）	APD（cm）	MTD（cm）	TC（cm）	MTA（cm²）
18	5	0.64±0.10	1.67±0.63	4.94±0.32	1.06±0.51
19	5	0.67±0.11	1.85±0.16	5.21±0.37	1.30±0.17
20	5	0.69±0.12	1.94±0.27	5.71±0.63	1.31±0.75
21	5	0.71±0.17	1.96±0.31	5.73±0.33	1.33±0.13
22	22	0.74±0.13	2.05±0.23	6.03±0.29	1.61±0.31
23	10	0.75±0.12	2.17±0.19	6.39±0.79	1.78±0.45
24	15	0.85±0.15	2.19±0.26	6.43±0.65	1.93±0.37
25	13	1.05±0.46	2.33±0.51	7.22±0.59	2.30±0.44
26	7	1.06±0.33	2.49±0.44	7.56±0.55	2.77±0.65
27	8	1.07±0.17	2.63±0.39	7.93±1.20	2.85±0.58
28	26	1.16±0.25	2.84±0.19	8.58±0.81	3.39±0.63
29	27	1.19±0.11	3.00±0.27	8.90±0.94	3.63±0.76
30	17	1.22±0.13	3.03±0.28	8.92±0.29	4.12±0.56
31	15	1.27±0.29	3.11±0.25	9.23±1.10	4.23±1.09
32	29	1.37±0.23	3.30±0.30	9.71±0.99	4.31±0.69
33	12	1.50±0.22	3.51±0.33	10.33±0.87	4.90±0.95
34	31	1.51±0.36	3.53±0.32	10.38±1.04	4.99±1.32
35	14	1.53±0.29	3.59±0.63	10.46±1.32	5.15±1.00
36	4	1.57±0.39	3.64±0.58	10.54±0.64	5.44±1.49
37	14	1.61±0.16	3.81±0.37	11.09±1.04	5.55±0.62
38	6	1.63±0.12	3.85±0.46	11.30±1.02	5.82±0.42
39	4	1.64±0.31	3.95±0.28	11.49±0.92	6.01±0.89
40	3	1.77±0.21	4.14±0.38	12.13±1.35	6.37±0.98

指标	APD	MTD	TC	MTA
孕周	0.867	0.909	0.866	0.828
P值	<0.001	<0.001	<0.001	<0.001

参数	线性回归方程	P值
APD	APD=-0.387+0.054×孕周	<0.01
MTD	MTD=-0.395+0.113×孕周	<0.01
TC	TC=-1.002+0.329×孕周	<0.01
MTA	MTA=-3.899+0.258×孕周	<0.01
