Synergistic expression of survivin and TK1 in breast cancer tissues and its clinical significance

doi:10.16150/j.1671-2870.2025.05.007

Abstract

Abstract:

Objective This study aims to analyze the expression of survivin/BIRC5 and its related genes in breast cancer, as well as their clinicopathological and prognostic roles. Methods The Gene Expression Profiling Interactive Analysis (GEPIA) database was used to analyze survivin expression differences between breast cancer and normal breast tissues, identify the gene most strongly correlated with survivin, and evaluate their association with breast cancer stages. The Kaplan-Meier plotter database was used to assess the relationship between the expression of survivin and related genes and prognosis of breast cancer patients. Immunohistochemistry (IHC) was performed on 96 postoperative breast cancer tissue specimens, collected from January 2016 to March 2019, to validate the expression of survivin and related genes, analyze their correlation, and assess clinicopathological and prognostic significance (5-year overall survival [OS] rate and 5-year disease-free survival [DFS] rate). Results Bioinformatics analysis of the GEPIA database showed that survivin expression was significantly elevated in breast cancer tissues. The gene with the strongest correlation with its expression was thymidine kinase 1 (TK1), which was also over-expressed in breast cancer tissues. Both of them exhibited synergistic expression, increasing with advanced cancer stages (P<0.05) and correlating negatively with recurrence-free survival in breast cancer patients (P<0.001). IHC results from postoperative tissue samples confirmed a significant positive correlation between survivin and TK1 expression levels. Survivin expression correlated with lymph node metastasis and TNM stage (P<0.01), while TK1 correlated with histological grade, lymph node metastasis, and TNM stage (P<0.05). Survivin and TK1 co-expression was observed in 28 cases (29.17%), showing significant associations with higher histological grade, lymph node metastasis, and advanced-stage disease (P<0.05). In prognostic analysis, the five-year OS rate and five-year DFS rate were 61.5% and 47.9%, respectively. Positive survivin (OS HR=2.225, 95%CI: 1.160-4.271, P=0.016; DFS HR=3.594, 95%CI: 2.018-6.401, P<0.001) and TK1 (OS HR=3.176, 95%CI:1.658-6.083, P<0.001; DFS HR=3.609, 95%CI: 2.057-6.330, P<0.001) predicted poorer prognosis, with co-expression showing higher hazard ratios (5-year OS HR=4.486, 95%CI: 2.335-8.617, P<0.001; 5-year DFS HR=4.469, 95%CI: 2.515-7.942, P<0.001). Conclusions Survivin and TK1 exhibit strong synergistic expression in breast cancer tissues. Their co-expression indicates high grade, lymph node metastasis, advanced stage, and poor prognosis. The combined detection of survivin and TK1 is of great significance for evaluating the clinicopathology and prognosis of breast cancer.

Key words: Breast cancer, Survivin, Thymidine kinase1, Clinicopathology, Prognosis

CLC Number:

R737.9
R446

XU Tu, SHI Chuntao, HAN Wei, YAO Liqian, CHEN Chaobo, FANG Ling, GU Tingting. Synergistic expression of survivin and TK1 in breast cancer tissues and its clinical significance[J]. Journal of Diagnostics Concepts & Practice, 2025, 24(05): 518-528.

Figures/Tables 14

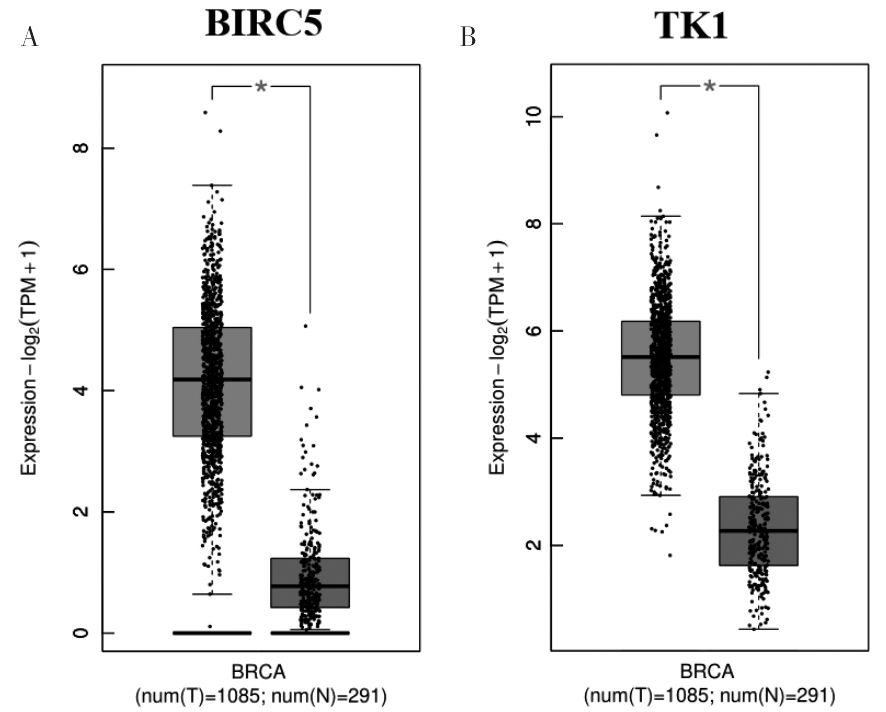

Figure 1

Table 1

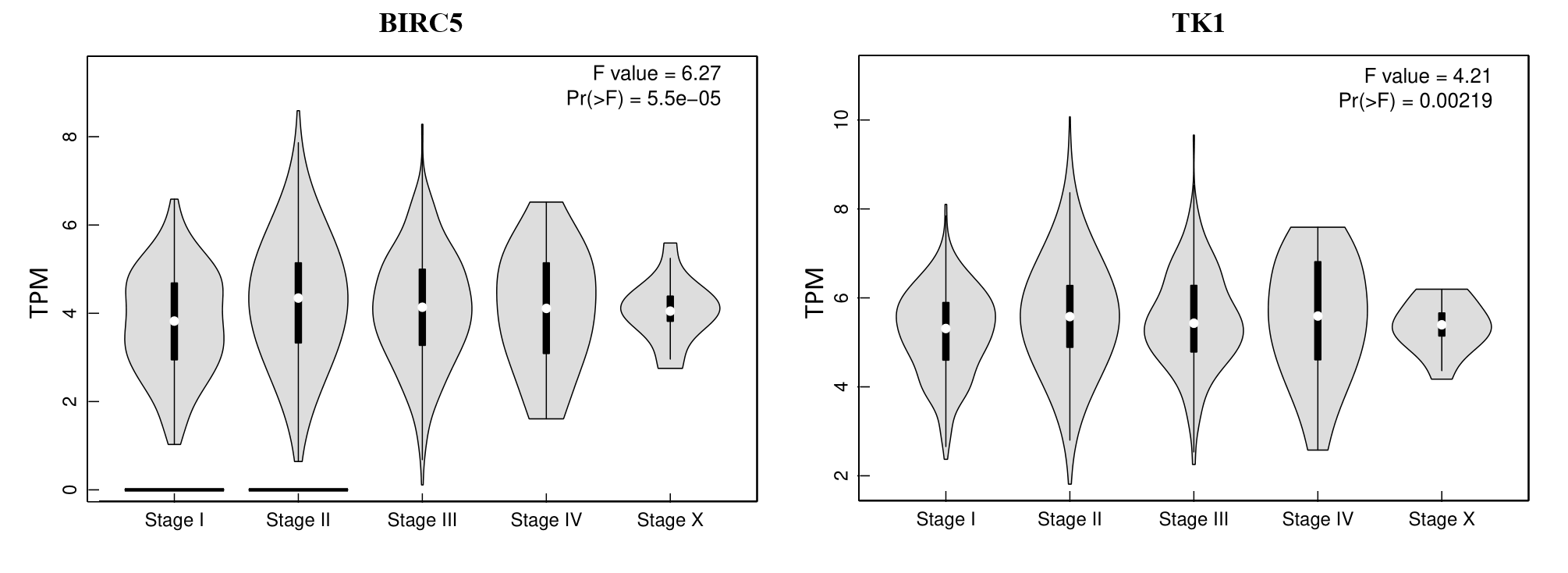

Figure 2

Figure 3

Figure 4

Figure 5

Table 2

Table 3

Table 4

Figure 6

Figure 7

Table 5

Figure 8

Table 6

References 22

[1]	章新, 郑莹. 2005—2020年中国国家及分省疾病监测点的肿瘤死亡疾病负担数据解读[J]. 诊断学理论与实践, 2024, 23 (4): 371-377.
	ZHANG X, ZHENG Y. Interpretation of cancer mortality burden data from national and provincial disease surveillance points in China from 2005 to 2020[J]. J Diagn Concepts Pract, 2024, 23 (4):371-377.
[2]	杨隽. 基于差异共表达分析的三阴性乳腺癌基因标志物及分型研究[D]. 西北民族大学, 2023.
	YANG J. Research on gene markers and classification of triple-negative breast cancer based on differential co-expression analysis[D]. Northwest Minzu University, 2023.
[3]	苏芃, 毛晓韵, 关舒. 三阴性乳腺癌肿瘤微环境特征免疫相关生物学标志物筛选及功能预测分析[J]. 中国肿瘤外科杂志, 2020, 12(4):348-355.
	SU P, MAO X, GUAN S, et al. Screening and functional prediction analysis of immune-related biomarkers in the tumor microenvironment of triple-negative breast cancer[J]. Chin J Surg Oncol, 2020, 12 (4):348-355.
[4]	SHI C, MA J, SHI QF, et al. High survivin and low zinc finger of the cerebellum 1 expression indicates poor prognosis in triple-negative breast carcinoma[J]. J Breast Cancer, 2019, 22(2):248-259.
[5]	林红霞, 韩鹭, 刘效伊. Survivin和Ezrin蛋白在乳腺癌组织中表达及病理意义[J]. 中国老年学杂志, 2021, 41 (23): 5387-5389.
	LIN H, HAN L, LIU X. Expression and pathological significance of survivin and ezrin proteins in breast cancer tissues[J]. CJOG, 2021, 41 (23):5387-5389.
[6]	李科威. TK1通过TFDP1调控Wnt/β-catenin信号通路促进膀胱癌细胞增殖的研究[D]. 山东大学, 2021.
	LI K. Research on the promotion of bladder cancer cell proliferation by TK1 through TFDP1 regulation of the Wnt/β-catenin signaling pathway[D]. Shandong University, 2021.
[7]	周家田, 梁卫东, 吴鹏, 等. 胸苷激酶1在恶性肿瘤中的作用[J]. 生命的化学, 2019, 39(3):498-503.
	ZHOU J, LIANG W, WU P, et al. The role of thymidine kinase 1 in malignant tumors[J]. Chem Life, 2019, 39(3):498-503.
[8]	SOOA A, MISHRA D, KHARBANDA O, et al. Role of S100 A7 as a diagnostic biomarker in oral potentially malignant disorders and oral cancer[J]. J Oral Maxillofac Pathol, 2022, 26(2):166-172.
[9]	LAZOW M, FULLER C, TROUT A, et al. Immunohistochemical assessment and clinical, histopathologic, and molecular correlates of membranous somatostatin type-2A receptor expression in high-risk pediatric central nervous system tumors[J]. Front Oncol, 2022, 12:996489.
[10]	张亮杰, 王显斌, 刘俊. 乳腺癌血清TPS、TK1表达与病理特点的关系[J]. 解放军医药杂志, 2020, 32(2):32-35,47.
	ZHANG L, WANG X, LIU J. Relationship between serum TPS and TK1 expression and pathological characteristics in breast cancer[J]. Med & Pharm J Chin PLA, 2020, 32(2):32-35,47.
[11]	朱娟, 陈鑫苹, 胡俊杰, 等. Survivin调控信号通路PTEN/PI3K/AKT对CNE-2细胞增殖和凋亡机制研究[J]. 广东医学, 2019, 40 (9):1231-1237.
	ZHU J, CHEN X, HU J, et al. Study on the mechanism of survivin regulating the PTEN/PI3K/AKT signal pathway on the proliferation and apoptosis of CNE-2 cells[J]. Guangdong Med J, 2019, 40 (9):1231-1237.
[12]	ZHANG Y, GAO H, ZHANG L, et al. Novel germline KIT variants in families with severe piebaldism: case series and literature review[J]. J Clin Lab Anal, 2024, 38(11-12):e25073.
[13]	PATRICIA Q, RICARDO Q, MOREIRA M, et al. Survivin expression as a prognostic marker for breast cancer.[J]. Rev Assoc Med Bras (1992), 2023, 69 (9):e20230167-e20230167.
[14]	张富亮. TK1、HER2及Ki-67的表达与乳腺癌腋窝淋巴结转移的相关性研究[D]. 承德医学院, 2022.
	Zhang Fuliang. Correlation study of TK1, HER2 and Ki-67 expression with axillary lymph node metastasis in breast cancer[D]. Chengde Medical University, 2022.
[15]	唐利娟, 程智勇, 门晓彦, 等. 血清TK1结合肿瘤标记物评估乳腺癌新辅助化疗疗效的价值观察[J]. 川北医学院学报, 2022, 37 (7):894-897.
	TANG L, CHENG Z, MEN X, et al. Value of serum TK1 combined with tumor markers in evaluating the efficacy of neoadjuvant chemotherapy for breast cancer[J]. J North Sichuan Med College, 2022, 37 (7):894-897.
[16]	徐亮, 熊秋云. Survivin在乳腺癌中作用的研究进展[J]. 中华乳腺病杂志(电子版), 2012, 6 (04): 429-435.
	XU L, XIONG Q. Research progress on the role of survivin in breast cancer[J]. Chin J Breast Dis (El Ed), 2012, 6 (4):429-435.
[17]	梅思思, 田世维, 段彦林, 等. SIRT2、P65和Survivin在乳腺癌中的表达及其与临床病理特征的关系[J]. 贵州医科大学学报, 2024, 49 (6):819-825.
	MEI S, TIAN S, DUAN Y, et al. Expression of SIRT2, P65 and survivin in breast cancer and their relationship with clinical pathological characteristics[J]. J Guizhou Med Univ, 2024, 49 (6):819-825.
[18]	李伟清, 林永平, 黄玉林. 血清miR-21、sICAM-1、CA153联合检测诊断乳腺癌的价值[J]. 深圳中西医结合杂志, 2022, 32(9):71-73.
	LI W, LIN Y, HUANG Y. Value of combined detection of serum miR-21, sICAM-1 and CA153 in the diagnosis of breast cancer[J]. Shenzhen J Integr Tradit Chin West Med, 2022, 32(9):71-73.
[19]	KUCUKZEYBEK B, KUCUKZEYBEK Y, BASBINAR Y, et al. The prognostic role of survivin expression in breast cancer: A systematic review and meta-analysis[J]. Medicine, 2024, 103 (40):e40013.
[20]	张佳佳. 长春、上海两地乳腺癌疾病构成比及临床相关因素初步比较分析[D]. 吉林大学, 2005.
	ZHANG J. A Preliminary comparative analysis of the composition ratio of breast cancer diseases and clinical related factors in Changchun and Shanghai[D]. Jilin University, 2005.
[21]	吴春晓, 庞怡, 顾凯, 等. 2002—2017年上海市女性乳腺癌生存分析[J]. 中国癌症杂志, 2025, 35(3):291-297. doi: 10.19401/j.cnki.1007-3639.2025.03.005
	WU C, PANG Y, GU K, et al. Survival analysis of female breast cancer in Shanghai from 2002 to 2017[J]. China Oncol, 2025, 35 (3):291-297.
[22]	龙欣甜, 文洪梅, 李云飞, 等. 云南省23354例乳腺癌患者生存状况分析[J]. 实用肿瘤杂志, 2025, 40 (1):6-13.
	LONG X, WEN H, LI Y, et al. Analysis of the survival status of 23,354 breast cancer patients in Yunnan province[J]. J Pract Oncol, 2025, 40 (1):6-13.

Gene symbol	Genc ID	R
TK1	ENSG00000167900.11	0.82
ALYREF	ENSG00000183684.7	0.70
KIF2C	ENSG00000142945.12	0.64
NCAPH	ENSG00000121152.9	0.64
PLK1	ENSGU000166851.14	0.64
KIF4A	ENSG00000N9088911	0.63
AURKB	ENSG00000178999.12	0.63
TROAP	ENSG00000135451.12	0.63
CCNB2	ENSG00000157456.7	0.63
IPX2	ENSGU0000D88325.15	0.63

Items	Univariate analysis			Multivariate analysis
Items	HR	95%CI	P	HR	95%CI	P
Overall survival
Survivin: Positive vs Negative	2.225	1.160-4.271	0.016	1.130	0.522-2.446	0.756
TK1: Positive vs Negative	3.176	1.658-6.083	<0.001	1.928	0.907-4.100	0.088
Age: ≥56 y vs <56 y	0.992	0.520-1.890	0.980	1.427	0.723-2.817	0.306
Tumor size: >5 cm vs ≤5 cm	1.988	1.037-3.812	0.039	1.327	0.667-2.643	0.421
Histological differentiation: 3 vs 1-2	2.203	1.153-4.208	0.017	1.241	0.623-2.474	0.539
Lymph node metastasis: Yes vs No	4.064	1.439-11.479	0.008	0.929	0.251-3.443	0.913
TNM stage: Ⅲ and Ⅳ vsⅠ and Ⅱ	7.089	3.412-14.728	<0.001	5.705	2.218-14.671	<0.001
Disease-free survival
Survivin: Positive vs Negative	3.594	2.018-6.401	<0.001	2.448	1.201-4.989	0.014
TK1: Positive vs Negative	3.609	2.057-6.330	<0.001	1.997	1.035-3.854	0.039
Age: ≥56 y vs <56 y	0.845	0.484-1.474	0.553	0.829	0.446-1.543	0.555
Tumor size: >5 cm vs ≤5 cm	1.381	0.774-2.461	0.274	1.101	0.578-2.097	0.769
Histological differentiation: 3 vs 1-2	1.344	0.748-2.414	0.322	0.694	0.363-1.325	0.268
Lymph node metastasis: Yes vs No	2.398	1.164-4.940	0.018	0.805	0.316-2.054	0.650
TNM stage: Ⅲ and Ⅳ vs Ⅰ and Ⅱ	5.015	2.802-8.976	<0.001	4.225	1.904-9.376	<0.001

Items	Univariate analysis			Multivariate analysis
Items	HR	95%CI	P	HR	95%CI	P
Overall survival
Survivin+TK1+: Yes vs No	4.486	2.335-8.617	<0.001	2.951	1.455-5.983	0.003
Age: ≥56 y vs <56 y				1.542	0.778-3.055	0.215
Tumor size: >5 cm vs ≤5 cm				1.285	0.646-2.558	0.475
Histological differentiation: 3 vs 1-2				1.064	0.525-2.158	0.863
Lymph node metastasis: Yes vs No				0.887	0.242-3.255	0.857
TNM stage: Ⅲ and Ⅳ vs Ⅰ and Ⅱ				5.806	2.249-14.989	<0.001
Disease-free survival
Survivin+TK1+: Yes vs No	4.469	2.515-7.942	<0.001	3.575	1.875-6.815	<0.001
Age: ≥56 y vs <56 y				0.988	0.547-1.783	0.967
Tumor size: >5 cm vs ≤5 cm				0.945	0.505-1.769	0.860
Histological differentiation: 3 vs 1-2				0.608	0.313-1.181	0.142
Lymph node metastasis: Yes vs No				0.879	0.347-2.225	0.786
TNM stage: Ⅲ and Ⅳ vs Ⅰ and Ⅱ				4.910	2.231-10.805	<0.001
